Swing Handles
with rod control

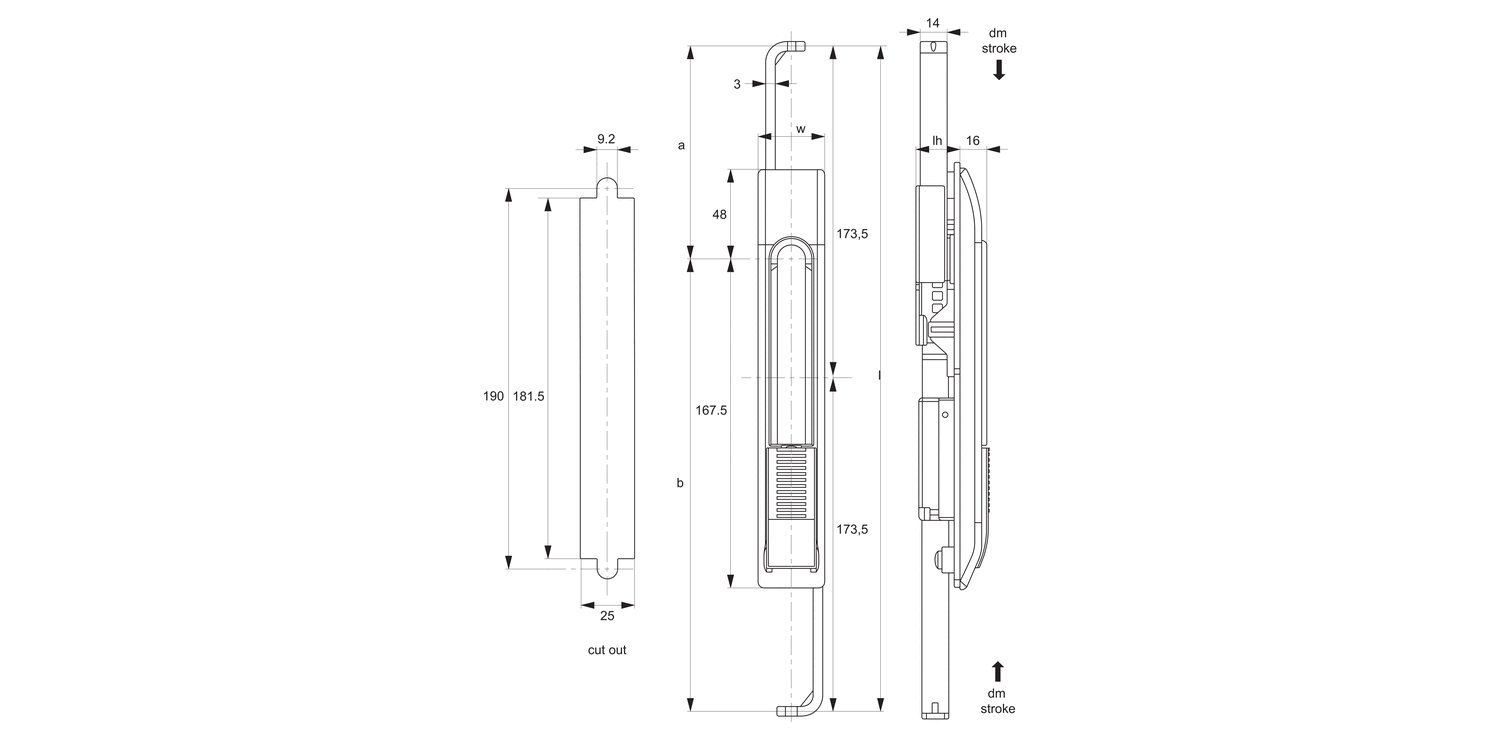

B2450 Swing Handles - with Rod Control
40mm euro cylinder lock - sliding cover - polyamide, material: Polyamide
Alternative products you may wish to consider
Finish
Black Coated
Lock type
40 Euro
Key type
Keyed Alike
l
347
w
36
lh
20
a
113.8
b
233.2
dm stroke
135°
23.5
dm stroke
90°
16.0
£ 17.24 per unit (click for quantity discounts)
Finish
Lock type
Key type
l
w
lh
a
b
dm stroke
135°
dm stroke
90°
| Price & Availability | Article | Finish | Lock type | Key type | l | w | lh | a | b | dm stroke 135° | dm stroke 90° | ||||||||||||||||||
| B2450.AW0010 | Black Coated | 40 Euro | Keyed Alike | 347 | 36 | 20 | 113.8 | 233.2 | 23.5 | 16.0 | |||||||||||||||||||
£ 17.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Finish Black Coated Lock type 40 Euro Key type Keyed Alike l 347 w 36 lh 20 a 113.8 b 233.2 dm stroke
135° 23.5 dm stroke
90° 16.0 | |||||||||||||||||||||||||||||
Technical & Application
Material
Body: polyamide plastic, black.
Handle: die cast zinc. chrome plated.
Cylinder lock: die cast zinc, chrome plated.
Rod Control Mechanism: die cast zinc.
Supplied with: Keys: two per lock.
Technical Notes
Achieves 2 point clamping at top and bottom of panel. Not suitable for 3 point clamping.
Unlock handle to release, lift and turn to activate rod control mechanism and release panel.
Sliding lock cover prevents ingress of dust etc. into lock mechanism.
Tips
Suitable for panel thickness 1 to 2mm.
