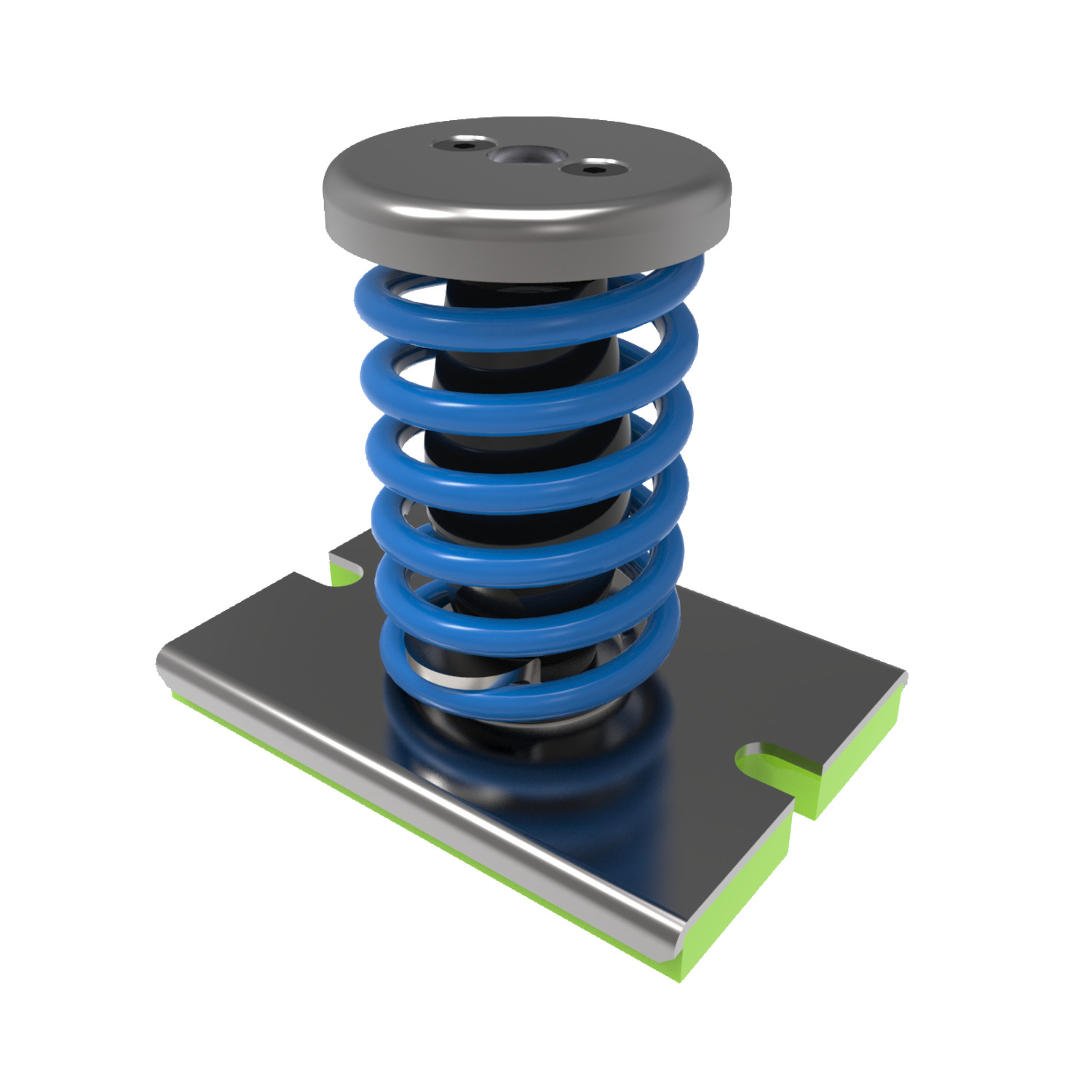

Spring Vibration Damper
Steel
61922 Spring Vibration Damper one spring
one spring, material: Steel
Alternative products you may wish to consider
Spring colour
Black
l1
100
h1
78
d1
54
w1
69.5
d2
M 8
d3
8.5
l2
80
w2
34.75
Compression
max.
20
Load
max.
kgf
25
Weight
kg
0.29
£ 33.35 per unit (click for quantity discounts)
Spring colour
Blue
l1
100
h1
78
d1
54
w1
69.5
d2
M 8
d3
8.5
l2
80
w2
34.75
Compression
max.
20
Load
max.
kgf
50
Weight
kg
0.27
£ 38.34 per unit (click for quantity discounts)
Spring colour
Grey
l1
100
h1
78
d1
54
w1
69.5
d2
M 8
d3
8.5
l2
80
w2
34.75
Compression
max.
20
Load
max.
kgf
75
Weight
kg
0.30
£ 37.79 per unit (click for quantity discounts)
Spring colour
l1
h1
d1
w1
d2
d3
l2
w2
Compression
max.
Load
max.
kgf
Weight
kg

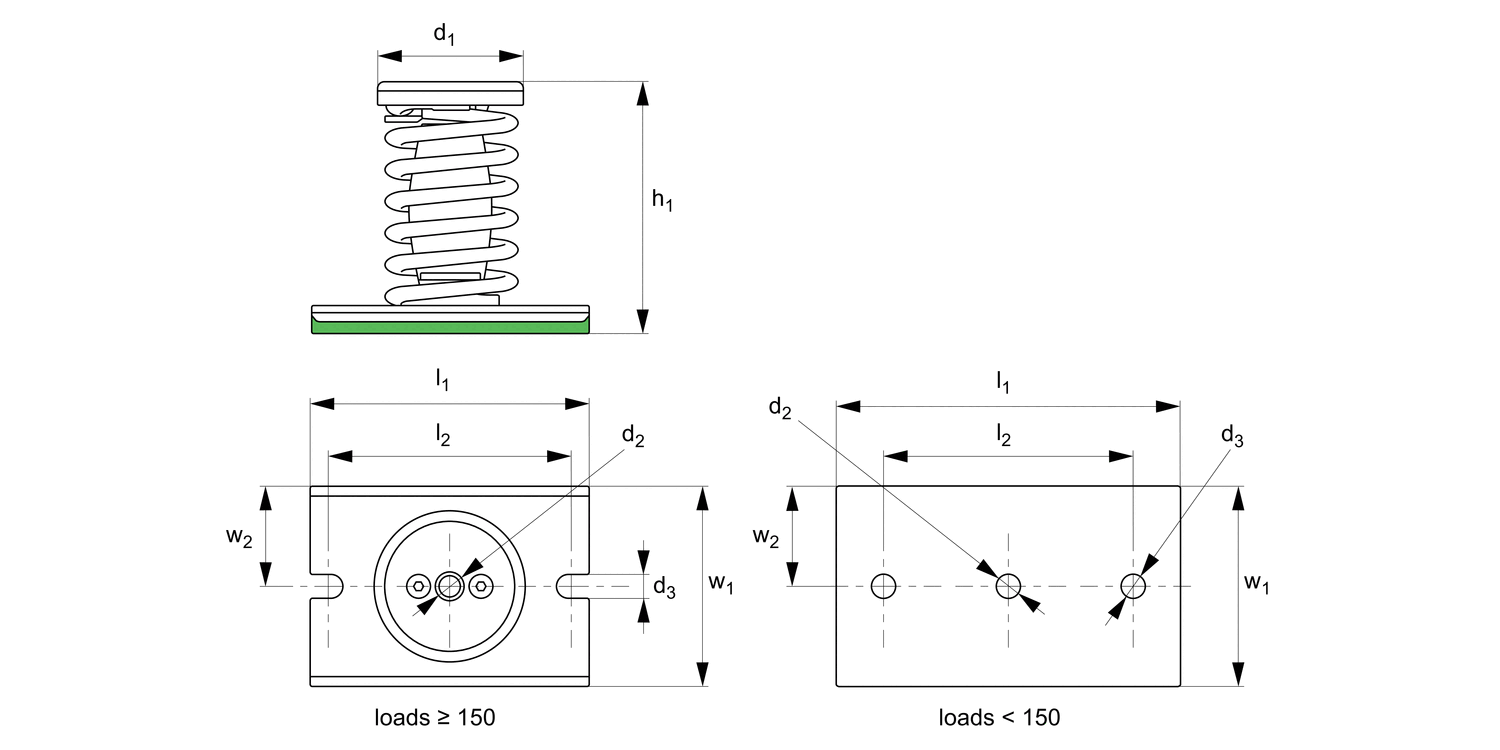

| Price & Availability | Article | Spring colour | l1 | h1 | d1 | w1 | d2 | d3 | l2 | w2 | Compression max. | Load max. kgf | Weight kg | ||||||||||||||||||
| 61922.W0080 | Black | 100 | 78 | 54 | 69.5 | M 8 | 8.5 | 80 | 34.75 | 20 | 25 | 0.29 | |||||||||||||||||||
£ 33.35 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Black l1 100 h1 78 d1 54 w1 69.5 d2 M 8 d3 8.5 l2 80 w2 34.75 Compression
max. 20 Load
max.
kgf 25 Weight
kg 0.29 | |||||||||||||||||||||||||||||||
| 61922.W0081 | Blue | 100 | 78 | 54 | 69.5 | M 8 | 8.5 | 80 | 34.75 | 20 | 50 | 0.27 | |||||||||||||||||||
£ 38.34 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Blue l1 100 h1 78 d1 54 w1 69.5 d2 M 8 d3 8.5 l2 80 w2 34.75 Compression
max. 20 Load
max.
kgf 50 Weight
kg 0.27 | |||||||||||||||||||||||||||||||
| 61922.W0082 | Grey | 100 | 78 | 54 | 69.5 | M 8 | 8.5 | 80 | 34.75 | 20 | 75 | 0.30 | |||||||||||||||||||
£ 37.79 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Grey l1 100 h1 78 d1 54 w1 69.5 d2 M 8 d3 8.5 l2 80 w2 34.75 Compression
max. 20 Load
max.
kgf 75 Weight
kg 0.30 | |||||||||||||||||||||||||||||||
Technical & Application
Material
High tensile steel with sylomer anti-slide base.
Technical Notes
The sylomer mat that these dampers incorporate, isolates the mid-high frequency vibrations which are transmitted through the coils of the metal springs.
Tips
These are used in sectors such as air compressors, pump and pumping equipment and acoustic isolation of premises.
