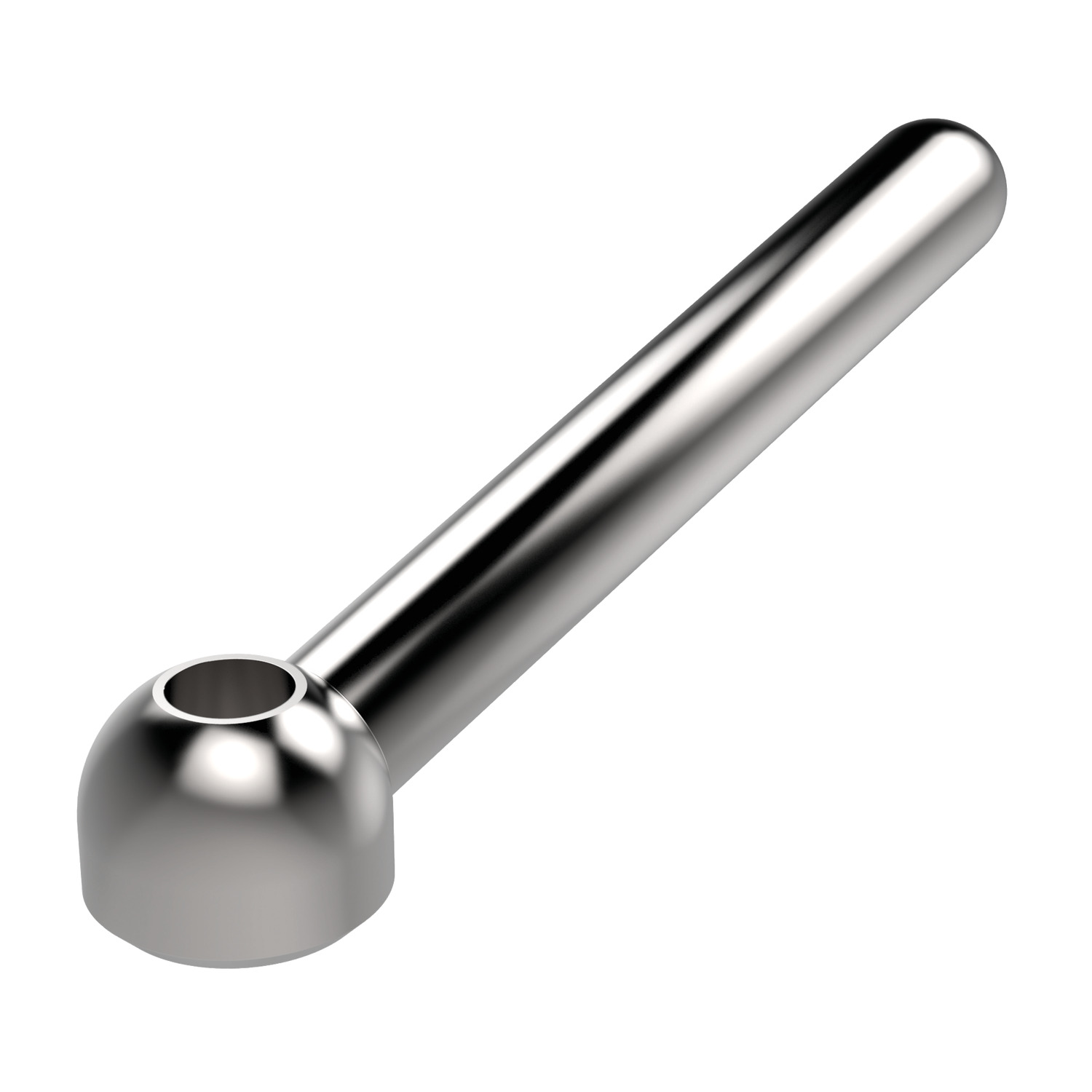

73920 Clamping Levers

Name: 73920.W0510
Brand: WC
SKU: 73920.W0510
Price: 7.58 EUR
Availability: OutOfStock

welded, material: Case Hardened steel

Article properties

Order No.

73920.W0510

Finish

Steel

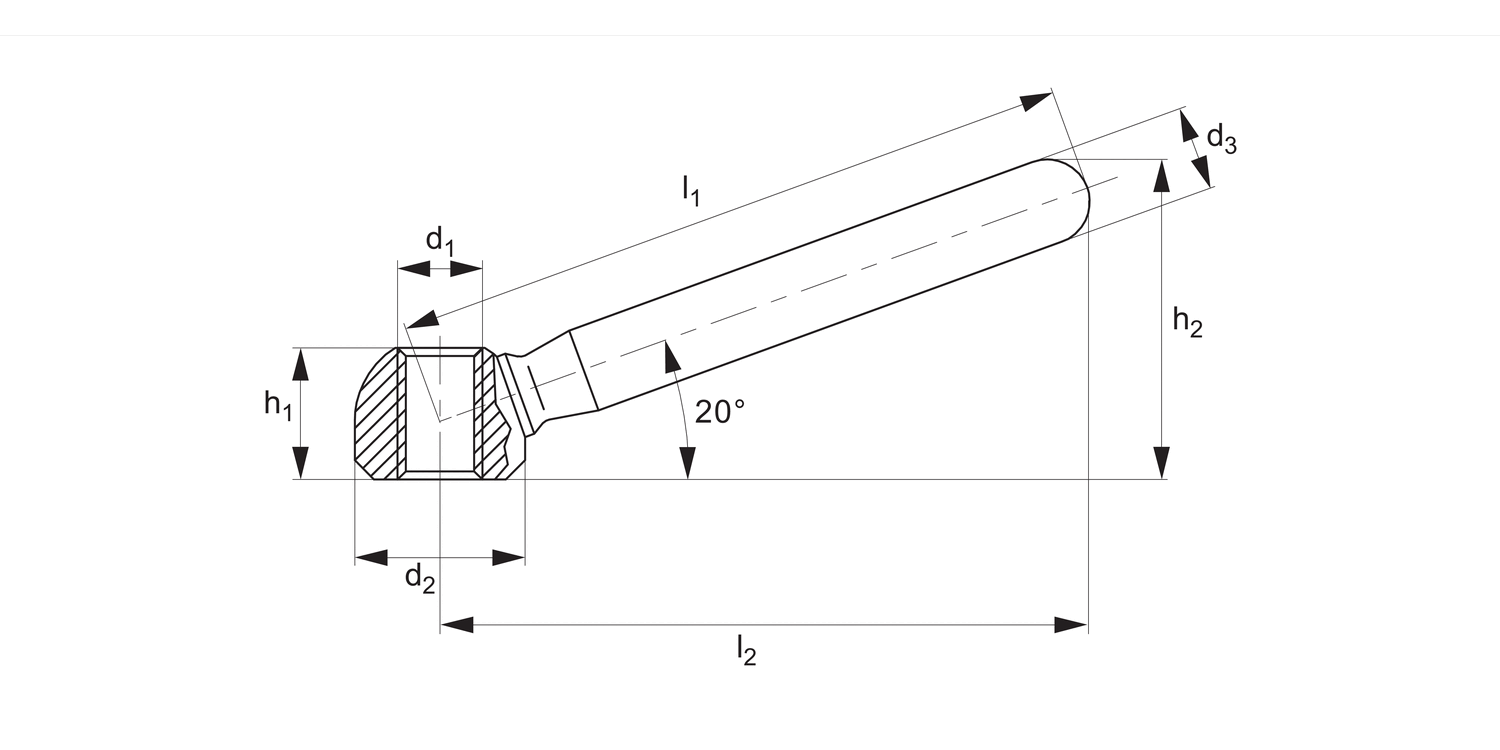

d₁

M12

d₂

d₃

h₁

19.0

h₂ ≈

46.0

l₁

100

l₂ ≈

Weight g

149

See full product selection

£ 7.58 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 7.58	0%
10-19	£ 6.82	10%
20-49	£ 6.44	15%
50-99	£ 6.06	20%
100+	£ 5.69	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Case hardened steel, or stainless steel AISI 303. Shaft butt welded.

Technical Notes

Low price version to no. 74200.
