74301 Clamping Levers, Stainless Steel

DIN 319, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Clamping Levers
welded

Clamping Nuts
welded, double-sided

Clamping Levers

Double Clamping Levers

Clamping Levers
Steel

Clamping Levers
s/s

Clamping Levers
Steel

Clamping Levers
s/s

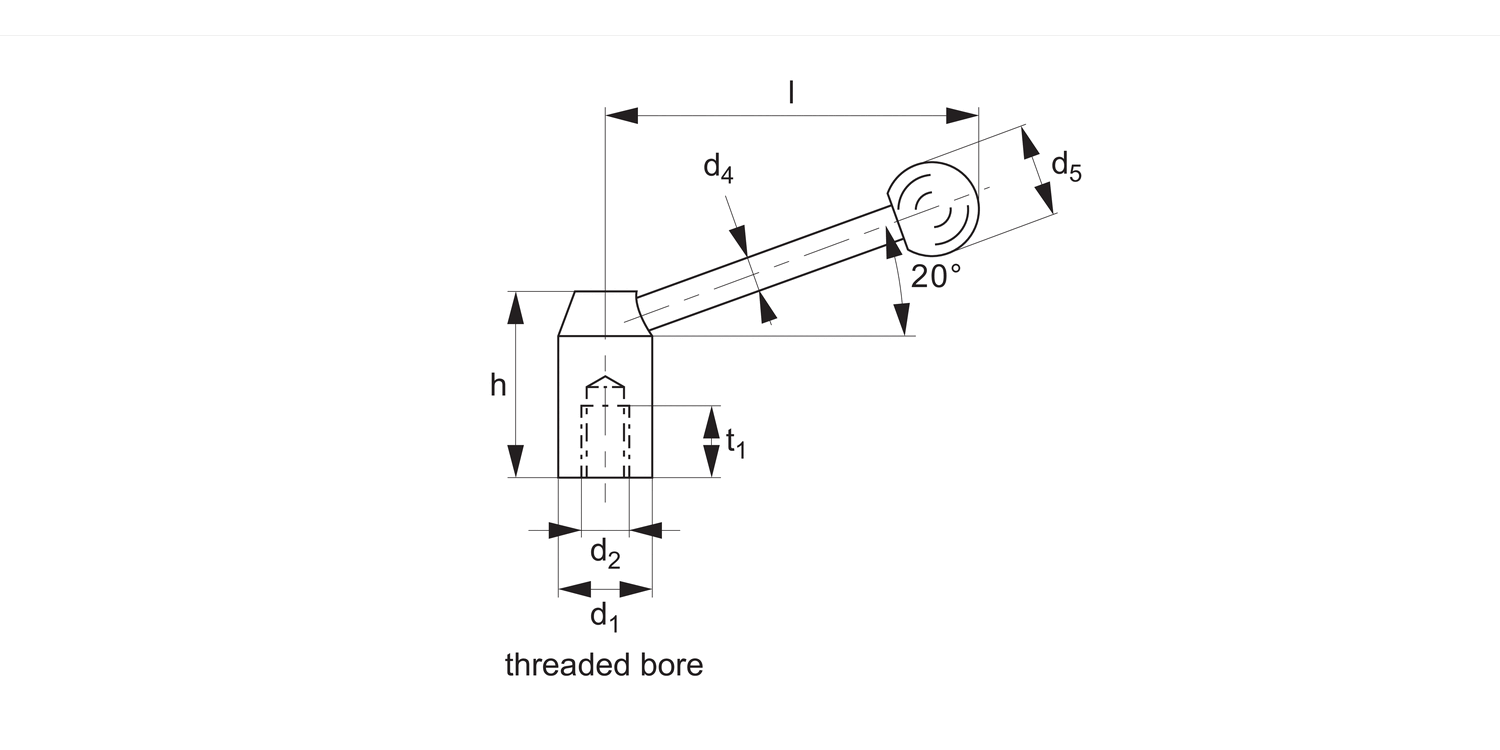

Clamping Levers - SS. Threaded Bore - 22 - M 8 - 8

74301.W0230

Finish

Threaded Bore

d₁

22

d₂

M 8

d₄

8

d₅

20

h

37

l

70

t₁

15

Weight g

121

£ 26.55 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 25 - M10 - 10

74301.W0236

Finish

Threaded Bore

d₁

25

d₂

M10

d₄

10

d₅

25

h

42

l

96

t₁

15

Weight g

186

£ 28.66 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 28 - M12 - 12

74301.W0242

Finish

Threaded Bore

d₁

28

d₂

M12

d₄

12

d₅

30

h

47

l

110

t₁

18

Weight g

262

£ 36.00 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 32 - M16 - 12

74301.W0248

Finish

Threaded Bore

d₁

32

d₂

M16

d₄

12

d₅

32

h

52

l

124

t₁

23

Weight g

354

£ 40.06 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 22 - M 8 - 8

74301.W0230

Finish

Threaded Bore

d₁

22

d₂

M 8

d₄

8

d₅

20

h

37

l

70

t₁

15

Weight g

121

£ 26.55 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 25 - M10 - 10

74301.W0236

Finish

Threaded Bore

d₁

25

d₂

M10

d₄

10

d₅

25

h

42

l

96

t₁

15

Weight g

186

£ 28.66 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 28 - M12 - 12

74301.W0242

Finish

Threaded Bore

d₁

28

d₂

M12

d₄

12

d₅

30

h

47

l

110

t₁

18

Weight g

262

£ 36.00 per unit (click for quantity discounts)

Clamping Levers - SS. Threaded Bore - 32 - M16 - 12

74301.W0248

Finish

Threaded Bore

d₁

32

d₂

M16

d₄

12

d₅

32

h

52

l

124

t₁

23

Weight g

354

£ 40.06 per unit (click for quantity discounts)



Select all

Finish

d₁

d₂

d₄

d₅

h

l

t₁

Weight g

Price & Availability	Article	Finish	d1	d2	d4	d5	h	l	t1	Weight g
	74301.W0230	Threaded Bore	22	M 8	8	20	37	70	15	121
£ 26.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 26.55 0% 5-9 £ 25.22 5% 10-19 £ 23.90 10% 20-49 £ 22.57 15% 50+ £ 19.91 25% Finish Threaded Bore d1 22 d2 M 8 d4 8 d5 20 h 37 l 70 t1 15 Weight g 121 more info »
	74301.W0236	Threaded Bore	25	M10	10	25	42	96	15	186
£ 28.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 28.66 0% 5-9 £ 27.23 5% 10-19 £ 25.79 10% 20-49 £ 24.36 15% 50+ £ 21.50 25% Finish Threaded Bore d1 25 d2 M10 d4 10 d5 25 h 42 l 96 t1 15 Weight g 186 more info »
	74301.W0242	Threaded Bore	28	M12	12	30	47	110	18	262
£ 36.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 36.00 0% 5-9 £ 34.20 5% 10-19 £ 32.40 10% 20-49 £ 30.60 15% 50+ £ 27.00 25% Finish Threaded Bore d1 28 d2 M12 d4 12 d5 30 h 47 l 110 t1 18 Weight g 262 more info »
	74301.W0248	Threaded Bore	32	M16	12	32	52	124	23	354
£ 40.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 40.06 0% 5-9 £ 38.06 5% 10-19 £ 36.05 10% 20-49 £ 34.05 15% 50+ £ 30.05 25% Finish Threaded Bore d1 32 d2 M16 d4 12 d5 32 h 52 l 124 t1 23 Weight g 354 more info »
