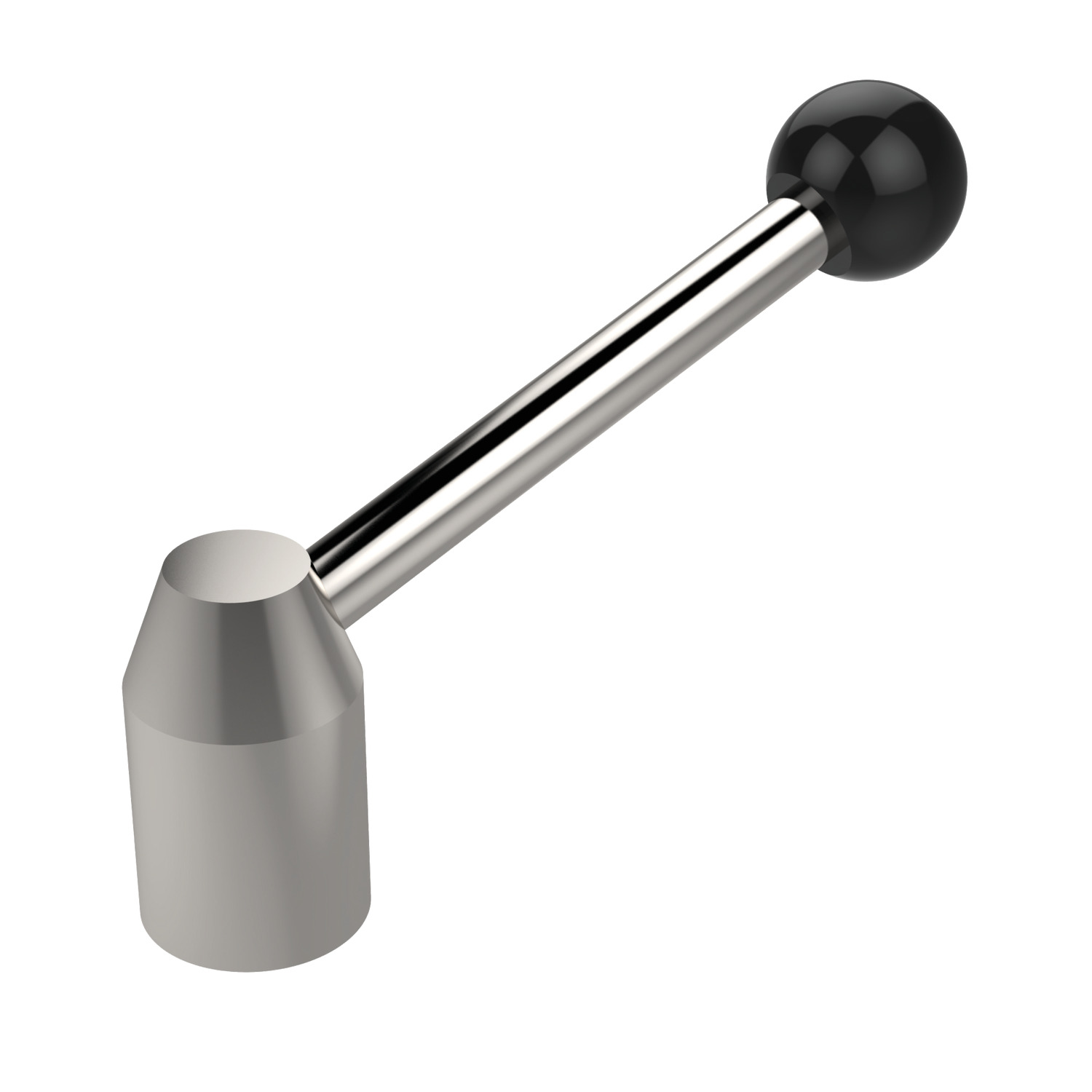

74301 Clamping Levers, Stainless Steel

Name: 74301.W0236
Brand: WC
SKU: 74301.W0236
Price: 28.66 EUR
Availability: OutOfStock

Article properties

Order No.

74301.W0236

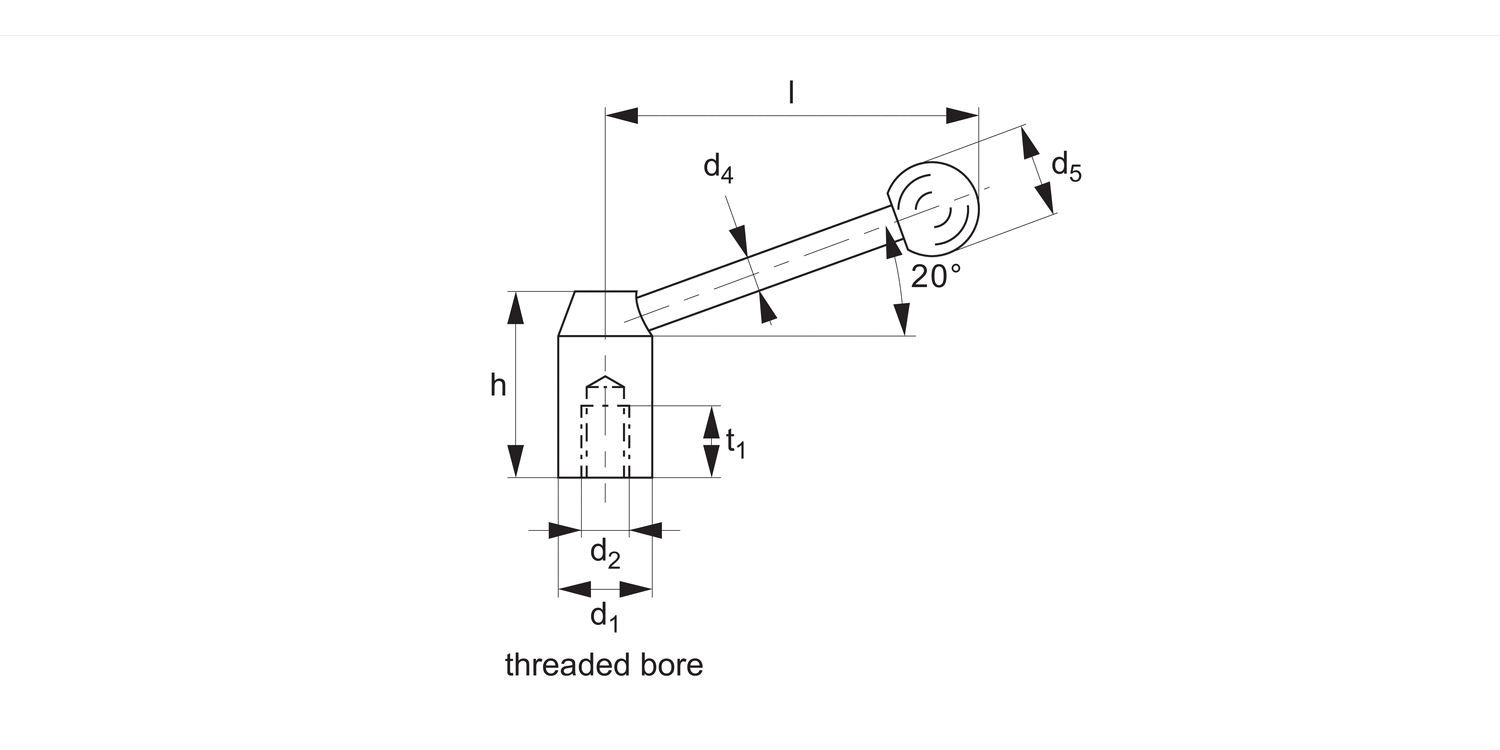

Finish

Threaded Bore

d₁

d₂

M10

d₄

d₅

t₁

Weight g

186

£ 28.66 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Handle: stainless steel 1.4305 (AISI 303). Dull blasted.
Ball knob: plastic type 31 black.

Fixed Clamping LeversJanuary 3, 2025, 3:37 PM / 372.57 kB

Clamping LeversJanuary 3, 2025, 3:37 PM / 1.97 MB

Grips, Handles & HandwheelsJanuary 3, 2025, 3:37 PM / 12.03 MB

Design ElementsJanuary 3, 2025, 3:37 PM / 62.67 MB

74301 AcisApril 17, 2024, 10:03 AM / 84.32 kB

74301 IGESApril 17, 2024, 10:03 AM / 116.57 kB

74301 ParasolidApril 17, 2024, 10:03 AM / 24.66 kB

74301 ProEApril 17, 2024, 10:03 AM / 95.69 kB

74301 SolidWorksApril 17, 2024, 10:03 AM / 533.51 kB

74301 StepApril 17, 2024, 10:03 AM / 61.43 kB
