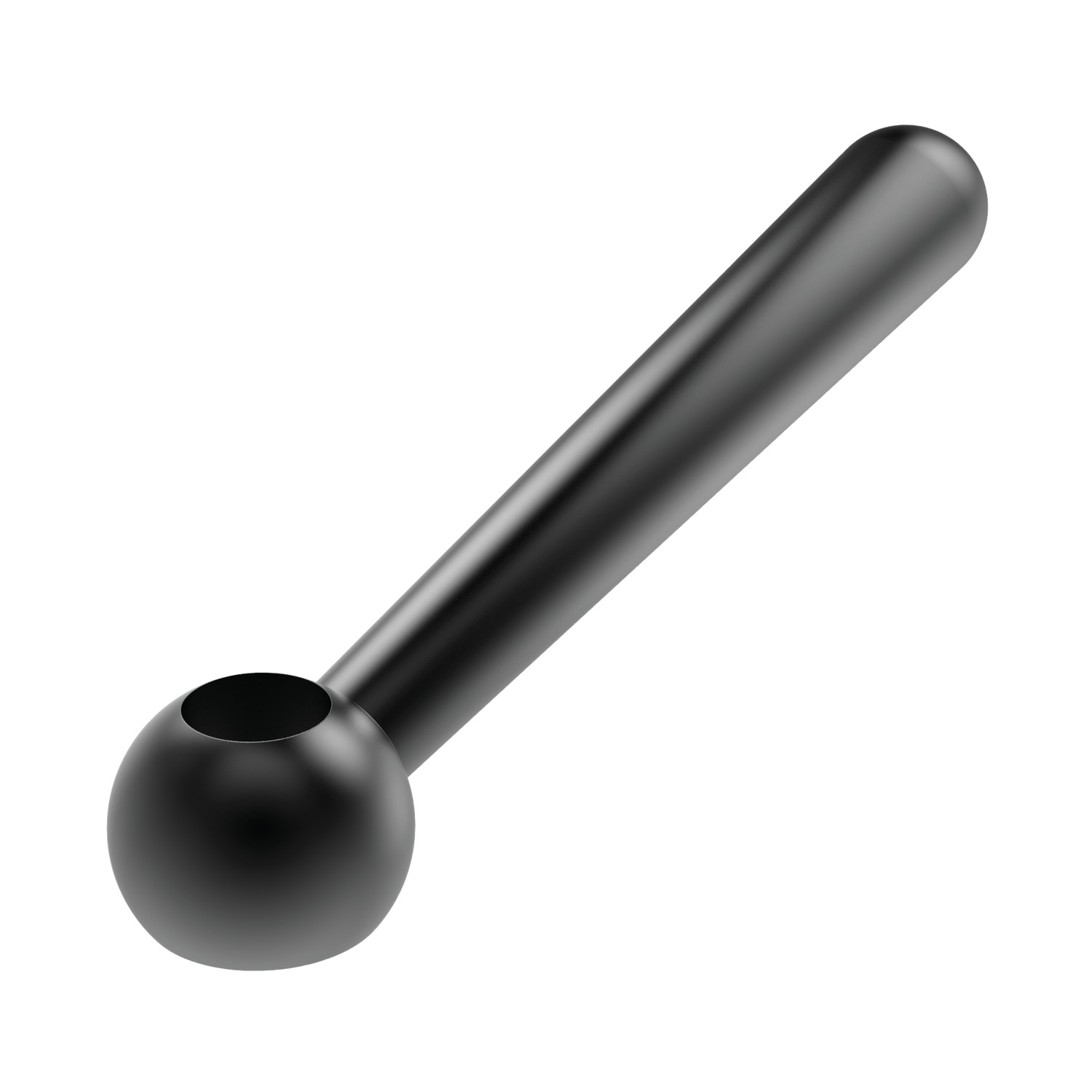

74200 Clamping Levers

Name: 74200.W0112
Brand: WC
SKU: 74200.W0112
Price: 25.81 EUR
Availability: OutOfStock

DIN 99, material: Steel

Article properties

Order No.

74200.W0112

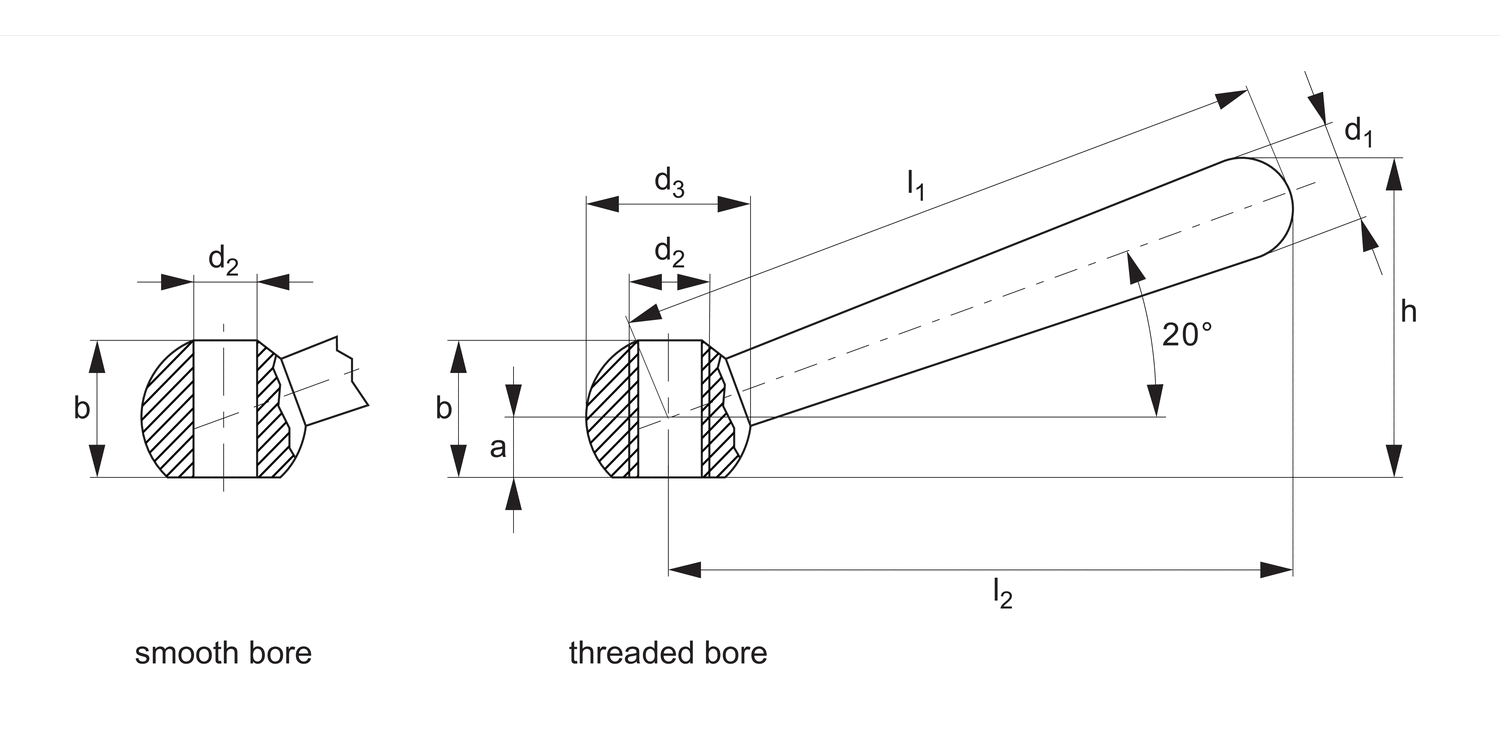

Finish

Smooth Bore

10.0

b ≈

24.0

d₁

d₂ tol. H7

d₂

d₃

h ≈

59.5

l₁

125

l₂ ≈

119

Weight g

282

See full product selection

£ 25.81 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 25.81	0%
10-19	£ 23.23	10%
20-49	£ 21.94	15%
50-99	£ 20.65	20%
100+	£ 19.36	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, blackened.

Product Datasheets

74200 Clamping LeversJune 24, 2025, 3:39 PM / 217.87 kB

Fixed Clamping LeversJune 24, 2025, 3:34 PM / 1.48 MB

Clamping LeversJune 24, 2025, 3:31 PM / 1.93 MB

Grips, Handles & HandwheelsJune 24, 2025, 3:32 PM / 11.95 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

CAD files

74200 AcisApril 17, 2024, 10:03 AM / 209.82 kB

74200 IGESApril 17, 2024, 10:03 AM / 216.09 kB

74200 ParasolidApril 17, 2024, 10:03 AM / 46.40 kB

74200 ProEApril 17, 2024, 10:03 AM / 1006.85 kB

74200 SolidWorksApril 17, 2024, 10:03 AM / 2.45 MB

74200 StepApril 17, 2024, 10:03 AM / 142.58 kB
