77300 Handwheels - 2 Spoke

material: Aluminium

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Handwheels - 2 Spoke

Two Spoked Handwheels

Two Spoked Handwheel
with revolving grip

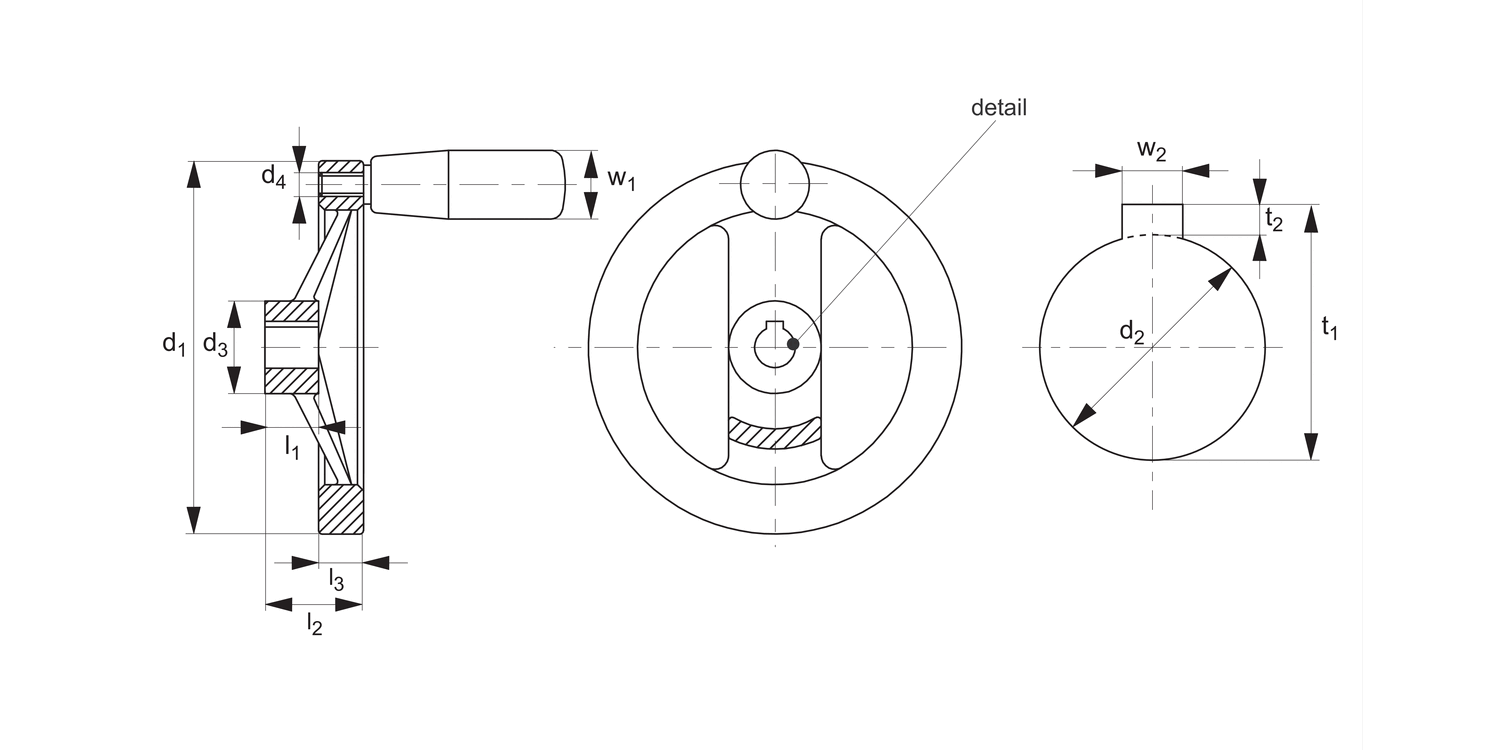

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 125 - 12

77300.W0012

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

301

£ 35.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 125 - 12

77300.W0013

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

301

£ 35.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 140 - 14

77300.W0014

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

400

£ 44.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 140 - 14

77300.W0015

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

400

£ 44.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 160 - 14

77300.W0016

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

520

£ 53.23 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 160 - 14

77300.W0017

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

520

£ 53.23 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 200 - 18

77300.W0020

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

886

£ 74.82 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 200 - 18

77300.W0021

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

886

£ 74.82 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 250 - 22

77300.W0025

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1454

£ 107.14 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 250 - 22

77300.W0026

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1454

£ 107.14 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 125 - 12

77300.W0112

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

303

£ 39.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 125 - 12

77300.W0113

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

303

£ 39.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 140 - 14

77300.W0114

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

406

£ 49.37 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 140 - 14

77300.W0115

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

406

£ 49.37 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 160 - 14

77300.W0116

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

542

£ 57.66 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 160 - 14

77300.W0117

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

542

£ 57.66 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 200 - 18

77300.W0120

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

914

£ 89.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 200 - 18

77300.W0121

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

914

£ 89.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 250 - 22

77300.W0125

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1446

£ 119.84 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 250 - 22

77300.W0126

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1446

£ 119.84 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 125 - 12

77300.W0512

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 52.31 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 125 - 12

77300.W0513

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 52.31 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 140 - 14

77300.W0514

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 62.78 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 140 - 14

77300.W0515

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 62.78 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 160 - 14

77300.W0516

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 76.41 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 160 - 14

77300.W0517

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 76.41 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 200 - 18

77300.W0520

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 99.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 200 - 18

77300.W0521

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 99.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 250 - 22

77300.W0525

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 136.18 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 250 - 22

77300.W0526

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 136.18 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 125 - 12

77300.W0612

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 57.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 125 - 12

77300.W0613

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 57.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 140 - 14

77300.W0614

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 67.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 140 - 14

77300.W0615

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 67.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 160 - 14

77300.W0616

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 80.68 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 160 - 14

77300.W0617

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 80.68 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 200 - 18

77300.W0620

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 117.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 200 - 18

77300.W0621

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 117.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 250 - 22

77300.W0625

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 151.15 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 250 - 22

77300.W0626

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 151.15 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 125 - 12

77300.W0012

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

301

£ 35.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 125 - 12

77300.W0013

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

301

£ 35.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 140 - 14

77300.W0014

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

400

£ 44.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 140 - 14

77300.W0015

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

400

£ 44.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 160 - 14

77300.W0016

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

520

£ 53.23 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 160 - 14

77300.W0017

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

520

£ 53.23 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 200 - 18

77300.W0020

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

886

£ 74.82 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 200 - 18

77300.W0021

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

886

£ 74.82 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, W/o Handle - 250 - 22

77300.W0025

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1454

£ 107.14 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, W/o Handle - 250 - 22

77300.W0026

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1454

£ 107.14 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 125 - 12

77300.W0112

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

303

£ 39.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 125 - 12

77300.W0113

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

303

£ 39.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 140 - 14

77300.W0114

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

406

£ 49.37 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 140 - 14

77300.W0115

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

406

£ 49.37 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 160 - 14

77300.W0116

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

542

£ 57.66 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 160 - 14

77300.W0117

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

542

£ 57.66 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 200 - 18

77300.W0120

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

914

£ 89.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 200 - 18

77300.W0121

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

914

£ 89.06 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, W/o Handle - 250 - 22

77300.W0125

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1446

£ 119.84 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, W/o Handle - 250 - 22

77300.W0126

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1446

£ 119.84 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 125 - 12

77300.W0512

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 52.31 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 125 - 12

77300.W0513

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 52.31 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 140 - 14

77300.W0514

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 62.78 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 140 - 14

77300.W0515

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 62.78 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 160 - 14

77300.W0516

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 76.41 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 160 - 14

77300.W0517

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 76.41 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 200 - 18

77300.W0520

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 99.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 200 - 18

77300.W0521

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 99.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - W/o Keyway, With Handle - 250 - 22

77300.W0525

Type

W/o Keyway, With Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 136.18 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - W/o Keyway, With Handle - 250 - 22

77300.W0526

Type

W/o Keyway, With Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 136.18 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 125 - 12

77300.W0612

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 57.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 125 - 12

77300.W0613

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 57.50 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 140 - 14

77300.W0614

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 67.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 140 - 14

77300.W0615

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

490

£ 67.62 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 160 - 14

77300.W0616

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 80.68 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 160 - 14

77300.W0617

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

645

£ 80.68 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 200 - 18

77300.W0620

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 117.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 200 - 18

77300.W0621

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

1000

£ 117.09 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Small - With Keyway, With Handle - 250 - 22

77300.W0625

Type

With Keyway, With Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 151.15 per unit (click for quantity discounts)

Handwheels - 2 Spoke - Al. d2 Large - With Keyway, With Handle - 250 - 22

77300.W0626

Type

With Keyway, With Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1585

£ 151.15 per unit (click for quantity discounts)



Select all

Type

Bore dia.

d₁

d₂ tol. H7 Small

d₂ tol. H7 Large

d₃

d₄

l₁

l₂ ≈

l₃

w₁

Weight g

Price & Availability	Article	Type	Bore dia.	d1	d2 tol. H7 Small	d2 tol. H7 Large	d3	d4	l1	l2 ≈	l3	w1	Weight g
	77300.W0012	W/o Keyway, W/o Handle	d2 Small	125	12	14	31	-	18	33	15.0	-	301
£ 35.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 35.06 0% 5-9 £ 33.31 5% 10-19 £ 31.55 10% 20-49 £ 29.80 15% 50+ £ 26.30 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 301 more info »
	77300.W0013	W/o Keyway, W/o Handle	d2 Large	125	12	14	31	-	18	33	15.0	-	301
£ 35.06 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 35.06 0% 5-9 £ 33.31 5% 10-19 £ 31.55 10% 20-49 £ 29.80 15% 50+ £ 26.30 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 301 more info »
	77300.W0014	W/o Keyway, W/o Handle	d2 Small	140	14	16	36	-	19	36	16.5	-	400
£ 44.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 44.62 0% 5-9 £ 42.39 5% 10-19 £ 40.16 10% 20-49 £ 37.93 15% 50+ £ 33.47 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 400 more info »
	77300.W0015	W/o Keyway, W/o Handle	d2 Large	140	14	16	36	-	19	36	16.5	-	400
£ 44.62 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 44.62 0% 5-9 £ 42.39 5% 10-19 £ 40.16 10% 20-49 £ 37.93 15% 50+ £ 33.47 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 400 more info »
	77300.W0016	W/o Keyway, W/o Handle	d2 Small	160	14	16	36	-	20	39	18.0	-	520
£ 53.23 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.23 0% 5-9 £ 50.57 5% 10-19 £ 47.91 10% 20-49 £ 45.25 15% 50+ £ 39.92 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 520 more info »
	77300.W0017	W/o Keyway, W/o Handle	d2 Large	160	14	16	36	-	20	39	18.0	-	520
£ 53.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.23 0% 5-9 £ 50.57 5% 10-19 £ 47.91 10% 20-49 £ 45.25 15% 50+ £ 39.92 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 520 more info »
	77300.W0020	W/o Keyway, W/o Handle	d2 Small	200	18	20	42	-	24	45	20.5	-	886
£ 74.82 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.82 0% 5-9 £ 71.08 5% 10-19 £ 67.34 10% 20-49 £ 63.60 15% 50+ £ 56.12 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 886 more info »
	77300.W0021	W/o Keyway, W/o Handle	d2 Large	200	18	20	42	-	24	45	20.5	-	886
£ 74.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.82 0% 5-9 £ 71.08 5% 10-19 £ 67.34 10% 20-49 £ 63.60 15% 50+ £ 56.12 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 886 more info »
	77300.W0025	W/o Keyway, W/o Handle	d2 Small	250	22	26	48	-	28	51	23.0	-	1454
£ 107.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 107.14 0% 5-9 £ 101.78 5% 10-19 £ 96.43 10% 20-49 £ 91.07 15% 50+ £ 80.36 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.0 w1 - Weight g 1454 more info »
	77300.W0026	W/o Keyway, W/o Handle	d2 Large	250	22	26	48	-	28	51	23.0	-	1454
£ 107.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 107.14 0% 5-9 £ 101.78 5% 10-19 £ 96.43 10% 20-49 £ 91.07 15% 50+ £ 80.36 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.0 w1 - Weight g 1454 more info »
	77300.W0112	With Keyway, W/o Handle	d2 Small	125	12	14	31	-	18	33	15.0	-	303
£ 39.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 39.50 0% 5-9 £ 37.53 5% 10-19 £ 35.55 10% 20-49 £ 33.58 15% 50+ £ 29.63 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 303 more info »
	77300.W0113	With Keyway, W/o Handle	d2 Large	125	12	14	31	-	18	33	15.0	-	303
£ 39.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 39.50 0% 5-9 £ 37.53 5% 10-19 £ 35.55 10% 20-49 £ 33.58 15% 50+ £ 29.63 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 303 more info »
	77300.W0114	With Keyway, W/o Handle	d2 Small	140	14	16	36	-	19	36	16.5	-	406
£ 49.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.37 0% 5-9 £ 46.90 5% 10-19 £ 44.43 10% 20-49 £ 41.96 15% 50+ £ 37.03 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 406 more info »
	77300.W0115	With Keyway, W/o Handle	d2 Large	140	14	16	36	-	19	36	16.5	-	406
£ 49.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.37 0% 5-9 £ 46.90 5% 10-19 £ 44.43 10% 20-49 £ 41.96 15% 50+ £ 37.03 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 406 more info »
	77300.W0116	With Keyway, W/o Handle	d2 Small	160	14	16	36	-	20	39	18.0	-	542
£ 57.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 57.66 0% 5-9 £ 54.78 5% 10-19 £ 51.89 10% 20-49 £ 49.01 15% 50+ £ 43.25 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 542 more info »
	77300.W0117	With Keyway, W/o Handle	d2 Large	160	14	16	36	-	20	39	18.0	-	542
£ 57.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 57.66 0% 5-9 £ 54.78 5% 10-19 £ 51.89 10% 20-49 £ 49.01 15% 50+ £ 43.25 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 542 more info »
	77300.W0120	With Keyway, W/o Handle	d2 Small	200	18	20	42	-	24	45	20.5	-	914
£ 89.06 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 89.06 0% 5-9 £ 84.61 5% 10-19 £ 80.15 10% 20-49 £ 75.70 15% 50+ £ 66.80 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 914 more info »
	77300.W0121	With Keyway, W/o Handle	d2 Large	200	18	20	42	-	24	45	20.5	-	914
£ 89.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 89.06 0% 5-9 £ 84.61 5% 10-19 £ 80.15 10% 20-49 £ 75.70 15% 50+ £ 66.80 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 914 more info »
	77300.W0125	With Keyway, W/o Handle	d2 Small	250	22	26	48	-	28	51	23.0	-	1446
£ 119.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 119.84 0% 5-9 £ 113.85 5% 10-19 £ 107.86 10% 20-49 £ 101.86 15% 50+ £ 89.88 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.0 w1 - Weight g 1446 more info »
	77300.W0126	With Keyway, W/o Handle	d2 Large	250	22	26	48	-	28	51	23.0	-	1446
£ 119.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 119.84 0% 5-9 £ 113.85 5% 10-19 £ 107.86 10% 20-49 £ 101.86 15% 50+ £ 89.88 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.0 w1 - Weight g 1446 more info »
	77300.W0512	W/o Keyway, With Handle	d2 Small	125	12	14	31	M 8	18	33	15.0	23	390
£ 52.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.31 0% 5-9 £ 49.69 5% 10-19 £ 47.08 10% 20-49 £ 44.46 15% 50+ £ 39.23 25% Type W/o Keyway, With Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77300.W0513	W/o Keyway, With Handle	d2 Large	125	12	14	31	M 8	18	33	15.0	23	390
£ 52.31 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.31 0% 5-9 £ 49.69 5% 10-19 £ 47.08 10% 20-49 £ 44.46 15% 50+ £ 39.23 25% Type W/o Keyway, With Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77300.W0514	W/o Keyway, With Handle	d2 Small	140	14	16	36	M 8	19	36	16.5	23	490
£ 62.78 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.78 0% 5-9 £ 59.64 5% 10-19 £ 56.50 10% 20-49 £ 53.36 15% 50+ £ 47.09 25% Type W/o Keyway, With Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 490 more info »
	77300.W0515	W/o Keyway, With Handle	d2 Large	140	14	16	36	M 8	19	36	16.5	23	490
£ 62.78 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.78 0% 5-9 £ 59.64 5% 10-19 £ 56.50 10% 20-49 £ 53.36 15% 50+ £ 47.09 25% Type W/o Keyway, With Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 490 more info »
	77300.W0516	W/o Keyway, With Handle	d2 Small	160	14	16	36	M10	20	39	18.0	26	645
£ 76.41 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.41 0% 5-9 £ 72.59 5% 10-19 £ 68.77 10% 20-49 £ 64.95 15% 50+ £ 57.31 25% Type W/o Keyway, With Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 645 more info »
	77300.W0517	W/o Keyway, With Handle	d2 Large	160	14	16	36	M10	20	39	18.0	26	645
£ 76.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.41 0% 5-9 £ 72.59 5% 10-19 £ 68.77 10% 20-49 £ 64.95 15% 50+ £ 57.31 25% Type W/o Keyway, With Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 645 more info »
	77300.W0520	W/o Keyway, With Handle	d2 Small	200	18	20	42	M10	24	45	20.5	26	1000
£ 99.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 99.09 0% 5-9 £ 94.14 5% 10-19 £ 89.18 10% 20-49 £ 84.23 15% 50+ £ 74.32 25% Type W/o Keyway, With Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 1000 more info »
	77300.W0521	W/o Keyway, With Handle	d2 Large	200	18	20	42	M10	24	45	20.5	26	1000
£ 99.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 99.09 0% 5-9 £ 94.14 5% 10-19 £ 89.18 10% 20-49 £ 84.23 15% 50+ £ 74.32 25% Type W/o Keyway, With Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 1000 more info »
	77300.W0525	W/o Keyway, With Handle	d2 Small	250	22	26	48	M10	28	51	23.0	28	1585
£ 136.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 136.18 0% 5-9 £ 129.37 5% 10-19 £ 122.56 10% 20-49 £ 115.75 15% 50+ £ 102.14 25% Type W/o Keyway, With Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1585 more info »
	77300.W0526	W/o Keyway, With Handle	d2 Large	250	22	26	48	M10	28	51	23.0	28	1585
£ 136.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 136.18 0% 5-9 £ 129.37 5% 10-19 £ 122.56 10% 20-49 £ 115.75 15% 50+ £ 102.14 25% Type W/o Keyway, With Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1585 more info »
	77300.W0612	With Keyway, With Handle	d2 Small	125	12	14	31	M 8	18	33	15.0	23	390
£ 57.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 57.50 0% 5-9 £ 54.63 5% 10-19 £ 51.75 10% 20-49 £ 48.88 15% 50+ £ 43.13 25% Type With Keyway, With Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77300.W0613	With Keyway, With Handle	d2 Large	125	12	14	31	M 8	18	33	15.0	23	390
£ 57.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 57.50 0% 5-9 £ 54.63 5% 10-19 £ 51.75 10% 20-49 £ 48.88 15% 50+ £ 43.13 25% Type With Keyway, With Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77300.W0614	With Keyway, With Handle	d2 Small	140	14	16	36	M 8	19	36	16.5	23	490
£ 67.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.62 0% 5-9 £ 64.24 5% 10-19 £ 60.86 10% 20-49 £ 57.48 15% 50+ £ 50.72 25% Type With Keyway, With Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 490 more info »
	77300.W0615	With Keyway, With Handle	d2 Large	140	14	16	36	M 8	19	36	16.5	23	490
£ 67.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.62 0% 5-9 £ 64.24 5% 10-19 £ 60.86 10% 20-49 £ 57.48 15% 50+ £ 50.72 25% Type With Keyway, With Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 490 more info »
	77300.W0616	With Keyway, With Handle	d2 Small	160	14	16	36	M10	20	39	18.0	26	645
£ 80.68 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 80.68 0% 5-9 £ 76.65 5% 10-19 £ 72.61 10% 20-49 £ 68.58 15% 50+ £ 60.51 25% Type With Keyway, With Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 645 more info »
	77300.W0617	With Keyway, With Handle	d2 Large	160	14	16	36	M10	20	39	18.0	26	645
£ 80.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 80.68 0% 5-9 £ 76.65 5% 10-19 £ 72.61 10% 20-49 £ 68.58 15% 50+ £ 60.51 25% Type With Keyway, With Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 645 more info »
	77300.W0620	With Keyway, With Handle	d2 Small	200	18	20	42	M10	24	45	20.5	26	1000
£ 117.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 117.09 0% 5-9 £ 111.24 5% 10-19 £ 105.38 10% 20-49 £ 99.53 15% 50+ £ 87.82 25% Type With Keyway, With Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 1000 more info »
	77300.W0621	With Keyway, With Handle	d2 Large	200	18	20	42	M10	24	45	20.5	26	1000
£ 117.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 117.09 0% 5-9 £ 111.24 5% 10-19 £ 105.38 10% 20-49 £ 99.53 15% 50+ £ 87.82 25% Type With Keyway, With Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 1000 more info »
	77300.W0625	With Keyway, With Handle	d2 Small	250	22	26	48	M10	28	51	23.0	28	1585
£ 151.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 151.15 0% 5-9 £ 143.59 5% 10-19 £ 136.04 10% 20-49 £ 128.48 15% 50+ £ 113.36 25% Type With Keyway, With Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1585 more info »
	77300.W0626	With Keyway, With Handle	d2 Large	250	22	26	48	M10	28	51	23.0	28	1585
£ 151.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 151.15 0% 5-9 £ 143.59 5% 10-19 £ 136.04 10% 20-49 £ 128.48 15% 50+ £ 113.36 25% Type With Keyway, With Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1585 more info »
