Handwheels - 2 Spoke

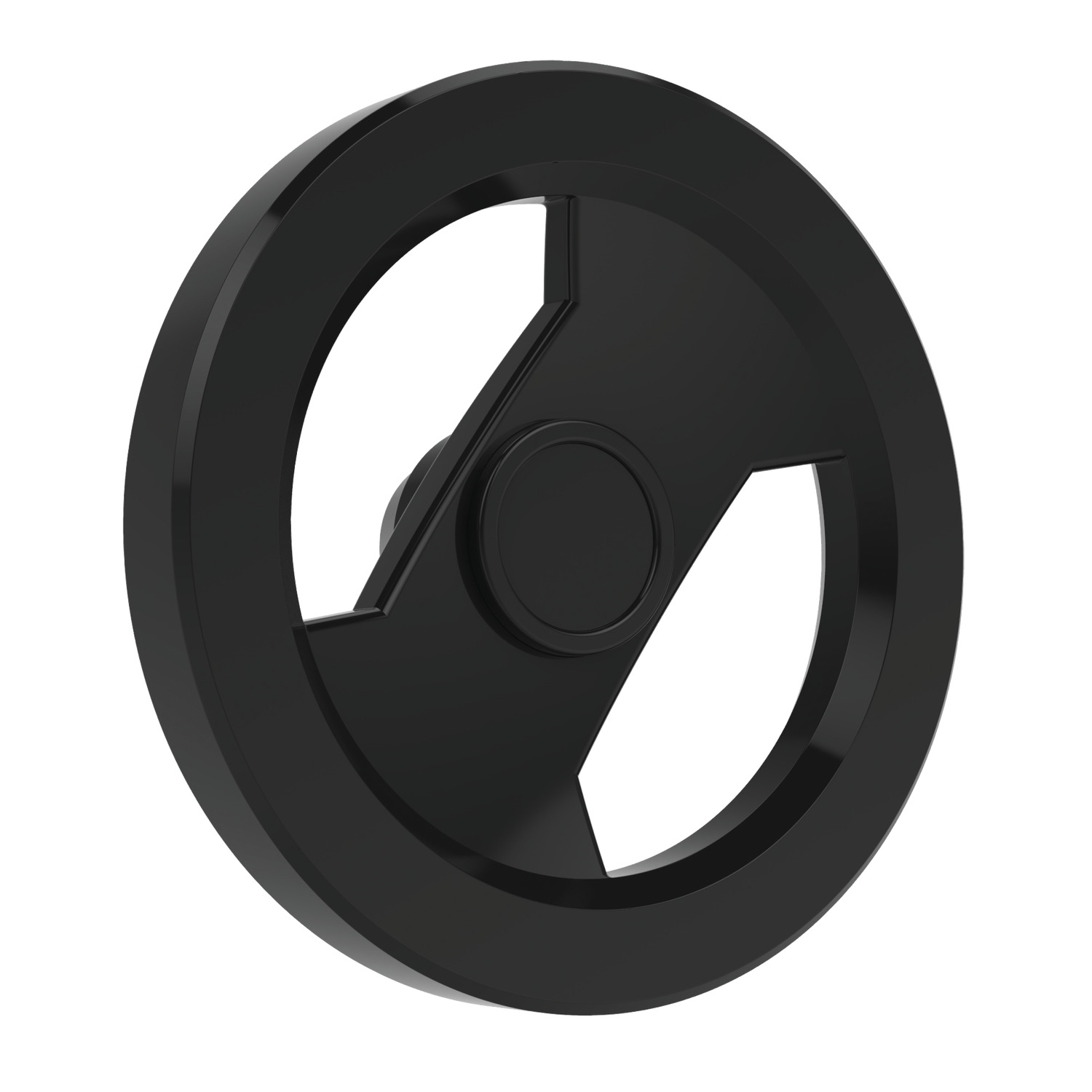

77340 Two Spoked Handwheels
material: Duroplast
Alternative products you may wish to consider

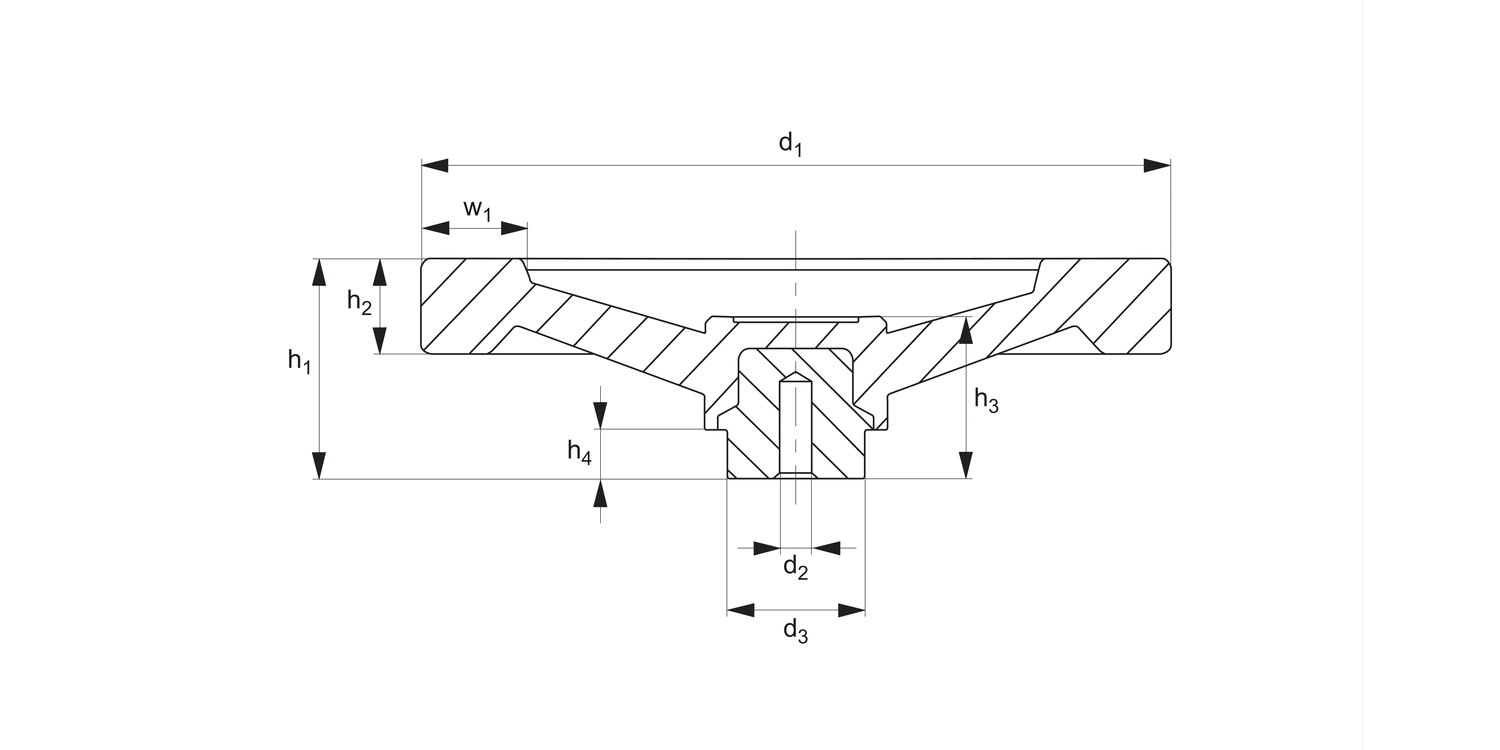

d1
125
d2
4
d3
24
h1
41
h2
16
h3
34
h4
11
w1
18
Weight
g
253
£ 12.29 per unit (click for quantity discounts)
d1
d2
d3
h1
h2
h3
h4
w1
Weight
g
| Price & Availability | Article | d1 | d2 | d3 | h1 | h2 | h3 | h4 | w1 | Weight g | ||||||||||||||||||
| 77340.W0125 | 125 | 4 | 24 | 41 | 16 | 34 | 11 | 18 | 253 | |||||||||||||||||||
£ 12.29 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 125 d2 4 d3 24 h1 41 h2 16 h3 34 h4 11 w1 18 Weight
g 253 | ||||||||||||||||||||||||||||
Technical & Application
Material
Duroplast, black, matt. Zinc plated steel hub.
Technical Notes
The pilot hole allows various sizes of holes, keyways etc. to be machined into the hub upon request.
