Handwheels - 2 Spoke

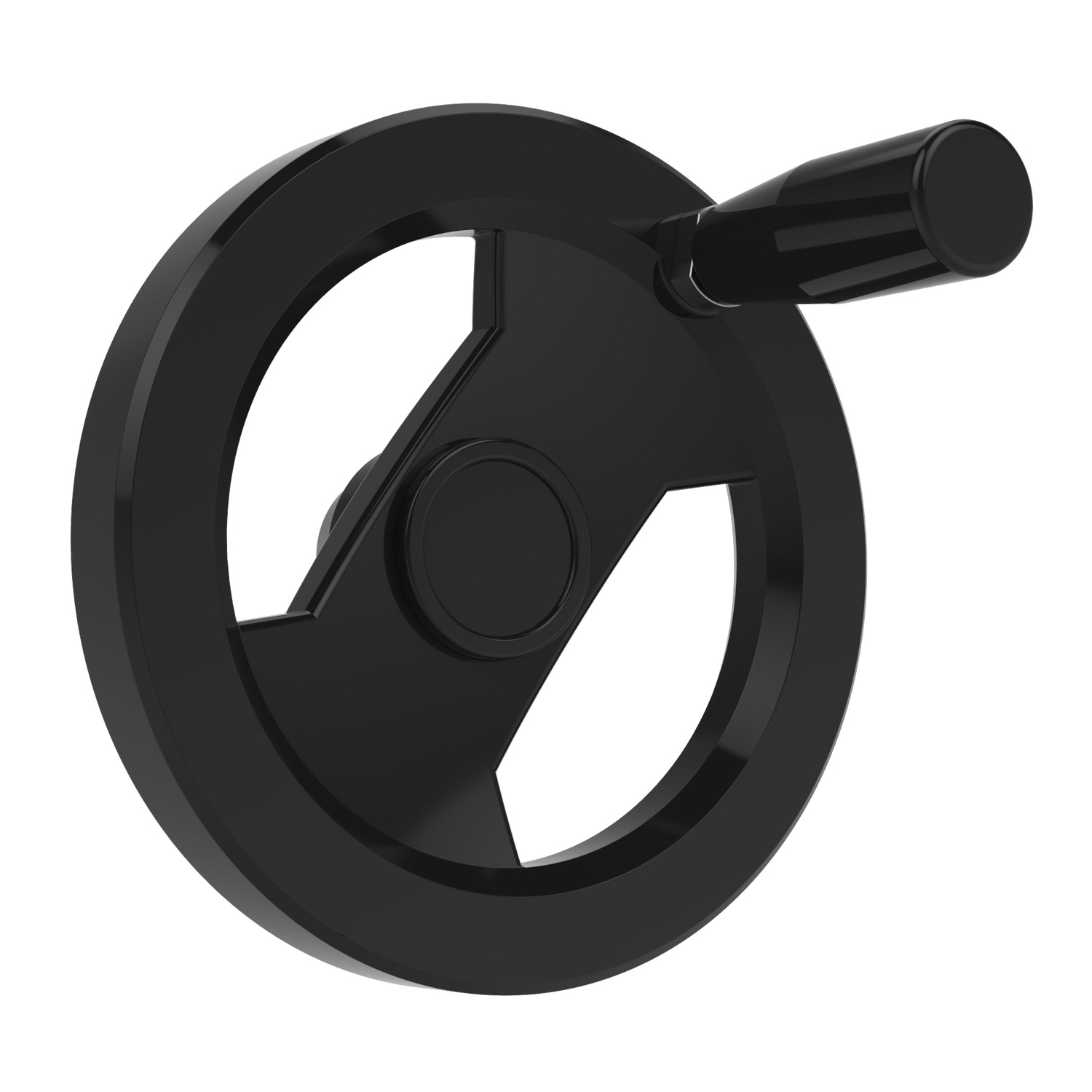

77360 Two Spoked Handwheels
with rotating grip, material: Duroplast
Alternative products you may wish to consider

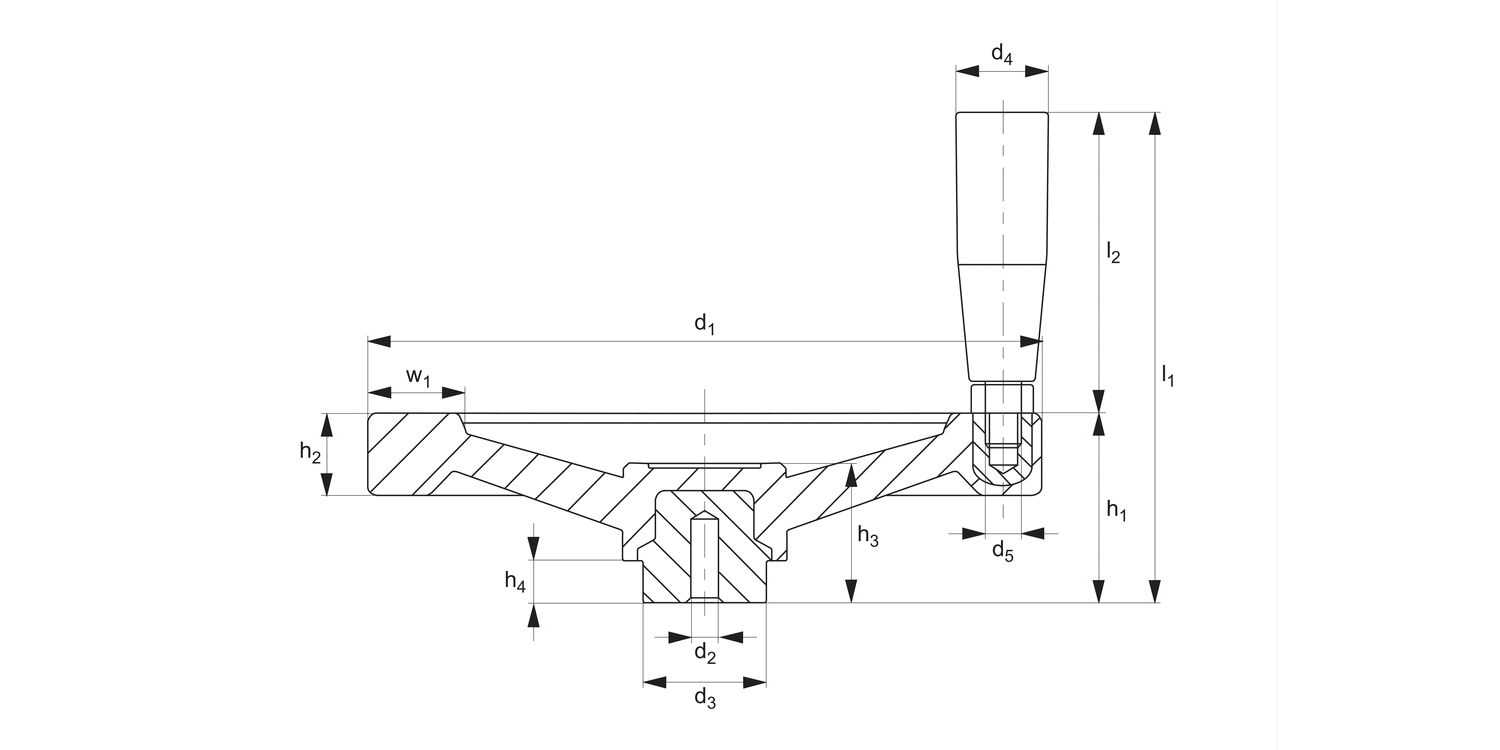

Type
Reinforced
d1
100
d2
4
d3
24
d4
17
d5
M 8
h1
36
h2
14
h3
30
h4
11
l1
81
l2
40
w1
15
Weight
g
195
£ 18.19 per unit (click for quantity discounts)
Type
Reinforced
d1
125
d2
4
d3
24
d4
23
d5
M 8
h1
41
h2
16
h3
34
h4
11
l1
102
l2
55
w1
18
Weight
g
317
£ 19.72 per unit (click for quantity discounts)
Type
Reinforced
d1
150
d2
6
d3
32
d4
25
d5
M10
h1
46
h2
20
h3
38
h4
13
l1
117
l2
65
w1
21
Weight
g
519
£ 26.26 per unit (click for quantity discounts)
Type
Reinforced
d1
200
d2
6
d3
40
d4
28
d5
M10
h1
62
h2
25
h3
45
h4
16
l1
154
l2
85
w1
26
Weight
g
1080
£ 37.89 per unit (click for quantity discounts)
Type
Reinforced
d1
250
d2
8
d3
48
d4
28
d5
M10
h1
70
h2
28
h3
50
h4
17
l1
162
l2
85
w1
30
Weight
g
1662
£ 50.78 per unit (click for quantity discounts)
Type
d1
d2
d3
d4
d5
h1
h2
h3
h4
l1
l2
w1
Weight
g
| Price & Availability | Article | Type | d1 | d2 | d3 | d4 | d5 | h1 | h2 | h3 | h4 | l1 | l2 | w1 | Weight g | ||||||||||||||||||
| 77360.W0600 | Reinforced | 100 | 4 | 24 | 17 | M 8 | 36 | 14 | 30 | 11 | 81 | 40 | 15 | 195 | |||||||||||||||||||
£ 18.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 100 d2 4 d3 24 d4 17 d5 M 8 h1 36 h2 14 h3 30 h4 11 l1 81 l2 40 w1 15 Weight
g 195 | |||||||||||||||||||||||||||||||||
| 77360.W0625 | Reinforced | 125 | 4 | 24 | 23 | M 8 | 41 | 16 | 34 | 11 | 102 | 55 | 18 | 317 | |||||||||||||||||||
£ 19.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 125 d2 4 d3 24 d4 23 d5 M 8 h1 41 h2 16 h3 34 h4 11 l1 102 l2 55 w1 18 Weight
g 317 | |||||||||||||||||||||||||||||||||
| 77360.W0650 | Reinforced | 150 | 6 | 32 | 25 | M10 | 46 | 20 | 38 | 13 | 117 | 65 | 21 | 519 | |||||||||||||||||||
£ 26.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 150 d2 6 d3 32 d4 25 d5 M10 h1 46 h2 20 h3 38 h4 13 l1 117 l2 65 w1 21 Weight
g 519 | |||||||||||||||||||||||||||||||||
| 77360.W0700 | Reinforced | 200 | 6 | 40 | 28 | M10 | 62 | 25 | 45 | 16 | 154 | 85 | 26 | 1080 | |||||||||||||||||||
£ 37.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 200 d2 6 d3 40 d4 28 d5 M10 h1 62 h2 25 h3 45 h4 16 l1 154 l2 85 w1 26 Weight
g 1080 | |||||||||||||||||||||||||||||||||
| 77360.W0750 | Reinforced | 250 | 8 | 48 | 28 | M10 | 70 | 28 | 50 | 17 | 162 | 85 | 30 | 1662 | |||||||||||||||||||
£ 50.78 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 250 d2 8 d3 48 d4 28 d5 M10 h1 70 h2 28 h3 50 h4 17 l1 162 l2 85 w1 30 Weight
g 1662 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Black duroplast. Zinc plated steel hub.
Technical Notes
The pilot hole allows various sizes of holes, keyways etc. to be machined into the hub upon request.
Product Datasheets
CAD files
