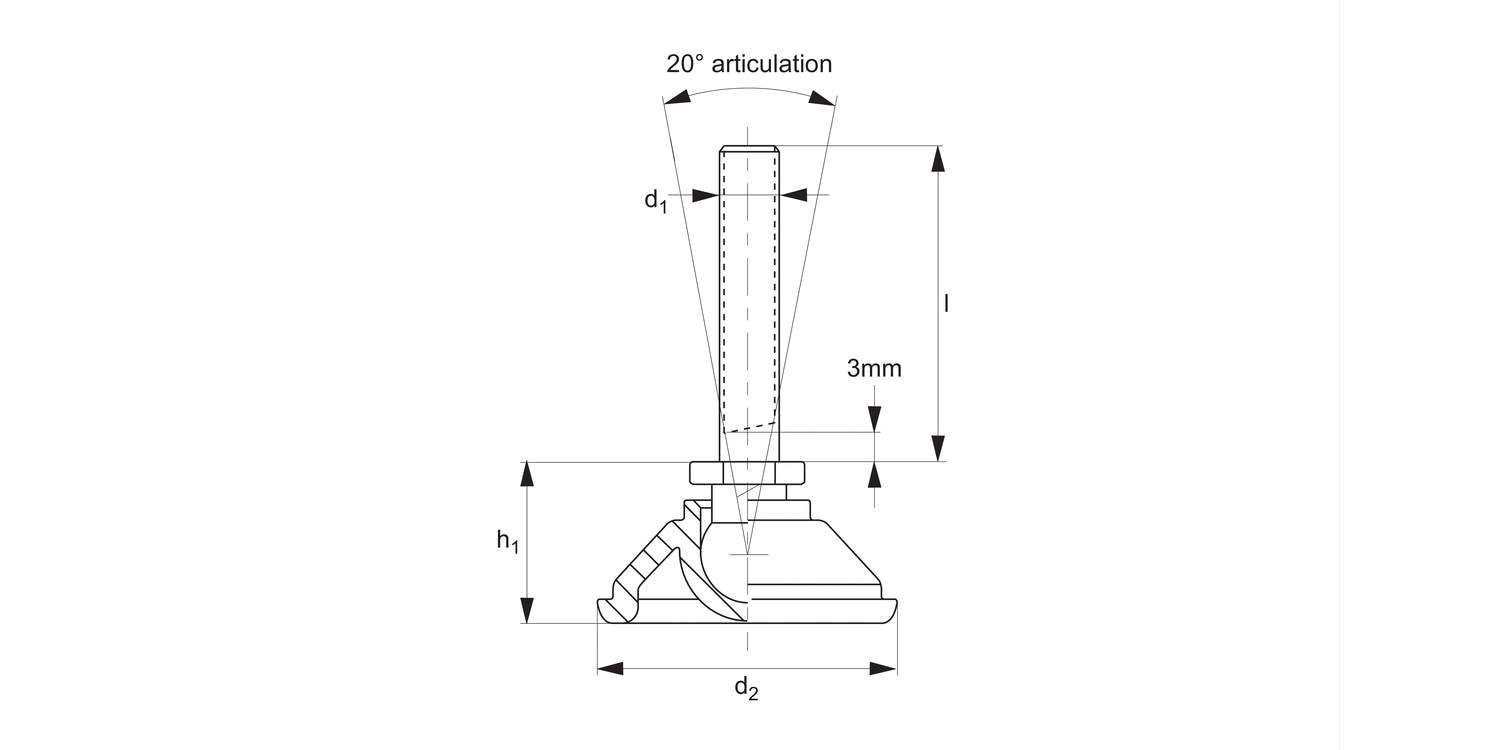

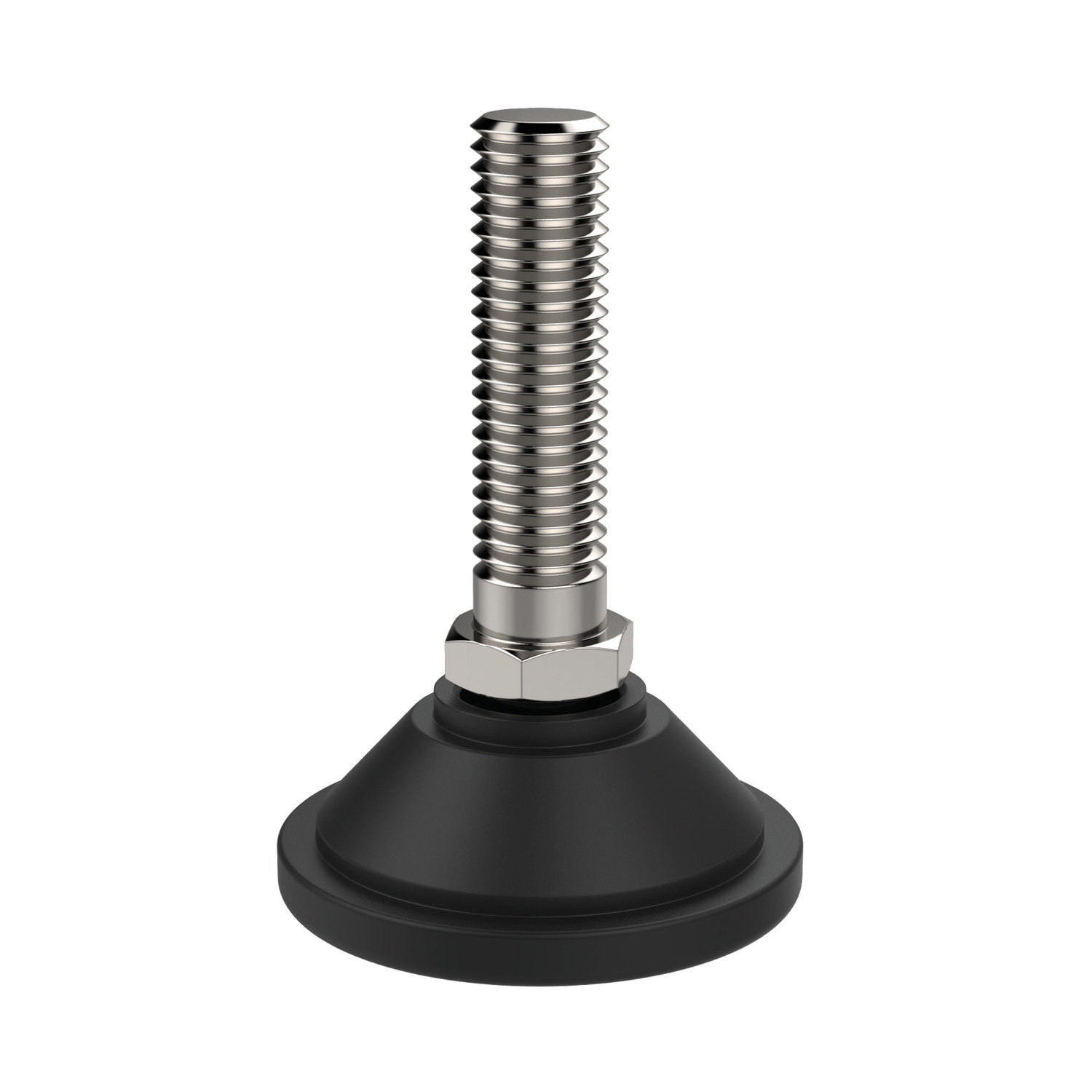

34721 Levelling Feet

pad plastic, bolt steel, material: Nylon

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Fixed Feet
steel with hex socket

Levelling Feet
pad plastic, bolt steel

Levelling Feet
plastic & steel

Levelling Feet
bolt down, plastic & steel

Levelling Feet
plastic & steel

Fixed Levelling Feet
steel stud

Levelling Feet - Nylon. M 6 - 20 - 50 - 23

34721.W0061

d₁

M 6

d₂

50

l

20

h₁

23

Static load max. kN

3.0

£ 3.62 per unit (click for quantity discounts)

Levelling Feet - Nylon. M 6 - 40 - 40 - 21

34721.W0062

d₁

M 6

d₂

40

l

40

h₁

21

Static load max. kN

3.0

£ 3.40 per unit (click for quantity discounts)

Levelling Feet - Nylon. M10 - 60 - 40 - 21

34721.W0102

d₁

M10

d₂

40

l

60

h₁

21

Static load max. kN

5.0

£ 3.78 per unit (click for quantity discounts)

Levelling Feet - Nylon. M10 - 60 - 50 - 23

34721.W0103

d₁

M10

d₂

50

l

60

h₁

23

Static load max. kN

5.0

£ 4.07 per unit (click for quantity discounts)

Levelling Feet - Nylon. M 6 - 20 - 50 - 23

34721.W0061

d₁

M 6

d₂

50

l

20

h₁

23

Static load max. kN

3.0

£ 3.62 per unit (click for quantity discounts)

Levelling Feet - Nylon. M 6 - 40 - 40 - 21

34721.W0062

d₁

M 6

d₂

40

l

40

h₁

21

Static load max. kN

3.0

£ 3.40 per unit (click for quantity discounts)

Levelling Feet - Nylon. M10 - 60 - 40 - 21

34721.W0102

d₁

M10

d₂

40

l

60

h₁

21

Static load max. kN

5.0

£ 3.78 per unit (click for quantity discounts)

Levelling Feet - Nylon. M10 - 60 - 50 - 23

34721.W0103

d₁

M10

d₂

50

l

60

h₁

23

Static load max. kN

5.0

£ 4.07 per unit (click for quantity discounts)



Select all

d₁

d₂

l

h₁

Static load max. kN

Price & Availability	Article	d1	d2	l	h1	Static load max. kN
	34721.W0061	M 6	50	20	23	3.0
£ 3.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.62 0% 20-49 £ 3.26 10% 50-99 £ 3.08 15% 100-499 £ 2.72 25% 500+ £ 2.35 35% d1 M 6 d2 50 l 20 h1 23 Static load max. kN 3.0 more info »
	34721.W0062	M 6	40	40	21	3.0
£ 3.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.40 0% 20-49 £ 3.06 10% 50-99 £ 2.89 15% 100-499 £ 2.55 25% 500+ £ 2.21 35% d1 M 6 d2 40 l 40 h1 21 Static load max. kN 3.0 more info »
	34721.W0102	M10	40	60	21	5.0
£ 3.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.78 0% 20-49 £ 3.40 10% 50-99 £ 3.21 15% 100-499 £ 2.84 25% 500+ £ 2.46 35% d1 M10 d2 40 l 60 h1 21 Static load max. kN 5.0 more info »
	34721.W0103	M10	50	60	23	5.0
£ 4.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 4.07 0% 20-49 £ 3.66 10% 50-99 £ 3.46 15% 100-499 £ 3.05 25% 500+ £ 2.65 35% d1 M10 d2 50 l 60 h1 23 Static load max. kN 5.0 more info »
