Fixed Feet
steel with hex socket
34726 Levelling Feet - Heavy Duty
bolt down option, bolt steel, material: Plastic and steel
Alternative products you may wish to consider
£ 15.39 per unit (click for quantity discounts)
£ 16.20 per unit (click for quantity discounts)
£ 17.10 per unit (click for quantity discounts)
d1
M16
d2
123
d3
12.5
d4
73
l
125
h1
185
h2
60
h3
40@
A/F
20
Load
max.
kN
35
£ 18.19 per unit (click for quantity discounts)
£ 19.00 per unit (click for quantity discounts)
£ 20.05 per unit (click for quantity discounts)
£ 21.05 per unit (click for quantity discounts)
£ 22.21 per unit (click for quantity discounts)
£ 14.42 per unit (click for quantity discounts)
£ 15.17 per unit (click for quantity discounts)
£ 16.07 per unit (click for quantity discounts)
£ 16.91 per unit (click for quantity discounts)
£ 17.82 per unit (click for quantity discounts)
£ 18.72 per unit (click for quantity discounts)
£ 19.75 per unit (click for quantity discounts)
£ 22.04 per unit (click for quantity discounts)
£ 14.42 per unit (click for quantity discounts)
£ 15.17 per unit (click for quantity discounts)
£ 16.07 per unit (click for quantity discounts)
£ 16.91 per unit (click for quantity discounts)
£ 17.82 per unit (click for quantity discounts)
£ 18.72 per unit (click for quantity discounts)
£ 19.75 per unit (click for quantity discounts)
£ 22.04 per unit (click for quantity discounts)
£ 16.07 per unit (click for quantity discounts)
£ 17.25 per unit (click for quantity discounts)
£ 18.37 per unit (click for quantity discounts)
£ 19.54 per unit (click for quantity discounts)
£ 20.68 per unit (click for quantity discounts)
£ 21.80 per unit (click for quantity discounts)
£ 22.96 per unit (click for quantity discounts)
d1
d2
d3
d4
l
h1
h2
h3
A/F
Load
max.
kN

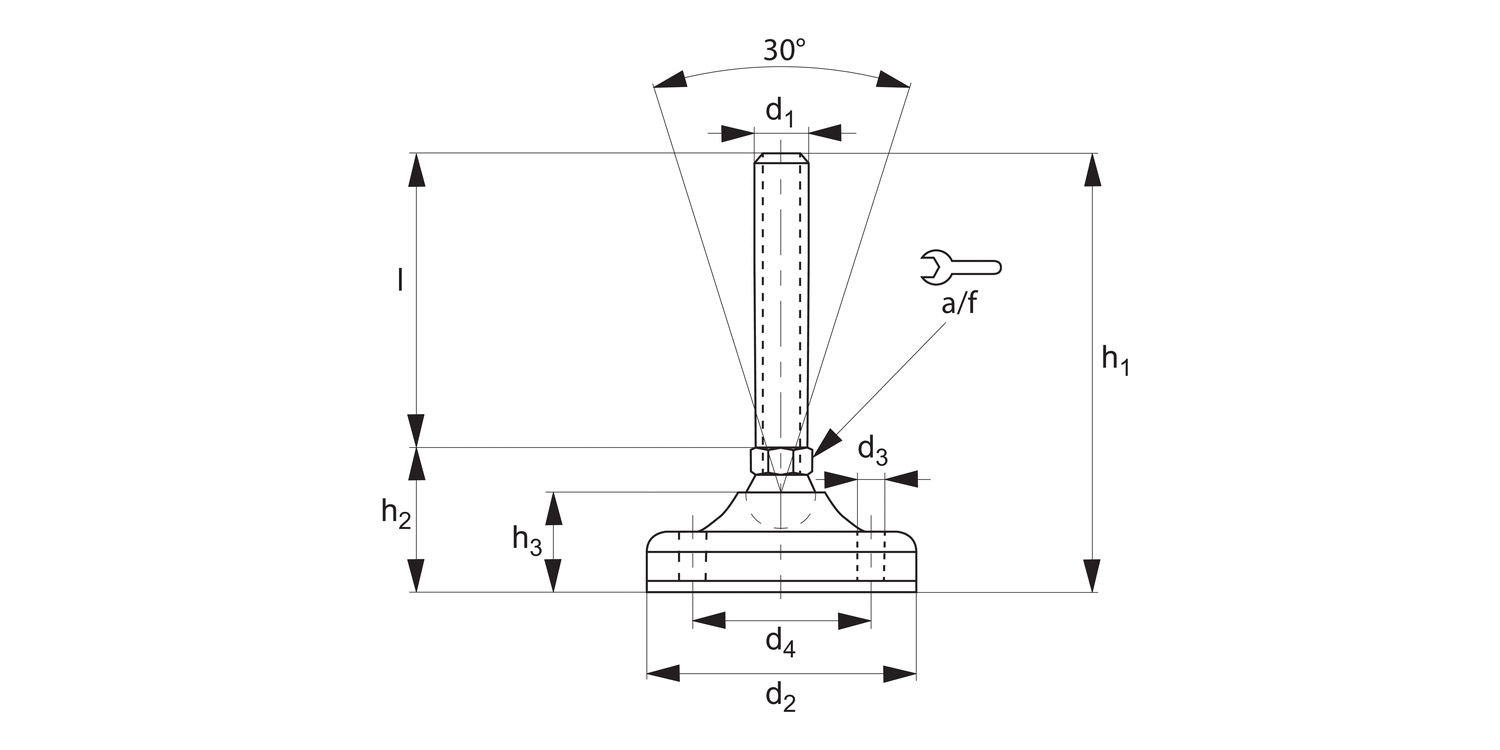

| Price & Availability | Article | d1 | d2 | d3 | d4 | l | h1 | h2 | h3 | A/F | Load max. kN | ||||||||||||||||||
| 34726.W1600 | M16 | 123 | 12.5 | 73 | 50 | 110 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 15.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 50 h1 110 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1601 | M16 | 123 | 12.5 | 73 | 75 | 135 | 60 | 40@ | 20 | 35 | |||||||||||||||||||
£ 16.20 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 75 h1 135 h2 60 h3 40@ A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1602 | M16 | 123 | 12.5 | 73 | 100 | 160 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 17.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 100 h1 160 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1603 | M16 | 123 | 12.5 | 73 | 125 | 185 | 60 | 40@ | 20 | 35 | |||||||||||||||||||
£ 18.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 125 h1 185 h2 60 h3 40@ A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1604 | M16 | 123 | 12.5 | 73 | 150 | 210 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 19.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 150 h1 210 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1605 | M16 | 123 | 12.5 | 73 | 175 | 235 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 20.05 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 175 h1 235 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1606 | M16 | 123 | 12.5 | 73 | 200 | 260 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 21.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 200 h1 260 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W1607 | M16 | 123 | 12.5 | 73 | 225 | 288 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 22.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M16 d2 123 d3 12.5 d4 73 l 225 h1 288 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2000 | M20 | 123 | 12.5 | 73 | 75 | 135 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 14.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 75 h1 135 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2001 | M20 | 123 | 12.5 | 73 | 100 | 160 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 15.17 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 100 h1 160 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2002 | M20 | 123 | 12.5 | 73 | 125 | 185 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 16.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 125 h1 185 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2003 | M20 | 123 | 12.5 | 73 | 150 | 210 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 16.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 150 h1 210 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2004 | M20 | 123 | 12.5 | 73 | 175 | 235 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 17.82 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 175 h1 235 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2005 | M20 | 123 | 12.5 | 73 | 200 | 260 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 18.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 200 h1 260 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2006 | M20 | 123 | 12.5 | 73 | 225 | 285 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 19.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 225 h1 285 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2007 | M20 | 123 | 12.5 | 73 | 250 | 310 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 22.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M20 d2 123 d3 12.5 d4 73 l 250 h1 310 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2400 | M24 | 123 | 12.5 | 73 | 75 | 135 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 14.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 75 h1 135 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2401 | M24 | 123 | 12.5 | 73 | 100 | 160 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 15.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 100 h1 160 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2402 | M24 | 123 | 12.5 | 73 | 125 | 185 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 16.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 125 h1 185 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2403 | M24 | 123 | 12.5 | 73 | 150 | 210 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 16.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 150 h1 210 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2404 | M24 | 123 | 12.5 | 73 | 175 | 235 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 17.82 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 175 h1 235 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2405 | M24 | 123 | 12.5 | 73 | 200 | 260 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 18.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 200 h1 260 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2406 | M24 | 123 | 12.5 | 73 | 225 | 285 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 19.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 225 h1 285 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W2407 | M24 | 123 | 12.5 | 73 | 250 | 310 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 22.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M24 d2 123 d3 12.5 d4 73 l 250 h1 310 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3000 | M30 | 123 | 12.5 | 73 | 100 | 161 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 16.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 100 h1 161 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3001 | M30 | 123 | 12.5 | 73 | 125 | 186 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 17.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 125 h1 186 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3002 | M30 | 123 | 12.5 | 73 | 150 | 211 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 18.37 per unit (click for quantity discounts) Ready to despatch 16 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 150 h1 211 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3003 | M30 | 123 | 12.5 | 73 | 175 | 236 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 19.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 175 h1 236 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3004 | M30 | 123 | 12.5 | 73 | 200 | 261 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 20.68 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 200 h1 261 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3005 | M30 | 123 | 12.5 | 73 | 225 | 286 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 21.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 225 h1 286 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
| 34726.W3006 | M30 | 123 | 12.5 | 73 | 250 | 311 | 60 | 40 | 20 | 35 | |||||||||||||||||||
£ 22.96 per unit (click for quantity discounts) Ready to despatch 12 Need more? Please call us.
d1 M30 d2 123 d3 12.5 d4 73 l 250 h1 311 h2 60 h3 40 A/F 20 Load
max.
kN 35 | |||||||||||||||||||||||||||||
Technical & Application
Material
Pad: polyamide reinforced by fibre glass with anti-slip pad.
Bolt: steel (C40)
Technical Notes
Load values refer to static loads, located at half the screw height.
When vibrations or dynamic loads are present these values should be reduced.
