34723 Levelling Feet

Name: 34723.W1202
Brand: WC
SKU: 34723.W1202
Price: 8.39 EUR
Availability: OutOfStock

plastic pad, bolt steel, material: Plastic and steel

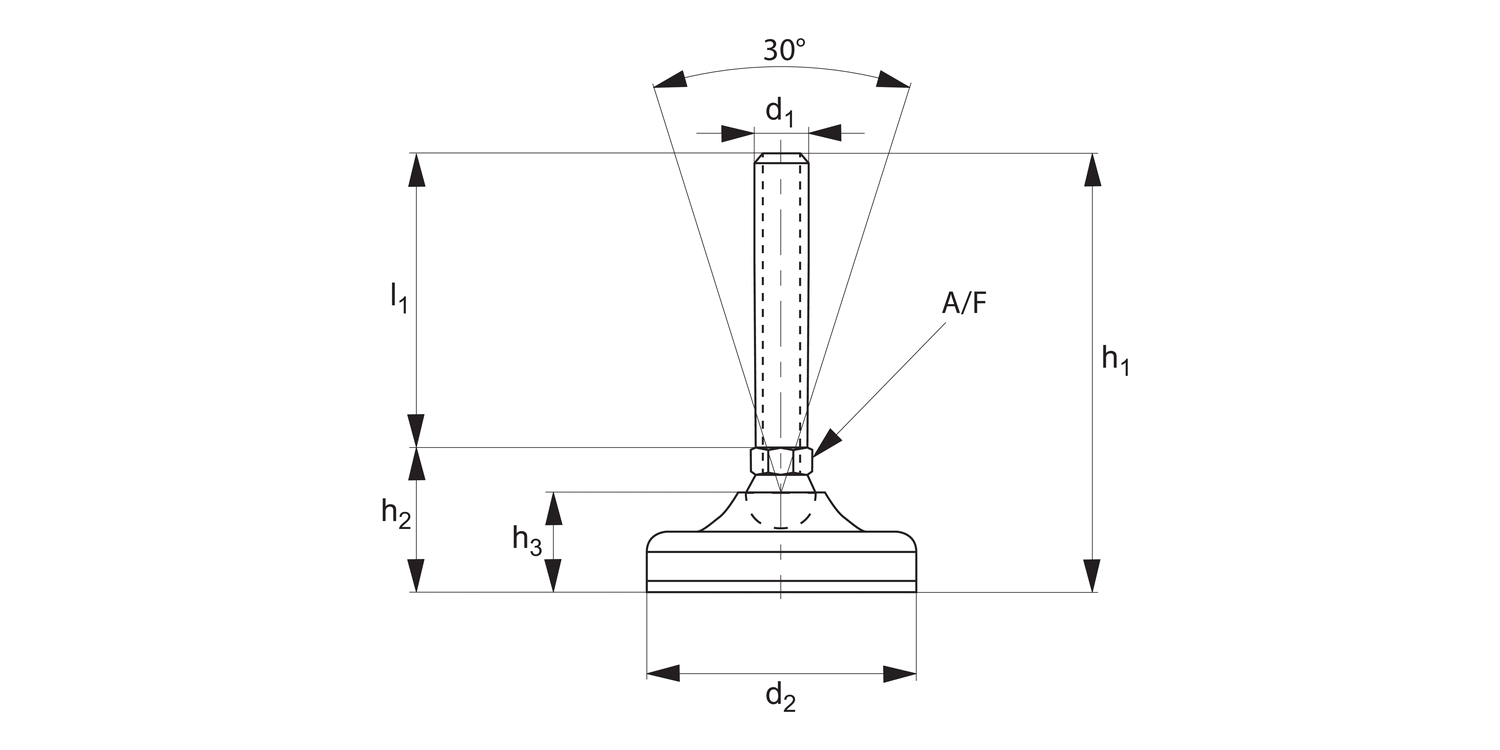

Article properties

Order No.

34723.W1202

d₁

M12

d₂

h₁

136

h₂

h₃

26.0

l₁

100

A/F

Load max. kN

See full product selection

£ 8.39 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 8.39	0%
20-49	£ 7.55	10%
50-99	£ 6.71	20%
100-499	£ 6.29	25%
500+	£ 5.45	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Pad: polyamide reinforced by fibre glass with anti-slip pad.
Bolt: galvanized steel (C40)

Technical Notes

Load values refer to static loads, located at half the screw height.
When vibrations or dynamic loads are present these values should be reduced.

Product Datasheets

34723 Levelling FeetJune 24, 2025, 3:45 PM / 392.77 kB

Plastic Base, Steel ThreadJune 24, 2025, 3:34 PM / 1.22 MB

Levelling FeetJune 24, 2025, 3:31 PM / 2.64 MB

Levelling Feet, Mounts & AdjustersJune 24, 2025, 3:32 PM / 4.66 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

CAD files

34723 AcisApril 17, 2024, 9:35 AM / 2.02 MB

34723 IGESApril 17, 2024, 9:35 AM / 4.42 MB

34723 ParasolidApril 17, 2024, 9:35 AM / 854.42 kB

34723 ProEApril 17, 2024, 9:35 AM / 10.12 MB

34723 SolidWorksApril 17, 2024, 9:35 AM / 5.11 MB

34723 StepApril 17, 2024, 9:35 AM / 2.53 MB
