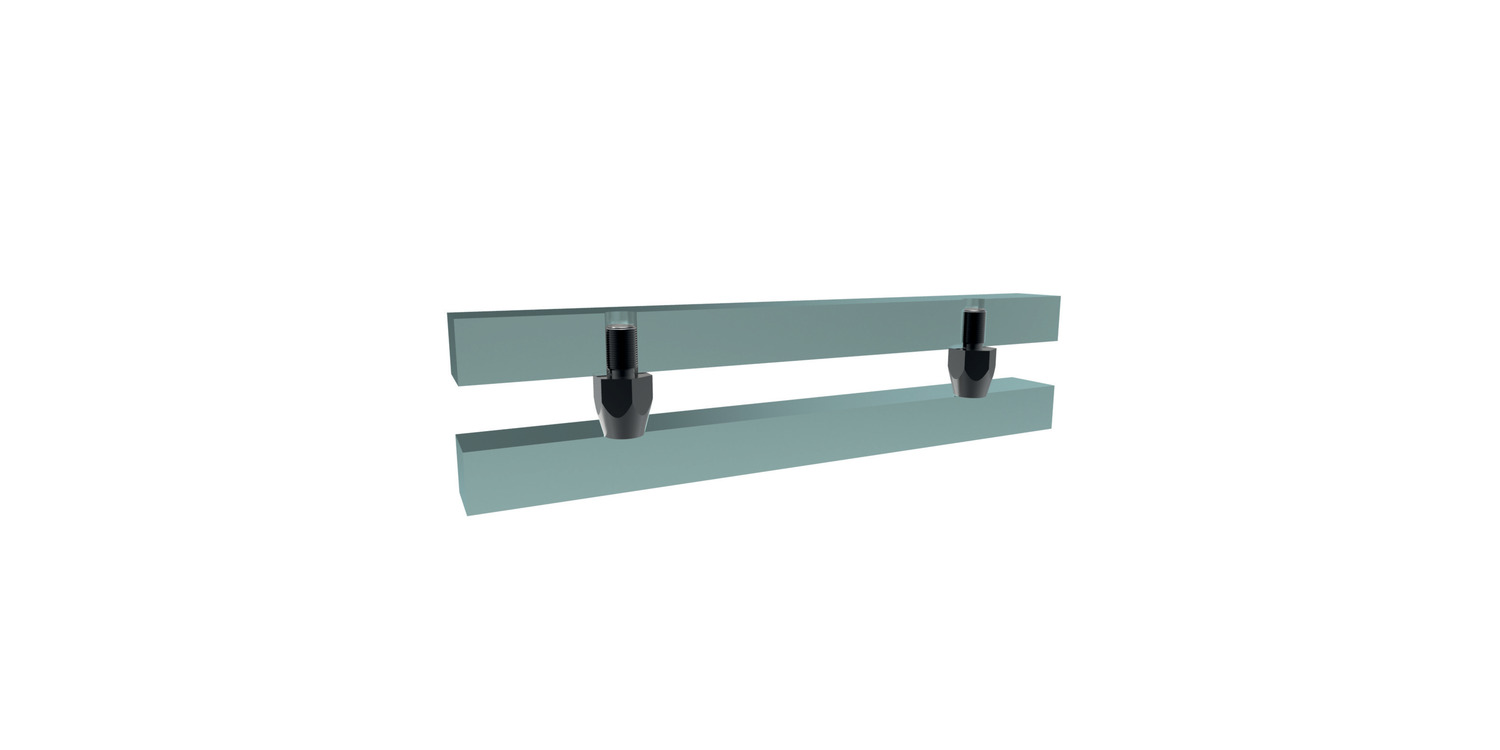

36000 Locating Feet

threaded shank, material: Heat-treated steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Locating Feet
threaded shank

Locating Pins
Steel

Locating Pins
adjustable

Threaded Rest Buttons
male thread

Threaded Rest Buttons
female thread

Screwed Rest Button
male thread - plastic

Screwed Rest Button

female thread - plastic

Locating Pins
pin shaped

Locating Feet - Heat treated steel. 10 - M 6 - 11 - 8

36000.W0061

d₁

M 6

l₁

10

d₂

8

l₂

11

w₁

11.5

A/F

10

Torque to max. Nm

7

Weight g

8

£ 2.31 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 20 - M 6 - 11 - 6

36000.W0062

d₁

M 6

l₁

20

d₂

6

l₂

11

w₁

11.5

A/F

10

Torque to max. Nm

7

Weight g

13

£ 2.64 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 15 - M 8 - 13 - 10

36000.W0081

d₁

M 8

l₁

15

d₂

10

l₂

13

w₁

15.0

A/F

13

Torque to max. Nm

7

Weight g

19

£ 2.89 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 30 - M 8 - 13 - 9

36000.W0082

d₁

M 8

l₁

30

d₂

9

l₂

13

w₁

15.0

A/F

13

Torque to max. Nm

18

Weight g

35

£ 3.60 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 20 - M10 - 16 - 13

36000.W0101

d₁

M10

l₁

20

d₂

13

l₂

16

w₁

19.6

A/F

17

Torque to max. Nm

32

Weight g

41

£ 4.69 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 40 - M10 - 16 - 13

36000.W0102

d₁

M10

l₁

40

d₂

13

l₂

16

w₁

19.6

A/F

17

Torque to max. Nm

32

Weight g

81

£ 6.05 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 25 - M12 - 20 - 15

36000.W0121

d₁

M12

l₁

25

d₂

15

l₂

20

w₁

21.9

A/F

19

Torque to max. Nm

60

Weight g

70

£ 7.11 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 50 - M12 - 20 - 15

36000.W0122

d₁

M12

l₁

50

d₂

15

l₂

20

w₁

21.9

A/F

19

Torque to max. Nm

60

Weight g

129

£ 10.03 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 10 - M 6 - 11 - 8

36000.W0061

d₁

M 6

l₁

10

d₂

8

l₂

11

w₁

11.5

A/F

10

Torque to max. Nm

7

Weight g

8

£ 2.31 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 20 - M 6 - 11 - 6

36000.W0062

d₁

M 6

l₁

20

d₂

6

l₂

11

w₁

11.5

A/F

10

Torque to max. Nm

7

Weight g

13

£ 2.64 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 15 - M 8 - 13 - 10

36000.W0081

d₁

M 8

l₁

15

d₂

10

l₂

13

w₁

15.0

A/F

13

Torque to max. Nm

7

Weight g

19

£ 2.89 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 30 - M 8 - 13 - 9

36000.W0082

d₁

M 8

l₁

30

d₂

9

l₂

13

w₁

15.0

A/F

13

Torque to max. Nm

18

Weight g

35

£ 3.60 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 20 - M10 - 16 - 13

36000.W0101

d₁

M10

l₁

20

d₂

13

l₂

16

w₁

19.6

A/F

17

Torque to max. Nm

32

Weight g

41

£ 4.69 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 40 - M10 - 16 - 13

36000.W0102

d₁

M10

l₁

40

d₂

13

l₂

16

w₁

19.6

A/F

17

Torque to max. Nm

32

Weight g

81

£ 6.05 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 25 - M12 - 20 - 15

36000.W0121

d₁

M12

l₁

25

d₂

15

l₂

20

w₁

21.9

A/F

19

Torque to max. Nm

60

Weight g

70

£ 7.11 per unit (click for quantity discounts)

Locating Feet - Heat treated steel. 50 - M12 - 20 - 15

36000.W0122

d₁

M12

l₁

50

d₂

15

l₂

20

w₁

21.9

A/F

19

Torque to max. Nm

60

Weight g

129

£ 10.03 per unit (click for quantity discounts)



Select all

d₁

l₁

d₂

l₂

w₁

A/F

Torque to max. Nm

Weight g

Price & Availability	Article	d1	l1	d2	l2	w1	A/F	Torque to max. Nm	Weight g
	36000.W0061	M 6	10	8	11	11.5	10	7	8
£ 2.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.31 0% 20-49 £ 2.08 10% 50-99 £ 1.96 15% 100-499 £ 1.73 25% 500+ £ 1.50 35% d1 M 6 l1 10 d2 8 l2 11 w1 11.5 A/F 10 Torque to max. Nm 7 Weight g 8 more info »
	36000.W0062	M 6	20	6	11	11.5	10	7	13
£ 2.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.64 0% 20-49 £ 2.38 10% 50-99 £ 2.24 15% 100-499 £ 1.98 25% 500+ £ 1.72 35% d1 M 6 l1 20 d2 6 l2 11 w1 11.5 A/F 10 Torque to max. Nm 7 Weight g 13 more info »
	36000.W0081	M 8	15	10	13	15.0	13	7	19
£ 2.89 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.89 0% 20-49 £ 2.60 10% 50-99 £ 2.46 15% 100-499 £ 2.17 25% 500+ £ 1.88 35% d1 M 8 l1 15 d2 10 l2 13 w1 15.0 A/F 13 Torque to max. Nm 7 Weight g 19 more info »
	36000.W0082	M 8	30	9	13	15.0	13	18	35
£ 3.60 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.60 0% 20-49 £ 3.24 10% 50-99 £ 3.06 15% 100-499 £ 2.70 25% 500+ £ 2.34 35% d1 M 8 l1 30 d2 9 l2 13 w1 15.0 A/F 13 Torque to max. Nm 18 Weight g 35 more info »
	36000.W0101	M10	20	13	16	19.6	17	32	41
£ 4.69 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 4.69 0% 20-49 £ 4.22 10% 50-99 £ 3.99 15% 100-499 £ 3.52 25% 500+ £ 3.05 35% d1 M10 l1 20 d2 13 l2 16 w1 19.6 A/F 17 Torque to max. Nm 32 Weight g 41 more info »
	36000.W0102	M10	40	13	16	19.6	17	32	81
£ 6.05 per unit (click for quantity discounts) Ready to despatch 19 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 6.05 0% 20-49 £ 5.45 10% 50-99 £ 5.14 15% 100-499 £ 4.54 25% 500+ £ 3.93 35% d1 M10 l1 40 d2 13 l2 16 w1 19.6 A/F 17 Torque to max. Nm 32 Weight g 81 more info »
	36000.W0121	M12	25	15	20	21.9	19	60	70
£ 7.11 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 7.11 0% 20-49 £ 6.40 10% 50-99 £ 6.04 15% 100-499 £ 5.33 25% 500+ £ 4.62 35% d1 M12 l1 25 d2 15 l2 20 w1 21.9 A/F 19 Torque to max. Nm 60 Weight g 70 more info »
	36000.W0122	M12	50	15	20	21.9	19	60	129
£ 10.03 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 10.03 0% 20-49 £ 9.03 10% 50-99 £ 8.53 15% 100-499 £ 7.52 25% 500+ £ 6.52 35% d1 M12 l1 50 d2 15 l2 20 w1 21.9 A/F 19 Torque to max. Nm 60 Weight g 129 more info »
