Locating Feet
threaded shank

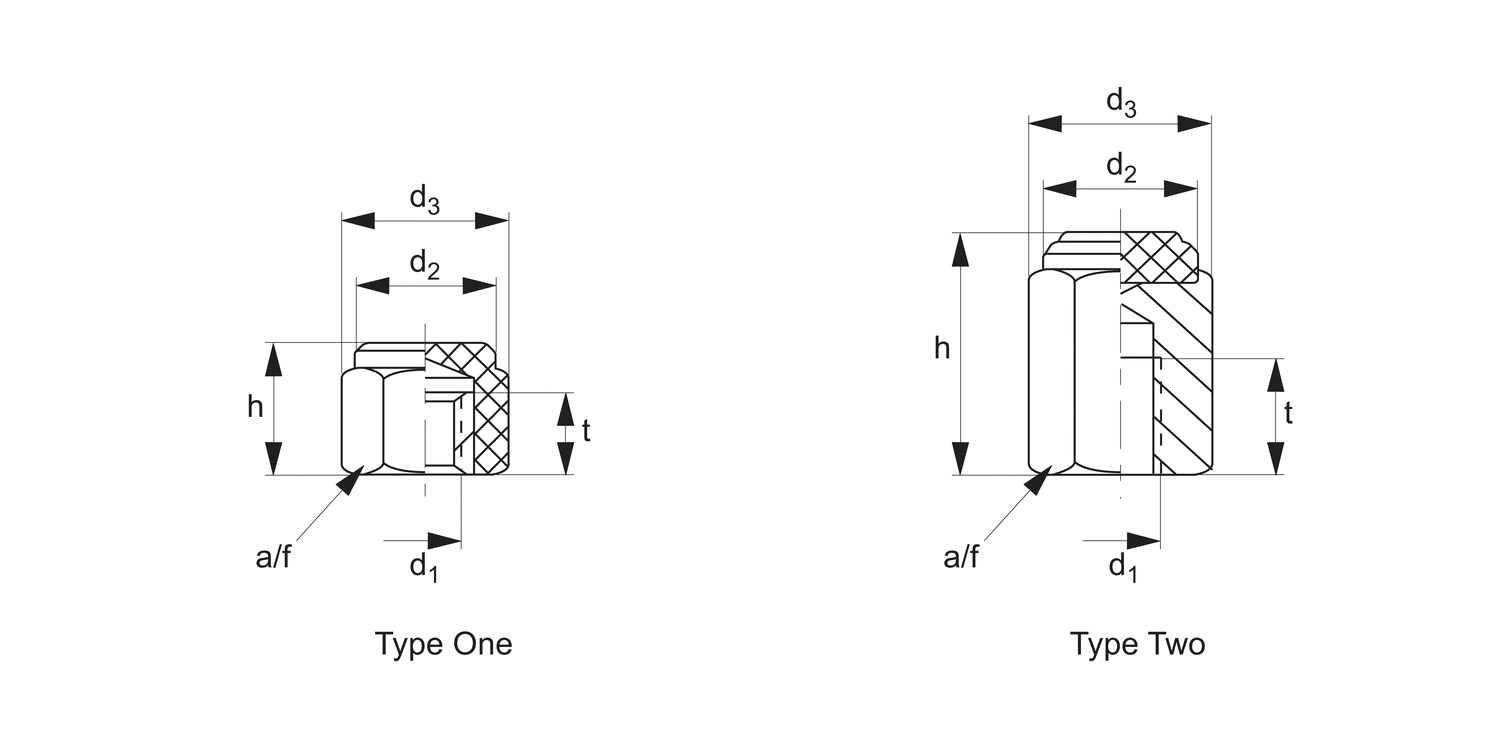

36404 Screwed Rest Buttons - Plastic
female thread, material: Stainless steel
Alternative products you may wish to consider
Type
One
d1
M 8
d2
17.0
d3
19.0
h1
±0.1
15
t1
9
A/F1
-
Static load
kN
2.1
Tightening torque
max.
Nm
10
Weight
g
7
£ 34.00 per unit (click for quantity discounts)
Type
One
d1
M10
d2
19.0
d3
21.5
h1
±0.1
20
t1
10
A/F1
-
Static load
kN
2.4
Tightening torque
max.
Nm
10
Weight
g
11
£ 42.71 per unit (click for quantity discounts)
Type
One
d1
M12
d2
22.0
d3
25.0
h1
±0.1
20
t1
12
A/F1
-
Static load
kN
3.4
Tightening torque
max.
Nm
10
Weight
g
16
£ 54.42 per unit (click for quantity discounts)
Type
Two
d1
M 8
d2
12.5
d3
19.4
h1
±0.1
25
t1
12
A/F1
17
Static load
kN
2.8
Tightening torque
max.
Nm
18
Weight
g
36
£ 33.36 per unit (click for quantity discounts)
Type
Two
d1
M10
d2
14.5
d3
21.9
h1
±0.1
30
t1
15
A/F1
19
Static load
kN
3.8
Tightening torque
max.
Nm
32
Weight
g
54
£ 34.00 per unit (click for quantity discounts)
Type
Two
d1
M12
d2
17.5
d3
25.2
h1
±0.1
30
t1
18
A/F1
22
Static load
kN
5.5
Tightening torque
max.
Nm
60
Weight
g
71
£ 40.44 per unit (click for quantity discounts)
Type
d1
d2
d3
h1
±0.1
t1
A/F1
Static load
kN
Tightening torque
max.
Nm
Weight
g
| Price & Availability | Article | Type | d1 | d2 | d3 | h1 ±0.1 | t1 | A/F1 | Static load kN | Tightening torque max. Nm | Weight g | ||||||
| 36404.W0222 | One | M 8 | 17.0 | 19.0 | 15 | 9 | - | 2.1 | 10 | 7 | |||||||
£ 34.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1 M 8 d2 17.0 d3 19.0 h1
±0.1 15 t1 9 A/F1 - Static load
kN 2.1 Tightening torque
max.
Nm 10 Weight
g 7 | |||||||||||||||||
| 36404.W0233 | One | M10 | 19.0 | 21.5 | 20 | 10 | - | 2.4 | 10 | 11 | |||||||
£ 42.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1 M10 d2 19.0 d3 21.5 h1
±0.1 20 t1 10 A/F1 - Static load
kN 2.4 Tightening torque
max.
Nm 10 Weight
g 11 | |||||||||||||||||
| 36404.W0243 | One | M12 | 22.0 | 25.0 | 20 | 12 | - | 3.4 | 10 | 16 | |||||||
£ 54.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1 M12 d2 22.0 d3 25.0 h1
±0.1 20 t1 12 A/F1 - Static load
kN 3.4 Tightening torque
max.
Nm 10 Weight
g 16 | |||||||||||||||||
| 36404.W0324 | Two | M 8 | 12.5 | 19.4 | 25 | 12 | 17 | 2.8 | 18 | 36 | |||||||
£ 33.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two d1 M 8 d2 12.5 d3 19.4 h1
±0.1 25 t1 12 A/F1 17 Static load
kN 2.8 Tightening torque
max.
Nm 18 Weight
g 36 | |||||||||||||||||
| 36404.W0335 | Two | M10 | 14.5 | 21.9 | 30 | 15 | 19 | 3.8 | 32 | 54 | |||||||
£ 34.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two d1 M10 d2 14.5 d3 21.9 h1
±0.1 30 t1 15 A/F1 19 Static load
kN 3.8 Tightening torque
max.
Nm 32 Weight
g 54 | |||||||||||||||||
| 36404.W0345 | Two | M12 | 17.5 | 25.2 | 30 | 18 | 22 | 5.5 | 60 | 71 | |||||||
£ 40.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two d1 M12 d2 17.5 d3 25.2 h1
±0.1 30 t1 18 A/F1 22 Static load
kN 5.5 Tightening torque
max.
Nm 60 Weight
g 71 | |||||||||||||||||
Technical & Application
Material
Body: stainless steel 1.4305
Pad: plastic (PEEK), blue
Technical Notes
The buttons are used as seats, stops, supports and thrust pads in jigs and fixtures as well as machine and equipment design.
Stated starting torque for female thread is based on use of bolt strength class 8 or greater, and with full engagement of female thread.
Temperature range -60 to +250°C.
Tips
For male thread see 36403.
