Locating Feet
threaded shank

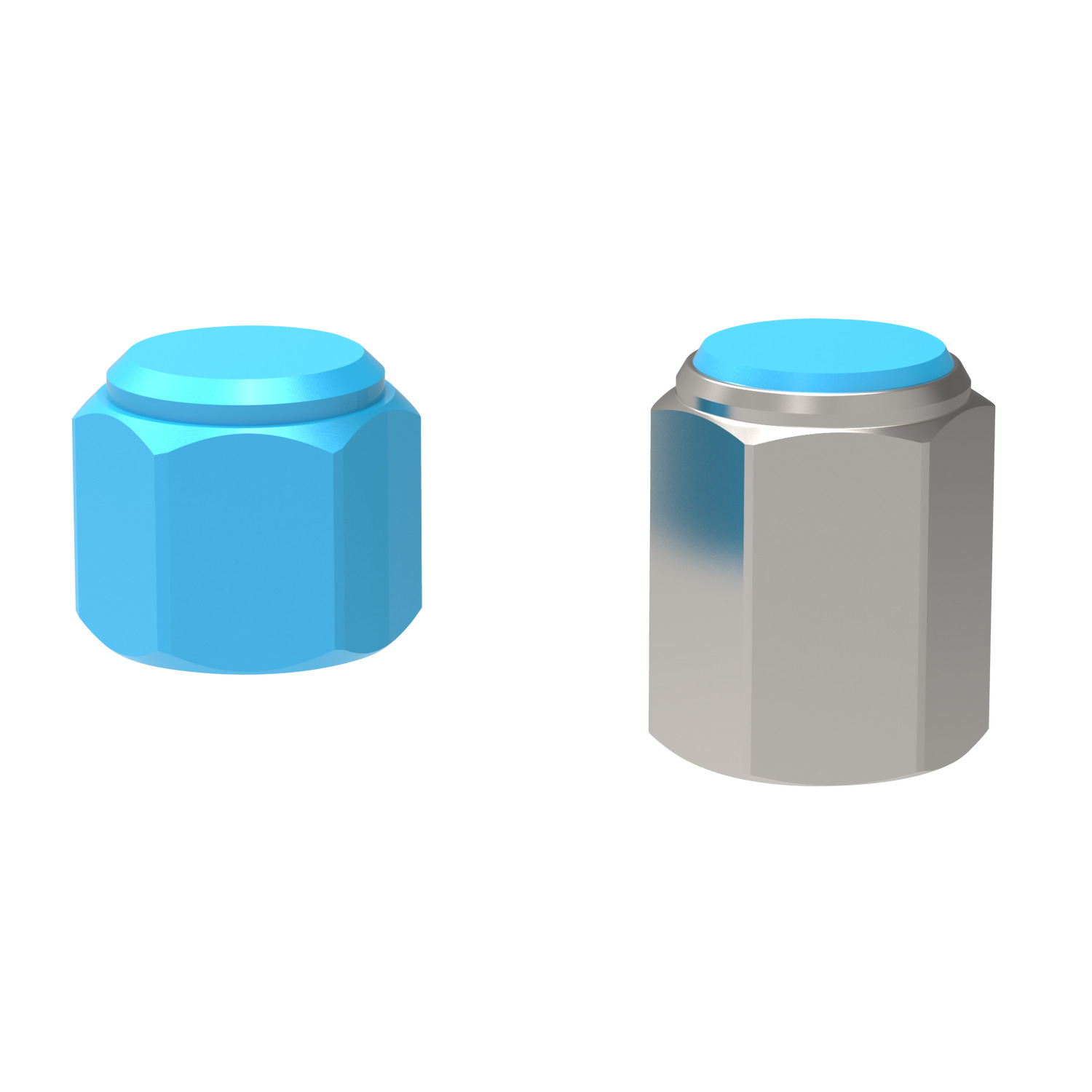

36404 Screwed Rest Buttons - Plastic
female thread, material: Stainless steel
Order No.
36404.W0324

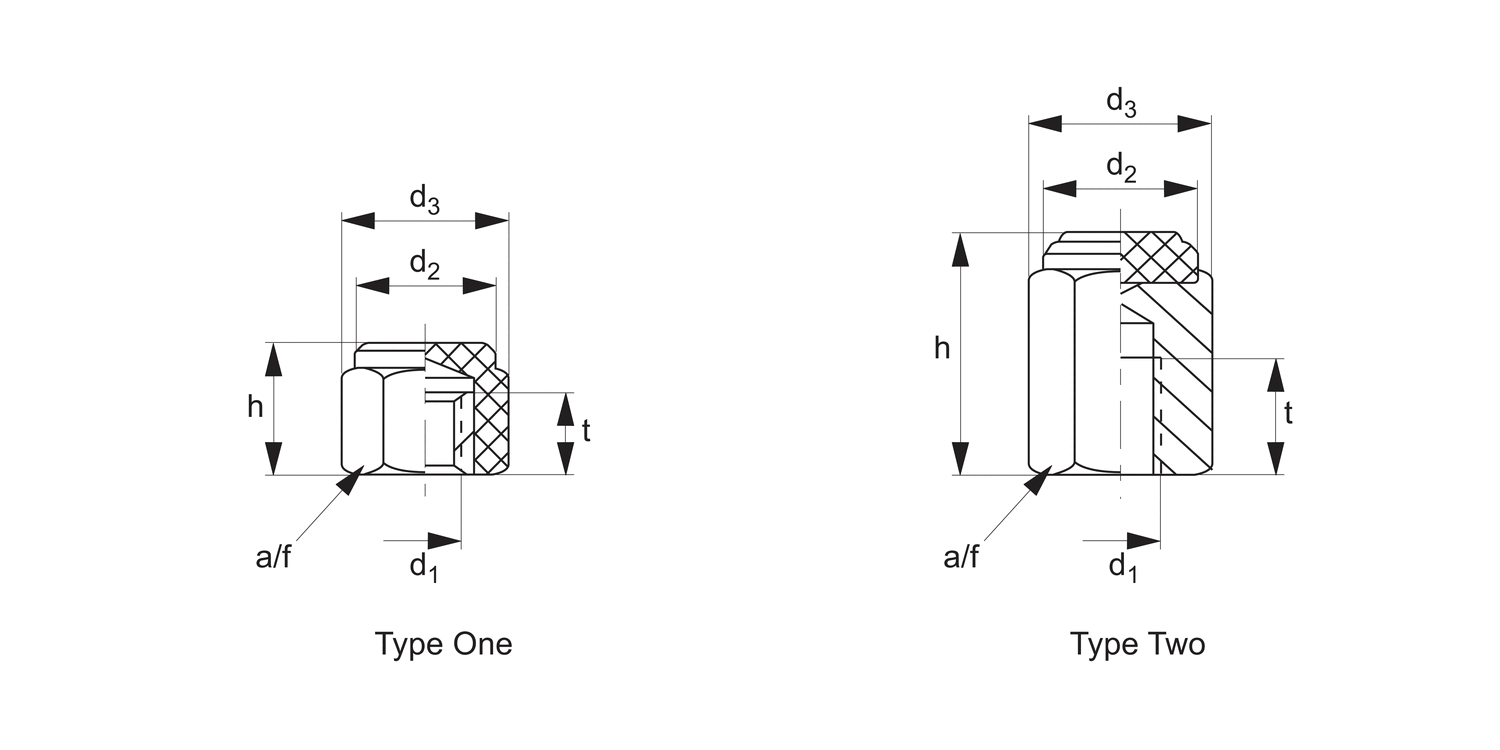

Type
Two
d1
M 8
d2
12.5
d3
19.4
h1
±0.1
25
t1
12
A/F1
17
Static load
kN
2.8
Tightening torque
max.
Nm
18
Weight
g
36
£ 33.36 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 33.36 |
Technical & Application
Material
Body: stainless steel 1.4305
Pad: plastic (PEEK), blue
Technical Notes
The buttons are used as seats, stops, supports and thrust pads in jigs and fixtures as well as machine and equipment design.
Stated starting torque for female thread is based on use of bolt strength class 8 or greater, and with full engagement of female thread.
Temperature range -60 to +250°C.
Tips
For male thread see 36403.
