36440 Locating Pins

Name: 36440.W0466
Brand: WC
SKU: 36440.W0466
Price: 17.72 EUR
Availability: OutOfStock

pin shaped, material: Heat treated steel

Article properties

Order No.

36440.W0466

Finish

Female Thread

d₁

M 8

l₁ ±0.01

d₂

l₂

d₃

14.4

l₃

13.0

w₁

A/F

Torque to max. Nm

Weight g

See full product selection

£ 17.72 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 17.72	0%
5-9	£ 16.83	5%
10-19	£ 15.95	10%
20-49	£ 15.06	15%
50+	£ 13.29	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Heat-treated steel, blackened. Surface induction hardened and ground.

Technical Notes

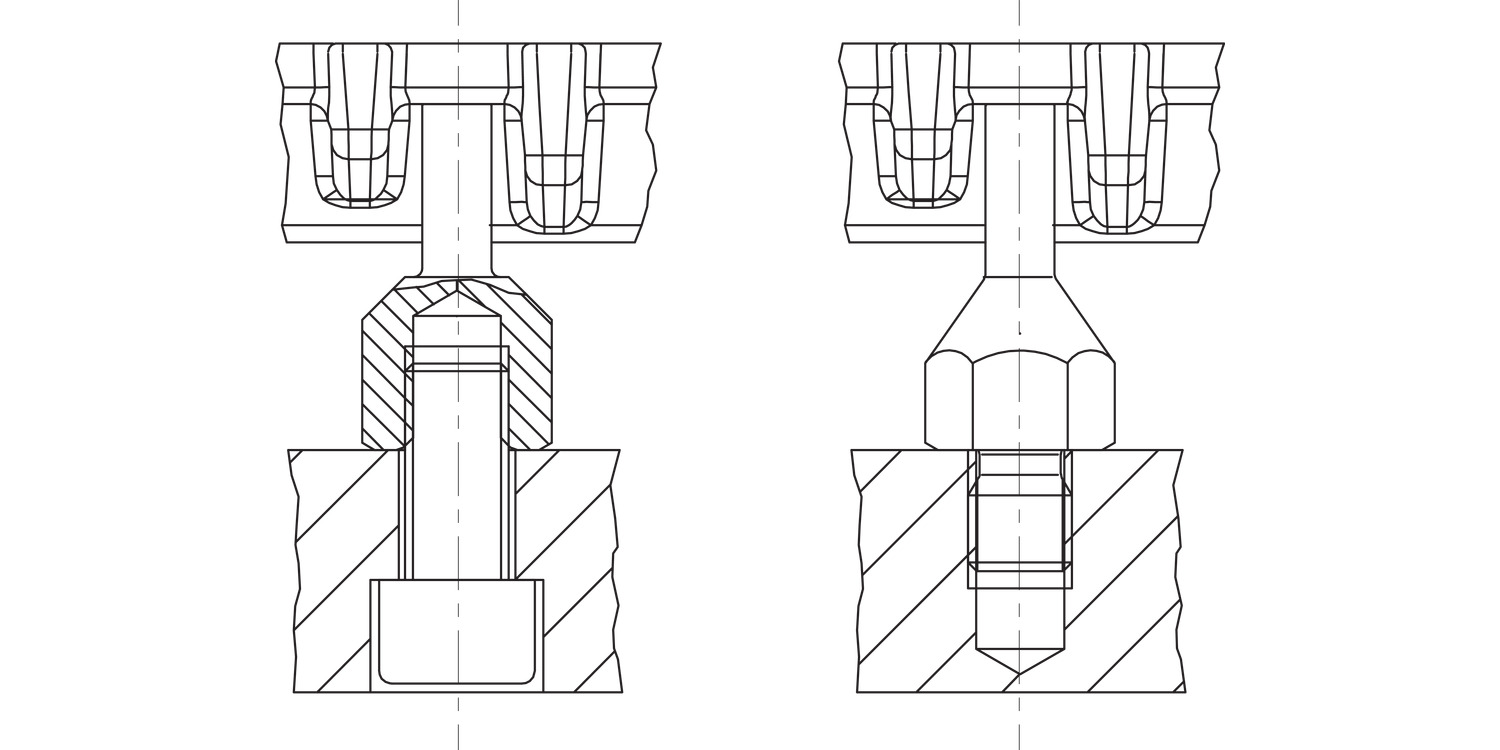

To be used as solid and precise seat and stop. The pin-shaped form of this locating pin allows an application in components with narrow seating points.
