One-Touch Fastener
recessed button

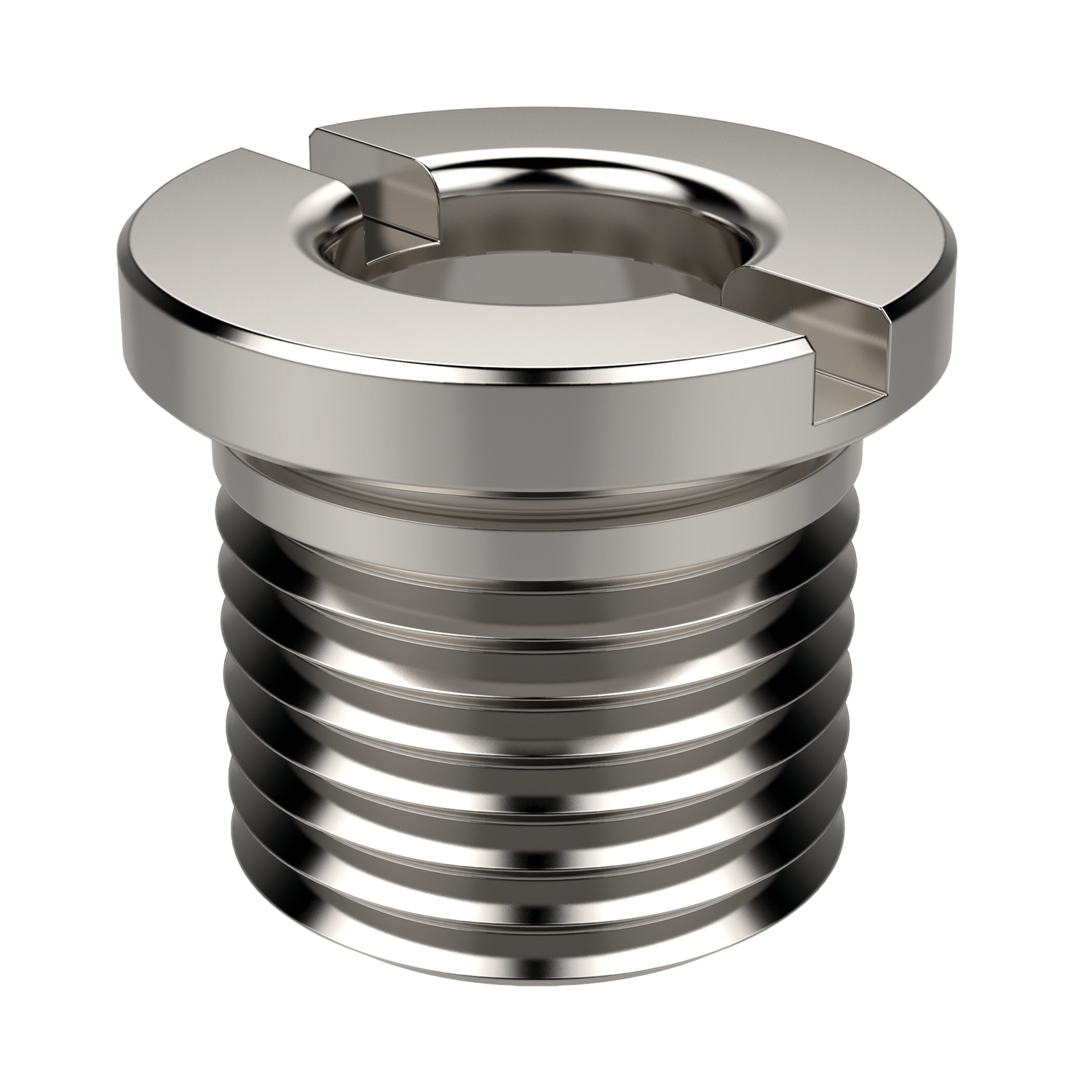

33920 Locating Bushes
for one-touch fasteners 33910 to 33918, material: Steel or stainless steel
Alternative products you may wish to consider

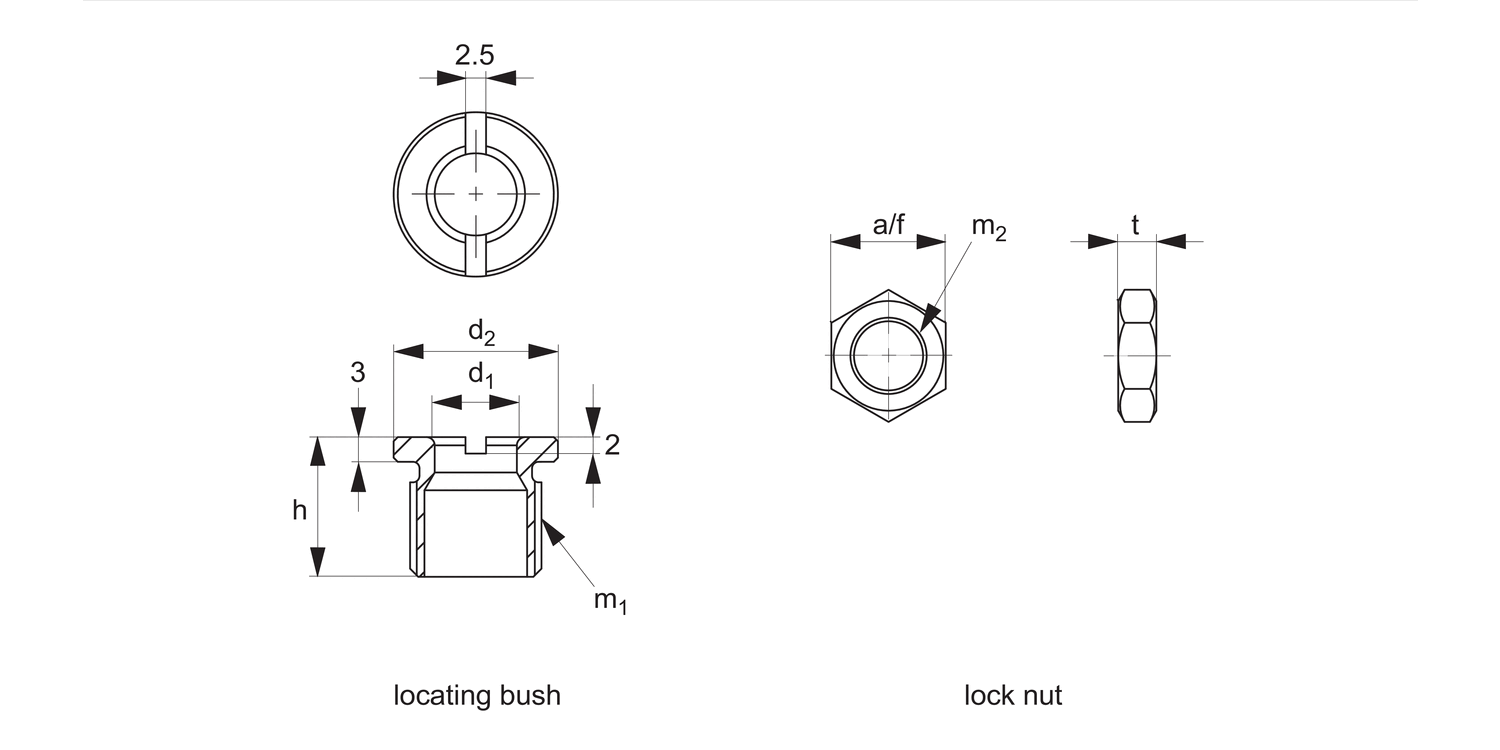

Type
Bush
Material
Steel
d1
+0.4|+0.2
6
d2
tol. h9
16
h
15
m1
M12x1,5
For panel thickness
>6
Weight
g
9
£ 7.36 per unit (click for quantity discounts)
Type
Bush
Material
Steel
d1
+0.4|+0.2
10
d2
tol. h9
20
h
17
m1
M16x1,5
For panel thickness
>6
Weight
g
13
£ 9.29 per unit (click for quantity discounts)
Type
Bush
Material
S/S
d1
+0.4|+0.2
6
d2
tol. h9
16
h
15
m1
M12x1,5
For panel thickness
>6
Weight
g
9
£ 10.69 per unit (click for quantity discounts)
Type
Bush
Material
S/S
d1
+0.4|+0.2
10
d2
tol. h9
20
h
17
m1
M16x1,5
For panel thickness
>6
Weight
g
13
£ 13.09 per unit (click for quantity discounts)
Type
Material
d1
+0.4|+0.2
d2
tol. h9
h
m1
For panel thickness
Weight
g
| Price & Availability | Article | Type | Material | d1 +0.4|+0.2 | d2 tol. h9 | h | m1 | For panel thickness | Weight g | ||||||||||||||||||
| 33920.W0006 | Bush | Steel | 6 | 16 | 15 | M12x1,5 | >6 | 9 | |||||||||||||||||||
£ 7.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Bush Material Steel d1
+0.4|+0.2 6 d2
tol. h9 16 h 15 m1 M12x1,5 For panel thickness >6 Weight
g 9 | |||||||||||||||||||||||||||
| 33920.W0010 | Bush | Steel | 10 | 20 | 17 | M16x1,5 | >6 | 13 | |||||||||||||||||||
£ 9.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Bush Material Steel d1
+0.4|+0.2 10 d2
tol. h9 20 h 17 m1 M16x1,5 For panel thickness >6 Weight
g 13 | |||||||||||||||||||||||||||
| 33920.W0206 | Bush | S/S | 6 | 16 | 15 | M12x1,5 | >6 | 9 | |||||||||||||||||||
£ 10.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Bush Material S/S d1
+0.4|+0.2 6 d2
tol. h9 16 h 15 m1 M12x1,5 For panel thickness >6 Weight
g 9 | |||||||||||||||||||||||||||
| 33920.W0210 | Bush | S/S | 10 | 20 | 17 | M16x1,5 | >6 | 13 | |||||||||||||||||||
£ 13.09 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Bush Material S/S d1
+0.4|+0.2 10 d2
tol. h9 20 h 17 m1 M16x1,5 For panel thickness >6 Weight
g 13 | |||||||||||||||||||||||||||
Technical & Application
Material
Body: steel or stainless steel SUS303.
Nut: stainless steel SUS303.
Technical Notes
Used in conjunction with one-touch fasteners 33910 to 33918, locating bushes 33920 provide secure fastening of panels and covers. Locating bushes are of particular use in soft metals, such as aluminium where receiving surfaces may wear. One-touch fasteners are the ideal solution for applications requiring rapid and recurring change over tooling or set ups. Use in applications as diverse as bottling processes, machine covers, changing of cogs and drive belts.
Tips

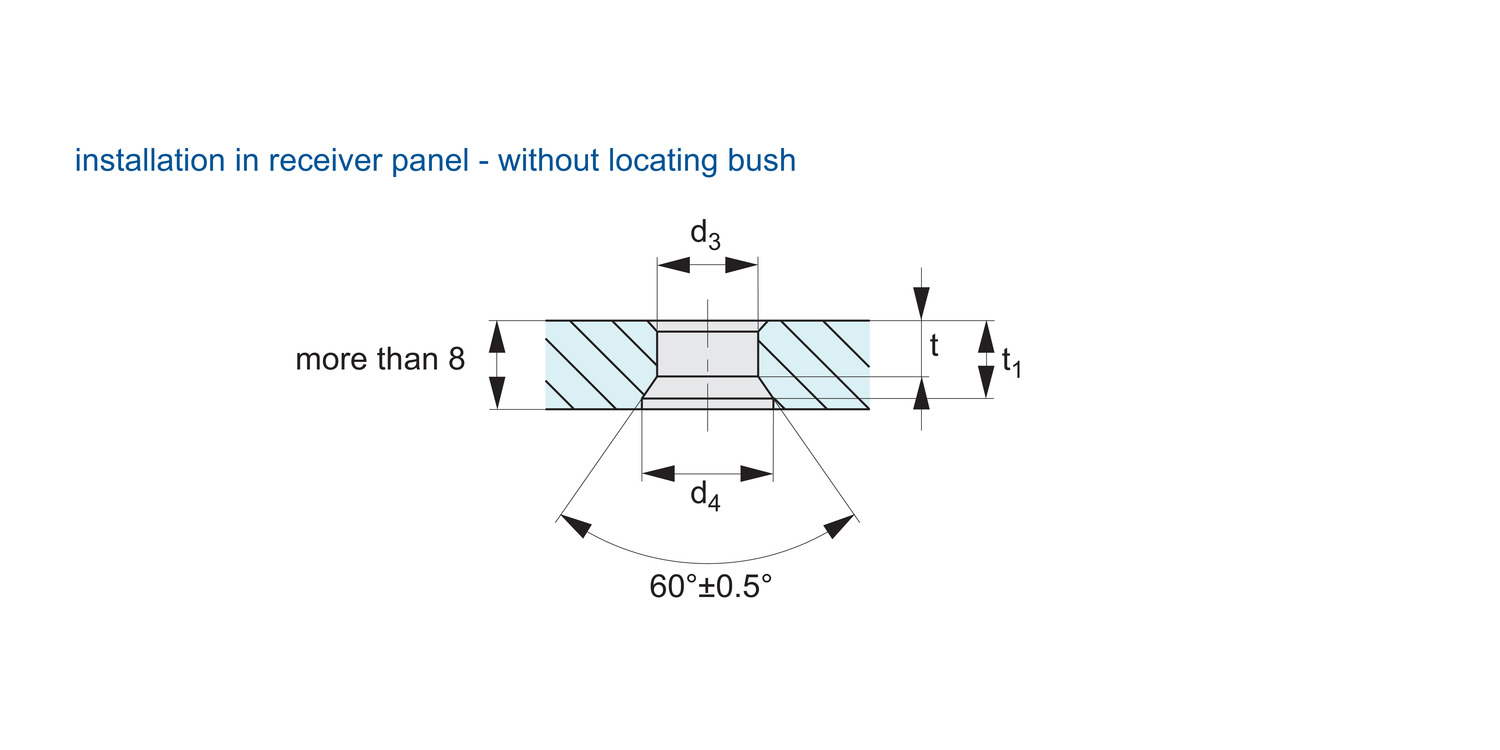

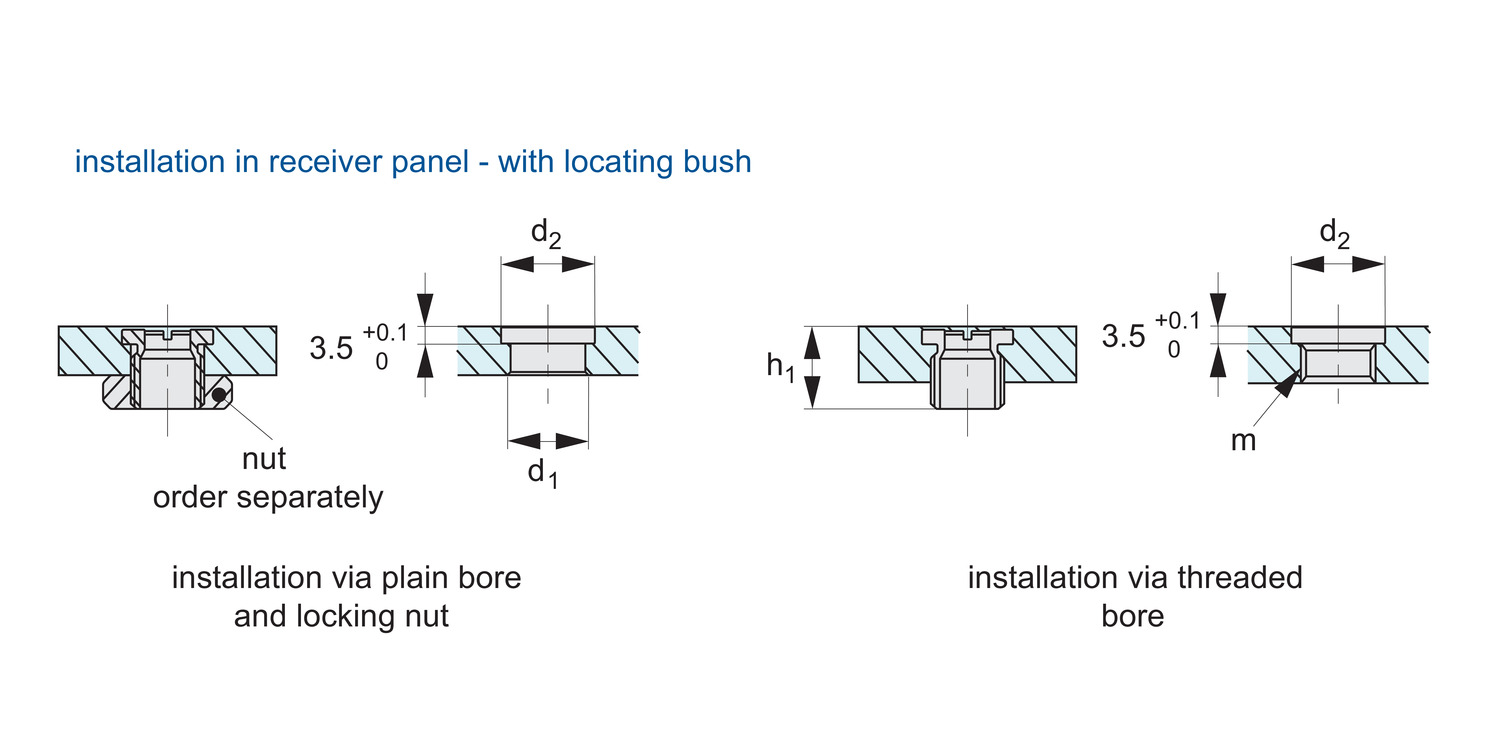

While we recommend the use of locating bushes as receivers for our one-touch fasteners, it is also possible to mount one-touch fasteners without them, see specifications opposite.
Important Notes
Suitable for panels/enclosures of 6 to 20mm thickness.
For one-touch fasteners see part no. 33910 to 33918. For installation instructions see technical page. Temperature resistant to 180°C.
Product Datasheets
CAD files
Application images
