Spring Plungers
ball & slot

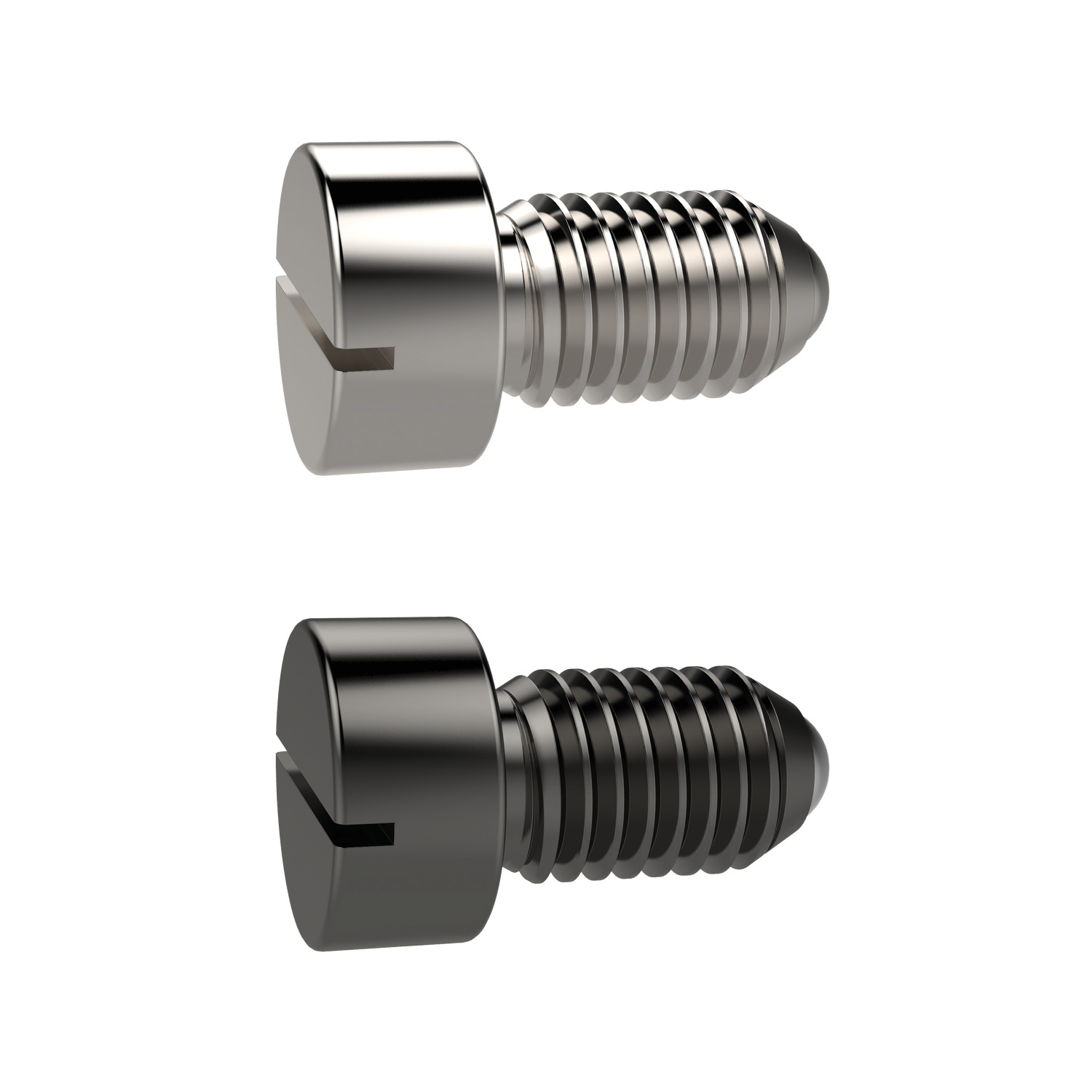

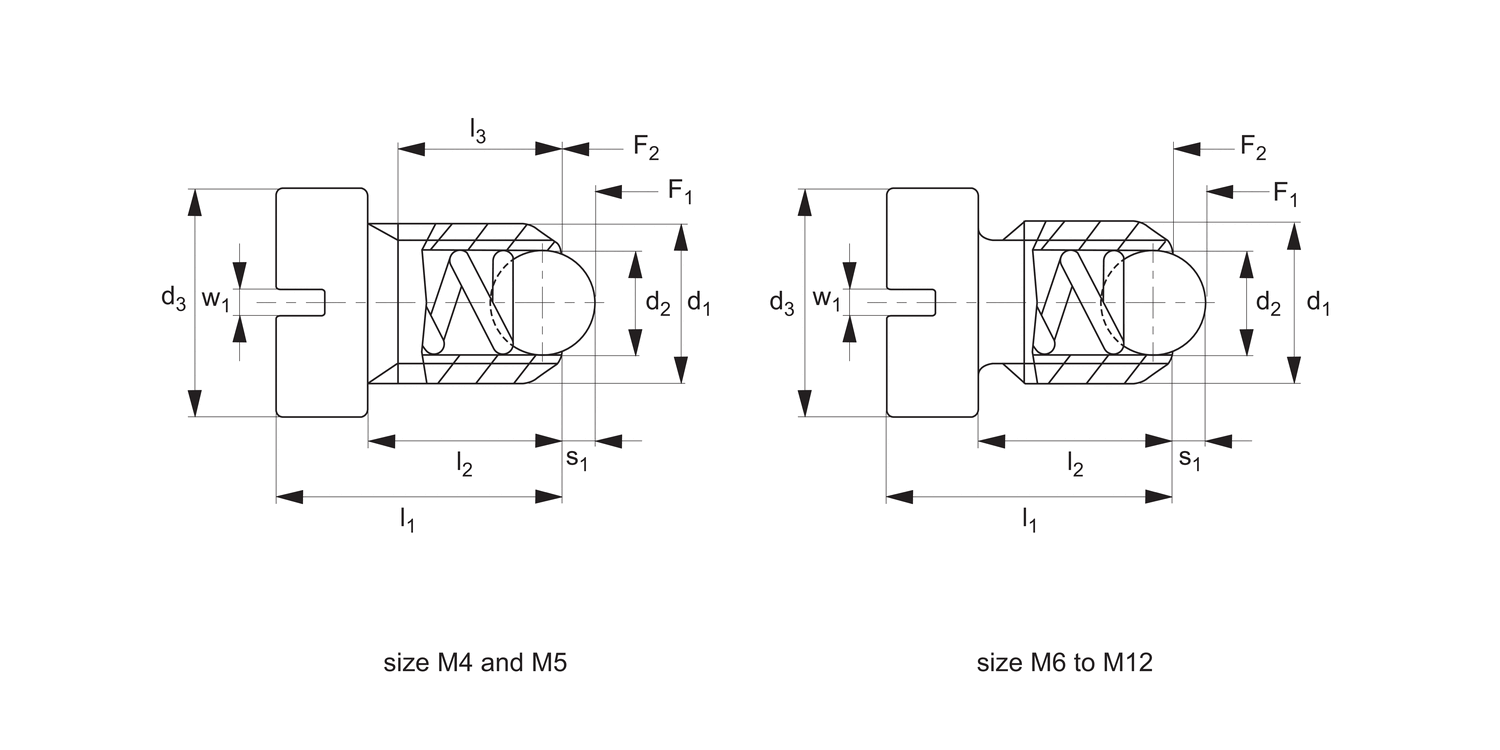

31400 Spring Plungers
with ball & slot - headed, material: Steel or Stainless Steel
Alternative products you may wish to consider
Material
Stainless
d1
M 4
d2
2.5
d3
6
l1
9.5
l2
6.5
l3
5.0
Stroke s1
0.8
Spring load F1
≈
N
8
Spring load F2
≈
N
14
w1
0.6
Weight
g
1.2
£ 8.40 per unit (click for quantity discounts)
Material
Stainless
d1
M 5
d2
3.0
d3
8
l1
12.5
l2
8.5
l3
6.7
Stroke s1
0.9
Spring load F1
≈
N
8
Spring load F2
≈
N
14
w1
0.8
Weight
g
2.4
£ 9.39 per unit (click for quantity discounts)
Material
Stainless
d1
M 6
d2
3.5
d3
10
l1
14.0
l2
9.0
l3
-
Stroke s1
1.0
Spring load F1
≈
N
11
Spring load F2
≈
N
18
w1
1.0
Weight
g
3.9
£ 10.40 per unit (click for quantity discounts)
Material
Stainless
d1
M 8
d2
4.5
d3
13
l1
16.5
l2
11.0
l3
-
Stroke s1
1.5
Spring load F1
≈
N
18
Spring load F2
≈
N
31
w1
1.2
Weight
g
7.9
£ 13.53 per unit (click for quantity discounts)
Material
Stainless
d1
M10
d2
6.0
d3
16
l1
20.0
l2
14.0
l3
-
Stroke s1
2.0
Spring load F1
≈
N
24
Spring load F2
≈
N
45
w1
1.5
Weight
g
14.0
£ 15.53 per unit (click for quantity discounts)
Material
Stainless
d1
M12
d2
8.0
d3
18
l1
22.0
l2
15.0
l3
-
Stroke s1
2.5
Spring load F1
≈
N
26
Spring load F2
≈
N
49
w1
2.0
Weight
g
20.0
£ 18.19 per unit (click for quantity discounts)
Material
Steel
d1
M 4
d2
2.5
d3
6
l1
9.5
l2
6.5
l3
5.0
Stroke s1
0.8
Spring load F1
≈
N
8
Spring load F2
≈
N
14
w1
0.6
Weight
g
1.2
£ 5.70 per unit (click for quantity discounts)
Material
Steel
d1
M 5
d2
3.0
d3
8
l1
12.5
l2
8.5
l3
6.7
Stroke s1
0.9
Spring load F1
≈
N
8
Spring load F2
≈
N
14
w1
0.8
Weight
g
2.4
£ 6.03 per unit (click for quantity discounts)
Material
Steel
d1
M 6
d2
3.5
d3
10
l1
14.0
l2
9.0
l3
-
Stroke s1
1.0
Spring load F1
≈
N
11
Spring load F2
≈
N
18
w1
1.0
Weight
g
3.9
£ 6.48 per unit (click for quantity discounts)
Material
Steel
d1
M 8
d2
4.5
d3
13
l1
16.5
l2
11.0
l3
-
Stroke s1
1.5
Spring load F1
≈
N
18
Spring load F2
≈
N
31
w1
1.2
Weight
g
7.9
£ 7.37 per unit (click for quantity discounts)
Material
Steel
d1
M10
d2
6.0
d3
16
l1
20.0
l2
14.0
l3
-
Stroke s1
2.0
Spring load F1
≈
N
24
Spring load F2
≈
N
45
w1
1.5
Weight
g
14.0
£ 8.70 per unit (click for quantity discounts)
Material
Steel
d1
M12
d2
8.0
d3
18
l1
22.0
l2
15.0
l3
-
Stroke s1
2.5
Spring load F1
≈
N
26
Spring load F2
≈
N
49
w1
2.0
Weight
g
20.0
£ 9.36 per unit (click for quantity discounts)
Material
d1
d2
d3
l1
l2
l3
Stroke s1
Spring load F1
≈
N
Spring load F2
≈
N
w1
Weight
g
| Price & Availability | Article | Material | d1 | d2 | d3 | l1 | l2 | l3 | Stroke s1 | Spring load F1 ≈ N | Spring load F2 ≈ N | w1 | Weight g | ||||||||||||||||||
| 31400.W0940 | Stainless | M 4 | 2.5 | 6 | 9.5 | 6.5 | 5.0 | 0.8 | 8 | 14 | 0.6 | 1.2 | |||||||||||||||||||
£ 8.40 per unit (click for quantity discounts) Ready to despatch 23 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless d1 M 4 d2 2.5 d3 6 l1 9.5 l2 6.5 l3 5.0 Stroke s1 0.8 Spring load F1
≈
N 8 Spring load F2
≈
N 14 w1 0.6 Weight
g 1.2 | |||||||||||||||||||||||||||||||
| 31400.W0941 | Stainless | M 5 | 3.0 | 8 | 12.5 | 8.5 | 6.7 | 0.9 | 8 | 14 | 0.8 | 2.4 | |||||||||||||||||||
£ 9.39 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless d1 M 5 d2 3.0 d3 8 l1 12.5 l2 8.5 l3 6.7 Stroke s1 0.9 Spring load F1
≈
N 8 Spring load F2
≈
N 14 w1 0.8 Weight
g 2.4 | |||||||||||||||||||||||||||||||
| 31400.W0942 | Stainless | M 6 | 3.5 | 10 | 14.0 | 9.0 | - | 1.0 | 11 | 18 | 1.0 | 3.9 | |||||||||||||||||||
£ 10.40 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless d1 M 6 d2 3.5 d3 10 l1 14.0 l2 9.0 l3 - Stroke s1 1.0 Spring load F1
≈
N 11 Spring load F2
≈
N 18 w1 1.0 Weight
g 3.9 | |||||||||||||||||||||||||||||||
| 31400.W0943 | Stainless | M 8 | 4.5 | 13 | 16.5 | 11.0 | - | 1.5 | 18 | 31 | 1.2 | 7.9 | |||||||||||||||||||
£ 13.53 per unit (click for quantity discounts) Ready to despatch 53 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless d1 M 8 d2 4.5 d3 13 l1 16.5 l2 11.0 l3 - Stroke s1 1.5 Spring load F1
≈
N 18 Spring load F2
≈
N 31 w1 1.2 Weight
g 7.9 | |||||||||||||||||||||||||||||||
| 31400.W0944 | Stainless | M10 | 6.0 | 16 | 20.0 | 14.0 | - | 2.0 | 24 | 45 | 1.5 | 14.0 | |||||||||||||||||||
£ 15.53 per unit (click for quantity discounts) Ready to despatch 640 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless d1 M10 d2 6.0 d3 16 l1 20.0 l2 14.0 l3 - Stroke s1 2.0 Spring load F1
≈
N 24 Spring load F2
≈
N 45 w1 1.5 Weight
g 14.0 | |||||||||||||||||||||||||||||||
| 31400.W0945 | Stainless | M12 | 8.0 | 18 | 22.0 | 15.0 | - | 2.5 | 26 | 49 | 2.0 | 20.0 | |||||||||||||||||||
£ 18.19 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless d1 M12 d2 8.0 d3 18 l1 22.0 l2 15.0 l3 - Stroke s1 2.5 Spring load F1
≈
N 26 Spring load F2
≈
N 49 w1 2.0 Weight
g 20.0 | |||||||||||||||||||||||||||||||
| 31400.W0930 | Steel | M 4 | 2.5 | 6 | 9.5 | 6.5 | 5.0 | 0.8 | 8 | 14 | 0.6 | 1.2 | |||||||||||||||||||
£ 5.70 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Steel d1 M 4 d2 2.5 d3 6 l1 9.5 l2 6.5 l3 5.0 Stroke s1 0.8 Spring load F1
≈
N 8 Spring load F2
≈
N 14 w1 0.6 Weight
g 1.2 | |||||||||||||||||||||||||||||||
| 31400.W0931 | Steel | M 5 | 3.0 | 8 | 12.5 | 8.5 | 6.7 | 0.9 | 8 | 14 | 0.8 | 2.4 | |||||||||||||||||||
£ 6.03 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Steel d1 M 5 d2 3.0 d3 8 l1 12.5 l2 8.5 l3 6.7 Stroke s1 0.9 Spring load F1
≈
N 8 Spring load F2
≈
N 14 w1 0.8 Weight
g 2.4 | |||||||||||||||||||||||||||||||
| 31400.W0932 | Steel | M 6 | 3.5 | 10 | 14.0 | 9.0 | - | 1.0 | 11 | 18 | 1.0 | 3.9 | |||||||||||||||||||
£ 6.48 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Steel d1 M 6 d2 3.5 d3 10 l1 14.0 l2 9.0 l3 - Stroke s1 1.0 Spring load F1
≈
N 11 Spring load F2
≈
N 18 w1 1.0 Weight
g 3.9 | |||||||||||||||||||||||||||||||
| 31400.W0933 | Steel | M 8 | 4.5 | 13 | 16.5 | 11.0 | - | 1.5 | 18 | 31 | 1.2 | 7.9 | |||||||||||||||||||
£ 7.37 per unit (click for quantity discounts) Ready to despatch 22 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Steel d1 M 8 d2 4.5 d3 13 l1 16.5 l2 11.0 l3 - Stroke s1 1.5 Spring load F1
≈
N 18 Spring load F2
≈
N 31 w1 1.2 Weight
g 7.9 | |||||||||||||||||||||||||||||||
| 31400.W0934 | Steel | M10 | 6.0 | 16 | 20.0 | 14.0 | - | 2.0 | 24 | 45 | 1.5 | 14.0 | |||||||||||||||||||
£ 8.70 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Steel d1 M10 d2 6.0 d3 16 l1 20.0 l2 14.0 l3 - Stroke s1 2.0 Spring load F1
≈
N 24 Spring load F2
≈
N 45 w1 1.5 Weight
g 14.0 | |||||||||||||||||||||||||||||||
| 31400.W0935 | Steel | M12 | 8.0 | 18 | 22.0 | 15.0 | - | 2.5 | 26 | 49 | 2.0 | 20.0 | |||||||||||||||||||
£ 9.36 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Steel d1 M12 d2 8.0 d3 18 l1 22.0 l2 15.0 l3 - Stroke s1 2.5 Spring load F1
≈
N 26 Spring load F2
≈
N 49 w1 2.0 Weight
g 20.0 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Free cutting steel type-
Body: free cutting steel, blackened.
Ball: ball bearing steel 1.3505 (100Cr6), hardened.
Spring: stainless steel.
Stainless steel type-
Body: stainless steel 1.4305 (AISI 303).
Ball: stainless steel 1.3505 (100Cr6), hardened.
Spring: stainless steel.
For calculation of indexing resistance please refer to appendix - Technical Data.
Technical Notes
Max. temperature 250°C. Spring loads = statistical average.
For M4 and M5 threads dimension l3 is max. screw in depth, i.e. there is no undercut.
For calculation of indexing resistance please refer to spring plunger technical pages.
Important Notes
All metric Wixroyd spring plungers have a coarse thread, see appendix five for thread details.
Product Datasheets
CAD files
Application images
