Spring Plungers
ball & slot
32105 Spring Plungers
with ball & front slot - collar
Order No.
32105.W0406
Finish
Body Thermo, Ball S/S

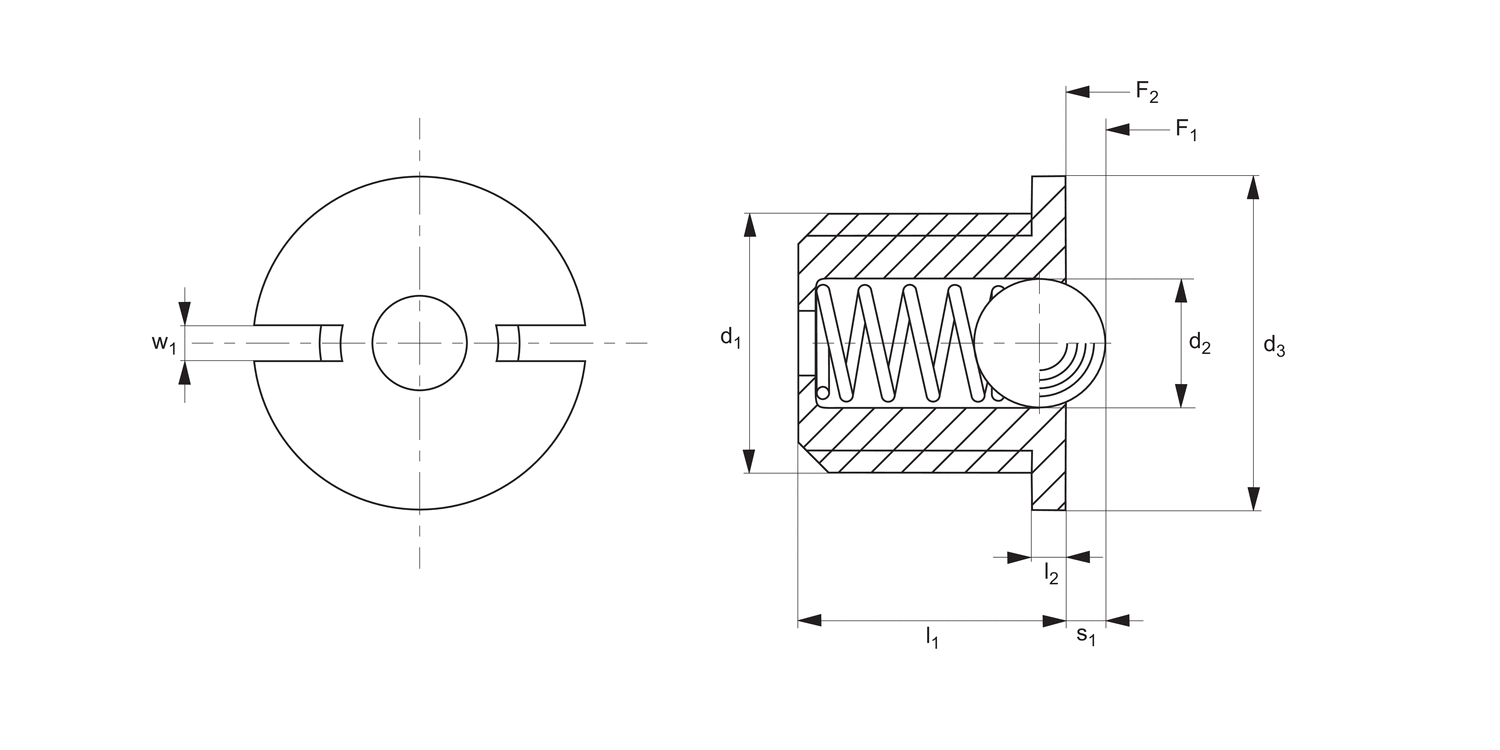

d1
M 6
d2
max.
3.50
d3
8.0
l1
6.0
l2
max.
1.0
s1
0.9
Spring load F1
N
4.1
Spring load F2
N
8.7
w1
1.3
Temperature
°C
-30/+50
Weight
g
0.4
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Body: free cutting steel (blackened), stainless steel 1.4305, or thermoplastic POM, blue.
Ball: stainless steel, hardened, or thermoplastic POM, white.
Spring: stainless steel.
Technical Notes
Used for location, for applying pressure or lifting off.
Spring loads *= statistical average.
Steel and stainless material, temperature range max. 250°C.
Thermoplastic material temperature range -30°C to +50°C.
For calculation of indexing resistance please refer to spring plunger technical pages.
For installation tools, see 32105.TL.
Tips
Suitable for applications that require a flat surface when screwed in.
Special types available on request.
