Master Jaws
for 19796
19850 Master Jaws - QuickChange
for use on SnapLock carrier jaws 19796, material: Cast iron
Alternative products you may wish to consider

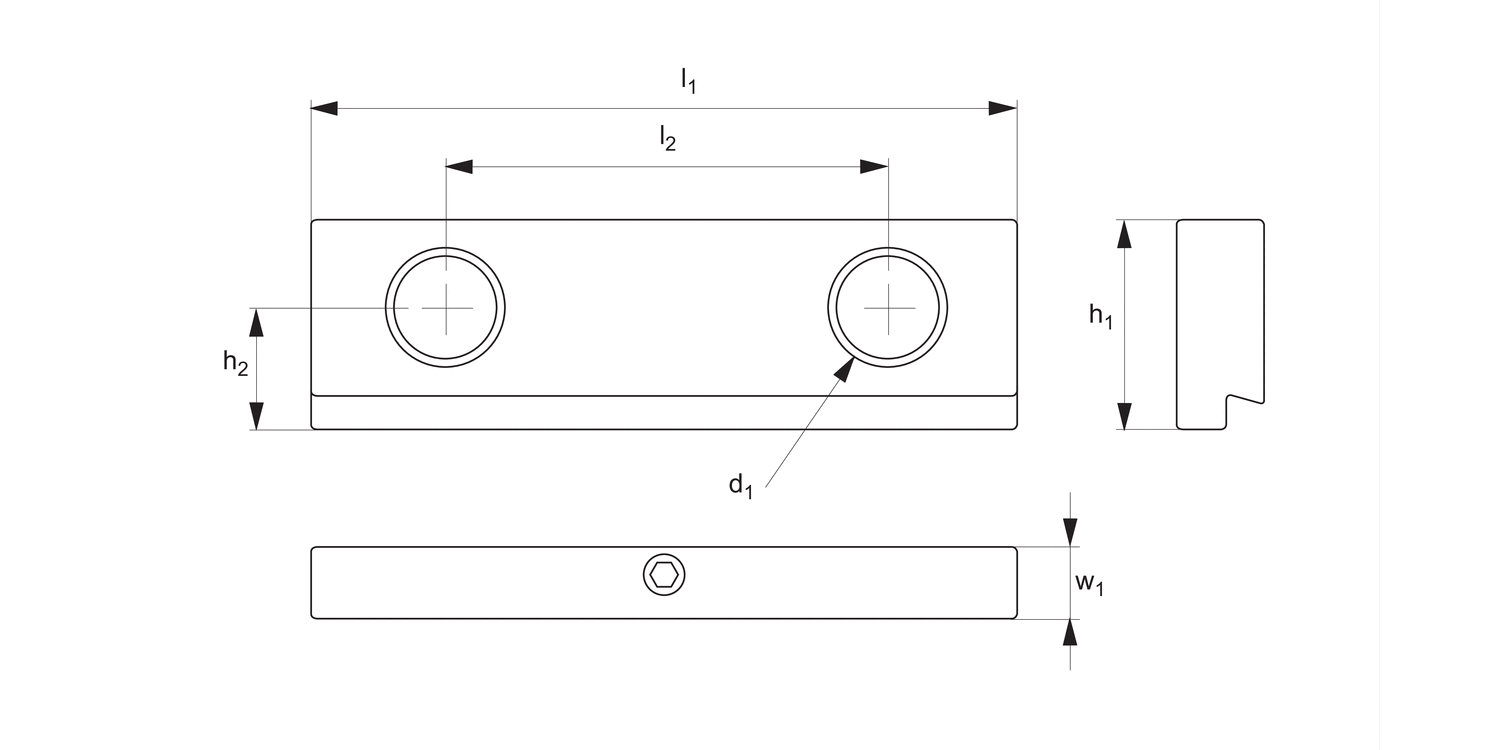

For vice size
4"
l1
4.06
l2
2.500
h1
1.235
h2
0.687
w1
0.560
d1
3/8-16 S.H.C.S.
£ 549.36 per unit (click for quantity discounts)
For vice size
6"
l1
6.12
l2
3.875
h1
1.735
h2
0.937
w1
0.735
d1
1/2-13 S.H.C.S.
£ 552.66 per unit (click for quantity discounts)
For vice size
8"
l1
8.12
l2
4.750
h1
2.230
h2
1.128
w1
1.105
d1
5/8-11 S.H.C.S.
£ 972.38 per unit (click for quantity discounts)
For vice size
l1
l2
h1
h2
w1
d1
| Price & Availability | Article | For vice size | l1 | l2 | h1 | h2 | w1 | d1 | ||||||
| 19850.W0040 | 4" | 4.06 | 2.500 | 1.235 | 0.687 | 0.560 | 3/8-16 S.H.C.S. | |||||||
£ 549.36 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size 4" l1 4.06 l2 2.500 h1 1.235 h2 0.687 w1 0.560 d1 3/8-16 S.H.C.S. | ||||||||||||||
| 19850.W0060 | 6" | 6.12 | 3.875 | 1.735 | 0.937 | 0.735 | 1/2-13 S.H.C.S. | |||||||
£ 552.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size 6" l1 6.12 l2 3.875 h1 1.735 h2 0.937 w1 0.735 d1 1/2-13 S.H.C.S. | ||||||||||||||
| 19850.W0080 | 8" | 8.12 | 4.750 | 2.230 | 1.128 | 1.105 | 5/8-11 S.H.C.S. | |||||||
£ 972.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size 8" l1 8.12 l2 4.750 h1 2.230 h2 1.128 w1 1.105 d1 5/8-11 S.H.C.S. | ||||||||||||||
Technical & Application
Material
Body: 80000 psi ductile cast iron.
Technical Notes
These master jaws enable our ReLock vice snap lock carrier jaws to accept all QuickChange jaw components, providing complete flexibility. Install QuickChange master jaws to SnapLock carrier jaws on vice for squareness. Prior to installation of master jaws remove any burrs, chips or dirt from vice mounting surface.
Important Notes
All dimensions are in inches.
