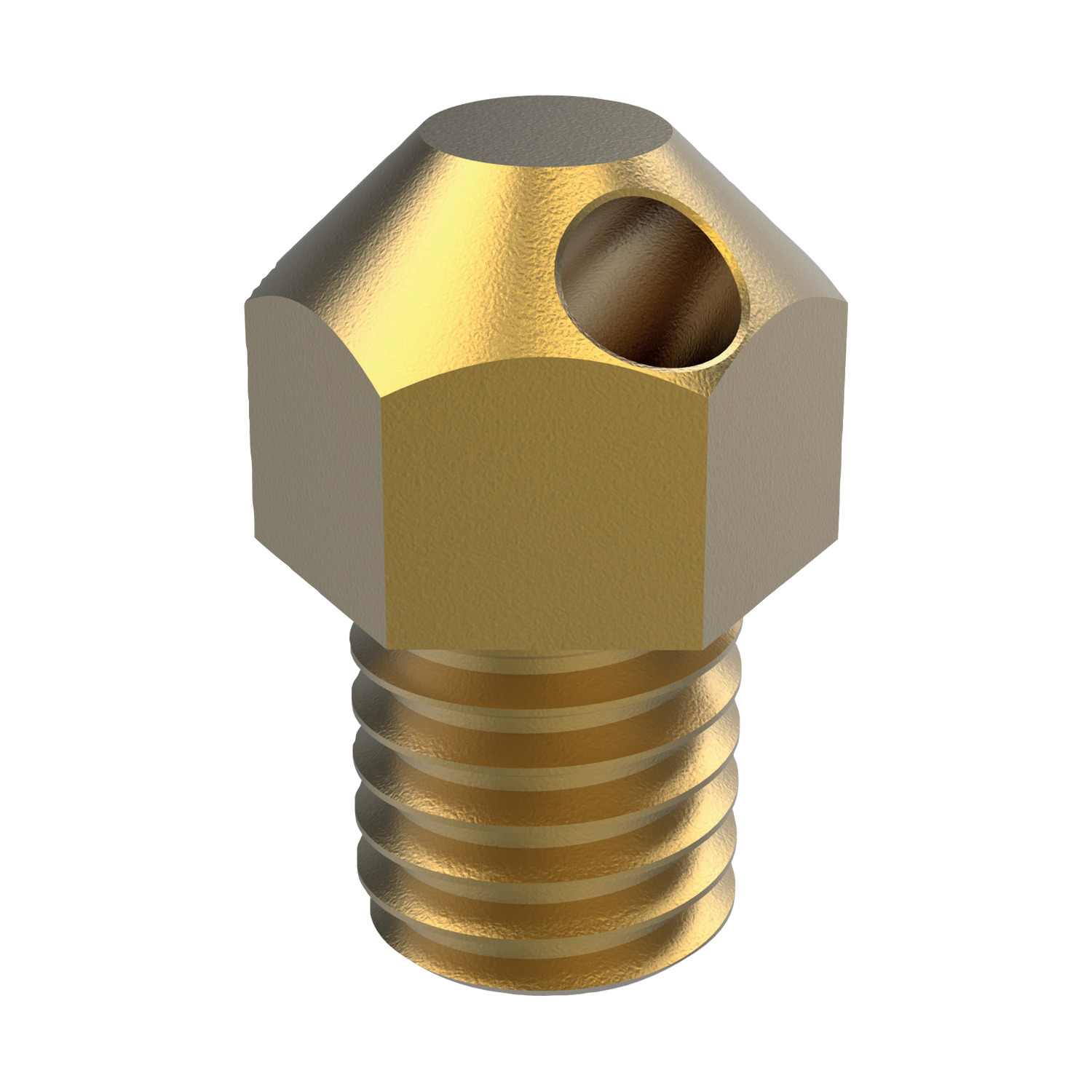

20082 Spray Tips

angled - max. 33 bar, material: Brass

Download product datasheet

Alternative products you may wish to consider

Coolant Nozzles
brass ball

Coolant Nozzles
brass ball - threaded

Coolant Nozzles
brass ball - angled

Spray Tips
straight

Spray Tips
angled

Coolant Nozzles
single tube ball

Coolant Nozzles
double tube ball

Spray Tips - Angled - Brass. M3,5x0,6 - 1,6 - 3,6 - 4,5

20082.W0030

d₁

M 3,5x0,6

d₂

1.6

l₁

3.6

l₂

4.6

A/F

3/16"

£ 17.50 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 4x0,7 - 1,6 - 4,6 - 4,5

20082.W0040

d₁

M 4x0,7

d₂

1.6

l₁

4.6

l₂

4.6

A/F

3/16"

£ 17.50 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 5x0,8 - 2,2 - 5,3 - 5,4

20082.W0050

d₁

M 5x0,8

d₂

2.2

l₁

5.3

l₂

5.3

A/F

1/4"

£ 19.56 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 6x1,0 - 2,2 - 5,3 - 5,4

20082.W0060

d₁

M 6x1,0

d₂

2.2

l₁

5.3

l₂

5.3

A/F

1/4"

£ 17.50 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 6x1,0 - 3,0 - 5,3 - 5,4

20082.W0061

d₁

M 6x1,0

d₂

3.0

l₁

5.3

l₂

5.3

A/F

1/4"

£ 19.56 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M3,5x0,6 - 1,6 - 3,6 - 4,5

20082.W0030

d₁

M 3,5x0,6

d₂

1.6

l₁

3.6

l₂

4.6

A/F

3/16"

£ 17.50 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 4x0,7 - 1,6 - 4,6 - 4,5

20082.W0040

d₁

M 4x0,7

d₂

1.6

l₁

4.6

l₂

4.6

A/F

3/16"

£ 17.50 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 5x0,8 - 2,2 - 5,3 - 5,4

20082.W0050

d₁

M 5x0,8

d₂

2.2

l₁

5.3

l₂

5.3

A/F

1/4"

£ 19.56 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 6x1,0 - 2,2 - 5,3 - 5,4

20082.W0060

d₁

M 6x1,0

d₂

2.2

l₁

5.3

l₂

5.3

A/F

1/4"

£ 17.50 per unit (click for quantity discounts)

Spray Tips - Angled - Brass. M 6x1,0 - 3,0 - 5,3 - 5,4

20082.W0061

d₁

M 6x1,0

d₂

3.0

l₁

5.3

l₂

5.3

A/F

1/4"

£ 19.56 per unit (click for quantity discounts)



Select all

d₁

d₂

l₁

l₂

A/F

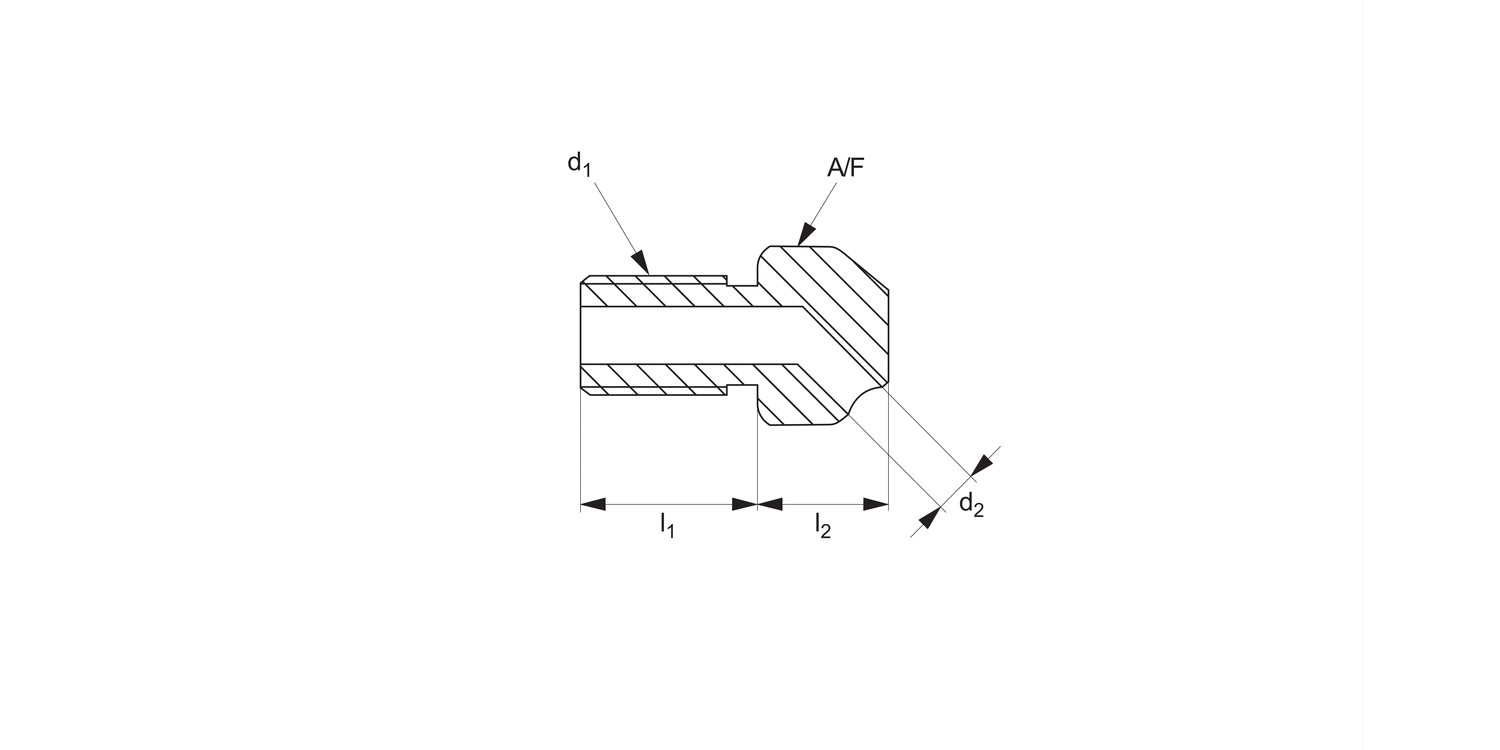

Price & Availability	Article	d1	d2	l1	l2	A/F
	20082.W0030	M 3,5x0,6	1.6	3.6	4.6	3/16"
£ 17.50 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 17.50 0% 5-9 £ 16.63 5% 10-19 £ 15.75 10% 20-49 £ 14.88 15% 50+ £ 13.13 25% d1 M 3,5x0,6 d2 1.6 l1 3.6 l2 4.6 A/F 3/16" more info »
	20082.W0040	M 4x0,7	1.6	4.6	4.6	3/16"
£ 17.50 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 17.50 0% 5-9 £ 16.63 5% 10-19 £ 15.75 10% 20-49 £ 14.88 15% 50+ £ 13.13 25% d1 M 4x0,7 d2 1.6 l1 4.6 l2 4.6 A/F 3/16" more info »
	20082.W0050	M 5x0,8	2.2	5.3	5.3	1/4"
£ 19.56 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.56 0% 5-9 £ 18.58 5% 10-19 £ 17.60 10% 20-49 £ 16.63 15% 50+ £ 14.67 25% d1 M 5x0,8 d2 2.2 l1 5.3 l2 5.3 A/F 1/4" more info »
	20082.W0060	M 6x1,0	2.2	5.3	5.3	1/4"
£ 17.50 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 17.50 0% 5-9 £ 16.63 5% 10-19 £ 15.75 10% 20-49 £ 14.88 15% 50+ £ 13.13 25% d1 M 6x1,0 d2 2.2 l1 5.3 l2 5.3 A/F 1/4" more info »
	20082.W0061	M 6x1,0	3.0	5.3	5.3	1/4"
£ 19.56 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.56 0% 5-9 £ 18.58 5% 10-19 £ 17.60 10% 20-49 £ 16.63 15% 50+ £ 14.67 25% d1 M 6x1,0 d2 3.0 l1 5.3 l2 5.3 A/F 1/4" more info »
