Plain Washers
Steel
25100 Washers - Spherical Seat
type C, material: Steel, case hardened
Alternative products you may wish to consider
For thread
M 6
For thread
inch
1/4"
d1
tol. H13
6.4
d2
12
h1
2.3
h2
0.7
r1
9.0
Load capacity for static load
max.
kN
9
With 25400 h3
4.2
With 25700 h3
5.4
Weight
g
1
£ 1.22 per unit (click for quantity discounts)
For thread
M 8
For thread
inch
5/16"
d1
tol. H13
8.4
d2
17
h1
3.2
h2
0.6
r1
12.0
Load capacity for static load
max.
kN
17
With 25400 h3
5.6
With 25700 h3
7.1
Weight
g
3
£ 1.36 per unit (click for quantity discounts)
For thread
M10
For thread
inch
3/8"
d1
tol. H13
10.5
d2
21
h1
4.0
h2
0.8
r1
15.0
Load capacity for static load
max.
kN
26
With 25400 h3
6.5
With 25700 h3
7.3
Weight
g
5
£ 1.85 per unit (click for quantity discounts)
For thread
M12
For thread
inch
1/2"
d1
tol. H13
13.0
d2
24
h1
4.6
h2
1.1
r1
17.0
Load capacity for static load
max.
kN
38
With 25400 h3
8.0
With 25700 h3
9.0
Weight
g
8
£ 2.12 per unit (click for quantity discounts)
For thread
M14
For thread
inch
-
d1
tol. H13
15.0
d2
28
h1
5.0
h2
1.4
r1
22.0
Load capacity for static load
max.
kN
53
With 25400 h3
8.5
With 25700 h3
9.5
Weight
g
12
£ 3.30 per unit (click for quantity discounts)
For thread
M16
For thread
inch
5/8"
d1
tol. H13
17.0
d2
30
h1
5.3
h2
1.3
r1
22.0
Load capacity for static load
max.
kN
73
With 25400 h3
9.6
With 25700 h3
10.4
Weight
g
13
£ 3.62 per unit (click for quantity discounts)
For thread
M20
For thread
inch
3/4"
d1
tol. H13
21.0
d2
36
h1
6.3
h2
2.0
r1
27.0
Load capacity for static load
max.
kN
117
With 25400 h3
11.7
With 25700 h3
12.2
Weight
g
23
£ 5.14 per unit (click for quantity discounts)
For thread
M22
For thread
inch
7/8"
d1
tol. H13
23,0*
d2
40
h1
7.6
h2
2.5
r1
29.5
Load capacity for static load
max.
kN
146
With 25400 h3
13.5
With 25700 h3
-
Weight
g
34
£ 16.40 per unit (click for quantity discounts)
For thread
M24
For thread
inch
7/8"
d1
tol. H13
25.0
d2
44
h1
8.2
h2
2.4
r1
32.0
Load capacity for static load
max.
kN
168
With 25400 h3
15.2
With 25700 h3
15.7
Weight
g
45
£ 8.26 per unit (click for quantity discounts)
For thread
M27
For thread
inch
11/16"
d1
tol. H13
28,0*
d2
50
h1
10.2
h2
3.3
r1
36.0
Load capacity for static load
max.
kN
221
With 25400 h3
17.0
With 25700 h3
-
Weight
g
74
£ 17.76 per unit (click for quantity discounts)
For thread
M30
For thread
inch
1-1/8", 1-3/16"
d1
tol. H13
31.0
d2
56
h1
11.2
h2
3.6
r1
41.0
Load capacity for static load
max.
kN
269
With 25400 h3
19.2
With 25700 h3
19.7
Weight
g
101
£ 15.81 per unit (click for quantity discounts)
For thread
M33
For thread
inch
-
d1
tol. H13
34,0*
d2
62
h1
13.0
h2
4.4
r1
45.0
Load capacity for static load
max.
kN
326
With 25400 h3
21.8
With 25700 h3
-
Weight
g
150
£ 19.30 per unit (click for quantity discounts)
For thread
M36
For thread
inch
1-1/4", 1-3/8"
d1
tol. H13
37.0
d2
68
h1
14.0
h2
4.6
r1
50.0
Load capacity for static load
max.
kN
394
With 25400 h3
23.5
With 25700 h3
-
Weight
g
190
£ 33.13 per unit (click for quantity discounts)
For thread
M39
For thread
inch
-
d1
tol. H13
40,0*
d2
75
h1
16.0
h2
5.6
r1
54.0
Load capacity for static load
max.
kN
460
With 25400 h3
26.8
With 25700 h3
-
Weight
g
218
£ 36.52 per unit (click for quantity discounts)
For thread
M42
For thread
inch
1-1/2"
d1
tol. H13
43.0
d2
78
h1
17.0
h2
6.5
r1
58.0
Load capacity for static load
max.
kN
542
With 25400 h3
29.0
With 25700 h3
-
Weight
g
310
£ 60.28 per unit (click for quantity discounts)
For thread
M48
For thread
inch
1-3/4"
d1
tol. H13
50.0
d2
92
h1
21.0
h2
8.0
r1
67.0
Load capacity for static load
max.
kN
714
With 25400 h3
35.5
With 25700 h3
-
Weight
g
540
£ 41.79 per unit (click for quantity discounts)
For thread
M52
For thread
inch
-
d1
tol. H13
54,0*
d2
96
h1
22.0
h2
9.3
r1
72.0
Load capacity for static load
max.
kN
832
With 25400 h3
38.3
With 25700 h3
-
Weight
g
620
£ 46.28 per unit (click for quantity discounts)
For thread
M56
For thread
inch
2"
d1
tol. H13
58,0*
d2
103
h1
23.0
h2
9.8
r1
79.0
Load capacity for static load
max.
kN
960
With 25400 h3
39.3
With 25700 h3
-
Weight
g
760
£ 69.60 per unit (click for quantity discounts)
For thread
M60
For thread
inch
-
d1
tol. H13
62,0*
d2
112
h1
25.0
h2
11.0
r1
86.0
Load capacity for static load
max.
kN
1122
With 25400 h3
43.6
With 25700 h3
-
Weight
g
990
£ 83.86 per unit (click for quantity discounts)
For thread
M64
For thread
inch
2-1/4"
d1
tol. H13
66,0*
d2
120
h1
27.0
h2
12.0
r1
93.0
Load capacity for static load
max.
kN
1269
With 25400 h3
46.6
With 25700 h3
-
Weight
g
1220
£ 94.35 per unit (click for quantity discounts)
For thread
For thread
inch
d1
tol. H13
d2
h1
h2
r1
Load capacity for static load
max.
kN
With 25400 h3
With 25700 h3
Weight
g
| Price & Availability | Article | For thread | For thread inch | d1 tol. H13 | d2 | h1 | h2 | r1 | Load capacity for static load max. kN | With 25400 h3 | With 25700 h3 | Weight g | ||||||||||||||||||
| 25100.W0106 | M 6 | 1/4" | 6.4 | 12 | 2.3 | 0.7 | 9.0 | 9 | 4.2 | 5.4 | 1 | |||||||||||||||||||
£ 1.22 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M 6 For thread
inch 1/4" d1
tol. H13 6.4 d2 12 h1 2.3 h2 0.7 r1 9.0 Load capacity for static load
max.
kN 9 With 25400 h3 4.2 With 25700 h3 5.4 Weight
g 1 | ||||||||||||||||||||||||||||||
| 25100.W0108 | M 8 | 5/16" | 8.4 | 17 | 3.2 | 0.6 | 12.0 | 17 | 5.6 | 7.1 | 3 | |||||||||||||||||||
£ 1.36 per unit (click for quantity discounts) Ready to despatch 133 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M 8 For thread
inch 5/16" d1
tol. H13 8.4 d2 17 h1 3.2 h2 0.6 r1 12.0 Load capacity for static load
max.
kN 17 With 25400 h3 5.6 With 25700 h3 7.1 Weight
g 3 | ||||||||||||||||||||||||||||||
| 25100.W0110 | M10 | 3/8" | 10.5 | 21 | 4.0 | 0.8 | 15.0 | 26 | 6.5 | 7.3 | 5 | |||||||||||||||||||
£ 1.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M10 For thread
inch 3/8" d1
tol. H13 10.5 d2 21 h1 4.0 h2 0.8 r1 15.0 Load capacity for static load
max.
kN 26 With 25400 h3 6.5 With 25700 h3 7.3 Weight
g 5 | ||||||||||||||||||||||||||||||
| 25100.W0112 | M12 | 1/2" | 13.0 | 24 | 4.6 | 1.1 | 17.0 | 38 | 8.0 | 9.0 | 8 | |||||||||||||||||||
£ 2.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M12 For thread
inch 1/2" d1
tol. H13 13.0 d2 24 h1 4.6 h2 1.1 r1 17.0 Load capacity for static load
max.
kN 38 With 25400 h3 8.0 With 25700 h3 9.0 Weight
g 8 | ||||||||||||||||||||||||||||||
| 25100.W0114 | M14 | - | 15.0 | 28 | 5.0 | 1.4 | 22.0 | 53 | 8.5 | 9.5 | 12 | |||||||||||||||||||
£ 3.30 per unit (click for quantity discounts) Ready to despatch 428 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M14 For thread
inch - d1
tol. H13 15.0 d2 28 h1 5.0 h2 1.4 r1 22.0 Load capacity for static load
max.
kN 53 With 25400 h3 8.5 With 25700 h3 9.5 Weight
g 12 | ||||||||||||||||||||||||||||||
| 25100.W0116 | M16 | 5/8" | 17.0 | 30 | 5.3 | 1.3 | 22.0 | 73 | 9.6 | 10.4 | 13 | |||||||||||||||||||
£ 3.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M16 For thread
inch 5/8" d1
tol. H13 17.0 d2 30 h1 5.3 h2 1.3 r1 22.0 Load capacity for static load
max.
kN 73 With 25400 h3 9.6 With 25700 h3 10.4 Weight
g 13 | ||||||||||||||||||||||||||||||
| 25100.W0120 | M20 | 3/4" | 21.0 | 36 | 6.3 | 2.0 | 27.0 | 117 | 11.7 | 12.2 | 23 | |||||||||||||||||||
£ 5.14 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M20 For thread
inch 3/4" d1
tol. H13 21.0 d2 36 h1 6.3 h2 2.0 r1 27.0 Load capacity for static load
max.
kN 117 With 25400 h3 11.7 With 25700 h3 12.2 Weight
g 23 | ||||||||||||||||||||||||||||||
| 25100.W0122 | M22 | 7/8" | 23,0* | 40 | 7.6 | 2.5 | 29.5 | 146 | 13.5 | - | 34 | |||||||||||||||||||
£ 16.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M22 For thread
inch 7/8" d1
tol. H13 23,0* d2 40 h1 7.6 h2 2.5 r1 29.5 Load capacity for static load
max.
kN 146 With 25400 h3 13.5 With 25700 h3 - Weight
g 34 | ||||||||||||||||||||||||||||||
| 25100.W0124 | M24 | 7/8" | 25.0 | 44 | 8.2 | 2.4 | 32.0 | 168 | 15.2 | 15.7 | 45 | |||||||||||||||||||
£ 8.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M24 For thread
inch 7/8" d1
tol. H13 25.0 d2 44 h1 8.2 h2 2.4 r1 32.0 Load capacity for static load
max.
kN 168 With 25400 h3 15.2 With 25700 h3 15.7 Weight
g 45 | ||||||||||||||||||||||||||||||
| 25100.W0127 | M27 | 11/16" | 28,0* | 50 | 10.2 | 3.3 | 36.0 | 221 | 17.0 | - | 74 | |||||||||||||||||||
£ 17.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M27 For thread
inch 11/16" d1
tol. H13 28,0* d2 50 h1 10.2 h2 3.3 r1 36.0 Load capacity for static load
max.
kN 221 With 25400 h3 17.0 With 25700 h3 - Weight
g 74 | ||||||||||||||||||||||||||||||
| 25100.W0130 | M30 | 1-1/8", 1-3/16" | 31.0 | 56 | 11.2 | 3.6 | 41.0 | 269 | 19.2 | 19.7 | 101 | |||||||||||||||||||
£ 15.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M30 For thread
inch 1-1/8", 1-3/16" d1
tol. H13 31.0 d2 56 h1 11.2 h2 3.6 r1 41.0 Load capacity for static load
max.
kN 269 With 25400 h3 19.2 With 25700 h3 19.7 Weight
g 101 | ||||||||||||||||||||||||||||||
| 25100.W0133 | M33 | - | 34,0* | 62 | 13.0 | 4.4 | 45.0 | 326 | 21.8 | - | 150 | |||||||||||||||||||
£ 19.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M33 For thread
inch - d1
tol. H13 34,0* d2 62 h1 13.0 h2 4.4 r1 45.0 Load capacity for static load
max.
kN 326 With 25400 h3 21.8 With 25700 h3 - Weight
g 150 | ||||||||||||||||||||||||||||||
| 25100.W0136 | M36 | 1-1/4", 1-3/8" | 37.0 | 68 | 14.0 | 4.6 | 50.0 | 394 | 23.5 | - | 190 | |||||||||||||||||||
£ 33.13 per unit (click for quantity discounts) Ready to despatch 11 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M36 For thread
inch 1-1/4", 1-3/8" d1
tol. H13 37.0 d2 68 h1 14.0 h2 4.6 r1 50.0 Load capacity for static load
max.
kN 394 With 25400 h3 23.5 With 25700 h3 - Weight
g 190 | ||||||||||||||||||||||||||||||
| 25100.W0139 | M39 | - | 40,0* | 75 | 16.0 | 5.6 | 54.0 | 460 | 26.8 | - | 218 | |||||||||||||||||||
£ 36.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M39 For thread
inch - d1
tol. H13 40,0* d2 75 h1 16.0 h2 5.6 r1 54.0 Load capacity for static load
max.
kN 460 With 25400 h3 26.8 With 25700 h3 - Weight
g 218 | ||||||||||||||||||||||||||||||
| 25100.W0142 | M42 | 1-1/2" | 43.0 | 78 | 17.0 | 6.5 | 58.0 | 542 | 29.0 | - | 310 | |||||||||||||||||||
£ 60.28 per unit (click for quantity discounts) Ready to despatch 32 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M42 For thread
inch 1-1/2" d1
tol. H13 43.0 d2 78 h1 17.0 h2 6.5 r1 58.0 Load capacity for static load
max.
kN 542 With 25400 h3 29.0 With 25700 h3 - Weight
g 310 | ||||||||||||||||||||||||||||||
| 25100.W0148 | M48 | 1-3/4" | 50.0 | 92 | 21.0 | 8.0 | 67.0 | 714 | 35.5 | - | 540 | |||||||||||||||||||
£ 41.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M48 For thread
inch 1-3/4" d1
tol. H13 50.0 d2 92 h1 21.0 h2 8.0 r1 67.0 Load capacity for static load
max.
kN 714 With 25400 h3 35.5 With 25700 h3 - Weight
g 540 | ||||||||||||||||||||||||||||||
| 25100.W0152 | M52 | - | 54,0* | 96 | 22.0 | 9.3 | 72.0 | 832 | 38.3 | - | 620 | |||||||||||||||||||
£ 46.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M52 For thread
inch - d1
tol. H13 54,0* d2 96 h1 22.0 h2 9.3 r1 72.0 Load capacity for static load
max.
kN 832 With 25400 h3 38.3 With 25700 h3 - Weight
g 620 | ||||||||||||||||||||||||||||||
| 25100.W0156 | M56 | 2" | 58,0* | 103 | 23.0 | 9.8 | 79.0 | 960 | 39.3 | - | 760 | |||||||||||||||||||
£ 69.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
For thread M56 For thread
inch 2" d1
tol. H13 58,0* d2 103 h1 23.0 h2 9.8 r1 79.0 Load capacity for static load
max.
kN 960 With 25400 h3 39.3 With 25700 h3 - Weight
g 760 | ||||||||||||||||||||||||||||||
| 25100.W0160 | M60 | - | 62,0* | 112 | 25.0 | 11.0 | 86.0 | 1122 | 43.6 | - | 990 | |||||||||||||||||||
£ 83.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M60 For thread
inch - d1
tol. H13 62,0* d2 112 h1 25.0 h2 11.0 r1 86.0 Load capacity for static load
max.
kN 1122 With 25400 h3 43.6 With 25700 h3 - Weight
g 990 | ||||||||||||||||||||||||||||||
| 25100.W0164 | M64 | 2-1/4" | 66,0* | 120 | 27.0 | 12.0 | 93.0 | 1269 | 46.6 | - | 1220 | |||||||||||||||||||
£ 94.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For thread M64 For thread
inch 2-1/4" d1
tol. H13 66,0* d2 120 h1 27.0 h2 12.0 r1 93.0 Load capacity for static load
max.
kN 1269 With 25400 h3 46.6 With 25700 h3 - Weight
g 1220 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, case-hardened.
Technical Notes
Produced to DIN 6319C.
Used with dished washers no. 25400 (type D) and no. 25700 (type G). Dimensions marked * not available in DIN standard.
Tips

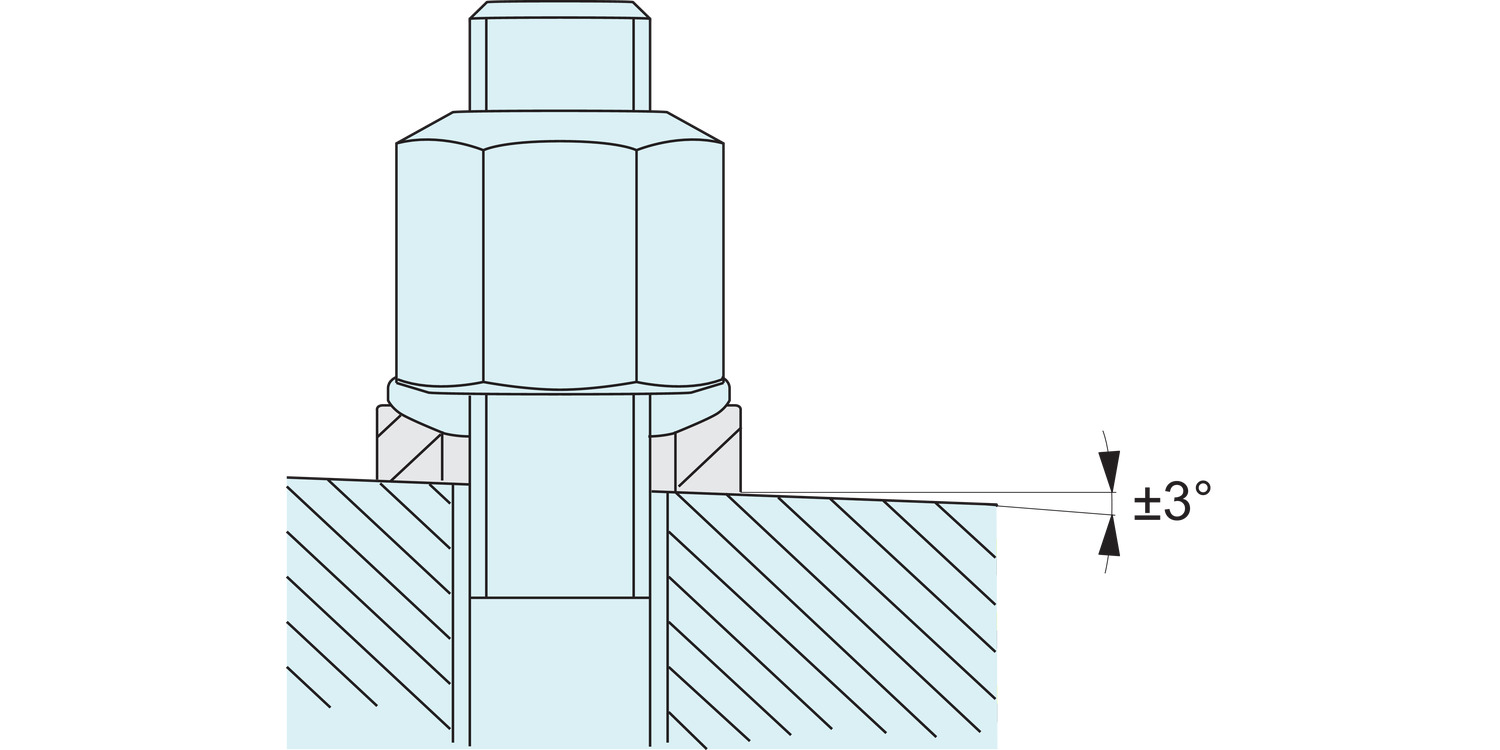

When clamping over holes or slots which do not provide full surface contact to the washer, only use no. 25100 in combination with washer no. 25700 (type G). Do not use in combination with no. 25400 (type D) in such situations.
Product Datasheets
CAD files
Application images
