25805 Dished Washers
stainless steel 316, material: Stainless steel
Alternative products you may wish to consider
For metric thread d1
M 6
For thread d1
inch
1/4"
d2
tol. H13
7.1
d3
17
d4
11.0
h1
4
Torque
max.
Nm
6
Load capacity for static load
max.
kN
6
With 25205 h2
5.2
Weight
g
6
£ 7.87 per unit (click for quantity discounts)
For metric thread d1
M 8
For thread d1
inch
5/16"
d2
tol. H13
9.6
d3
24
d4
14.5
h1
5
Torque
max.
Nm
16
Load capacity for static load
max.
kN
12
With 25205 h2
6.8
Weight
g
15
£ 10.03 per unit (click for quantity discounts)
For metric thread d1
M10
For thread d1
inch
3/8"
d2
tol. H13
12.0
d3
30
d4
18.5
h1
5
Torque
max.
Nm
32
Load capacity for static load
max.
kN
16
With 25205 h2
7.1
Weight
g
22
£ 12.59 per unit (click for quantity discounts)
For metric thread d1
M12
For thread d1
inch
1/2"
d2
tol. H13
14.2
d3
36
d4
20.0
h1
6
Torque
max.
Nm
56
Load capacity for static load
max.
kN
24
With 25205 h2
8.9
Weight
g
40
£ 16.05 per unit (click for quantity discounts)
For metric thread d1
M16
For thread d1
inch
5/8"
d2
tol. H13
19.0
d3
44
d4
26.0
h1
7
Torque
max.
Nm
135
Load capacity for static load
max.
kN
45
With 25205 h2
10.1
Weight
g
66
£ 23.54 per unit (click for quantity discounts)
For metric thread d1
M20
For thread d1
inch
3/4"
d2
tol. H13
23.2
d3
50
d4
31.0
h1
8
Torque
max.
Nm
280
Load capacity for static load
max.
kN
71
With 25205 h2
12.1
Weight
g
95
£ 40.68 per unit (click for quantity discounts)
For metric thread d1
M24
For thread d1
inch
7/8"
d2
tol. H13
28.0
d3
60
d4
37.0
h1
10
Torque
max.
Nm
455
Load capacity for static load
max.
kN
105
With 25205 h2
15.4
Weight
g
171
£ 52.84 per unit (click for quantity discounts)
For metric thread d1
M30
For thread d1
inch
1-1/8", 1-3/16"
d2
tol. H13
35.0
d3
68
d4
49.0
h1
12
Torque
max.
Nm
1050
Load capacity for static load
max.
kN
191
With 25205 h2
18.8
Weight
g
236
£ 61.28 per unit (click for quantity discounts)
For metric thread d1
For thread d1
inch
d2
tol. H13
d3
d4
h1
Torque
max.
Nm
Load capacity for static load
max.
kN
With 25205 h2
Weight
g
| Price & Availability | Article | For metric thread d1 | For thread d1 inch | d2 tol. H13 | d3 | d4 | h1 | Torque max. Nm | Load capacity for static load max. kN | With 25205 h2 | Weight g | ||||||||||||||||||
| 25805.W0106 | M 6 | 1/4" | 7.1 | 17 | 11.0 | 4 | 6 | 6 | 5.2 | 6 | |||||||||||||||||||
£ 7.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M 6 For thread d1
inch 1/4" d2
tol. H13 7.1 d3 17 d4 11.0 h1 4 Torque
max.
Nm 6 Load capacity for static load
max.
kN 6 With 25205 h2 5.2 Weight
g 6 | |||||||||||||||||||||||||||||
| 25805.W0108 | M 8 | 5/16" | 9.6 | 24 | 14.5 | 5 | 16 | 12 | 6.8 | 15 | |||||||||||||||||||
£ 10.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M 8 For thread d1
inch 5/16" d2
tol. H13 9.6 d3 24 d4 14.5 h1 5 Torque
max.
Nm 16 Load capacity for static load
max.
kN 12 With 25205 h2 6.8 Weight
g 15 | |||||||||||||||||||||||||||||
| 25805.W0110 | M10 | 3/8" | 12.0 | 30 | 18.5 | 5 | 32 | 16 | 7.1 | 22 | |||||||||||||||||||
£ 12.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 4 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M10 For thread d1
inch 3/8" d2
tol. H13 12.0 d3 30 d4 18.5 h1 5 Torque
max.
Nm 32 Load capacity for static load
max.
kN 16 With 25205 h2 7.1 Weight
g 22 | |||||||||||||||||||||||||||||
| 25805.W0112 | M12 | 1/2" | 14.2 | 36 | 20.0 | 6 | 56 | 24 | 8.9 | 40 | |||||||||||||||||||
£ 16.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M12 For thread d1
inch 1/2" d2
tol. H13 14.2 d3 36 d4 20.0 h1 6 Torque
max.
Nm 56 Load capacity for static load
max.
kN 24 With 25205 h2 8.9 Weight
g 40 | |||||||||||||||||||||||||||||
| 25805.W0116 | M16 | 5/8" | 19.0 | 44 | 26.0 | 7 | 135 | 45 | 10.1 | 66 | |||||||||||||||||||
£ 23.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M16 For thread d1
inch 5/8" d2
tol. H13 19.0 d3 44 d4 26.0 h1 7 Torque
max.
Nm 135 Load capacity for static load
max.
kN 45 With 25205 h2 10.1 Weight
g 66 | |||||||||||||||||||||||||||||
| 25805.W0120 | M20 | 3/4" | 23.2 | 50 | 31.0 | 8 | 280 | 71 | 12.1 | 95 | |||||||||||||||||||
£ 40.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M20 For thread d1
inch 3/4" d2
tol. H13 23.2 d3 50 d4 31.0 h1 8 Torque
max.
Nm 280 Load capacity for static load
max.
kN 71 With 25205 h2 12.1 Weight
g 95 | |||||||||||||||||||||||||||||
| 25805.W0124 | M24 | 7/8" | 28.0 | 60 | 37.0 | 10 | 455 | 105 | 15.4 | 171 | |||||||||||||||||||
£ 52.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M24 For thread d1
inch 7/8" d2
tol. H13 28.0 d3 60 d4 37.0 h1 10 Torque
max.
Nm 455 Load capacity for static load
max.
kN 105 With 25205 h2 15.4 Weight
g 171 | |||||||||||||||||||||||||||||
| 25805.W0130 | M30 | 1-1/8", 1-3/16" | 35.0 | 68 | 49.0 | 12 | 1050 | 191 | 18.8 | 236 | |||||||||||||||||||
£ 61.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For metric thread d1 M30 For thread d1
inch 1-1/8", 1-3/16" d2
tol. H13 35.0 d3 68 d4 49.0 h1 12 Torque
max.
Nm 1050 Load capacity for static load
max.
kN 191 With 25205 h2 18.8 Weight
g 236 | |||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (AISI 316, 1.4401).
Technical Notes
Produced to DIN 6319G.
Their large diameter makes them suitable to bridge wide slots.
*Torque values of screwed connector A2-70 are approximate. Actual preloads should be considered, coefficient of friction µtotal 0,12.
Product Datasheets
CAD files

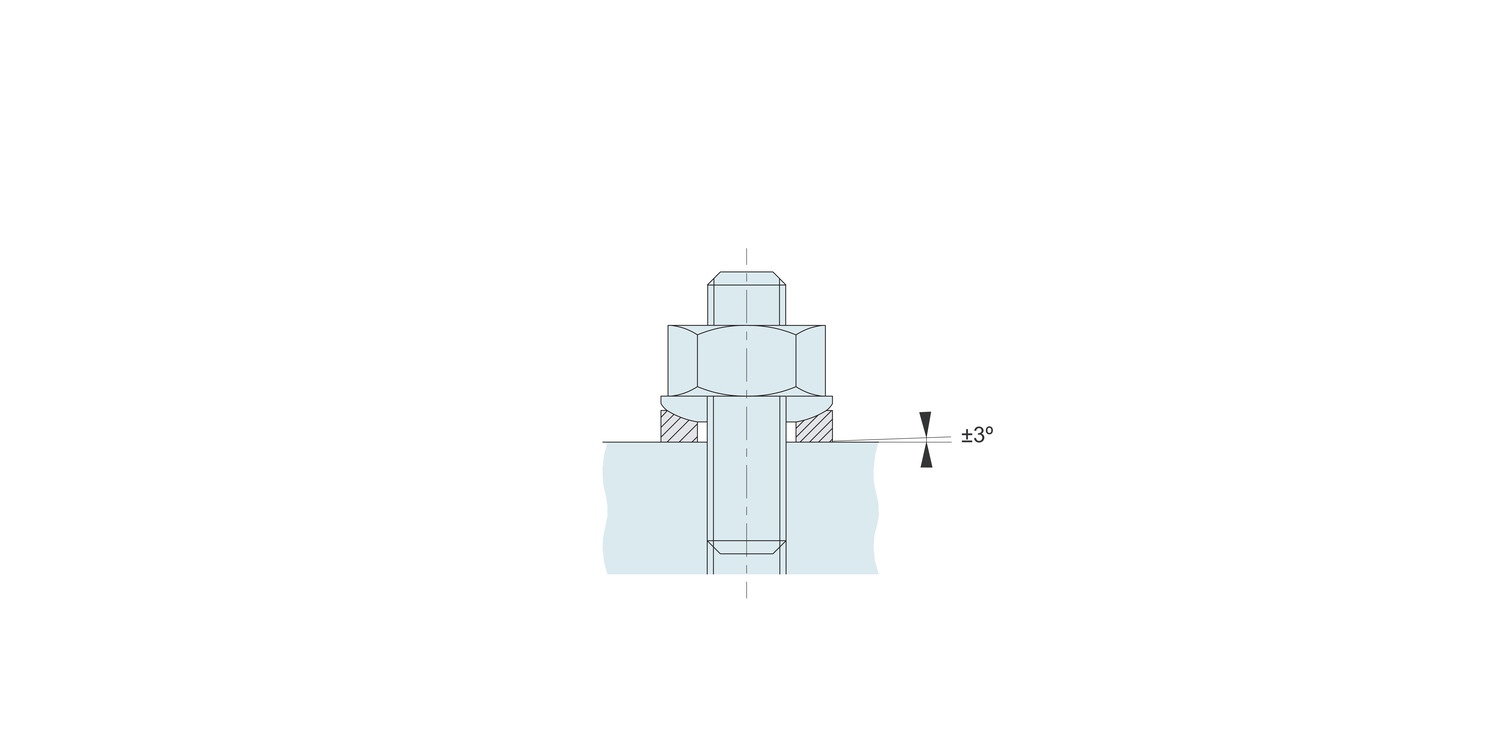

Application images
