25400 Dished Washers

Name: 25400.W0114
Brand: WC
SKU: 25400.W0114
Price: 3.69 EUR
Availability: InStock

material: Case Hardened steel

Article properties

Order No.

25400.W0114

For thread

M14

For thread inch

d₁ tol. H13

16.5

d₂

d₃

24.8

h₁

5.6

Load capacity for static load max. kN

With 25100 h₃

Weight g

See full product selection

£ 3.69 per unit (click for quantity discounts)

Ready to despatch 430
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 3.69	0%
10-29	£ 3.32	10%
30-74	£ 3.14	15%
75-199	£ 2.77	25%
200+	£ 2.40	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, case-hardened.

Technical Notes

Produced to DIN 6319D.

Tips

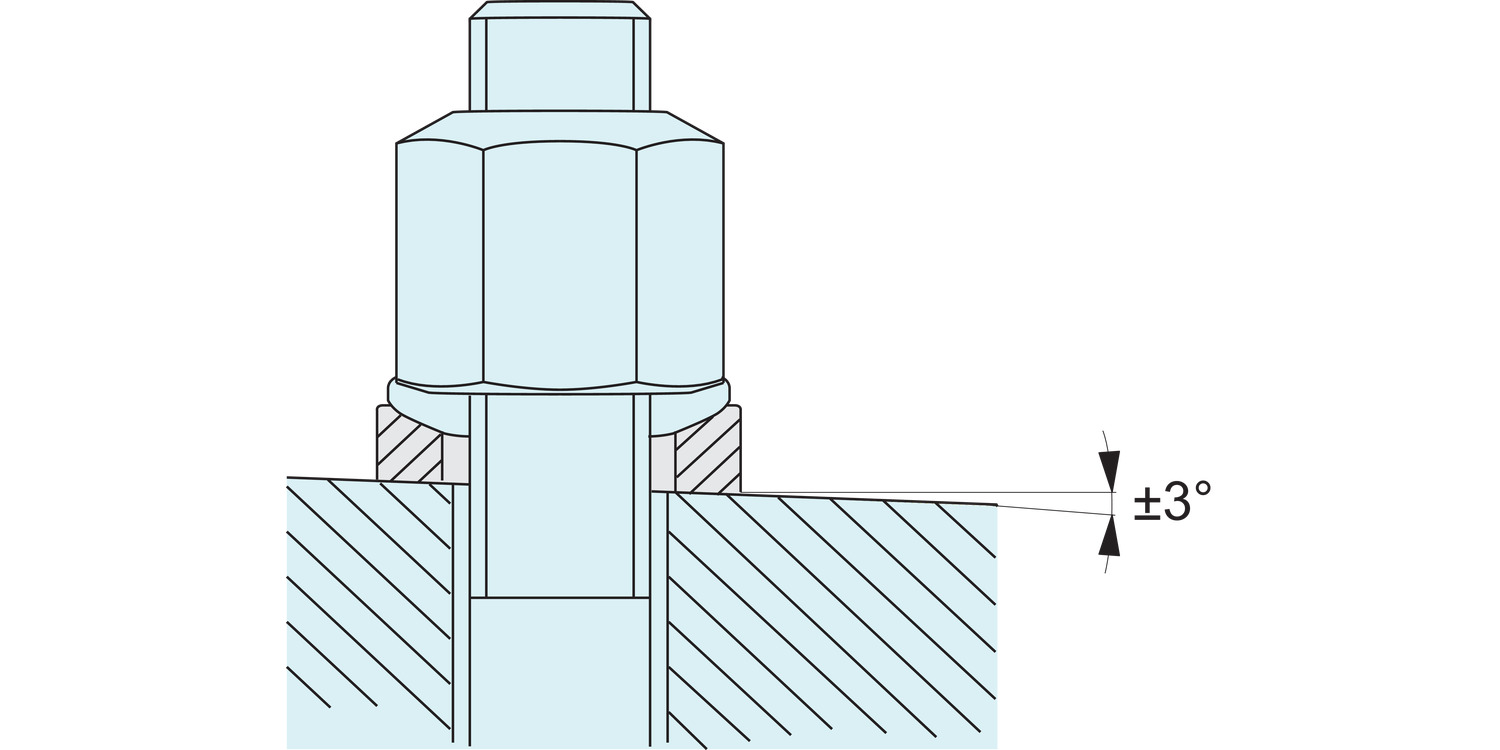

Do not use no. 25400 (type D) for clamping over holes or slots which do not provide full surface contact to the washer. In such cases use no. 25700 (type G). Dimensions marked * not available in DIN standard.
