25700 Dished Washers

Name: 25700.W0116
Brand: WC
SKU: 25700.W0116
Price: 5.73 EUR
Availability: InStock

material: Tempered steel

Article properties

Order No.

25700.W0116

For metric thread d₁

M16

For thread d₁ inch

5/8"

d₂ tol. H13

19.0

d₃

d₄

26.0

h₁

Load capacity for static load max. kN

With 25100 h₂

10.4

Weight g

See full product selection

£ 5.73 per unit (click for quantity discounts)

Ready to despatch 20
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 5.73	0%
10-29	£ 5.16	10%
30-74	£ 4.87	15%
75-199	£ 4.30	25%
200+	£ 3.72	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, punched, trued and tempered.

Technical Notes

Produced to DIN 6319G.
Their large diameter makes them suitable to bridge the slots of clamps.

Product Datasheets

25700 Dished WashersJanuary 3, 2025, 2:59 PM / 234.68 kB

Washers - SteelJanuary 3, 2025, 3:46 PM / 749.50 kB

WashersJanuary 3, 2025, 3:46 PM / 881.75 kB

Fixing Elements, Inserts & GaugesJanuary 3, 2025, 3:46 PM / 9.53 MB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

CAD files

25700 AcisApril 17, 2024, 9:11 AM / 27.14 kB

25700 IGESApril 17, 2024, 9:11 AM / 111.59 kB

25700 ParasolidApril 17, 2024, 9:11 AM / 23.48 kB

25700 ProEApril 17, 2024, 9:11 AM / 888.85 kB

25700 SolidWorksApril 17, 2024, 9:11 AM / 1.82 MB

25700 StepApril 17, 2024, 9:11 AM / 50.66 kB

25700 Dished Washers

material: Tempered steel

Technical & Application

Material

Technical Notes

Product Datasheets

CAD files

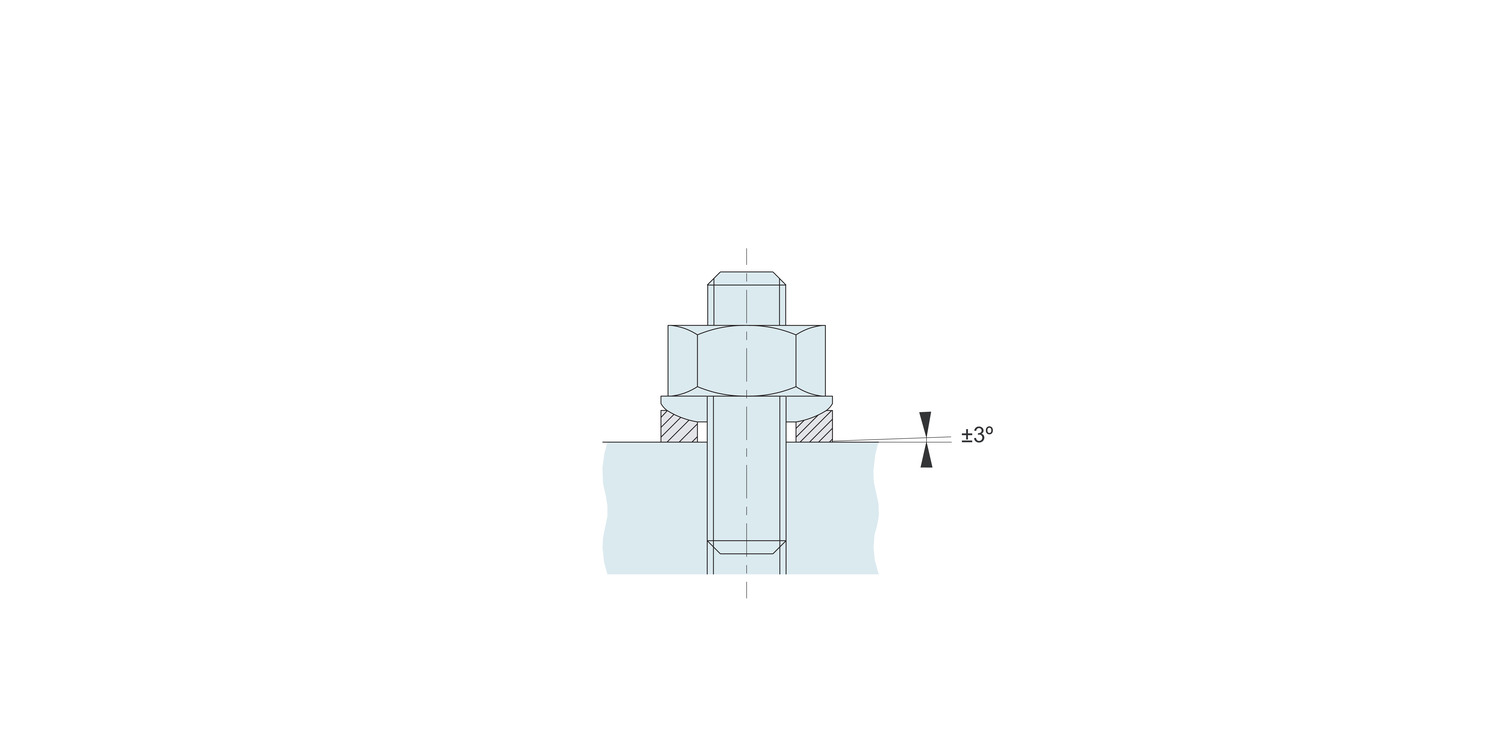

Application images
