Miniature Down Thrust Clamps
swivelling

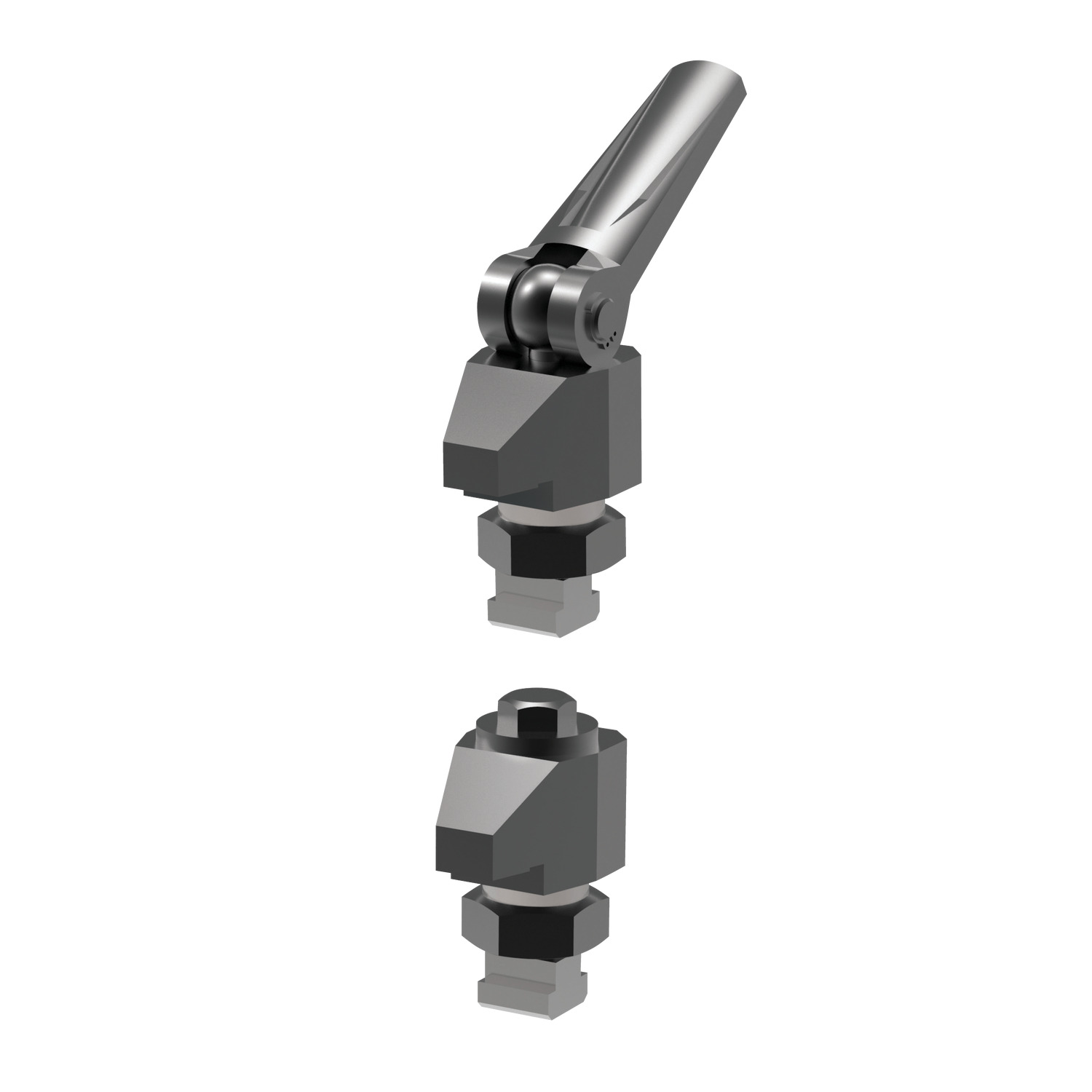

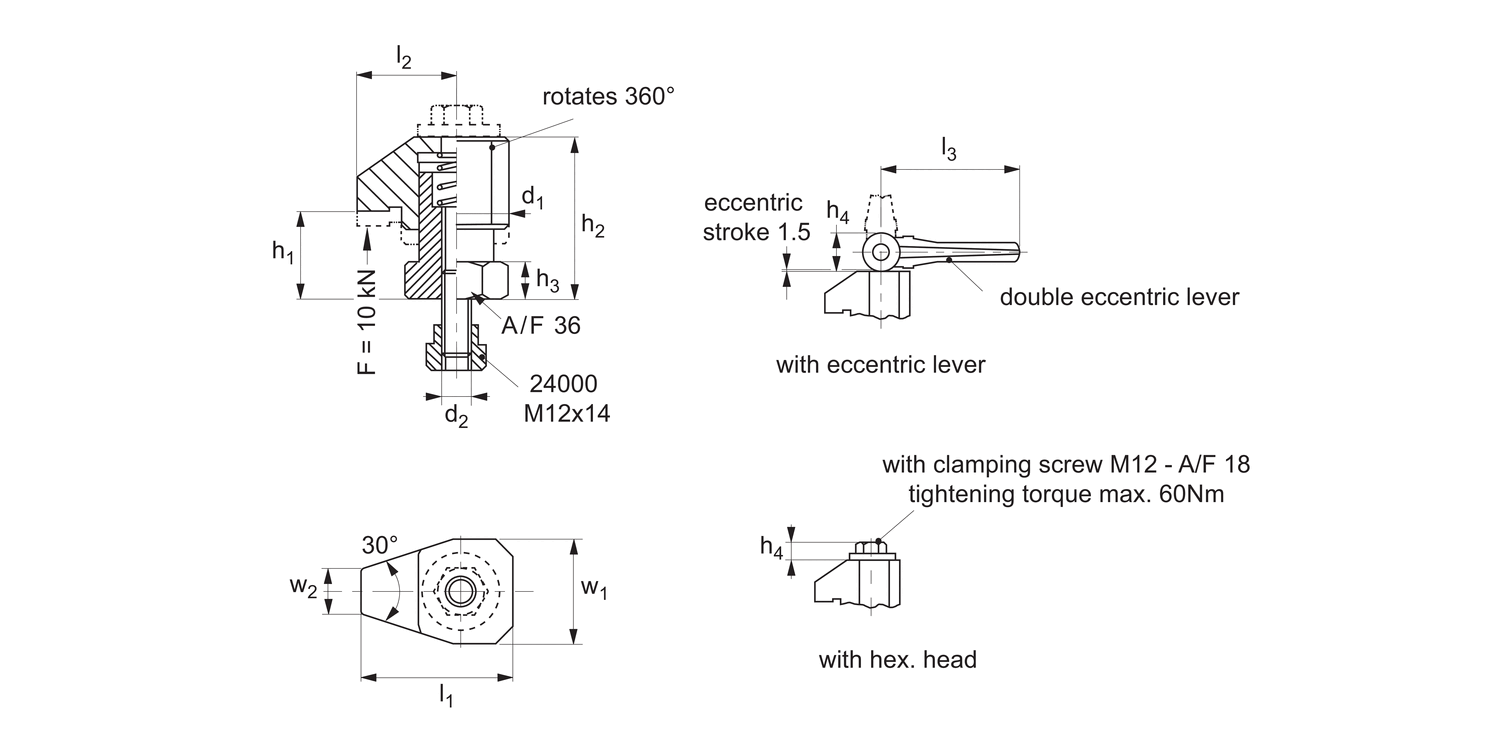

12602 Compact Down Thrust Clamps
swivelling, material: Case Hardened steel
Order No.
12602.W0034
Type
With Eccentric Clamp Lever
Clamping height h1
max.
30
Clamping height h1
min.
25
Stroke
5
d1
44
d2
M12
w1
42
w2
18
h2
min.
54
h2
max.
59
h3
15
h4
28
l1
61
l2
40
l3
100
Weight
g
1022
£ 357.43 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 357.43 | 0% |
| 3-4 | £ 321.69 | 10% |
| 5-9 | £ 303.82 | 15% |
| 10-19 | £ 285.94 | 20% |
| 20+ | £ 268.07 | 25% |
Technical & Application
Material
Steel case-hardened, blackened and ground.
Technical Notes
For heavy-duty clamping applications where space and height are limiting factors.
Tips
Often used for clamping of injection mould tools and the like.
T-nuts removable. For other T-nut sizes please refer to no. 24000.
