Fixture Clamps
low profile
12120 Eccentric Knife Edge Clamps
material: Hardened steel
Alternative products you may wish to consider
d1
M10x1,5
d2
20.60
h1
6.35
l1
19.0
Clamping force
kN
8.8
Stroke s1
1.22
w1
10.2
A/F
7
Torque to
max.
Nm
28
Qty/pack
8
Weight
g
40
£ 154.64 per unit (click for quantity discounts)
d1
M12x1,75
d2
25.40
h1
9.52
l1
22.8
Clamping force
kN
17.7
Stroke s1
2.03
w1
12.7
A/F
8
Torque to
max.
Nm
88
Qty/pack
8
Weight
g
45
£ 142.13 per unit (click for quantity discounts)
d1
M16x2
d2
30.15
h1
12.70
l1
28.5
Clamping force
kN
26.6
Stroke s1
2.54
w1
15.0
A/F
12
Torque to
max.
Nm
135
Qty/pack
4
Weight
g
90
£ 95.50 per unit (click for quantity discounts)
d1
d2
h1
l1
Clamping force
kN
Stroke s1
w1
A/F
Torque to
max.
Nm
Qty/pack
Weight
g
| Price & Availability | Article | d1 | d2 | h1 | l1 | Clamping force kN | Stroke s1 | w1 | A/F | Torque to max. Nm | Qty/pack | Weight g | ||||||||||||||||||
| 12120.W0020 | M10x1,5 | 20.60 | 6.35 | 19.0 | 8.8 | 1.22 | 10.2 | 7 | 28 | 8 | 40 | |||||||||||||||||||
£ 154.64 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10x1,5 d2 20.60 h1 6.35 l1 19.0 Clamping force
kN 8.8 Stroke s1 1.22 w1 10.2 A/F 7 Torque to
max.
Nm 28 Qty/pack 8 Weight
g 40 | ||||||||||||||||||||||||||||||
| 12120.W0025 | M12x1,75 | 25.40 | 9.52 | 22.8 | 17.7 | 2.03 | 12.7 | 8 | 88 | 8 | 45 | |||||||||||||||||||
£ 142.13 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M12x1,75 d2 25.40 h1 9.52 l1 22.8 Clamping force
kN 17.7 Stroke s1 2.03 w1 12.7 A/F 8 Torque to
max.
Nm 88 Qty/pack 8 Weight
g 45 | ||||||||||||||||||||||||||||||
| 12120.W0030 | M16x2 | 30.15 | 12.70 | 28.5 | 26.6 | 2.54 | 15.0 | 12 | 135 | 4 | 90 | |||||||||||||||||||
£ 95.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16x2 d2 30.15 h1 12.70 l1 28.5 Clamping force
kN 26.6 Stroke s1 2.54 w1 15.0 A/F 12 Torque to
max.
Nm 135 Qty/pack 4 Weight
g 90 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Ribbed face steel, hardened and plated. Screw steel hardened, strength class 10,9.
Technical Notes

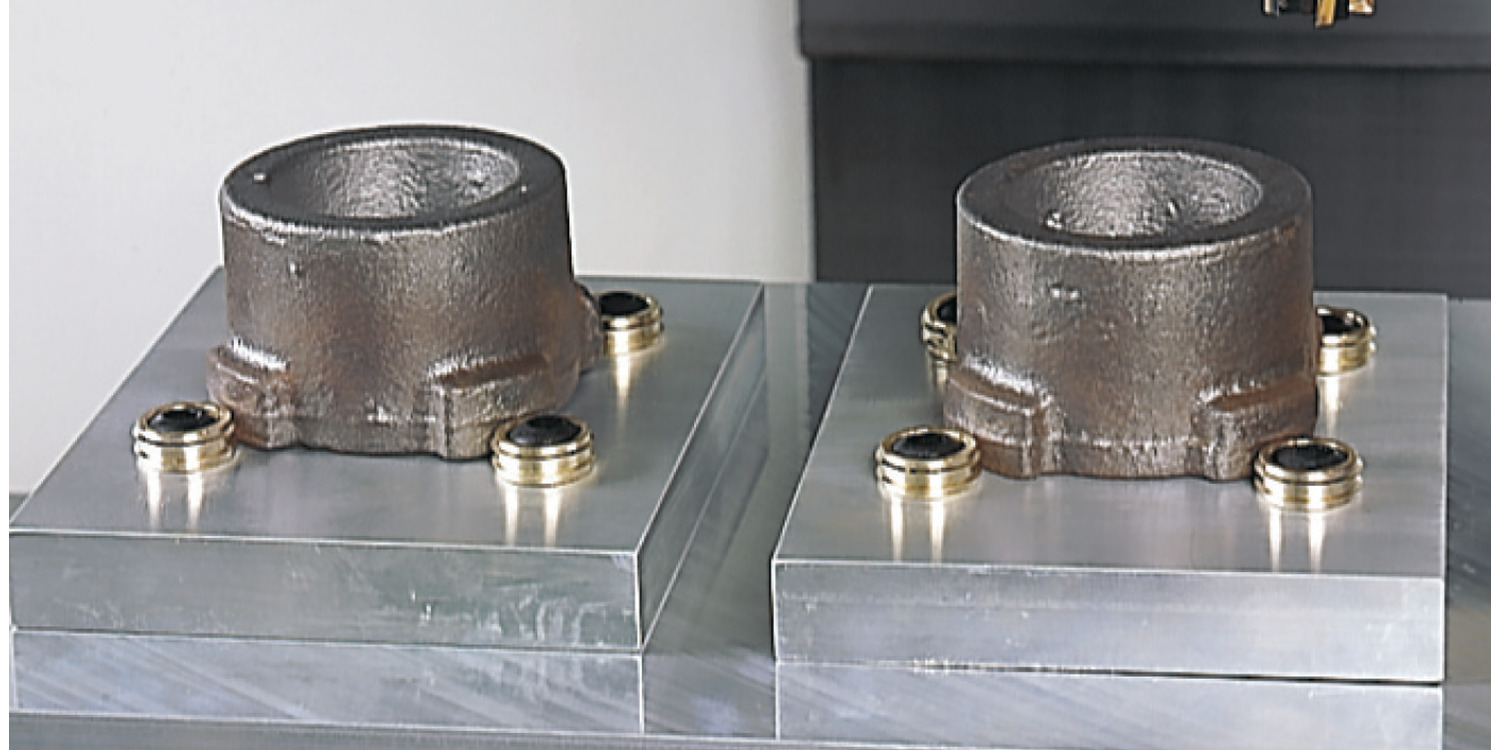

For clamping workpieces with uneven surfaces, this clamp provides serrations to help the clamp grip the workpiece.
Tips
Clockwise rotation is recommended. The workpiece should be to the right of the clamp. For replacement cam screws see parts 12112.
Important Notes

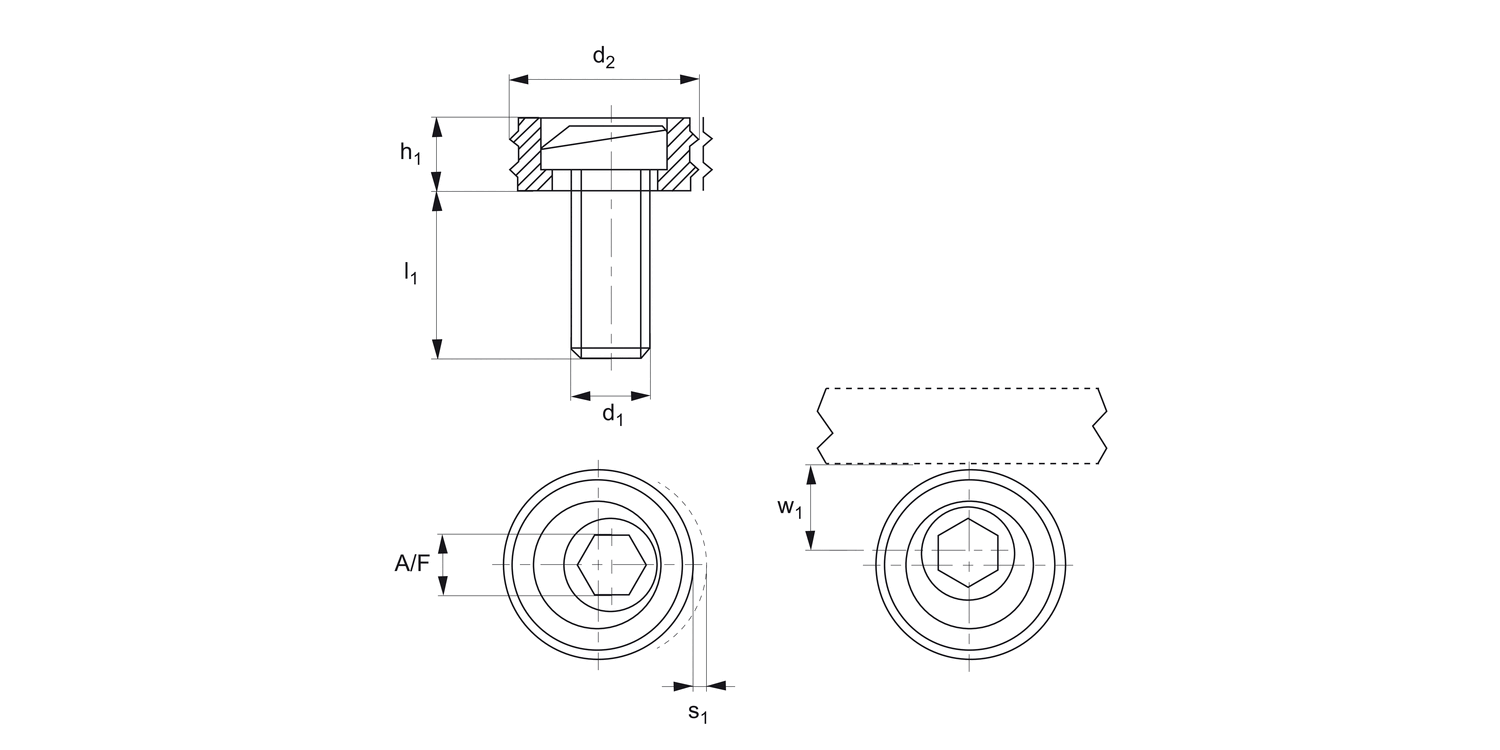

w1 is distance to drill and tap from edge of workpiece.
