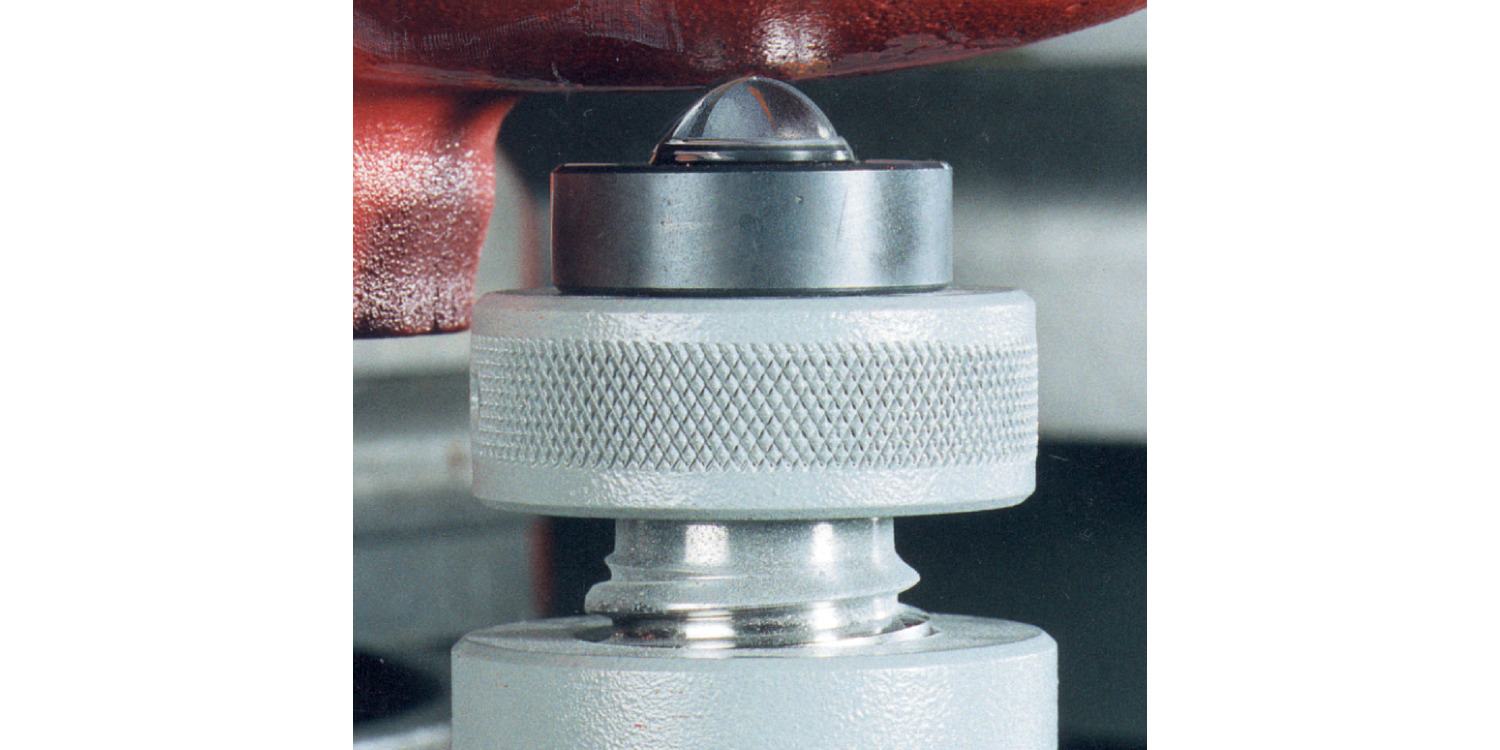

15090 Locating Pad - Pivot Ball

for screw jacks, material: Hardened steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

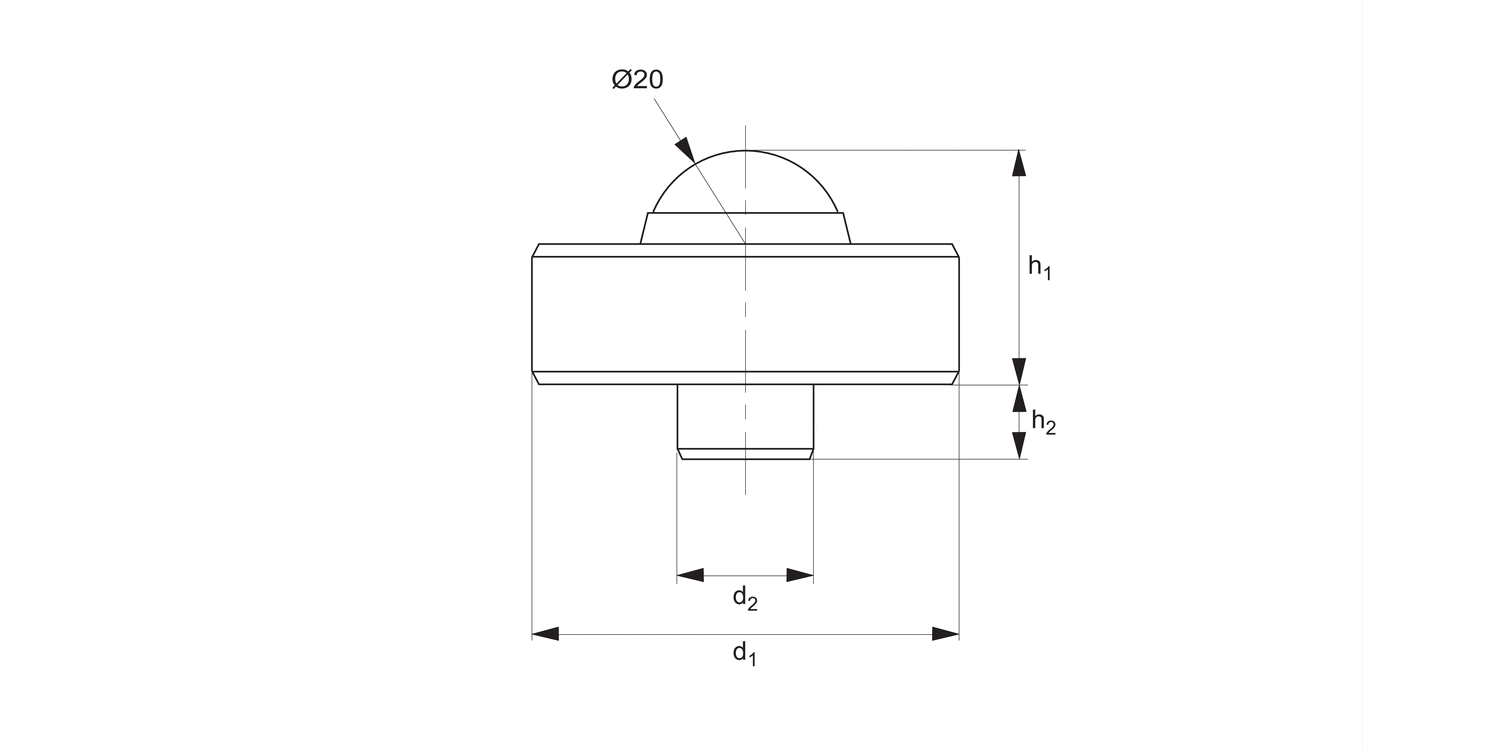

d₁

d₂

h₁

h₂

Static load max. kN

Weight g

Price & Availability Article d₁ d₂ h₁ h₂ Static load max. kN Weight g

15090.W0030

240

£ 59.24 per unit (click for quantity discounts)

Ready to despatch 4
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 59.24	0%
3-4	£ 56.28	5%
5-9	£ 53.32	10%
10+	£ 50.35	15%

15090.W0030 Support With Pivot Ball - Hardened steel 25 - 8 - 45 - 12

d₁

d₂

h₁

h₂

Static load max. kN

Weight g

240

more info »

Technical & Application

Material

Pad: steel, tempered.
Ball: steel, hardened.

Technical Notes

Designed for use with screw jacks and for supporting heavy duty cast iron and forged parts.

Tips

The pivot ball minimizes the friction on the support. The use of a point-like support reduces the transmission of the turning force generated by the machine spindle.
See technical pages for the table of screw jack suitability.
