Plain Clamps
10160 Narrow Nose Clamps
material: Heat treated steel
Alternative products you may wish to consider
Type
With thread
l1
175
l2
70
l3
52
l4
40
l5
29
w1
35
w2
17.0
w3
15.5
h1
25
h2
9.0
h3
-
d1
M16
Weight
g
828
£ 76.86 per unit (click for quantity discounts)
Type
l1
l2
l3
l4
l5
w1
w2
w3
h1
h2
h3
d1
Weight
g
| Price & Availability | Article | Type | l1 | l2 | l3 | l4 | l5 | w1 | w2 | w3 | h1 | h2 | h3 | d1 | Weight g | |||||||||||||||
| 10160.W0117 | With thread | 175 | 70 | 52 | 40 | 29 | 35 | 17.0 | 15.5 | 25 | 9.0 | - | M16 | 828 | ||||||||||||||||
£ 76.86 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With thread l1 175 l2 70 l3 52 l4 40 l5 29 w1 35 w2 17.0 w3 15.5 h1 25 h2 9.0 h3 - d1 M16 Weight
g 828 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, heat-treated and blackened.
Technical Notes

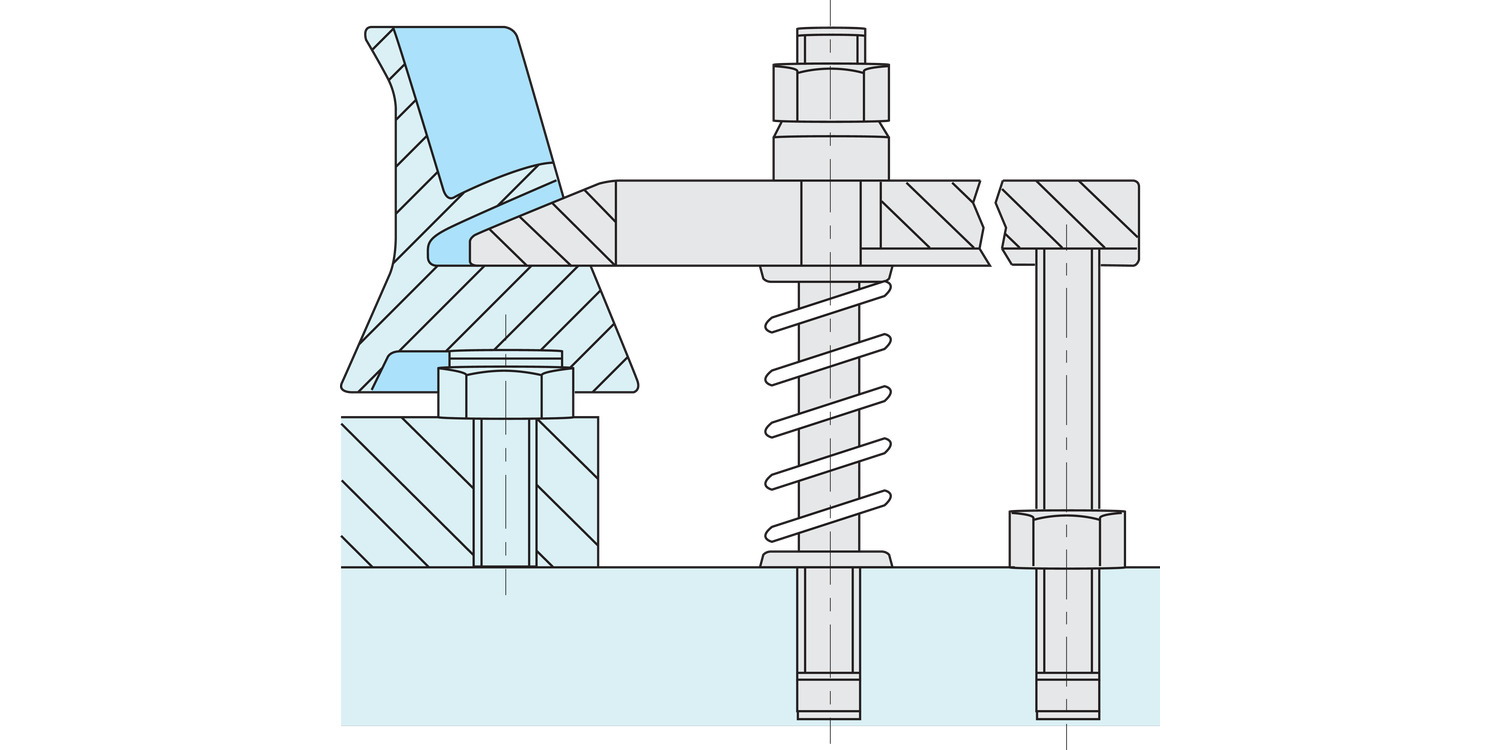

The small nose permits clamping even on difficult to reach areas.
Tips
'With thread' for vertical adjustment.
'With slot' for horizontal adjustment.
Used with:
21000 T-slot bolts, 24000 T-nuts, 24400 collar nuts, 25000 plain washer.
