Machine Table Stops

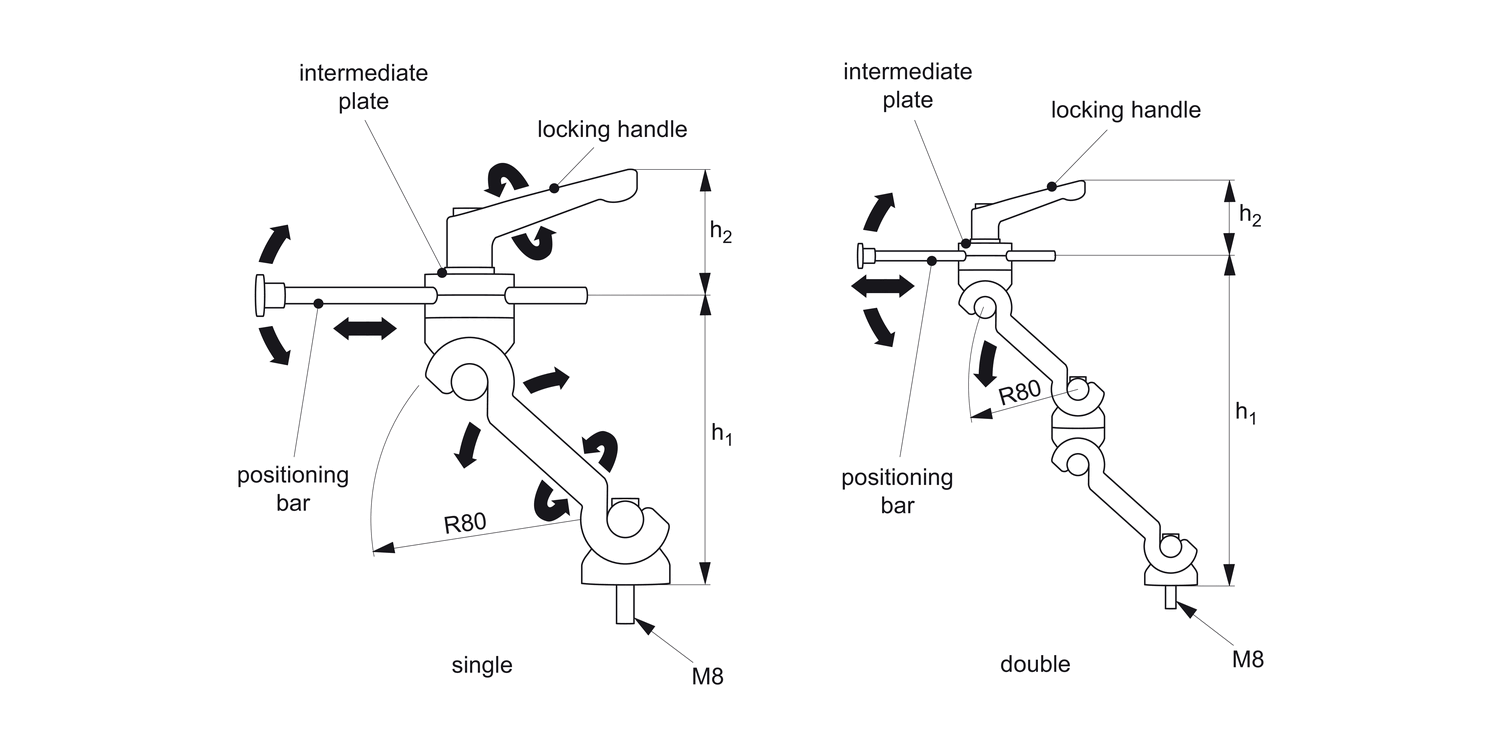

17405 Adjustable End Stops
material: Aluminium
Alternative products you may wish to consider
Bar dia.
6x150
Height adj.
min.|max.
0-150
h1
145
h2
60
Type
Single
£ 112.29 per unit (click for quantity discounts)
Bar dia.
6x150
Height adj.
min.|max.
0-300
h1
300
h2
60
Type
Double
£ 199.31 per unit (click for quantity discounts)
Bar dia.
-
Height adj.
min.|max.
-
h1
-
h2
-
Type
Intermediate Plate
£ 11.93 per unit (click for quantity discounts)
£ 25.26 per unit (click for quantity discounts)
Bar dia.
Height adj.
min.|max.
h1
h2
Type
| Price & Availability | Article | Bar dia. | Height adj. min.|max. | h1 | h2 | Type | |||||||||||||||
| 17405.W0420 | 6x150 | 0-150 | 145 | 60 | Single | ||||||||||||||||
£ 112.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Bar dia. 6x150 Height adj.
min.|max. 0-150 h1 145 h2 60 Type Single | |||||||||||||||||||||
| 17405.W0430 | 6x150 | 0-300 | 300 | 60 | Double | ||||||||||||||||
£ 199.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Bar dia. 6x150 Height adj.
min.|max. 0-300 h1 300 h2 60 Type Double | |||||||||||||||||||||
| 17405.W0710 | - | - | - | - | Intermediate Plate | ||||||||||||||||
£ 11.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Bar dia. - Height adj.
min.|max. - h1 - h2 - Type Intermediate Plate | |||||||||||||||||||||
| 17405.W0720 | - | - | - | - | Locking Handle | ||||||||||||||||
£ 25.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Bar dia. - Height adj.
min.|max. - h1 - h2 - Type Locking Handle | |||||||||||||||||||||
Technical & Application
Technical Notes

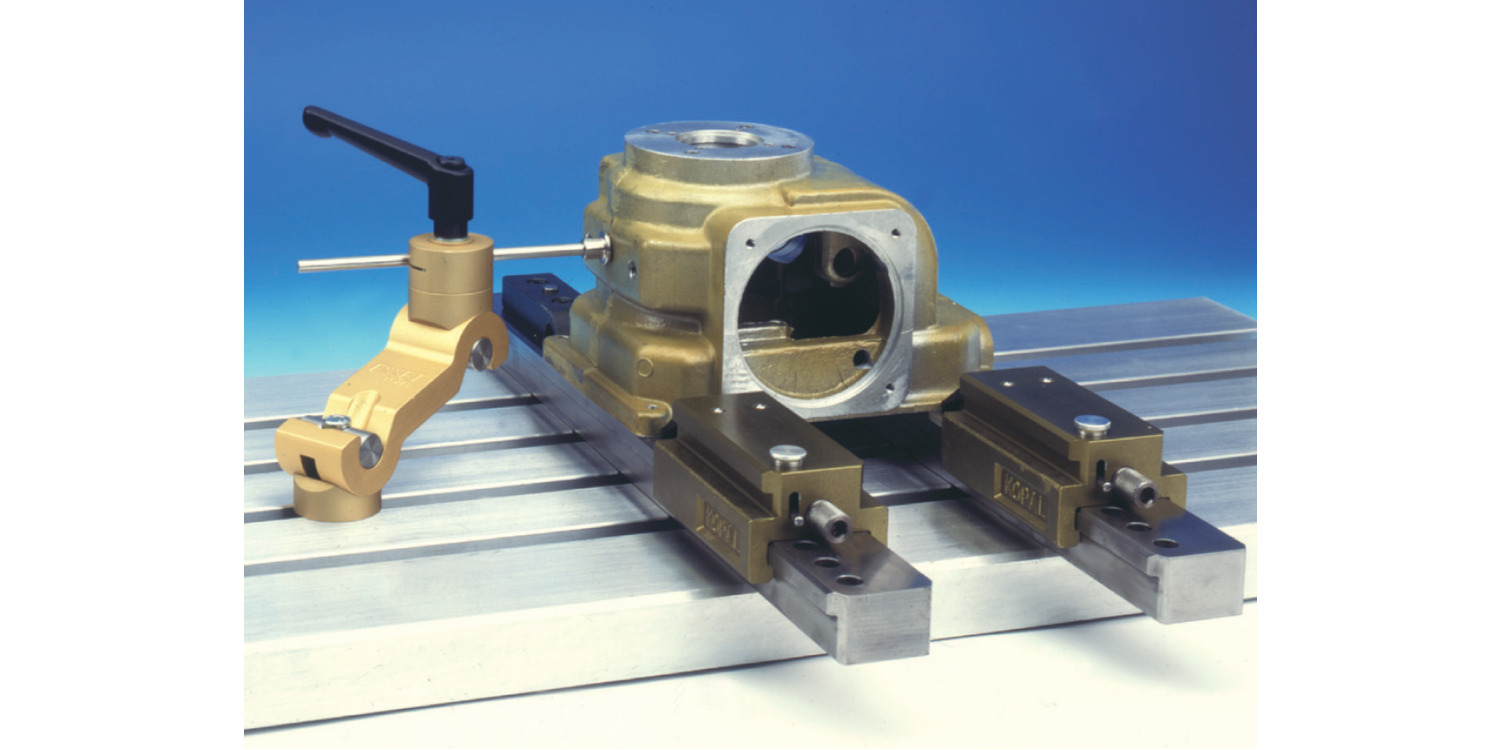

Three dimensional, fully adjustable end stops for milling machines, and vices.
Can also be used as a support to minimise work-piece vibration.
Product Datasheets
Application images
This content is not visible because of your cookie settings.
