Machine Table Stops
17403 Locating Rails
for fixturing, material: Low carbon steel

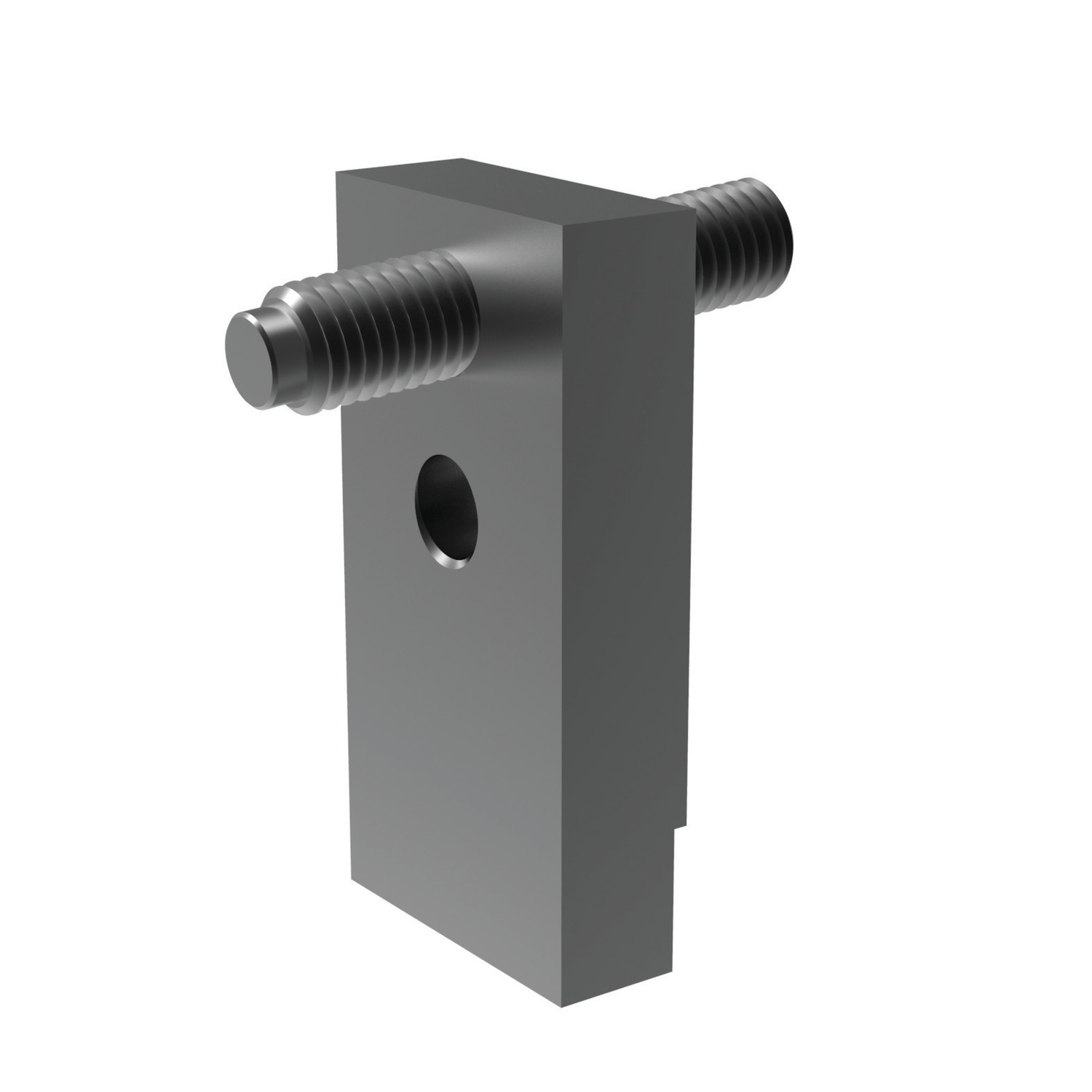

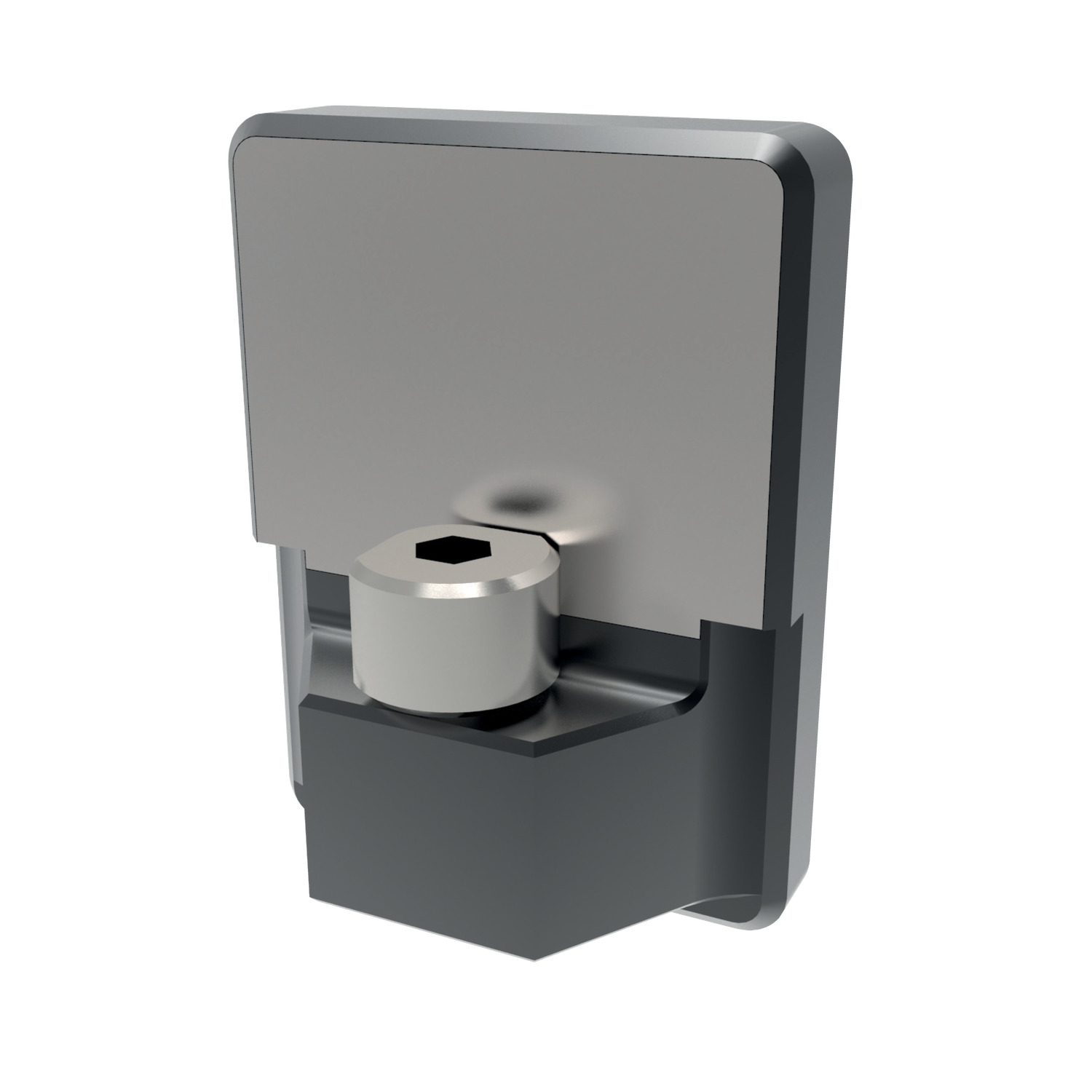

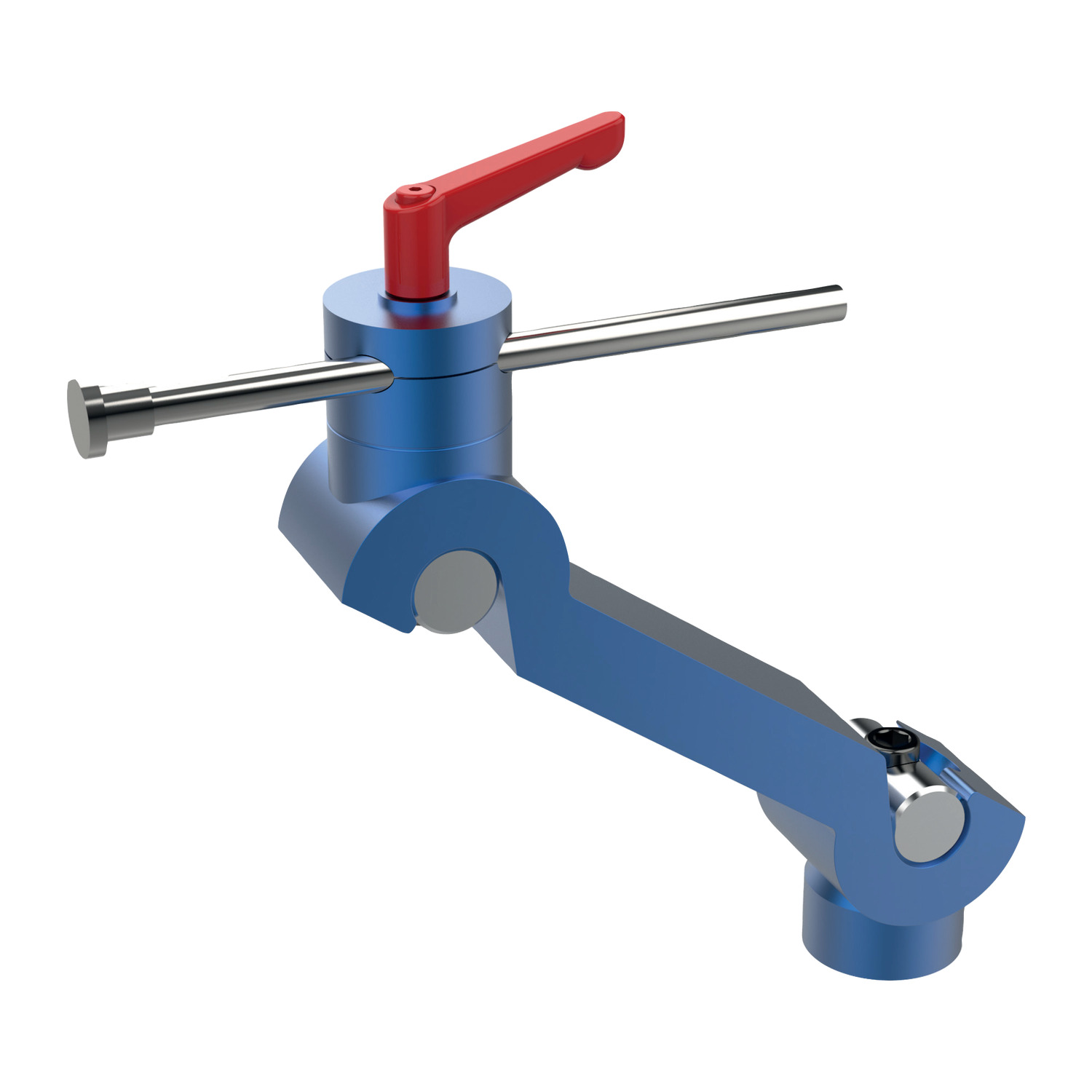

Alternative products you may wish to consider
w1
+0.00|-0.01
15
d1
M 6
h1
12
l1
50
l2
15
l3
20
l4
11
No. of holes
2
Weight
g
68.0
£ 28.80 per unit (click for quantity discounts)
w1
+0.00|-0.01
15
d1
M 6
h1
12
l1
100
l2
20
l3
30
l4
11
No. of holes
3
Weight
g
140.6
£ 44.63 per unit (click for quantity discounts)
w1
+0.00|-0.01
15
d1
M 6
h1
12
l1
150
l2
30
l3
30
l4
11
No. of holes
4
Weight
g
208.7
£ 60.60 per unit (click for quantity discounts)
w1
+0.00|-0.01
15
d1
M 6
h1
12
l1
250
l2
25
l3
50
l4
11
No. of holes
5
Weight
g
353.8
£ 79.55 per unit (click for quantity discounts)
w1
+0.00|-0.01
24
d1
M10
h1
18
l1
75
l2
20
l3
35
l4
18
No. of holes
2
Weight
g
258.5
£ 50.90 per unit (click for quantity discounts)
w1
+0.00|-0.01
24
d1
M10
h1
18
l1
150
l2
30
l3
30
l4
18
No. of holes
4
Weight
g
512.6
£ 82.84 per unit (click for quantity discounts)
w1
+0.00|-0.01
24
d1
M10
h1
18
l1
250
l2
25
l3
50
l4
18
No. of holes
5
Weight
g
848.2
£ 98.66 per unit (click for quantity discounts)
w1
+0.00|-0.01
d1
h1
l1
l2
l3
l4
No. of holes
Weight
g

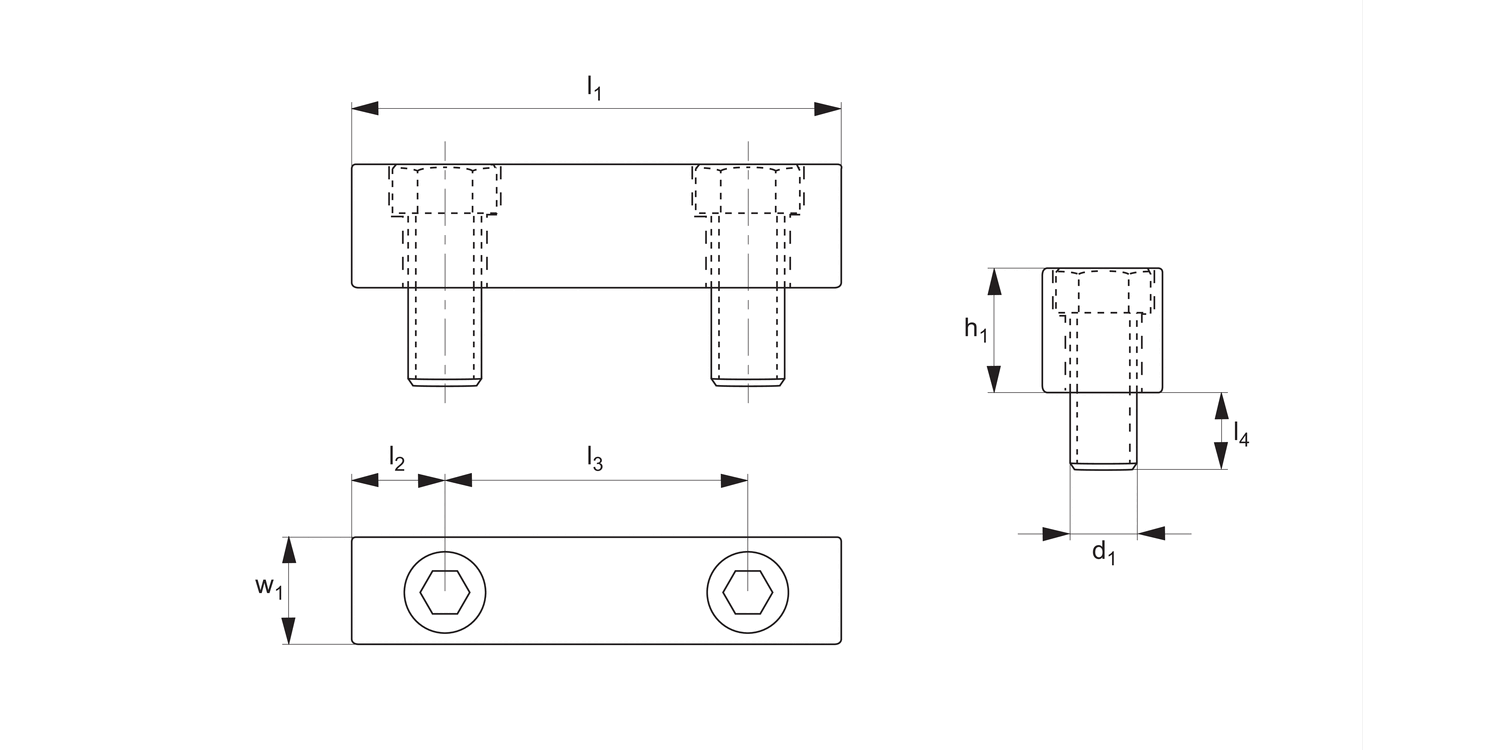

| Price & Availability | Article | w1 +0.00|-0.01 | d1 | h1 | l1 | l2 | l3 | l4 | No. of holes | Weight g | ||||||||||||||||||
| 17403.W0200 | 15 | M 6 | 12 | 50 | 15 | 20 | 11 | 2 | 68.0 | |||||||||||||||||||
£ 28.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 15 d1 M 6 h1 12 l1 50 l2 15 l3 20 l4 11 No. of holes 2 Weight
g 68.0 | ||||||||||||||||||||||||||||
| 17403.W0210 | 15 | M 6 | 12 | 100 | 20 | 30 | 11 | 3 | 140.6 | |||||||||||||||||||
£ 44.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 15 d1 M 6 h1 12 l1 100 l2 20 l3 30 l4 11 No. of holes 3 Weight
g 140.6 | ||||||||||||||||||||||||||||
| 17403.W0220 | 15 | M 6 | 12 | 150 | 30 | 30 | 11 | 4 | 208.7 | |||||||||||||||||||
£ 60.60 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 15 d1 M 6 h1 12 l1 150 l2 30 l3 30 l4 11 No. of holes 4 Weight
g 208.7 | ||||||||||||||||||||||||||||
| 17403.W0240 | 15 | M 6 | 12 | 250 | 25 | 50 | 11 | 5 | 353.8 | |||||||||||||||||||
£ 79.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 15 d1 M 6 h1 12 l1 250 l2 25 l3 50 l4 11 No. of holes 5 Weight
g 353.8 | ||||||||||||||||||||||||||||
| 17403.W0260 | 24 | M10 | 18 | 75 | 20 | 35 | 18 | 2 | 258.5 | |||||||||||||||||||
£ 50.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 24 d1 M10 h1 18 l1 75 l2 20 l3 35 l4 18 No. of holes 2 Weight
g 258.5 | ||||||||||||||||||||||||||||
| 17403.W0280 | 24 | M10 | 18 | 150 | 30 | 30 | 18 | 4 | 512.6 | |||||||||||||||||||
£ 82.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 24 d1 M10 h1 18 l1 150 l2 30 l3 30 l4 18 No. of holes 4 Weight
g 512.6 | ||||||||||||||||||||||||||||
| 17403.W0300 | 24 | M10 | 18 | 250 | 25 | 50 | 18 | 5 | 848.2 | |||||||||||||||||||
£ 98.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
w1
+0.00|-0.01 24 d1 M10 h1 18 l1 250 l2 25 l3 50 l4 18 No. of holes 5 Weight
g 848.2 | ||||||||||||||||||||||||||||
Technical & Application
Material
Low carbon steel, precision ground square.
Mounting screws included.
Technical Notes
The locating rails can be machined and are ideal for using with our machinable clamps.
Important Notes

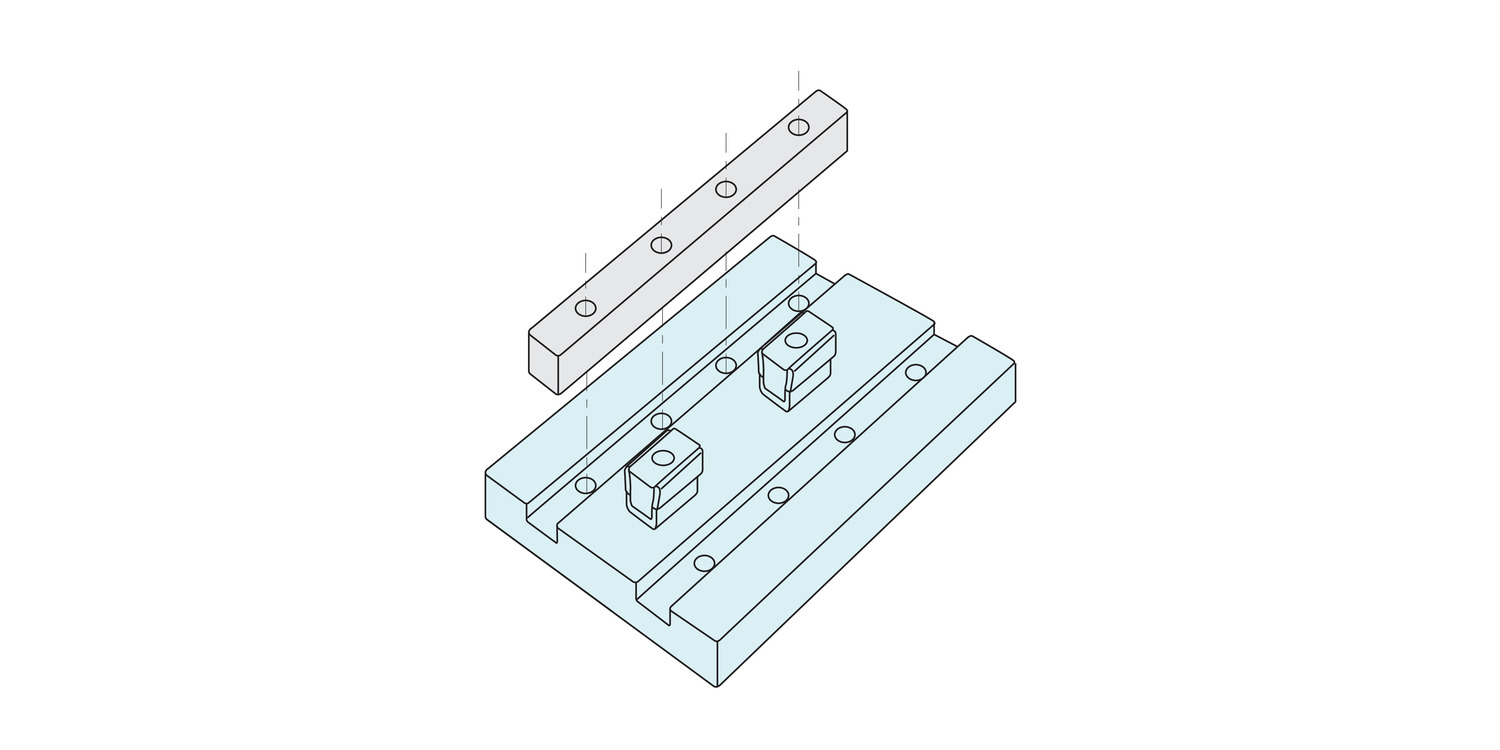

1. Mill a slot to locate the rail. Depth of slot will determine rail height.
2. Drill and tap the required holes.
3. For better rigidity the rail should be pinned to the fixture plate with dowel pins.
4. If rails are to be machined to hold round pieces, the clamps should be mounted and both rail and clamps machined at the same time.
Product Datasheets
CAD files

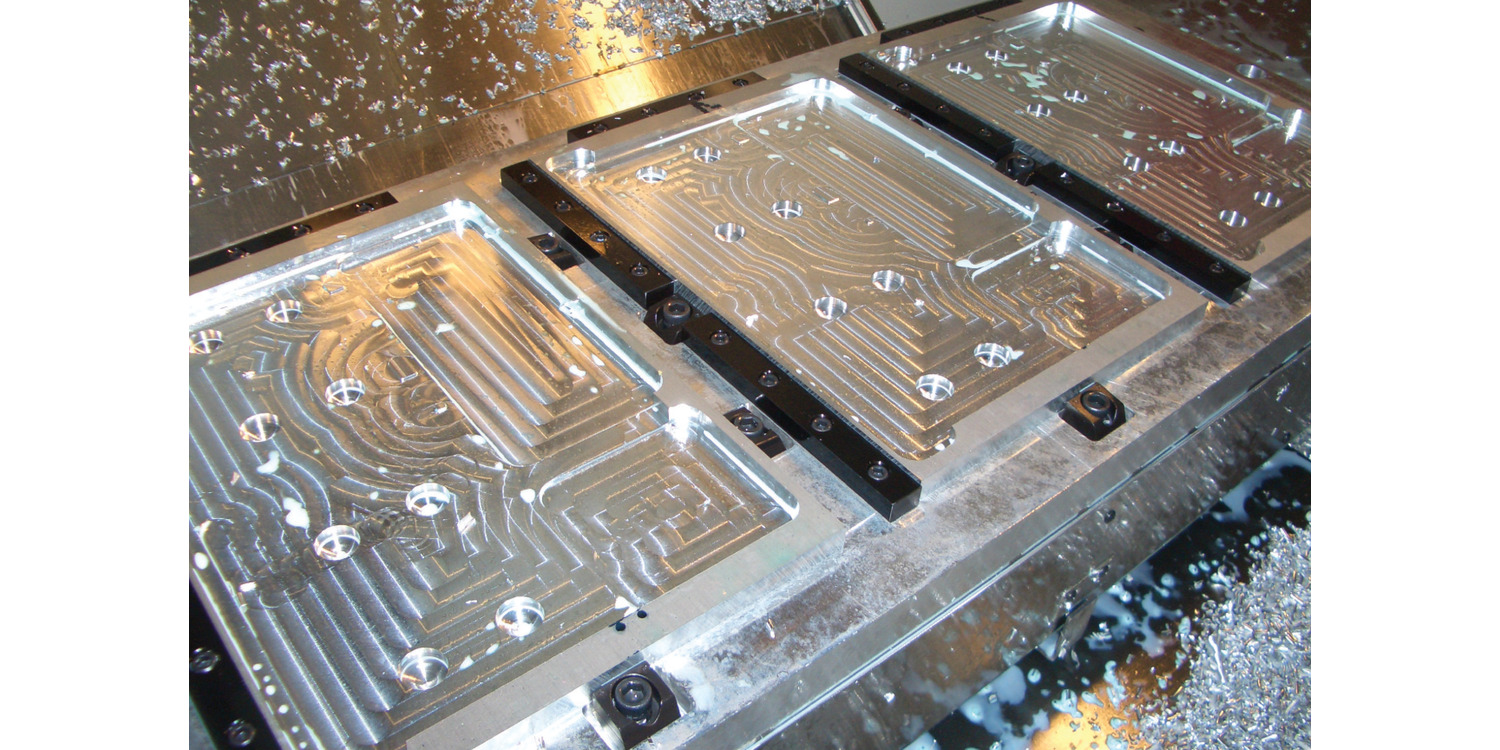

Application images
