Low Slot Tenons

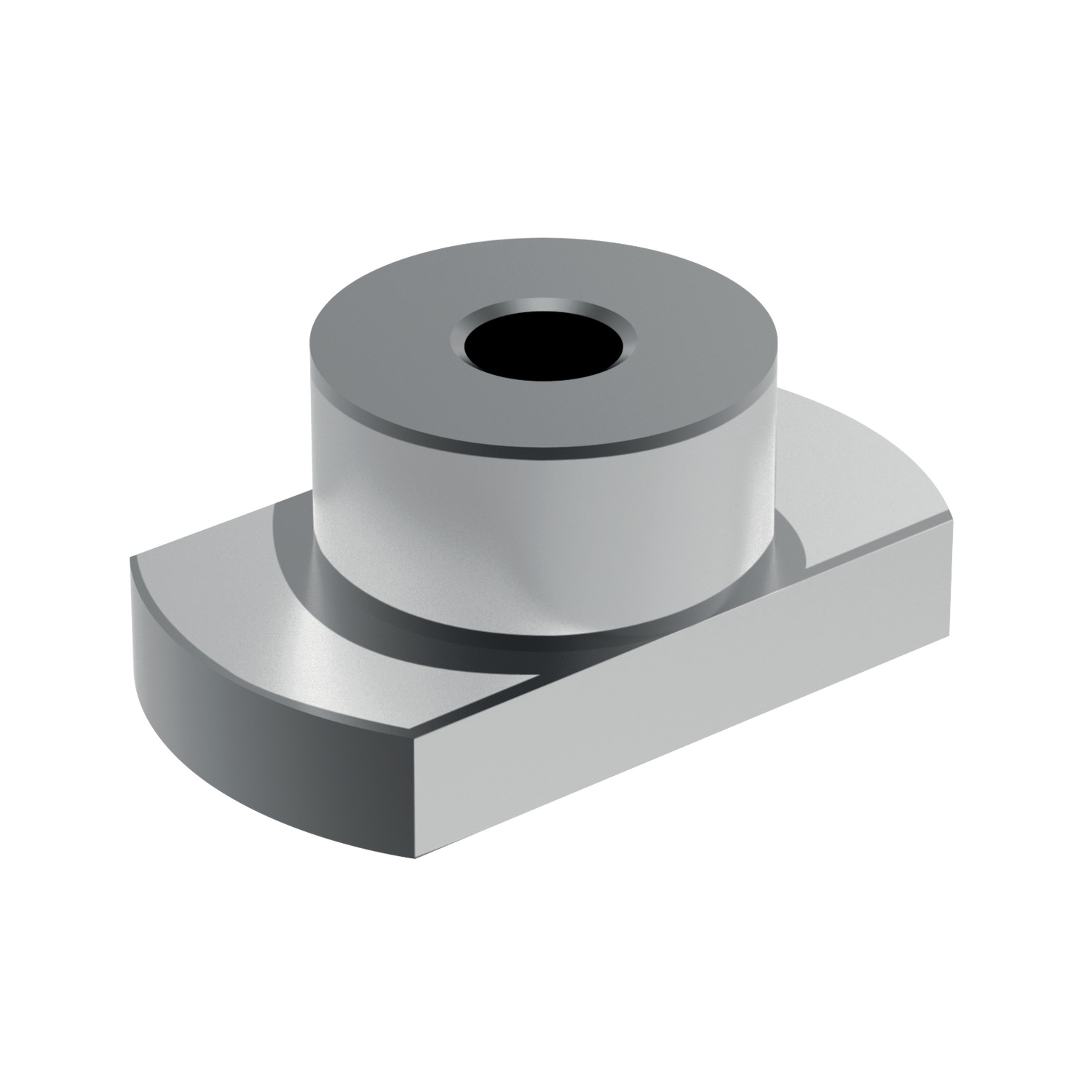

30080 Fixed Slot Tenons
with cylindrical position, material: Steel
Alternative products you may wish to consider
Machine slot Size w1
tol. h6
10
d1
30
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8

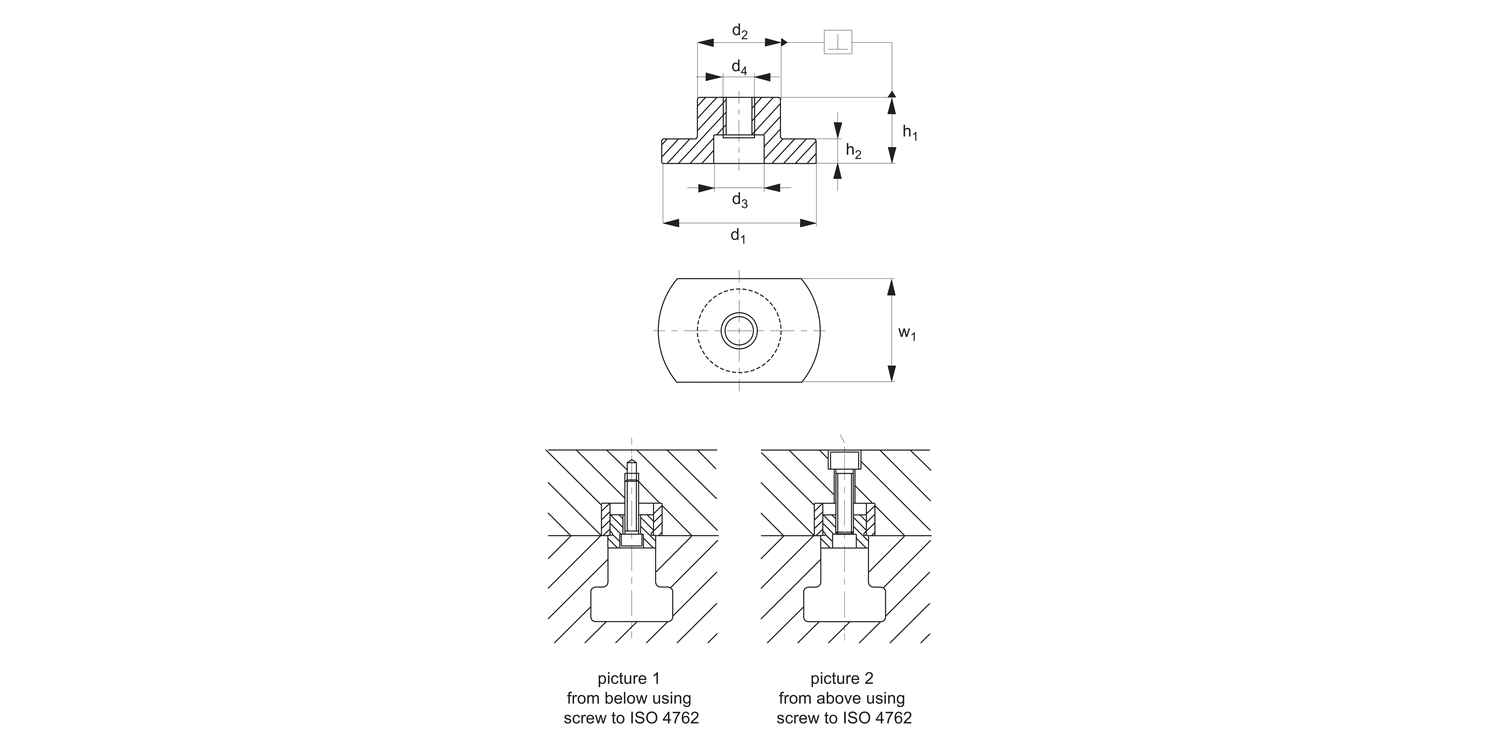

For screws ISO 4762 picture 1
M 6x10
For screws ISO 4762 picture 2 d4
M 8
Weight
g
28
£ 114.79 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
12
d1
30
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x10
For screws ISO 4762 picture 2 d4
M 8
Weight
g
39
£ 118.50 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
14
d1
30
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
41
£ 99.51 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
16
d1
30
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
36
£ 100.65 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
18
d1
30
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
45
£ 104.08 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
20
d1
36
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
48
£ 109.14 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
22
d1
40
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
54
£ 111.63 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
28
d1
42
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
65
£ 110.10 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
36
d1
48
Fixture slot size d2
tol. h6
20
d3
11
h1
15.5
h2
5.8
For screws ISO 4762 picture 1
M 6x16
For screws ISO 4762 picture 2 d4
M 8
Weight
g
86
£ 115.07 per unit (click for quantity discounts)
Machine slot Size w1
tol. h6
d1
Fixture slot size d2
tol. h6
d3
h1
h2
For screws ISO 4762 picture 1
For screws ISO 4762 picture 2 d4
Weight
g
| Price & Availability | Article | Machine slot Size w1 tol. h6 | d1 | Fixture slot size d2 tol. h6 | d3 | h1 | h2 | For screws ISO 4762 picture 1 | For screws ISO 4762 picture 2 d4 | Weight g | ||||||||||||||||||
| 30080.W0110 | 10 | 30 | 20 | 11 | 15.5 | 5.8 | M 6x10 | M 8 | 28 | |||||||||||||||||||
£ 114.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 10 d1 30 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x10 For screws ISO 4762 picture 2 d4 M 8 Weight
g 28 | ||||||||||||||||||||||||||||
| 30080.W0112 | 12 | 30 | 20 | 11 | 15.5 | 5.8 | M 6x10 | M 8 | 39 | |||||||||||||||||||
£ 118.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 12 d1 30 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x10 For screws ISO 4762 picture 2 d4 M 8 Weight
g 39 | ||||||||||||||||||||||||||||
| 30080.W0114 | 14 | 30 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 41 | |||||||||||||||||||
£ 99.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 14 d1 30 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 41 | ||||||||||||||||||||||||||||
| 30080.W0116 | 16 | 30 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 36 | |||||||||||||||||||
£ 100.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 16 d1 30 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 36 | ||||||||||||||||||||||||||||
| 30080.W0118 | 18 | 30 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 45 | |||||||||||||||||||
£ 104.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 18 d1 30 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 45 | ||||||||||||||||||||||||||||
| 30080.W0120 | 20 | 36 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 48 | |||||||||||||||||||
£ 109.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 20 d1 36 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 48 | ||||||||||||||||||||||||||||
| 30080.W0122 | 22 | 40 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 54 | |||||||||||||||||||
£ 111.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 22 d1 40 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 54 | ||||||||||||||||||||||||||||
| 30080.W0128 | 28 | 42 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 65 | |||||||||||||||||||
£ 110.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 28 d1 42 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 65 | ||||||||||||||||||||||||||||
| 30080.W0136 | 36 | 48 | 20 | 11 | 15.5 | 5.8 | M 6x16 | M 8 | 86 | |||||||||||||||||||
£ 115.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Machine slot Size w1
tol. h6 36 d1 48 Fixture slot size d2
tol. h6 20 d3 11 h1 15.5 h2 5.8 For screws ISO 4762 picture 1 M 6x16 For screws ISO 4762 picture 2 d4 M 8 Weight
g 86 | ||||||||||||||||||||||||||||
Technical & Application
Material
Steel, heat-treated, case-hardened, blackened and ground.
Technical Notes
Used for locating fixtures and clamping elements on mounting pallets with cylindrical location holes. They can also be inserted into bored holes and T-slots.
