10000 Plain Clamps

Name: 10000.W0019
Brand: WC
SKU: 10000.W0019
Price: 28.79 EUR
Availability: OutOfStock

material: Heat treated steel

Article properties

Order No.

10000.W0019

For bolt

M16, M18

For bolt inch

5/8"

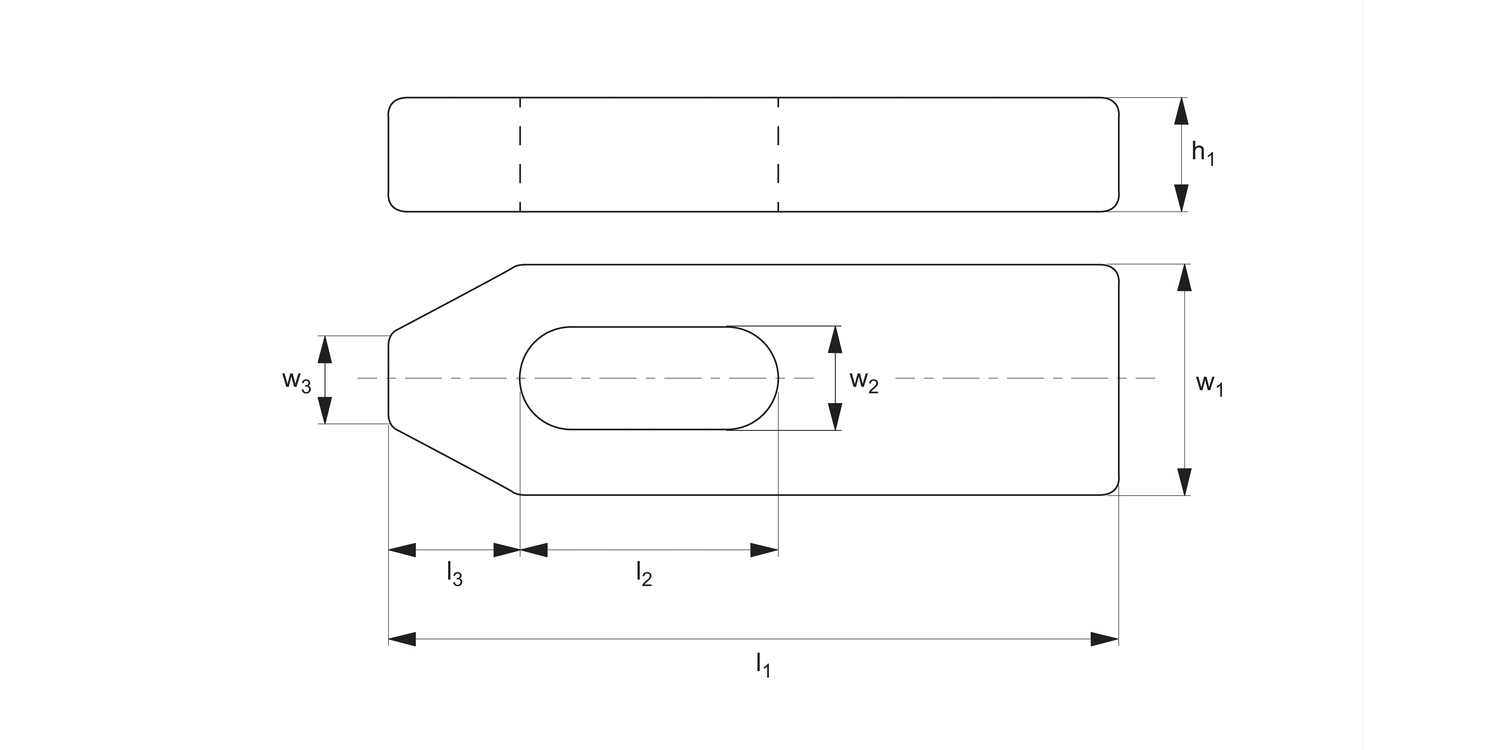

l₁

160

l₂

l₃

w₁

w₂

18.0

w₃

h₁

Weight g

1240

See full product selection

£ 28.79 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 28.79	0%
5-14	£ 25.91	10%
15-24	£ 24.47	15%
25+	£ 23.03	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, heat-treated and enamelled.

Technical Notes

To DIN 6314.
( )= Not to DIN standard.

Tips

Used with:
21000 T-slot bolts, 24000 T-nuts, 24400 collar nuts, 25000 plain washer.

Product Datasheets

10000 Plain ClampsJanuary 3, 2025, 2:55 PM / 134.55 kB

Standard Over ClampsJanuary 3, 2025, 3:48 PM / 1.30 MB

Standard Manual ClampingJanuary 3, 2025, 3:47 PM / 4.00 MB

Manual Clamping & Height SettingJanuary 3, 2025, 3:47 PM / 30.87 MB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

CAD files

10000 AcisApril 17, 2024, 9:02 AM / 47.96 kB

10000 IGESApril 17, 2024, 9:02 AM / 113.76 kB

10000 ParasolidApril 17, 2024, 9:02 AM / 67.79 kB

10000 ProEApril 17, 2024, 9:02 AM / 244.53 kB

10000 SolidWorksApril 17, 2024, 9:02 AM / 1.82 MB

10000 StepApril 17, 2024, 9:02 AM / 78.74 kB
