11043 2.2 Ton Fixed Stop - Serrated Face

Name: 11043.W0081
Brand: WC
SKU: 11043.W0081
Price: 219.65 EUR
Availability: InStock

material: Spring steel

Article properties

Order No.

11043.W0081

Type

Serrated Face

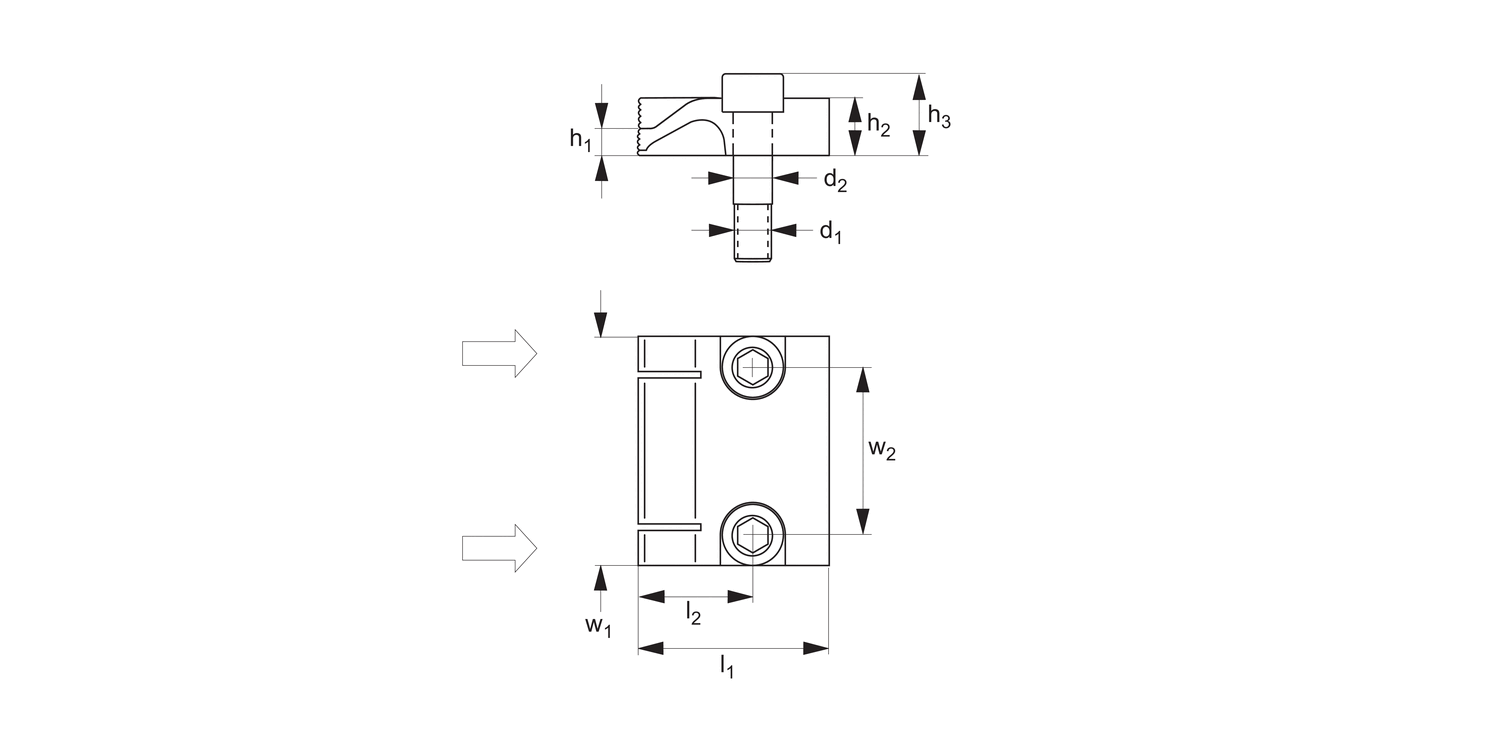

Clamping height h₁

d₁

M10

d₂ tol. h6

10.2

h₂

h₃

l₁

l₂

w₁

w₂

See full product selection

£ 219.65 per unit (click for quantity discounts)

Ready to despatch 5
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 219.65	0%
5-9	£ 208.67	5%
10-19	£ 197.69	10%
20+	£ 186.70	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Spring steel.

Technical Notes

These stops have a unique sideways and downwards action.

Tips

Provided with specially ground location bolts Ø10,2 - M10, allowing for precise positioning. For mounting - 2 tapped holes at 44,00 ±0,005mm centres, M10 with depth of 28mm, counterbore 10,2 (H6) with depth of 14mm.

Product Datasheets

11043 2.2 Ton Fixed Stop - Serrated FaceJune 24, 2025, 3:52 PM / 3.08 MB

Side Clamps - 2.2 tonsJune 24, 2025, 3:30 PM / 2.40 MB

Heavy-Duty Side ClampingJune 24, 2025, 3:31 PM / 3.89 MB

Manual Clamping & Height SettingJune 24, 2025, 3:32 PM / 31.08 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

11043 AcisApril 17, 2024, 9:03 AM / 116.54 kB

11043 IGESApril 17, 2024, 9:03 AM / 205.37 kB

11043 ParasolidApril 17, 2024, 9:03 AM / 93.90 kB

11043 ProEApril 17, 2024, 9:03 AM / 351.44 kB

11043 SolidWorksApril 17, 2024, 9:03 AM / 421.17 kB

11043 StepApril 17, 2024, 9:03 AM / 130.30 kB
