2.2 Ton Clamp
movable jaw & smooth face

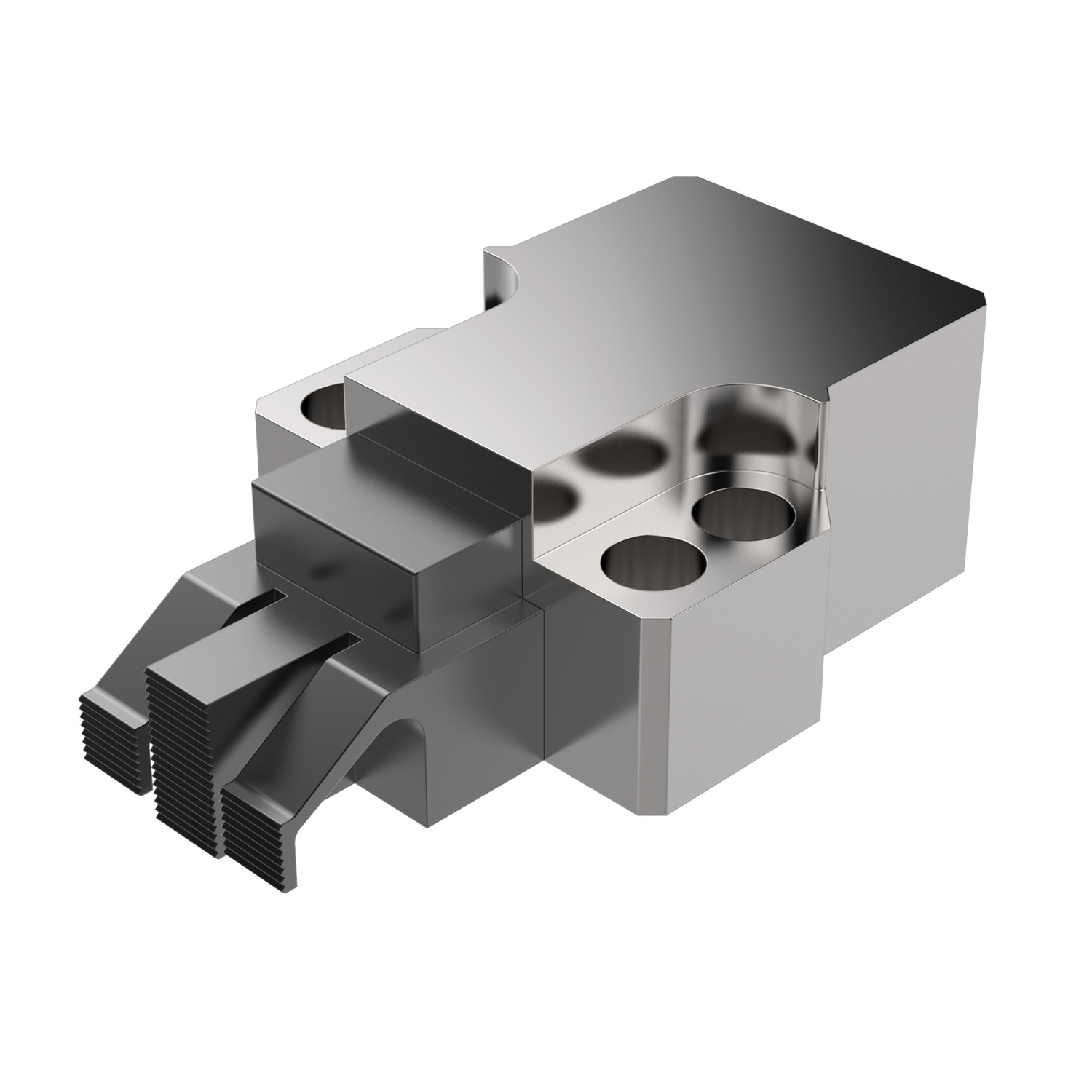

11042 2.2 Ton Clamp - Serrated Face
movable jaw, material: Hardened steel
Alternative products you may wish to consider

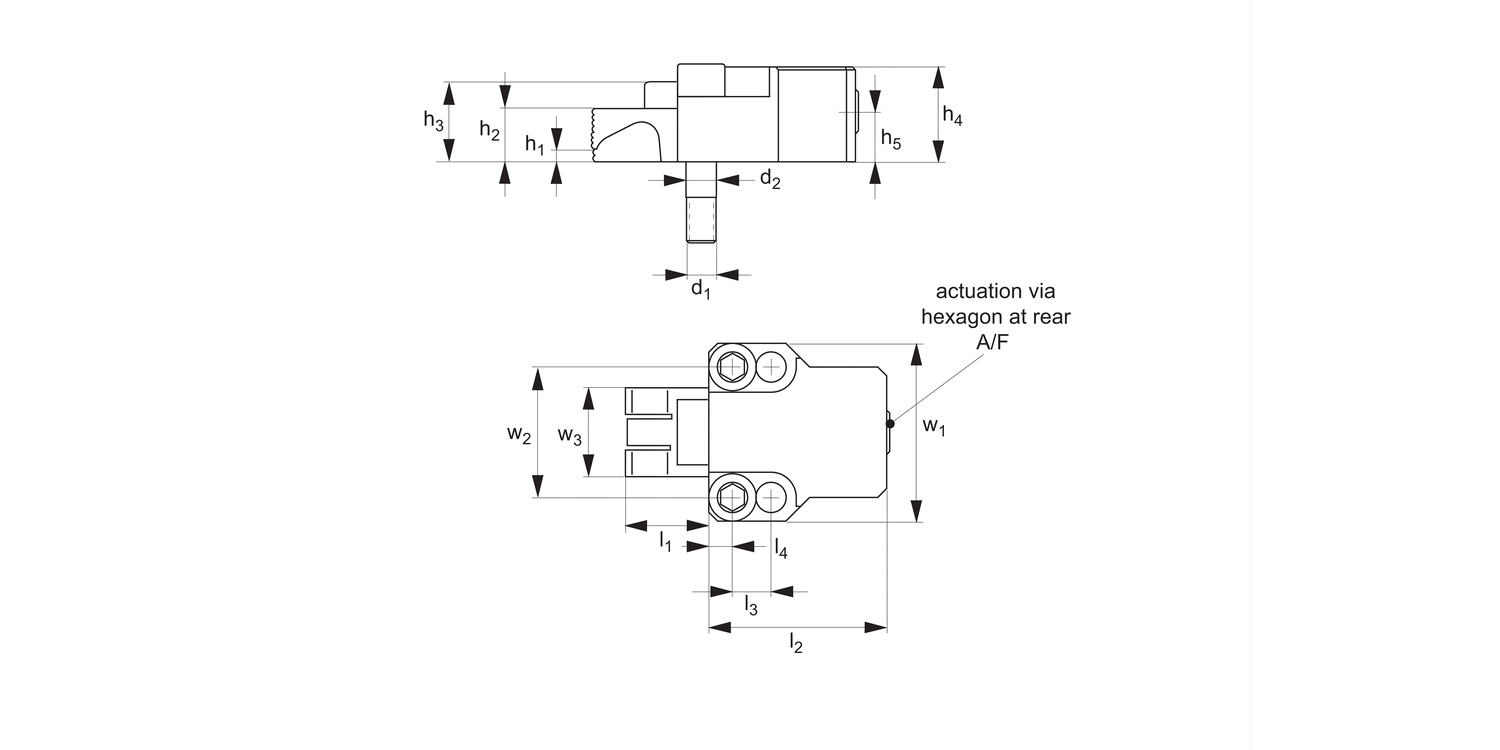

Clamp height h2
18
Clamp stroke l1
18-34
d1
M10
d2
tol. h6
10.2
h1
10
h3
27
h4
33
h5
17
l2
60
l3
13
l4
8
w1
60
w2
44
w3
30
A/F
8
Torque to
max.
Nm
50
Clamping force
max.
kN
22
£ 794.68 per unit (click for quantity discounts)
Clamp height h2
Clamp stroke l1
d1
d2
tol. h6
h1
h3
h4
h5
l2
l3
l4
w1
w2
w3
A/F
Torque to
max.
Nm
Clamping force
max.
kN
| Price & Availability | Article | Clamp height h2 | Clamp stroke l1 | d1 | d2 tol. h6 | h1 | h3 | h4 | h5 | l2 | l3 | l4 | w1 | w2 | w3 | A/F | Torque to max. Nm | Clamping force max. kN | |||||||||||||||
| 11042.W0027 | 18 | 18-34 | M10 | 10.2 | 10 | 27 | 33 | 17 | 60 | 13 | 8 | 60 | 44 | 30 | 8 | 50 | 22 | ||||||||||||||||
£ 794.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamp height h2 18 Clamp stroke l1 18-34 d1 M10 d2
tol. h6 10.2 h1 10 h3 27 h4 33 h5 17 l2 60 l3 13 l4 8 w1 60 w2 44 w3 30 A/F 8 Torque to
max.
Nm 50 Clamping force
max.
kN 22 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Hardened steel, with spring steel clamping element.
Technical Notes
A low height, very powerful compact clamp.
These clamps exert a sideways and downwards clamping action.
Tips
Provided with specially ground location bolts Ø10,2 - M10, allowing for precise positioning.
For mounting there are 2 tapped holes at 44,00 ±0,005mm centres, M10 with depth of 28mm, counterbore 10,2 (H6) with depth of 14mm.
Important Notes

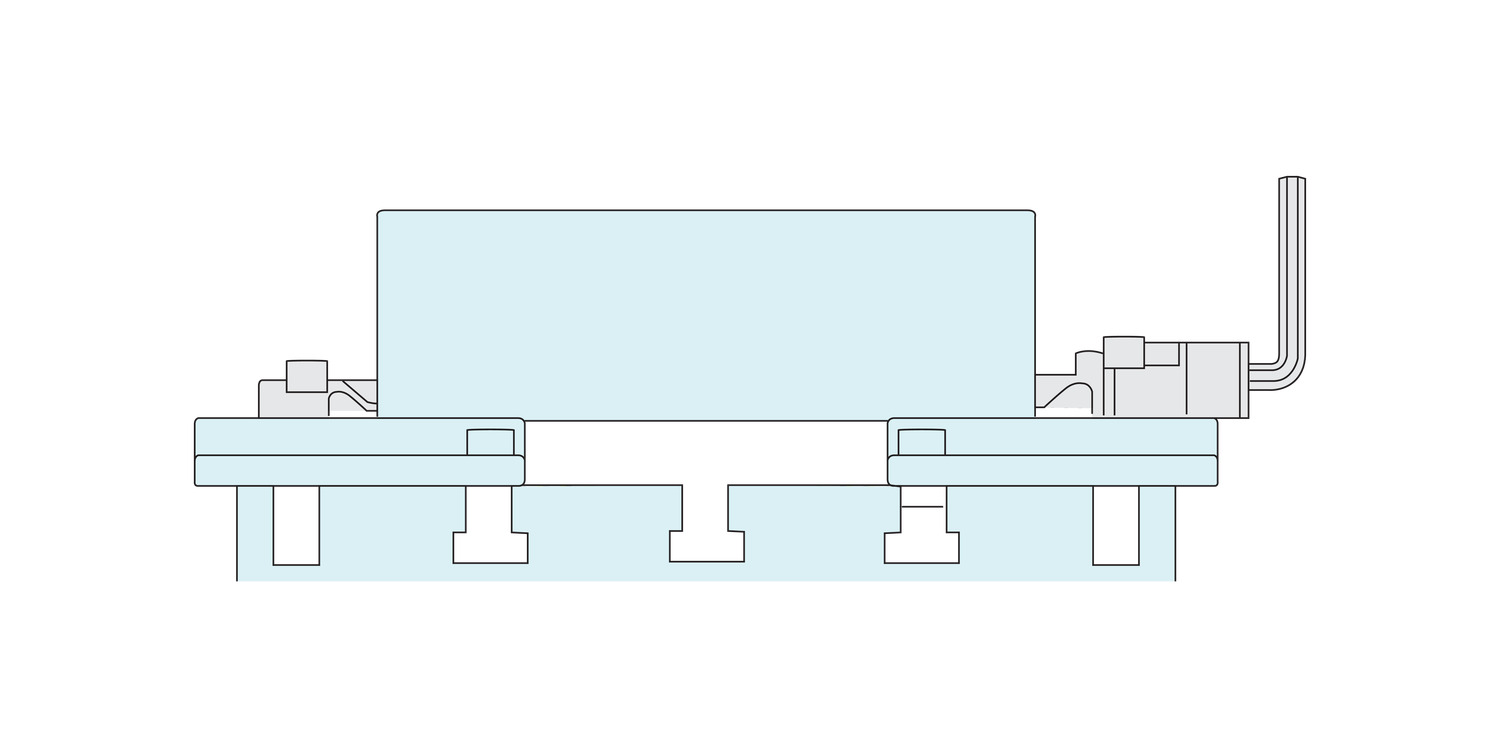

When used in conjunction with fixed stop (part nos. 11041 or 11043) these clamps achieve a positive downforce on both faces of the workpiece - a unique feature.
Product Datasheets
CAD files
Application images
