2.2 Ton Clamp
movable jaw & smooth face

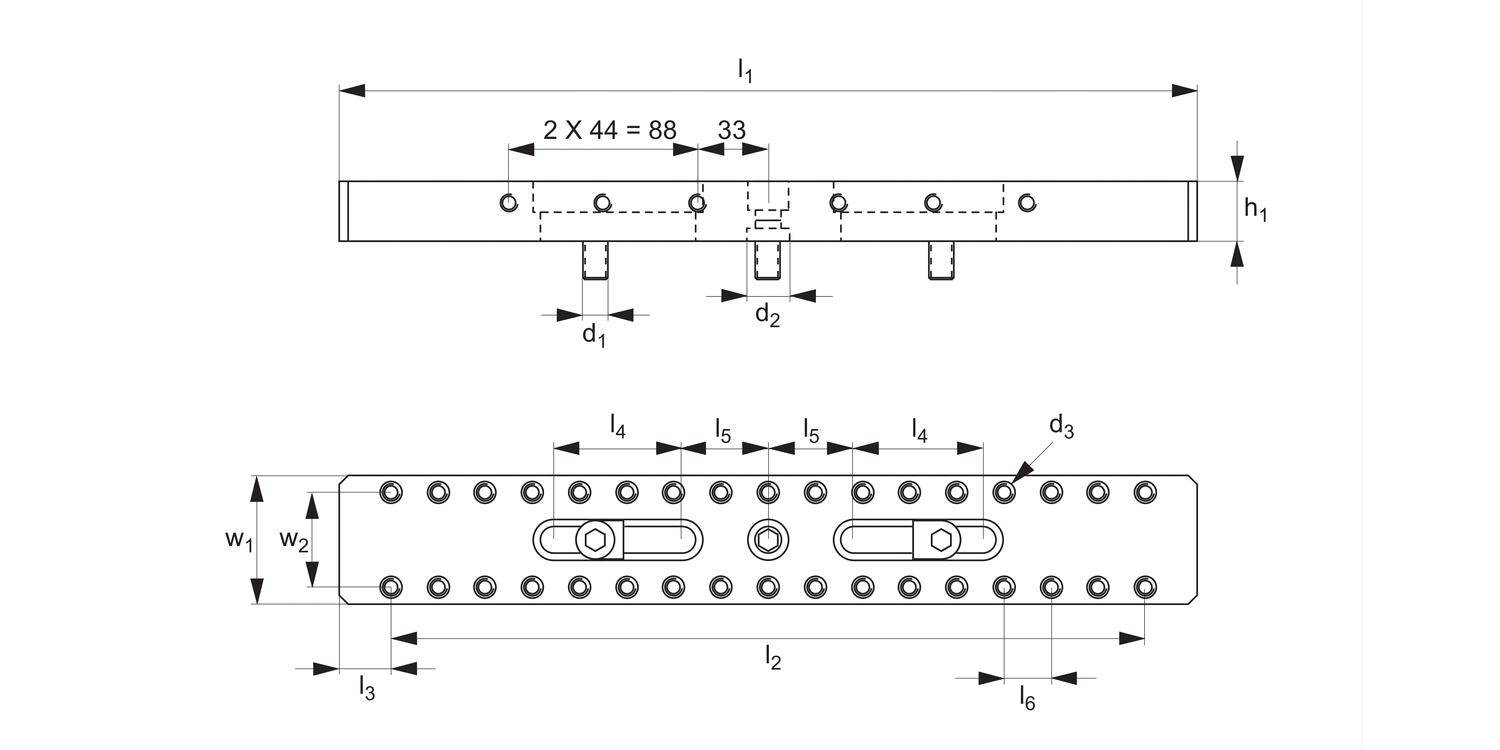

11046 Base Plates Finger - Long
for 2.2 ton clamps, material: Steel
Order No.
11046.W0015
d1
M12
d2
20
d3
Ø10,2 - M10
h1
28
l1
400
l2
352
l3
60
l4
40
l5
24
l6
22
w1
60
w2
44
£ 983.93 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 983.93 | 0% |
| 5-9 | £ 934.73 | 5% |
| 10-19 | £ 885.54 | 10% |
| 20+ | £ 836.34 | 15% |
Technical & Application
Material
Steel, hardened, with ground faces.
Technical Notes
For T-slot tables and fixture plates.
Tips
Provided with 3 x M12 fixing screws and centring locator.
For use with parts 11040-11043.
