2.2 Ton Clamp
movable jaw & smooth face

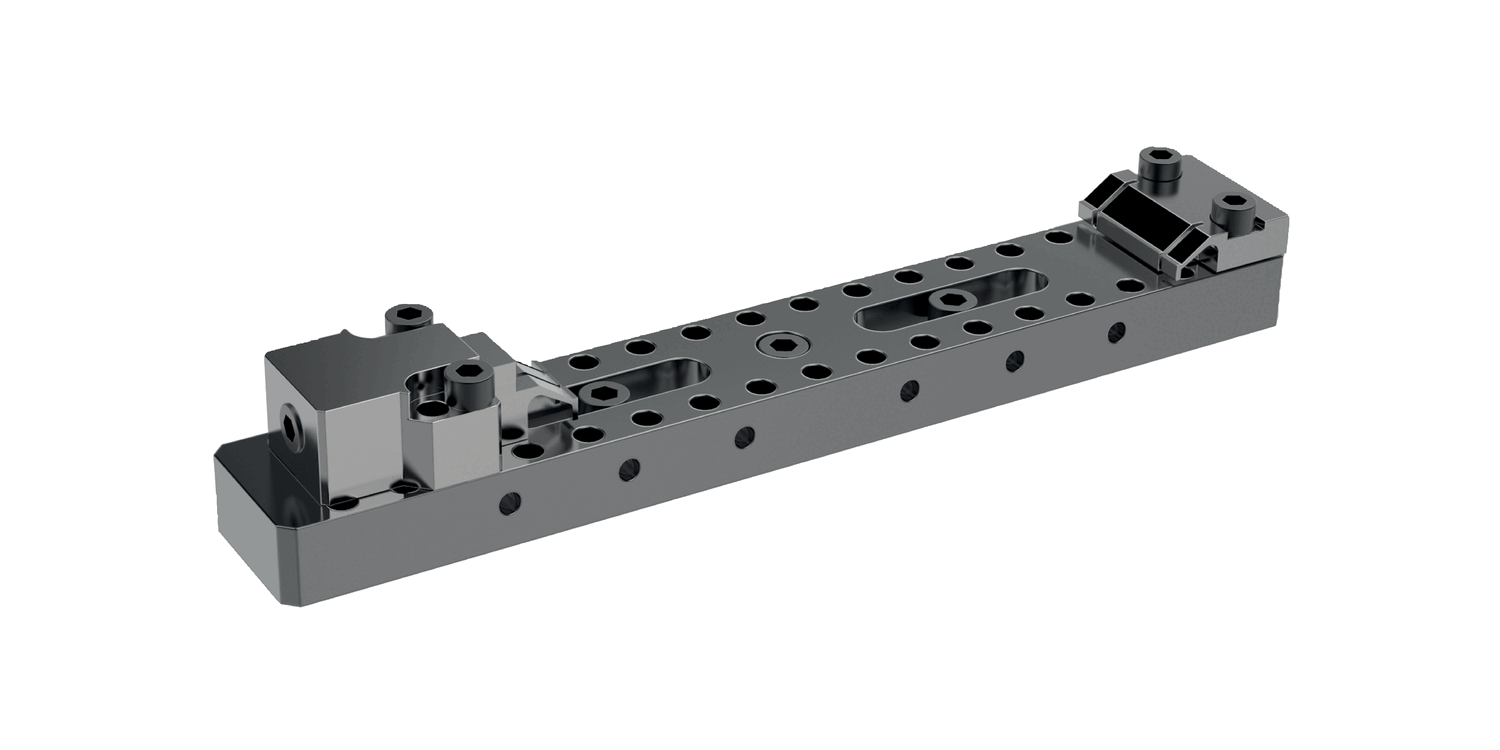

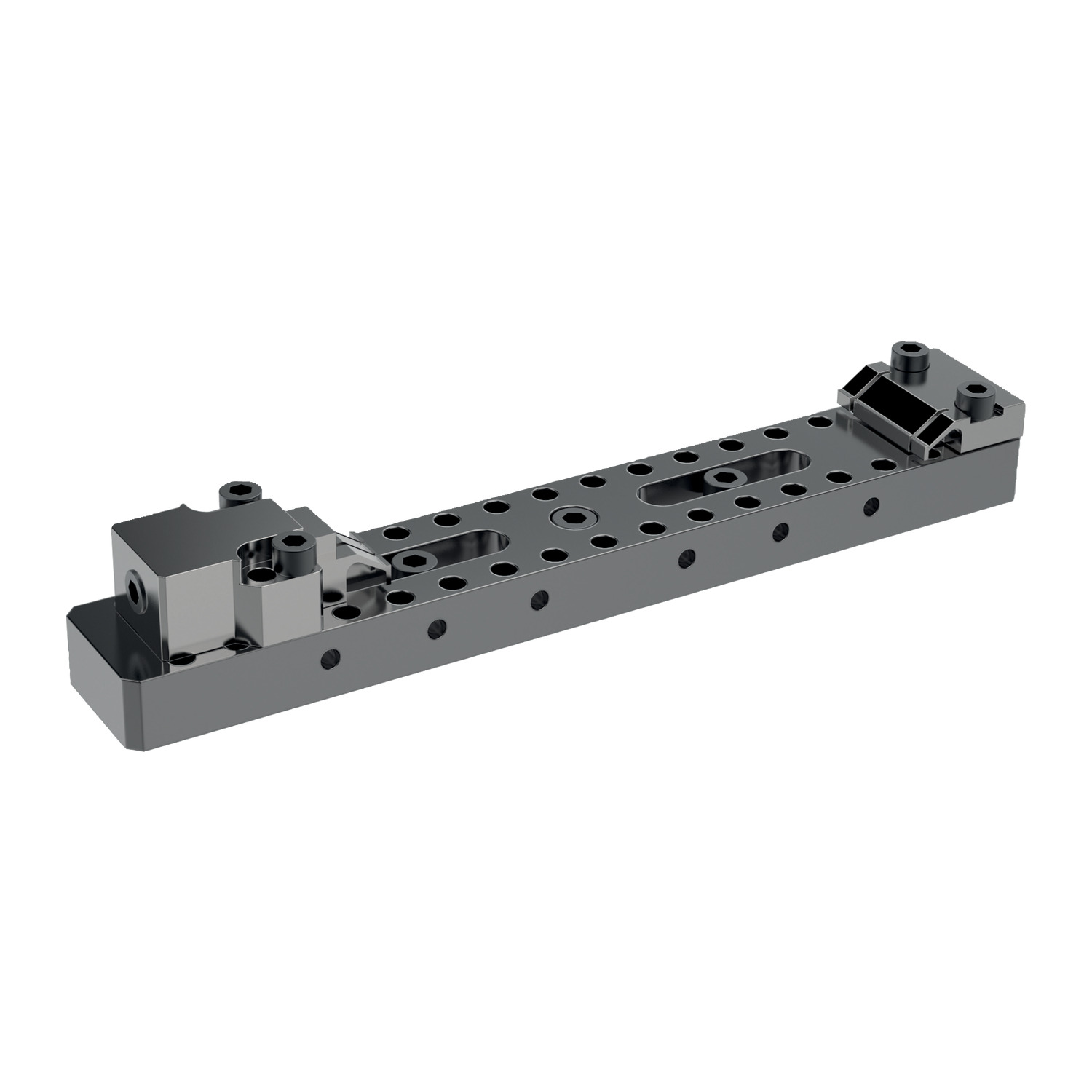

11050 2.2 Ton Finger Clamps
vice sets, material: Hardened steel
Order No.
11050.W0004
Type
Standard Vice Set
Base
1 pc 11046.W0015
Clamp
1 pc 11040.W0025
Stop
1 pc 11041.W0080
£ 2,031.39 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 2,031.39 | 0% |
| 5-9 | £ 1,929.82 | 5% |
| 10-19 | £ 1,828.25 | 10% |
| 20+ | £ 1,726.68 | 15% |
Technical & Application
Material
Clamp rail: steel, hardened and ground faces.
Clamps: hardened steel, with spring steel clamping element.
Stops: spring steel.
Technical Notes
A low height, very powerful compact clamp system.
These clamps have a unique sideways and downwards clamping action.
Maximum workpiece capacity 280mm.
Tips
Provided with specially ground location bolts Ø10,2 - M10.
Also available with serrated jaws.
