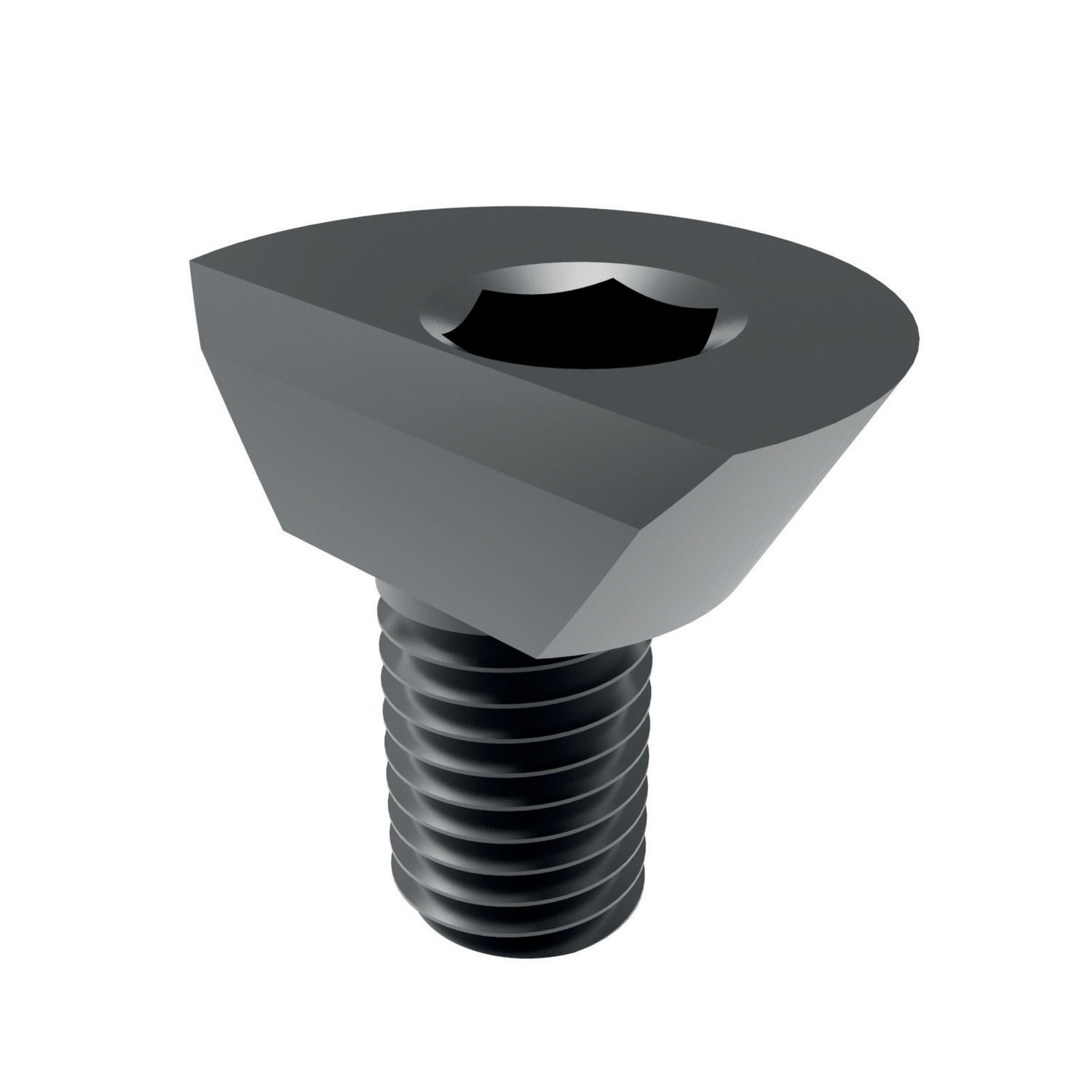

12111 Eccentric Pull Down Clamps

Name: 12111.W0006
Brand: WC
SKU: 12111.W0006
Price: 26.78 EUR
Availability: InStock

material: Hardened steel

Article properties

Order No.

12111.W0006

d₁

M 6

d₂

13.5

l₁

l₂

l₃ min.

w₁

5.4

w₂ ±0.2

6.4

w₃

7.1

w₄

6.1

w₅

4.5

A/F

4.0

Torque to max. Nm

4.5

Holding force F kN

0.30

Weight g

4.95

See full product selection

£ 26.78 per unit (click for quantity discounts)

Ready to despatch 14
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 26.78	0%
5-9	£ 24.10	10%
10-19	£ 22.76	15%
20-49	£ 20.09	25%
50+	£ 17.41	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, hardened and blue zinc coated.

Technical Notes

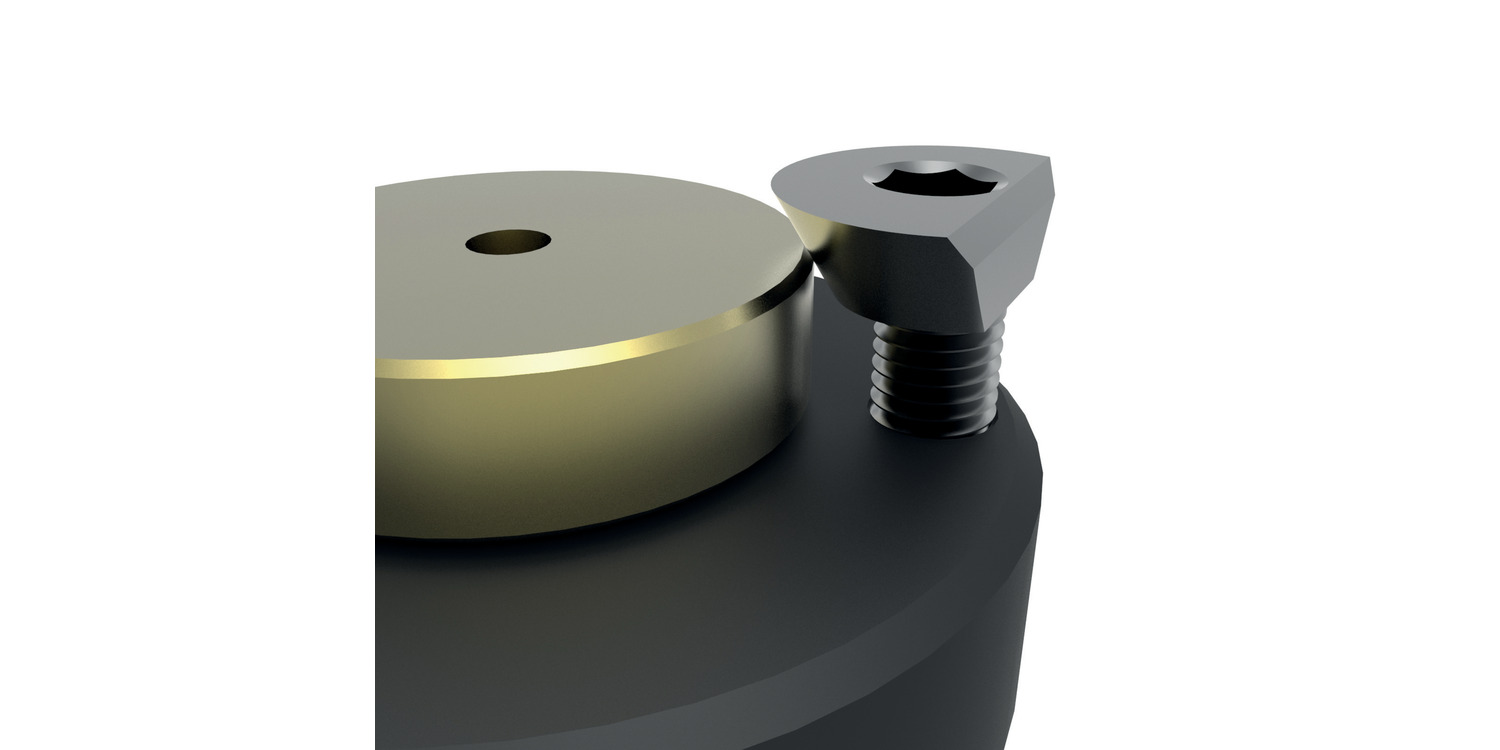

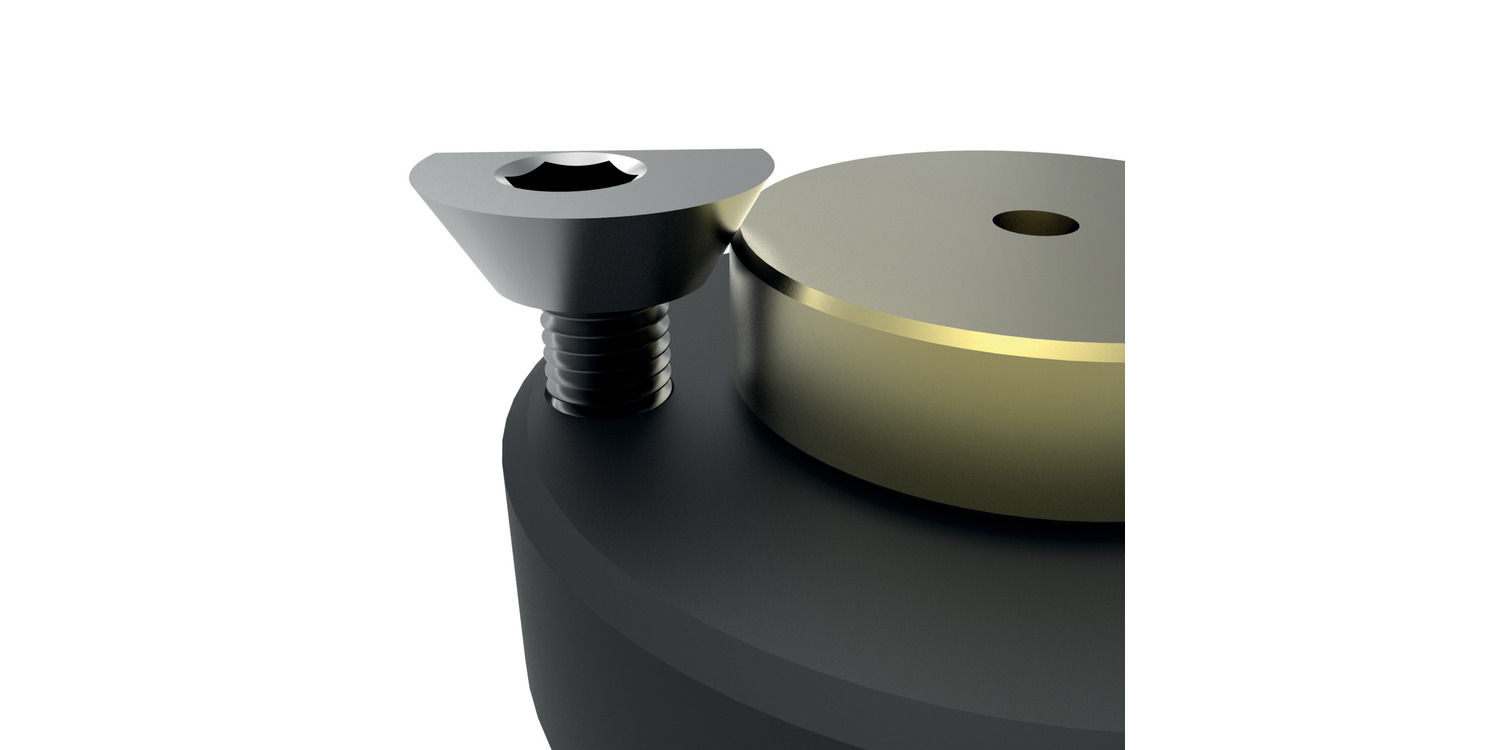

Single piece clamping screw. Unique eccentric side profile of the clamp ensures both downhold and side clamping action.

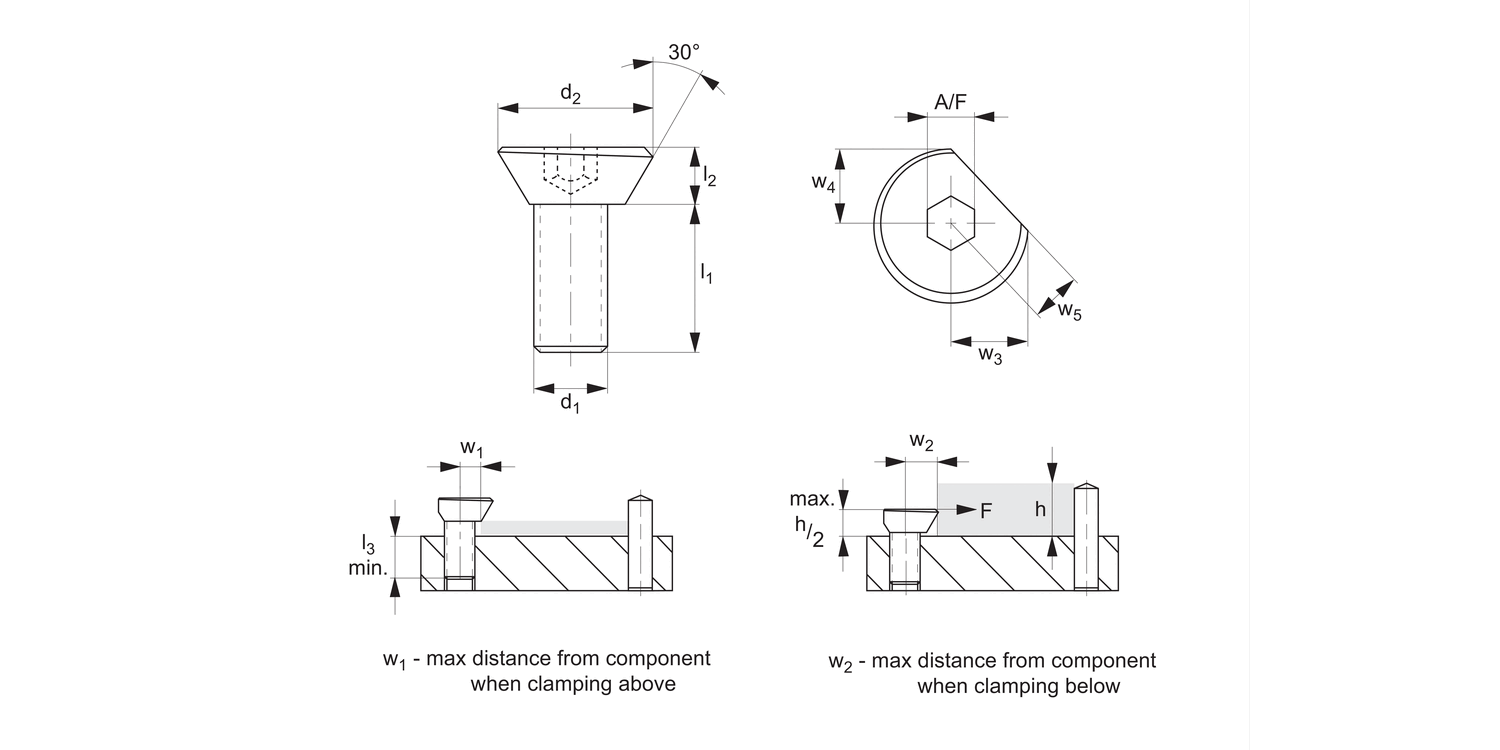

"w1" = max. distance from component when clamping above component surface.
"w2" = max. distance from component when clamping below component surface.
"h" - workpiece height.
"l3" - min. suggested thread engagement.
Clamping stroke achieved via 120° turn of clamping screw.
