Fixture Clamps
low profile

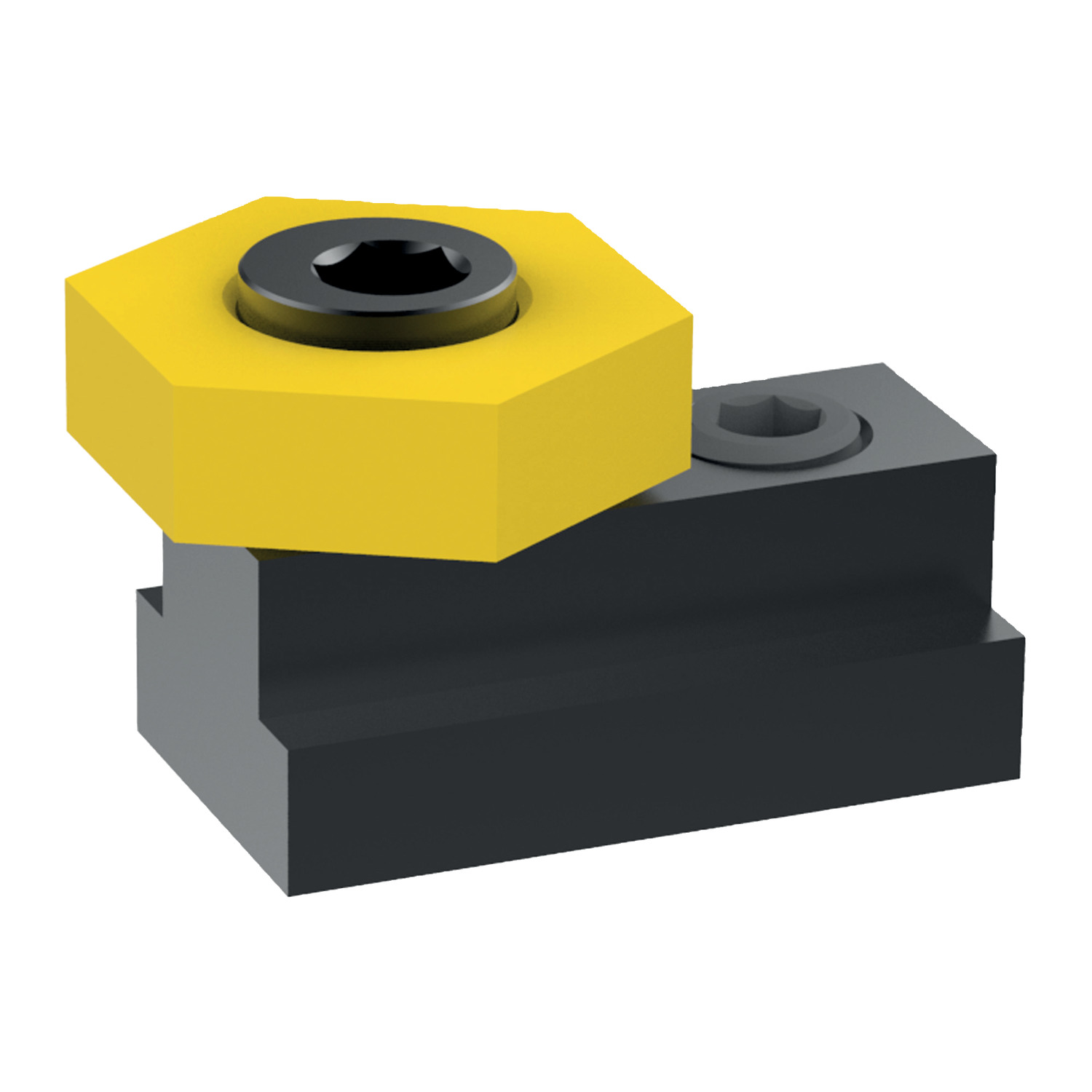

12112 Eccentric Fixture Clamps
low profile, material: Hardened steel
Order No.
12112.W0016
Type
Brass Clamp

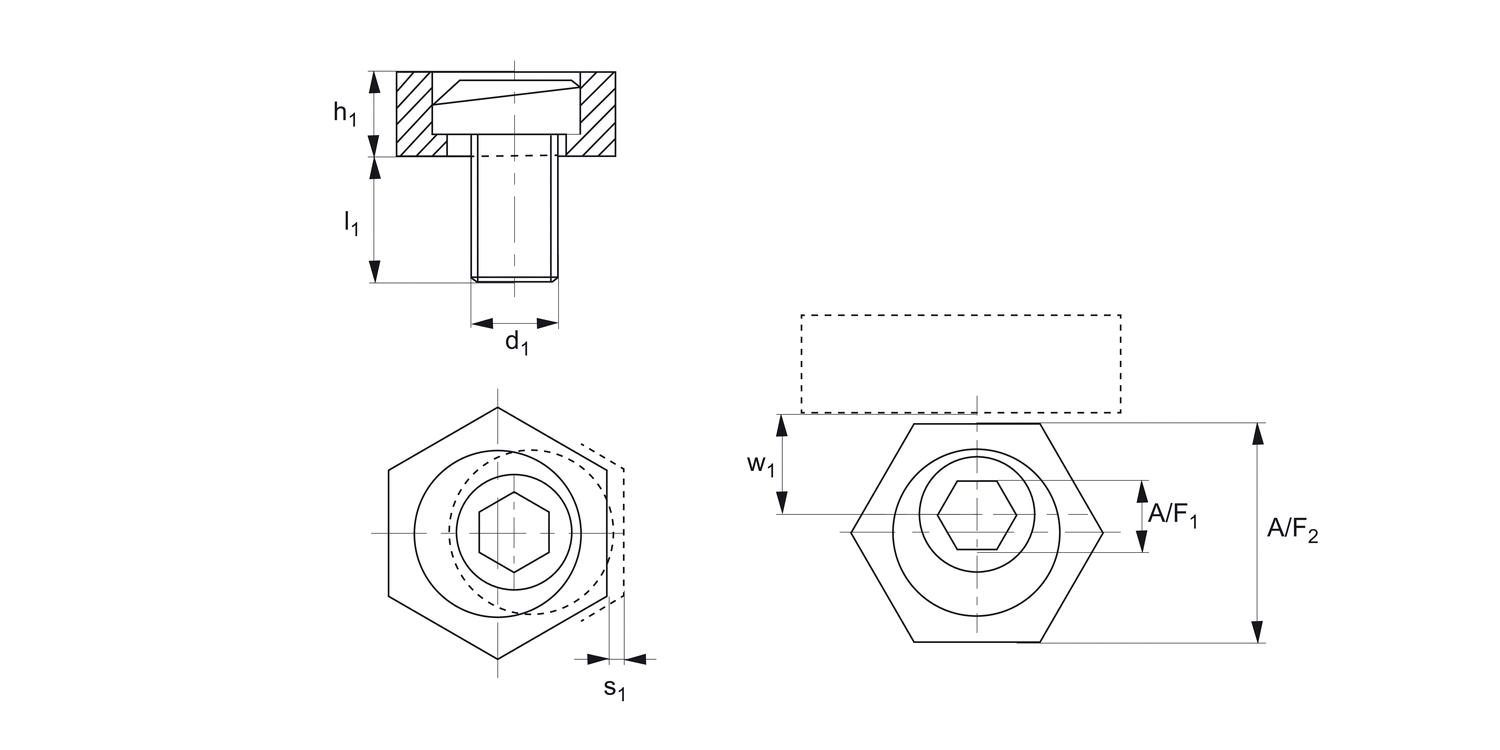

d1
M16x2
h1
12.70
l1
28.5
Clamping force
kN
26.6
Stroke s1
2.54
w1
15.0
A/F1
12
A/F2
30.13
Torque to
max.
Nm
120.0
Qty/pack
4
Weight
g
103.0
£ 63.77 per unit (click for quantity discounts)
Ready to despatch 10
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 63.77 | 0% |
| 5-9 | £ 60.58 | 5% |
| 10-19 | £ 57.39 | 10% |
| 20-49 | £ 54.20 | 15% |
| 50+ | £ 47.83 | 25% |

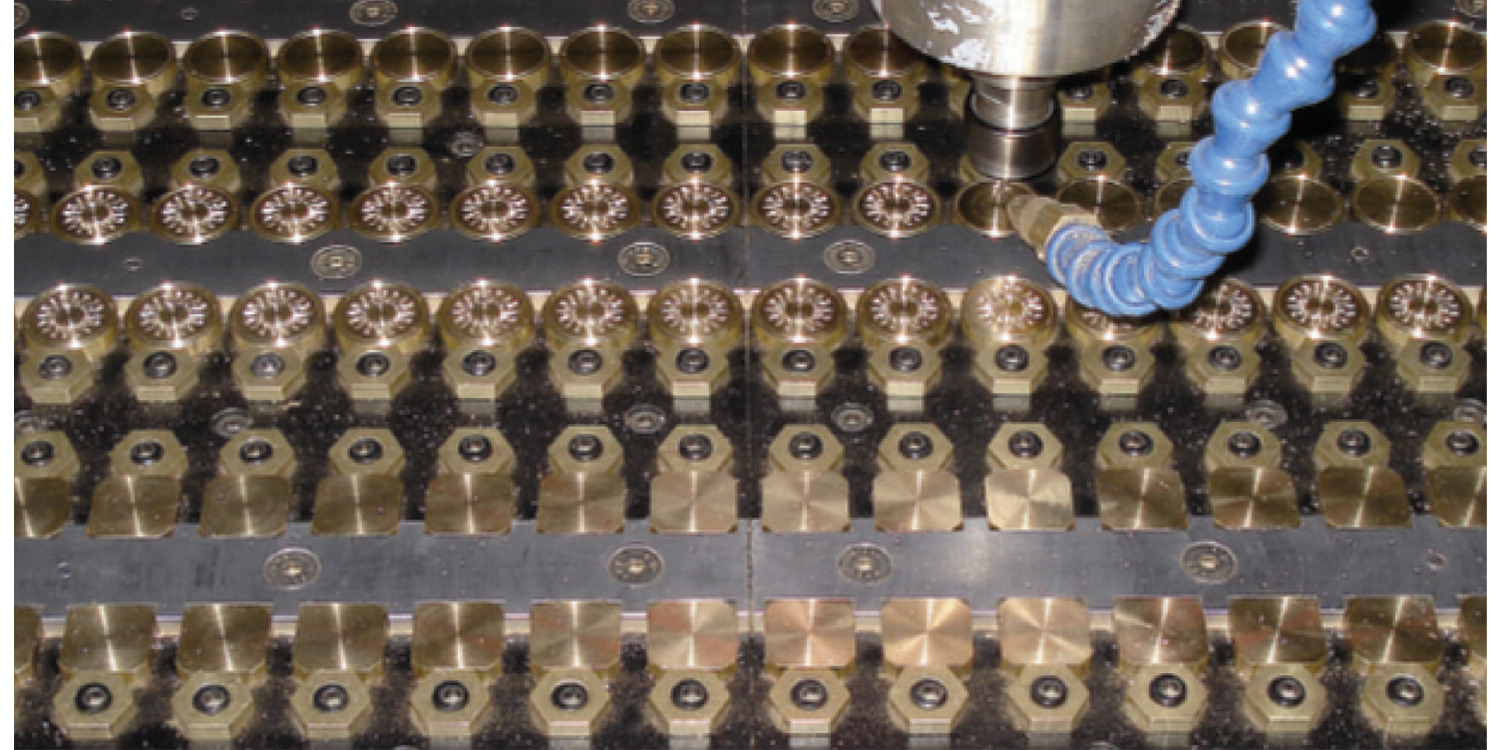

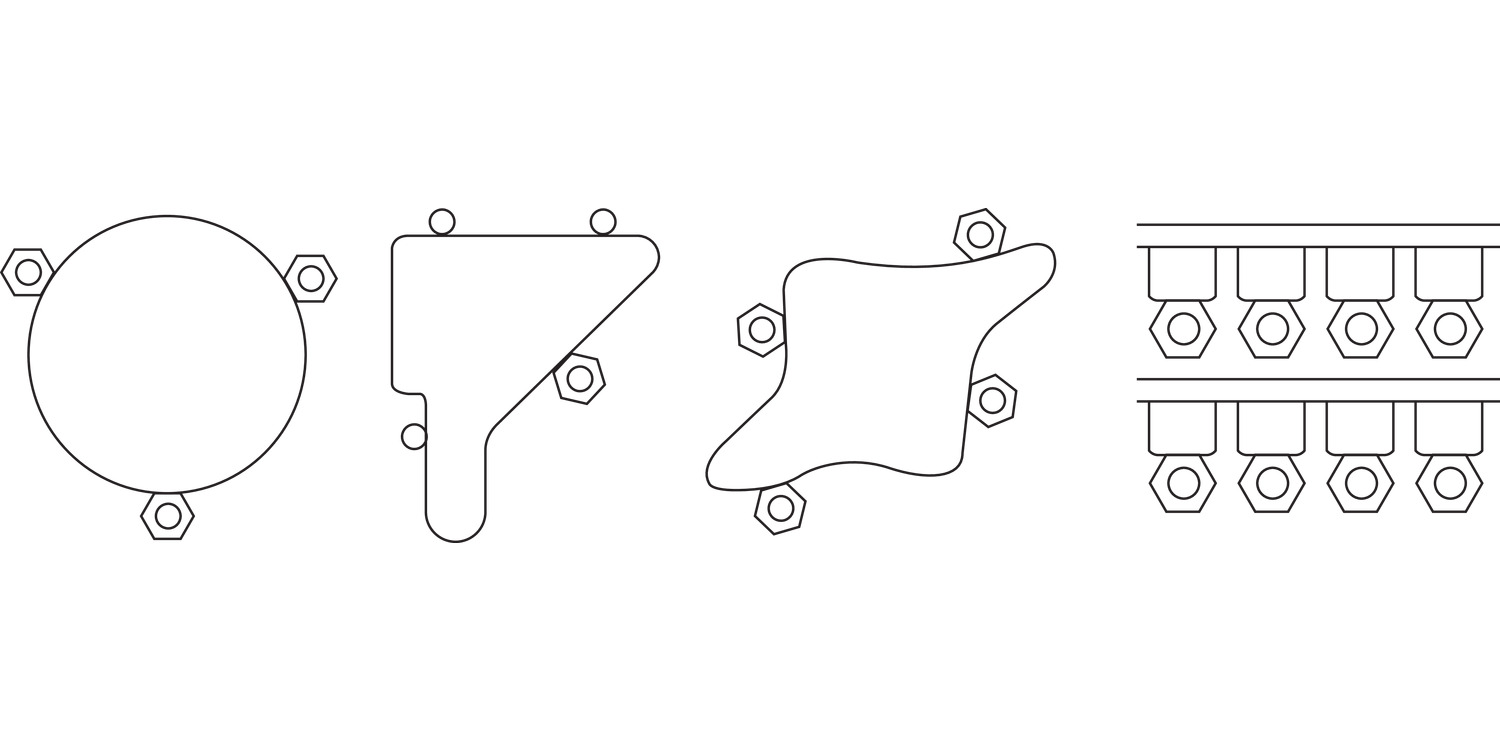

Technical & Application
Material
Hexagonal clamp: brass.
Screw: steel, hardened, strength class 10,9.
Technical Notes
Cam action provides fast, strong clamping. Small size allows more parts per load. Workpiece stop is on the right hand side of the clamp.
Tips
Clockwise rotation is recommended. The workpiece stop should be to the right of the clamp. Replacement cam screws are suitable for all clamp parts 12112, 12120, 12020 and 12150. For stainless steel version, see 12113.
Important Notes
w1 - is the location to drill and tap from the edge of workpiece.
