Fixture Clamps
low profile

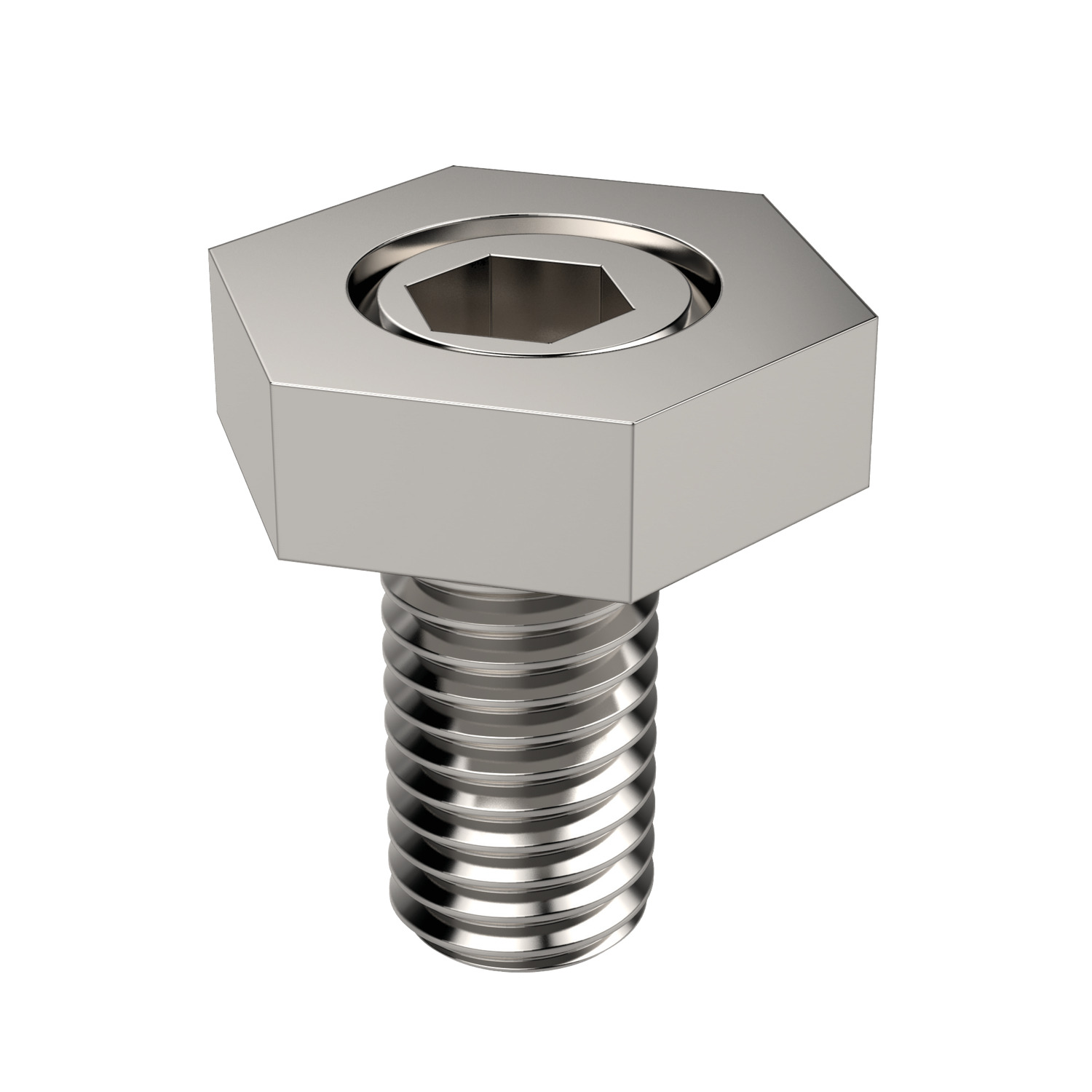

12113 Eccentric Fixture Clamps
low profile - stainless steel, material: Stainless steel
Order No.
12113.W0528
Type
Stainless Screw
d1
M 8x1,25
h1
-
l1
-
Stroke s1
-
w1
-
A/F1
-
A/F2
-
Clamp force
kN
-
Torque to
max.
Nm
-
Qty/pack
4
£ 14.01 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 14.01 | 0% |
| 20-49 | £ 12.61 | 10% |
| 50-99 | £ 11.91 | 15% |
| 100-499 | £ 10.51 | 25% |
| 500+ | £ 9.11 | 35% |
Technical & Application
Material
Hexagonal clamp: stainless steel.
Eccentric clamp screw and washer: stainless steel.
Technical Notes
Clockwise rotation is recommended. Workpiece stop is on the right hand side of the clamp. For non-stainless steel versions of 12112.
Tips
Compact size and fast, strong clamping allows maximum number of parts to be clamped.
Important Notes
w1 - is the location to drill and tap from the edge of workpiece.
