Hook Clamps
Steel

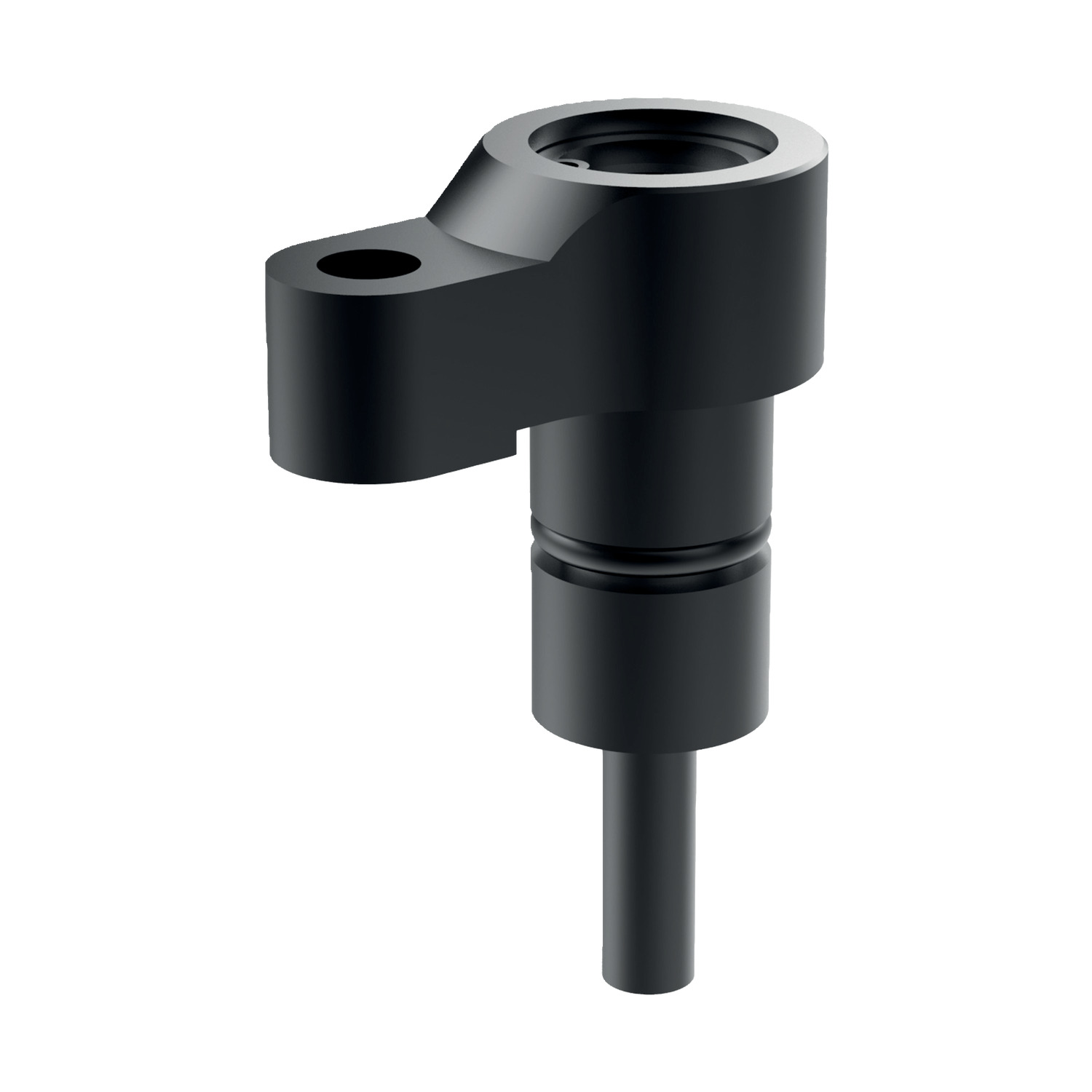

12550.1 Hook Clamps
low height, material: Steel

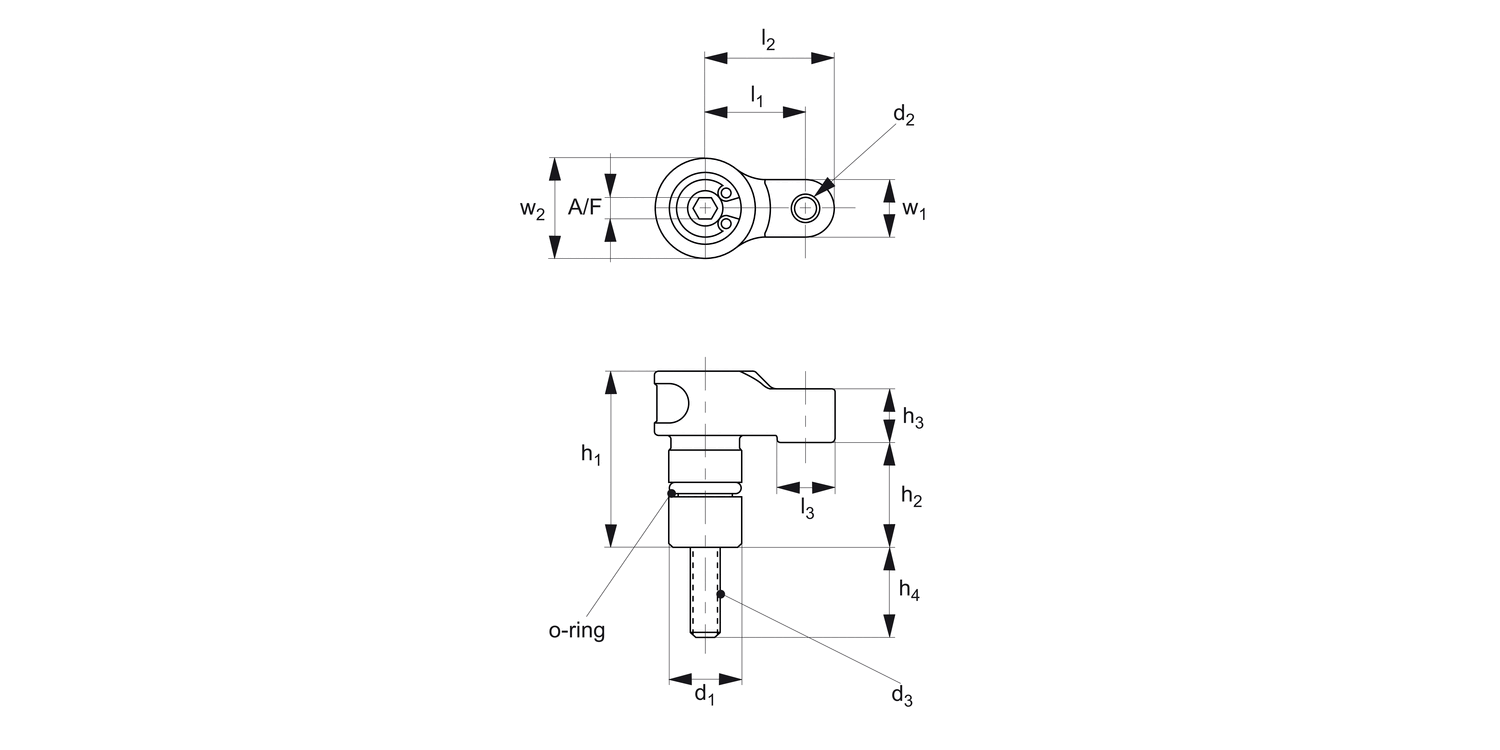

Order No.
12550.W0010
h1
24.5
l1
14
d1
-0.02|-0.10
10
d2
M 4x0,7
h2
14.5
h3
7.5
h4
12.5
d3
M 4x30
l2
18
l3
8
w1
8
w2
14
Torque to
max.
Nm
2.7
A/F
3
Clamping force
max.
kN
2.0
Weight
g
25
£ 49.00 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 49.00 | 0% |
| 10-19 | £ 44.10 | 10% |
| 20-49 | £ 41.65 | 15% |
| 50-99 | £ 39.20 | 20% |
| 100+ | £ 34.30 | 30% |
Technical & Application
Material
Steel (42CrMo), tempered, black oxide finish.
Technical Notes

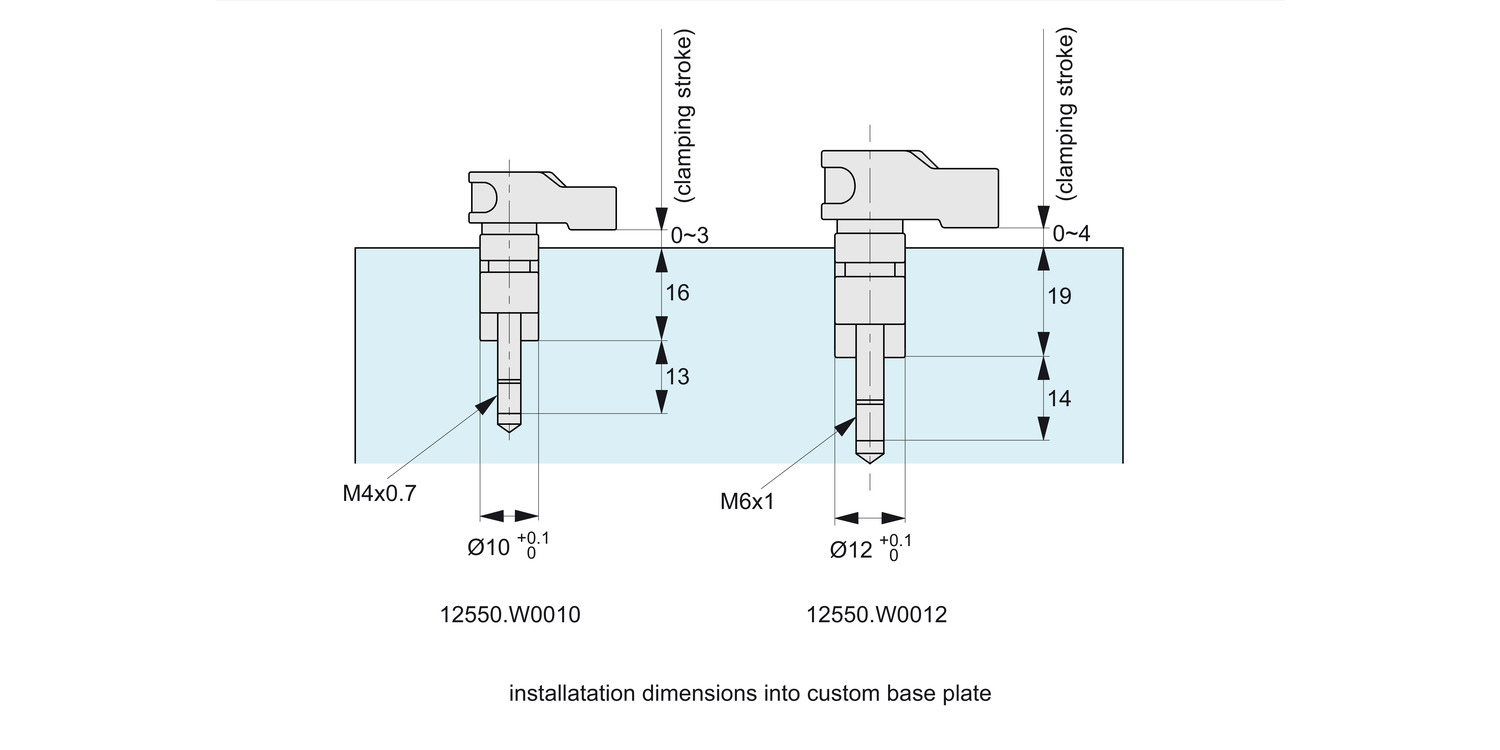

Very useful for limited space vertical clamping, can be recessed into bores to minimise height. Clamping stroke (see diagram below) for M 4= 0-3mm, for M 6= 0-4mm.
Product Datasheets
Application images
