Hook Clamps
Steel

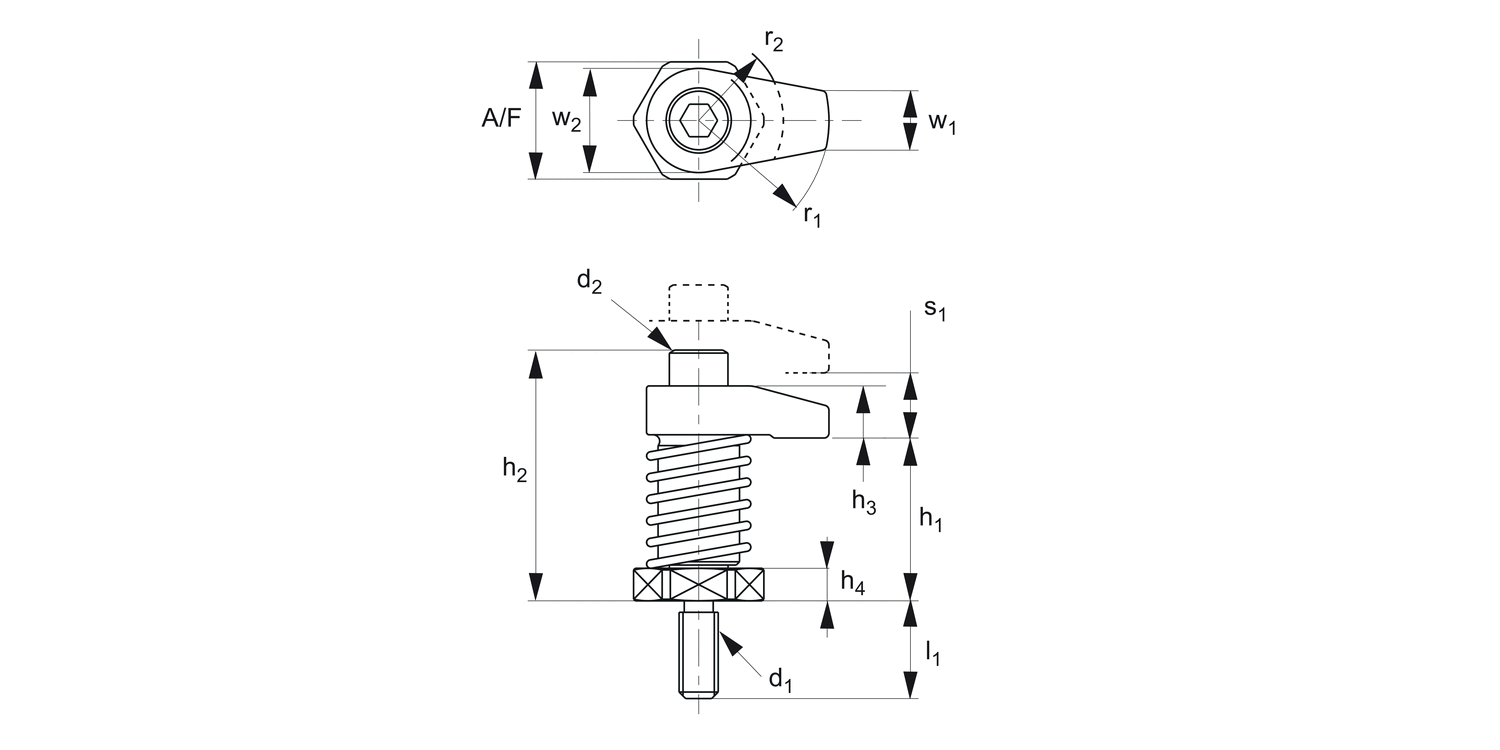

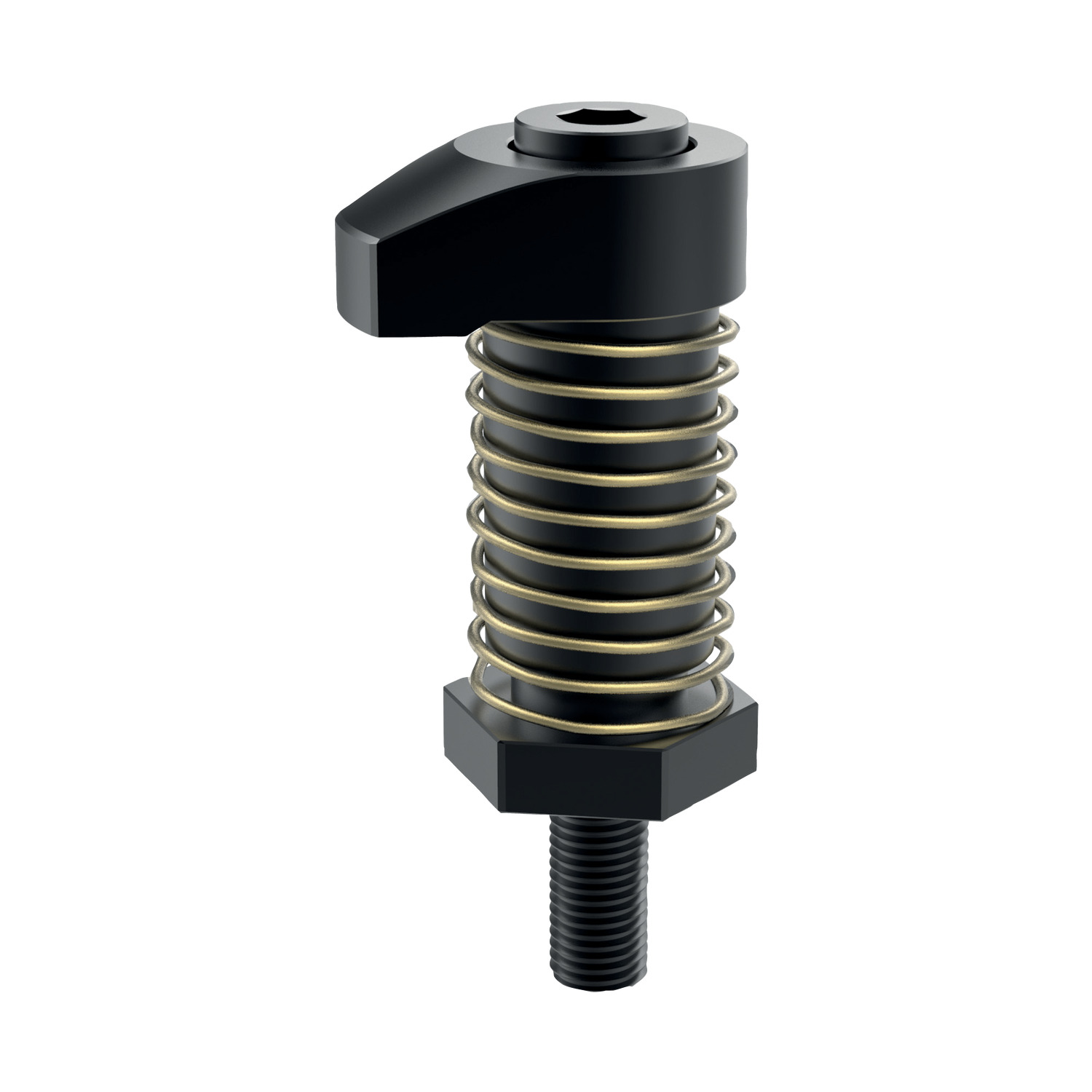

12552 Hook Clamps
spring loaded, material: Steel
Order No.
12552.W0364
h1
65
Stroke s1
15
l1
30
d1
M16x2
d2
M16x55
h2
101
h3
21
h4
25
w1
22
w2
36
r1
40
r2
26
Torque to
max.
Nm
60
A/F
36
Clamping force
kN
13.4
Weight
g
780
£ 138.44 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 138.44 | 0% |
| 10-19 | £ 124.60 | 10% |
| 20-49 | £ 117.67 | 15% |
| 50-99 | £ 110.75 | 20% |
| 100+ | £ 96.91 | 30% |
Technical & Application
Material
Steel (35CrMo), heat treated, black oxide finish, precision ground.
Technical Notes
Cylindrical risers can be used to raise clamping height.
Tips
Please apply grease to sliding surface.
