Miniature Down Thrust Clamps
swivelling
12608 Down Thrust Clamps
retractable, material: Steel
Order No.
12608.W0085
Type
Three
Stroke s1
20
d1
40
d2
M12
w1
30
w2
13
h1
min.
70
h1
max.
90
h2
min.
95
h2
max.
115
Weight
g
1400
h3
15
h4
20
h5
28
l1
min.
38
l1
max.
55
l2
30
l3
min.
90
l3
max.
107
l4
100
A/F
36
£ 471.92 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 471.92 | 0% |
| 3-4 | £ 424.73 | 10% |
| 5-9 | £ 401.13 | 15% |
| 10-19 | £ 377.54 | 20% |
| 20+ | £ 353.94 | 25% |
Technical & Application
Material
Steel case-hardened, blackened and ground
Technical Notes
Use when swivelling of clamp is not possible, horizontal retraction available, see l1 min - l1 max.
Use of positioning ring 12603.W0350 increases height h1 by 7mm and reduces stroke by 7mm.
Operation:
Push clamp jaw back. Insert workpiece to fixture. Push clamp jaw forwards, adjust position with knurled clamp screw, lock off. Apply clamping pressure.
Tips
Offers quick manual clamping by use of clamping screw/lever. Compact design and height adjustable.
Used with:
24000 T-nuts
12603.W0350 positioning ring.
Product Datasheets

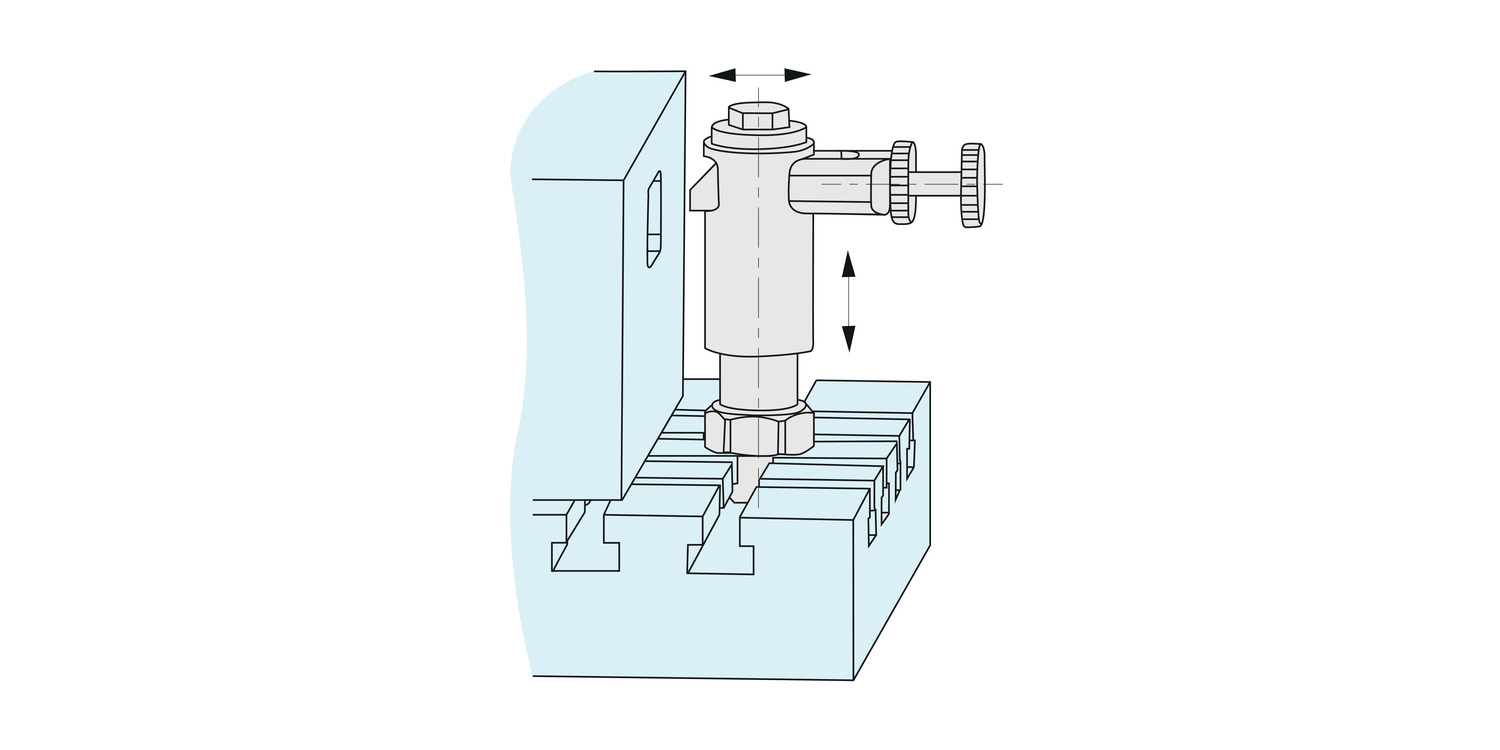

Application images
