Floating Clamps
clamping and locking

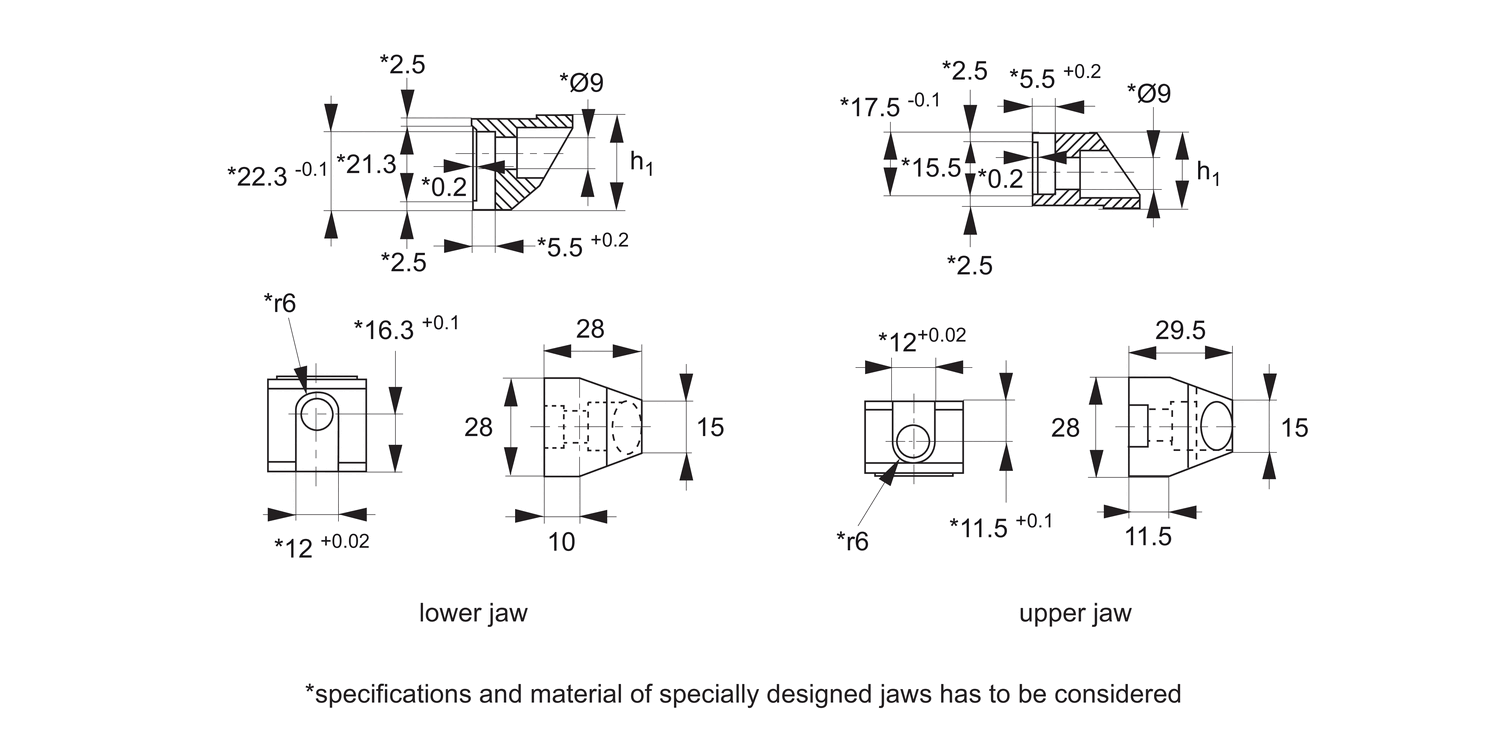

12660.3 Support Jaws
for floating clamps M12, material: Steel
Order No.
12660.W0050
Type
Lower Jaw
Clamping range
-
h1
-0.1
26.8
Weight
g
83
£ 98.42 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 98.42 | 0% |
| 10-19 | £ 88.58 | 10% |
| 20-49 | £ 83.66 | 15% |
| 50-99 | £ 78.74 | 20% |
| 100+ | £ 68.89 | 30% |
Technical & Application
Material
Steel, case-hardened, nitrided.
Technical Notes
The clamping jaws can be used for floating clamps 12660.W0008, 12662.W0010, 12660.W0012 and 12662.W0014
Tips
When using custom-made jaws it is important to insert the tightening screw (M 8 grade 12,9, 43Nm) 10mm deep into the clamp housing on the upper clamping jaw and 9mm deep into the clamp housing on the lower clamping jaw.
