12660.4 Clamping Jaws

Name: 12660.W0054
Brand: WC
SKU: 12660.W0054
Price: 167.76 EUR
Availability: OutOfStock

for floating clamp M12, material: Steel

Article properties

Order No.

12660.W0054

Type

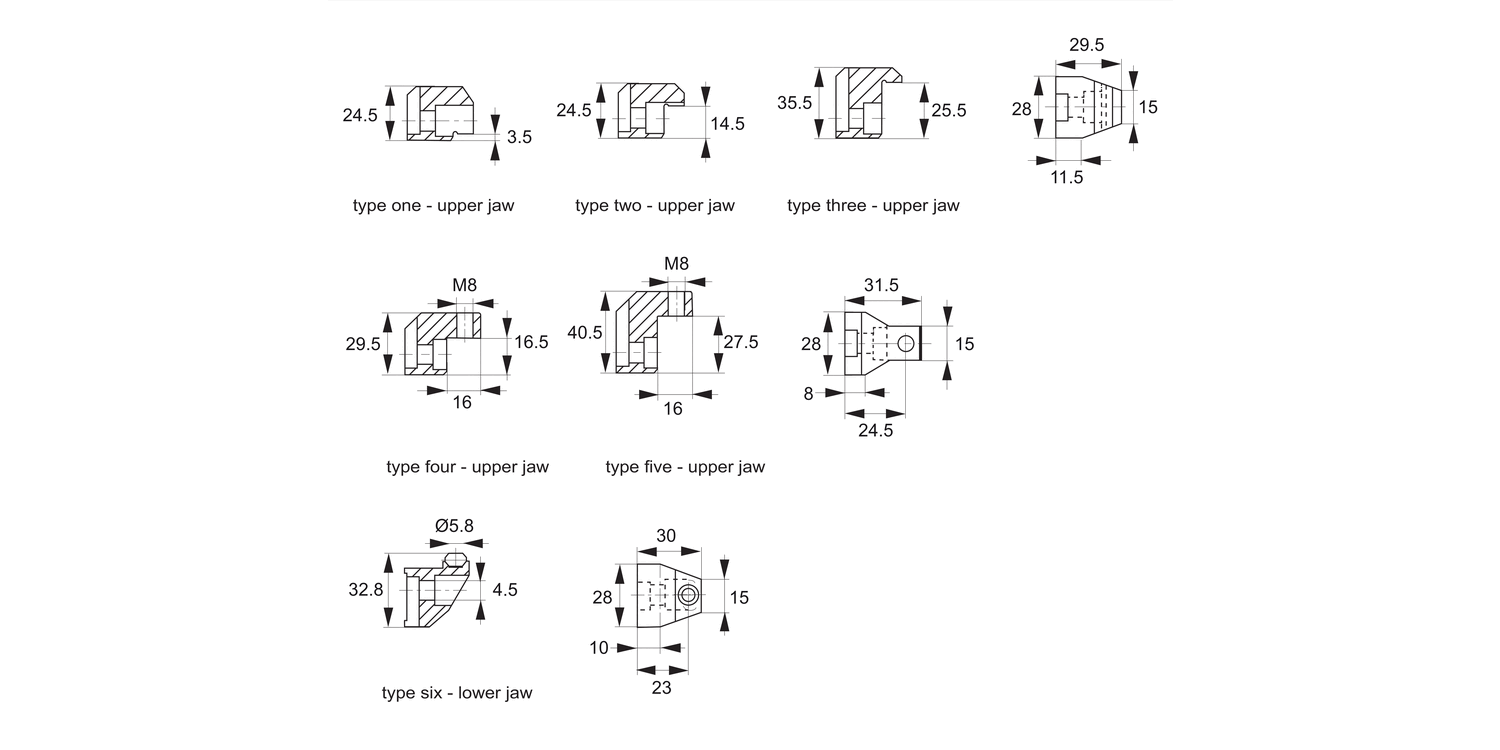

Upper Jaw (Type One)

Clamping range of clamp in combination with standard lower jaw 12260.W0050

4-16

Clamping range in combination with lower jaw 12260.W0148 max.

Weight g

See full product selection

£ 167.76 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 167.76	0%
10-19	£ 150.98	10%
20-49	£ 142.60	15%
50-99	£ 134.21	20%
100+	£ 117.43	30%

Download product datasheet

Technical & Application

Material

Ball: steel ball-bearing
Clamping jaws: steel case-hardened, nitrided.

Technical Notes

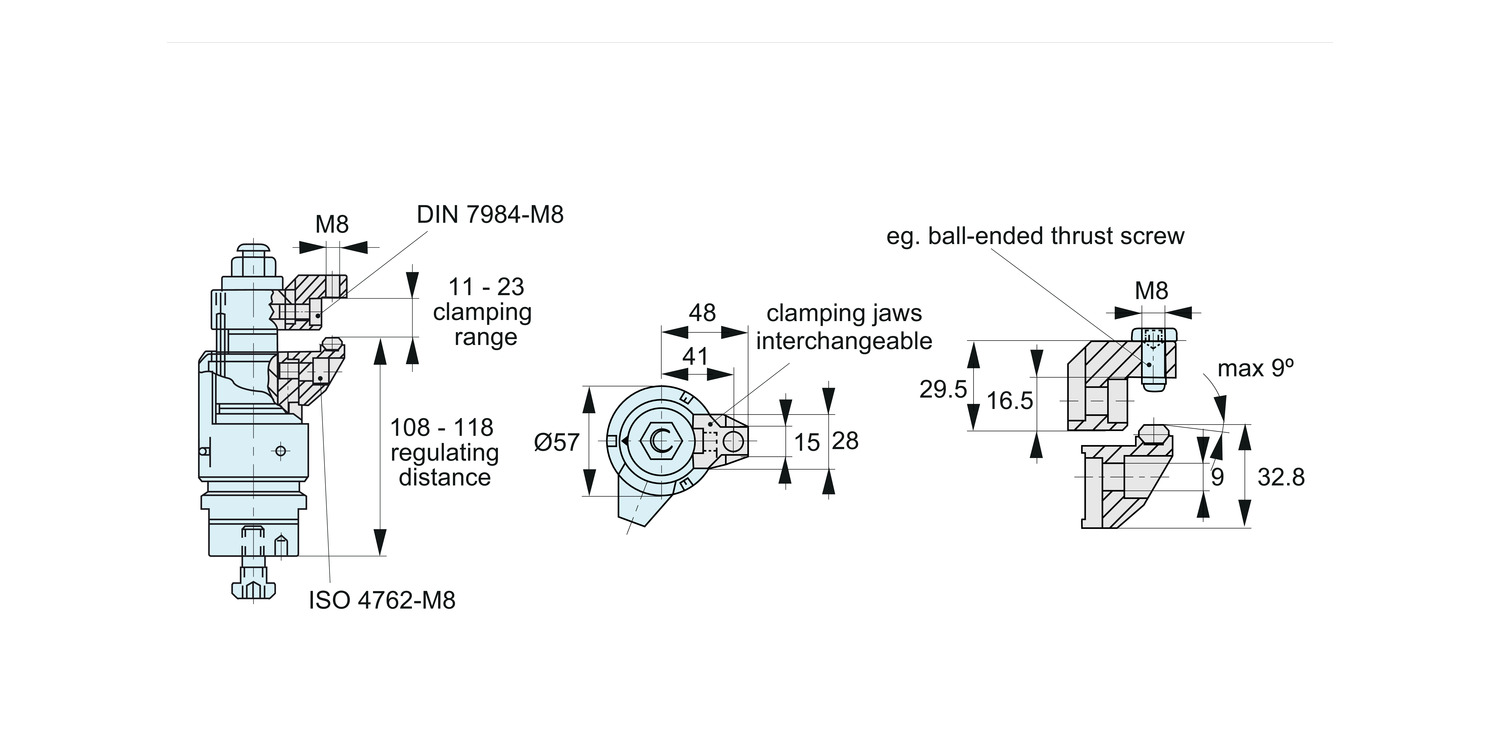

A selection of the alternative upper and lower jaws for floating clams. The tightening torque of the floating clamp must be adapteddependet on condition. Note the surface pressure due to the reduced contact surface of the clamping jaws.

Important Notes

The clamping jaws can be used for floating clamps 12660.W0008, 12662.W0010, 12660.W0012 and 12662.W0014.
