T-Slot Bolt
strength class 8,8/10,9

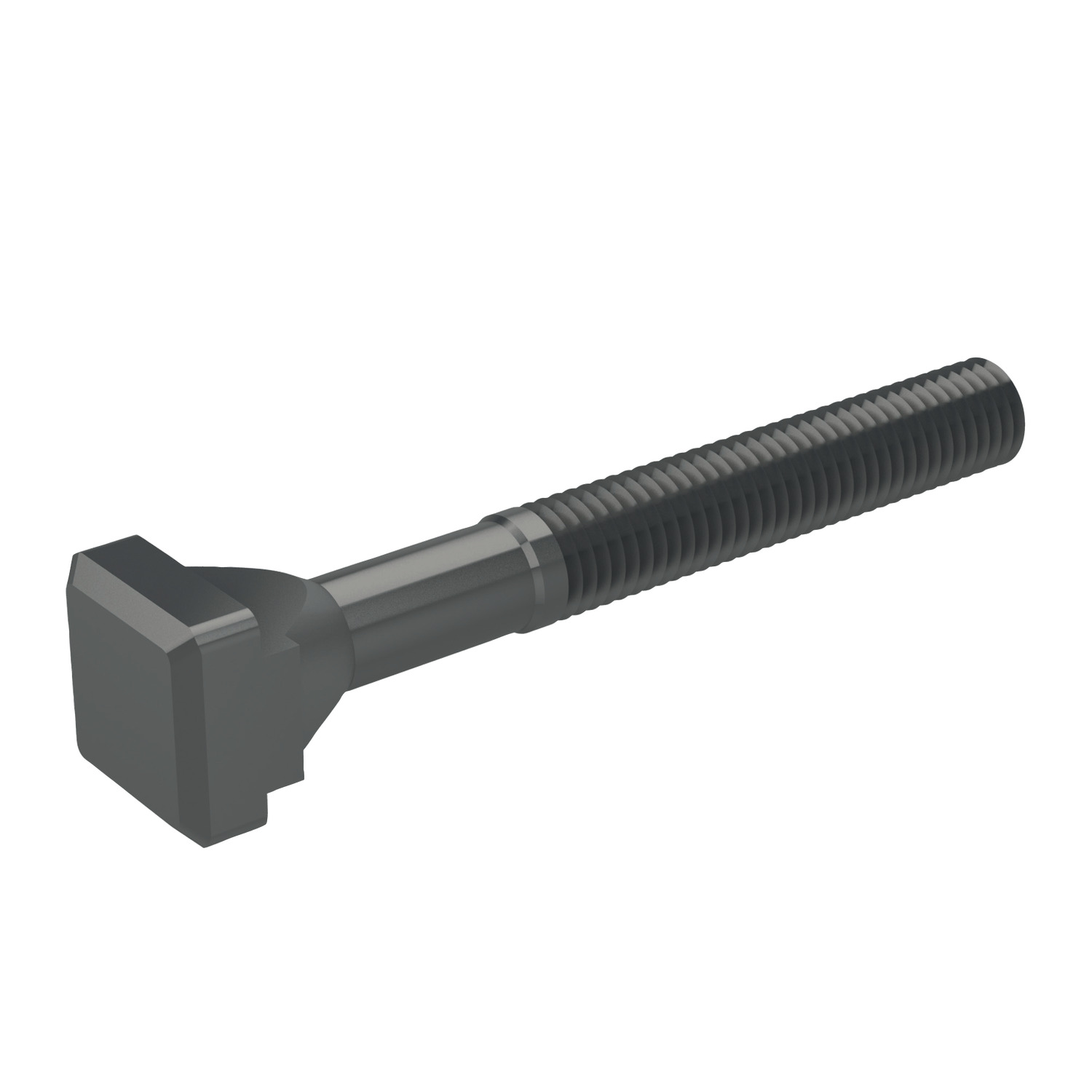

21050 T-Slot Bolts
extra strength - class 12,9, material: Forged steel
Order No.
21050.W0283

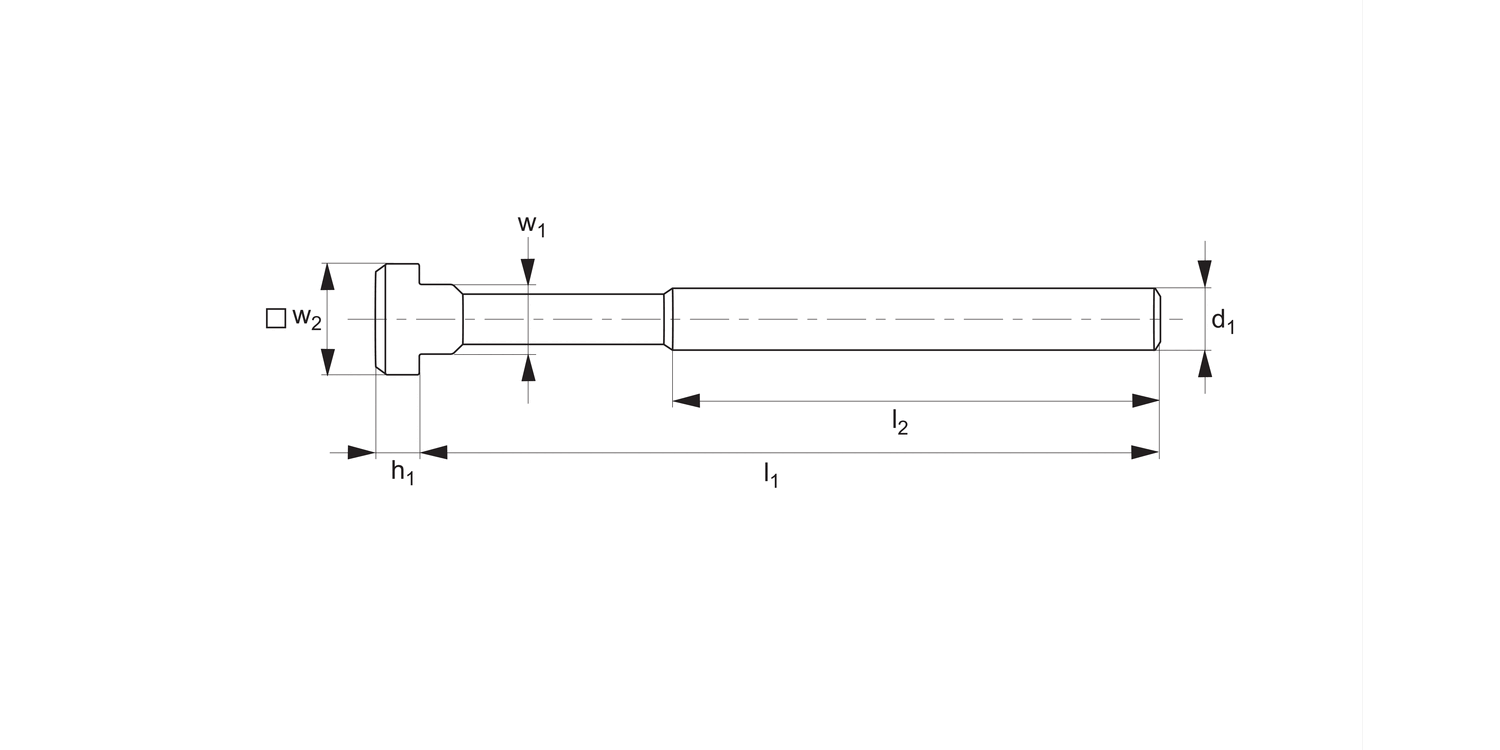

d1 x slot x l1
M24x28x250
l2
150
w1
27.7
w2
44
h1
18
Weight
g
1120
£ 76.24 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 76.24 | 0% |
| 10-19 | £ 68.62 | 10% |
| 20-49 | £ 64.80 | 15% |
| 50-99 | £ 60.99 | 20% |
| 100+ | £ 57.18 | 25% |
Technical & Application
Material
Forged steel, rolled threads.
T-slot guide faces milled.
Strength class 12.9 punched into head.
Tips
For use where higher clamping forces are required. The T-nut element of all T-slot bolts are square, the dimension of which is represented by w2.
