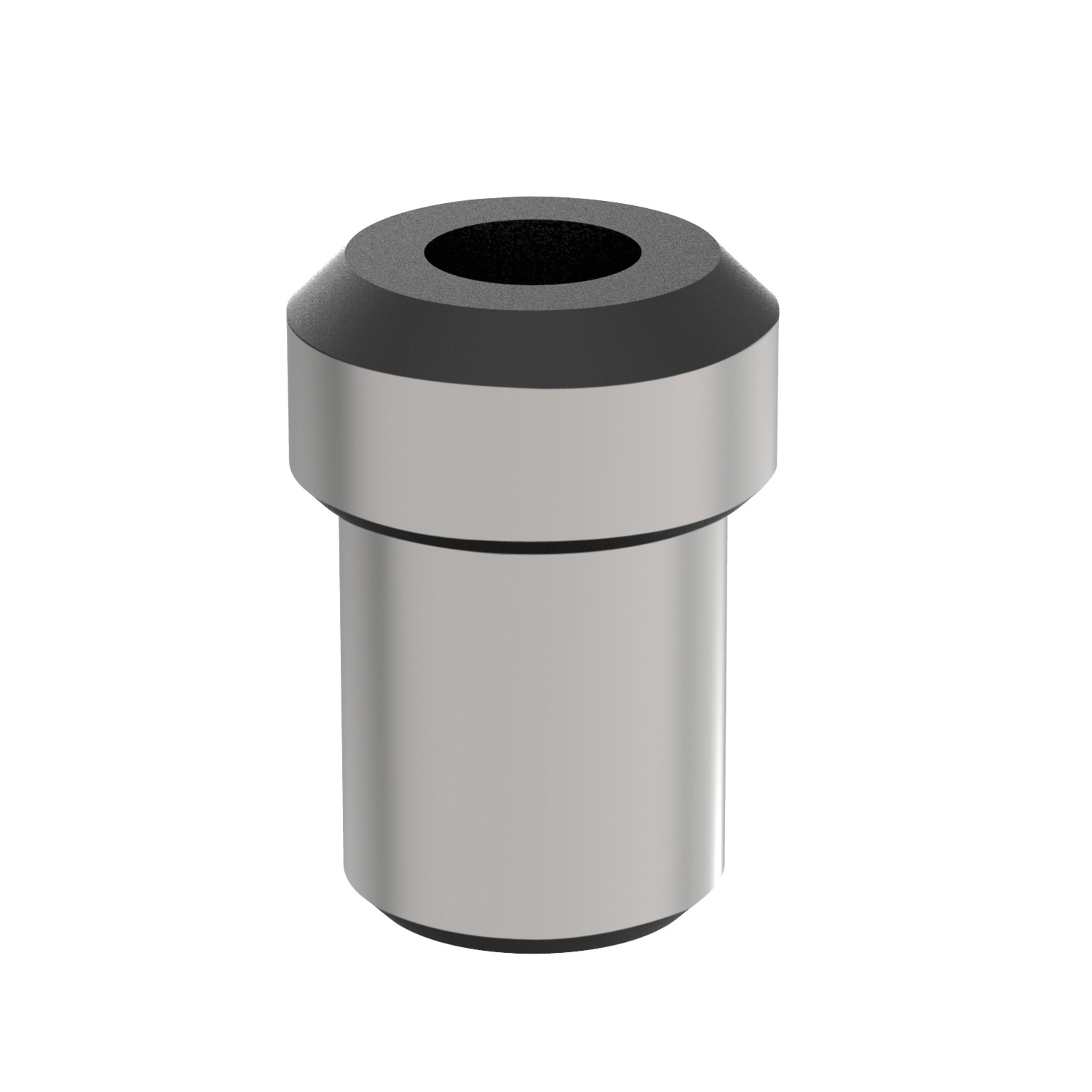

30100 Centering Pins - Stepped

Name: 30100.W0610
Brand: WC
SKU: 30100.W0610
Price: 63.63 EUR
Availability: OutOfStock

Article properties

Order No.

30100.W0610

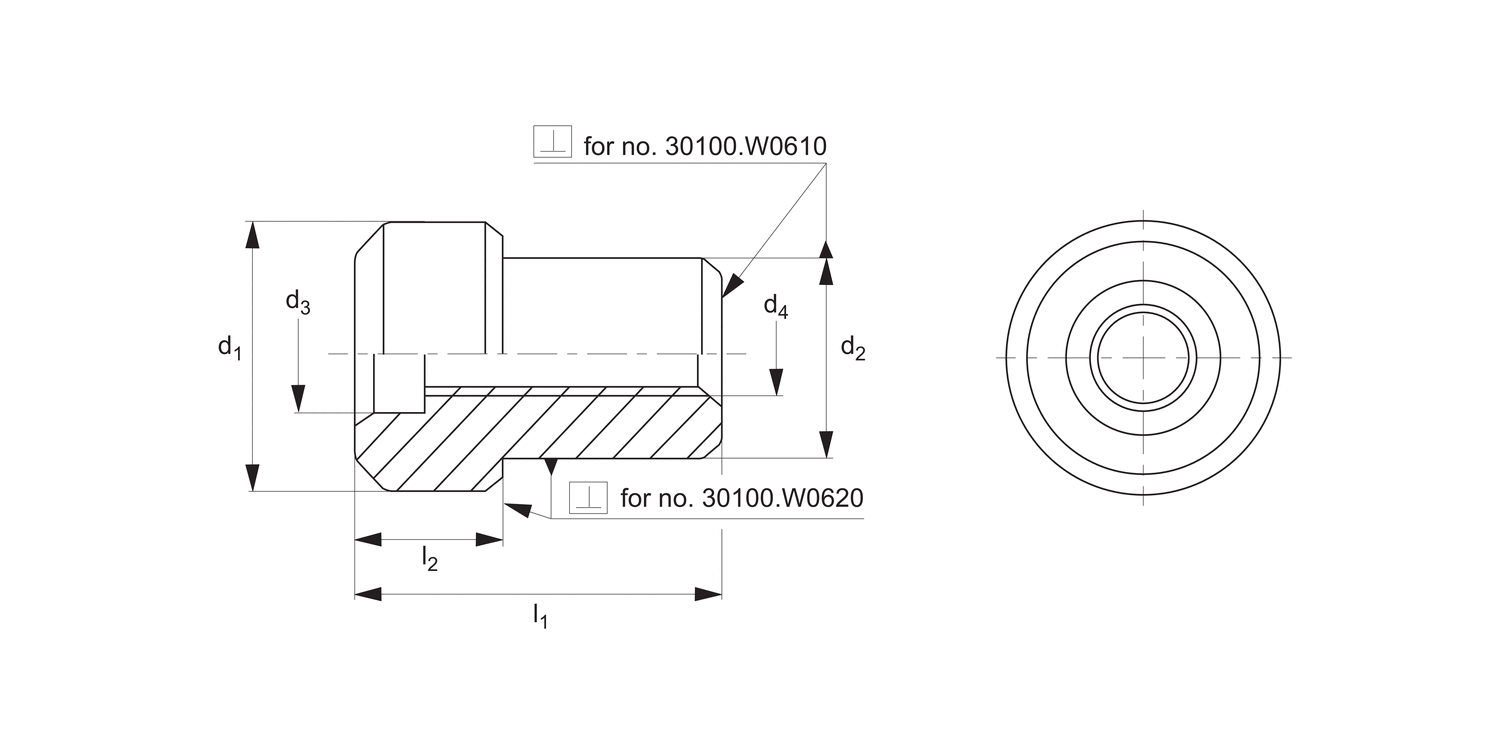

l₁

l₂

d₁ tol. h6

d₂ tol. h6

d₃

d₄

M 8

Weight g

£ 63.63 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Steel, alloyed, case-hardened, ground.

Used for centering fixtures on pallets.

30100 Centering Pins - SteppedJanuary 3, 2025, 2:59 PM / 75.97 kB

TenonsJanuary 3, 2025, 3:48 PM / 406.64 kB

Self-Aligning Pads, Tenons & BushesJanuary 3, 2025, 3:48 PM / 922.46 kB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

30100 AcisApril 17, 2024, 9:12 AM / 12.77 MB

30100 IGESApril 17, 2024, 9:11 AM / 49.60 kB

30100 ParasolidApril 17, 2024, 9:11 AM / 9.45 kB

30100 ProEApril 17, 2024, 9:11 AM / 45.83 kB

30100 SolidWorksApril 17, 2024, 9:12 AM / 22.28 MB

30100 StepApril 17, 2024, 9:11 AM / 26.83 kB
