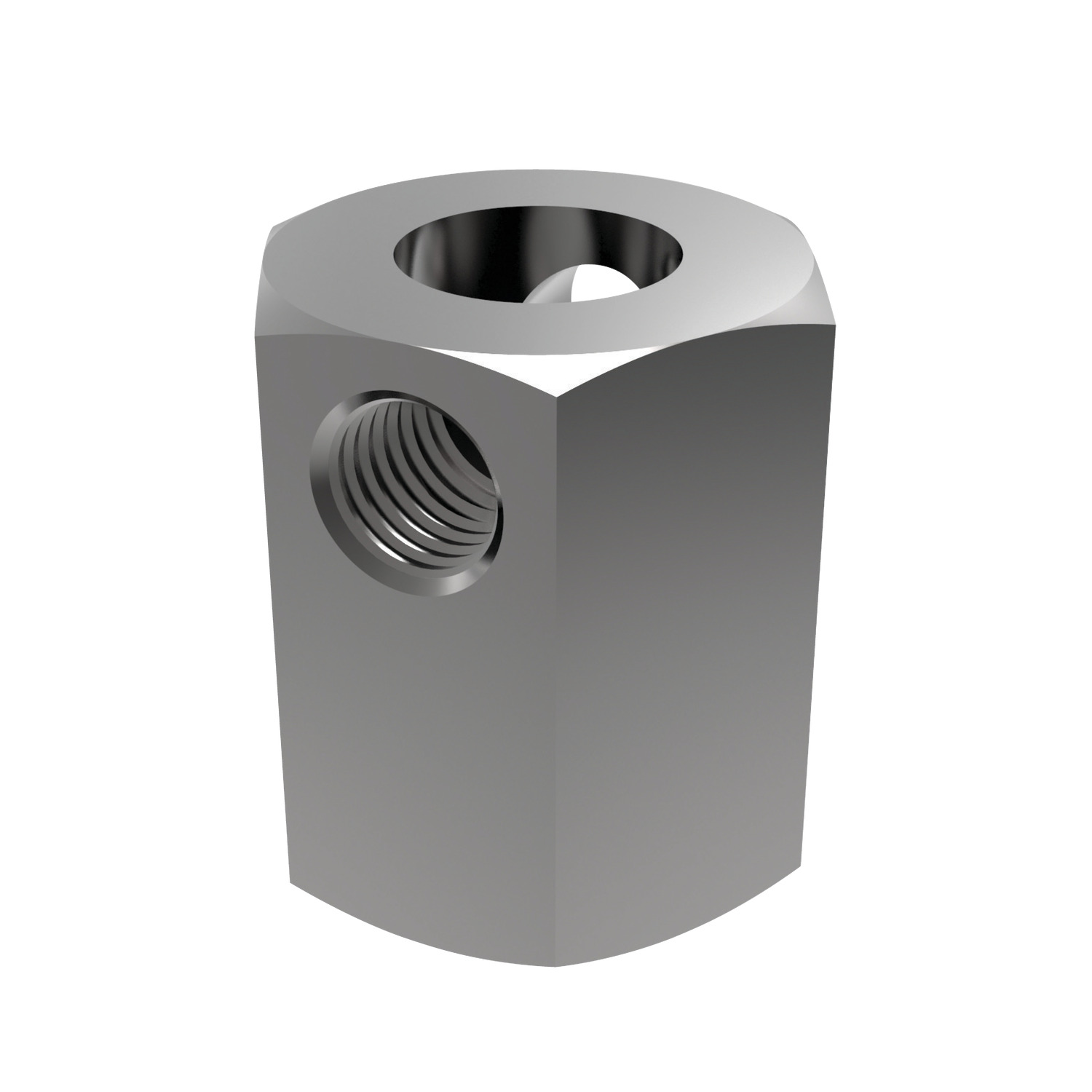

30400 Abutments

Name: 30400.W0145
Brand: WC
SKU: 30400.W0145
Price: 91.4 GBP
Availability: OutOfStock

material: Steel

Article properties

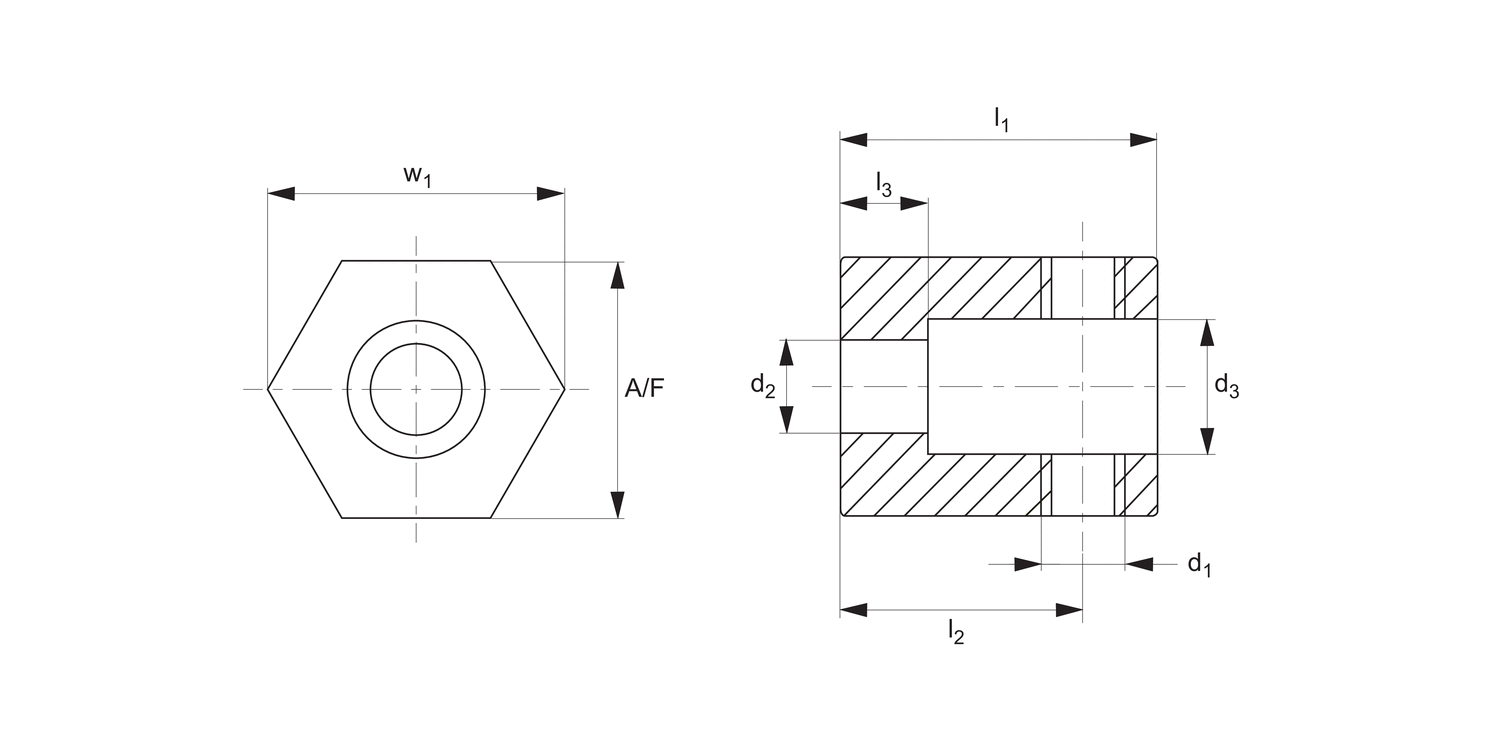

Order No.

30400.W0145

w₁

40.0

d₁

M12

d₂

13.0

d₃

l₁

l₂

l₃

A/F

Weight g

280

See full product selection

£ 91.40 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £14.37.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 91.40	0%
5-9	£ 82.26	10%
10-19	£ 77.69	15%
20-49	£ 68.55	25%
50+	£ 59.41	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, heat-treated, blackened.

Technical Notes

Used in conjunction with grub screws no. 34500 and thrust pads no. 34520 - used as adjustable stops.

Product Datasheets

30400 Abutments7 July 2026, 13:58 / 78.41 kB

Stops7 July 2026, 13:56 / 703.85 kB

Supports & Stops7 July 2026, 13:56 / 2.22 MB

Manual Clamping & Height Setting7 July 2026, 13:55 / 31.07 MB

Work Holding7 July 2026, 13:55 / 61.68 MB
