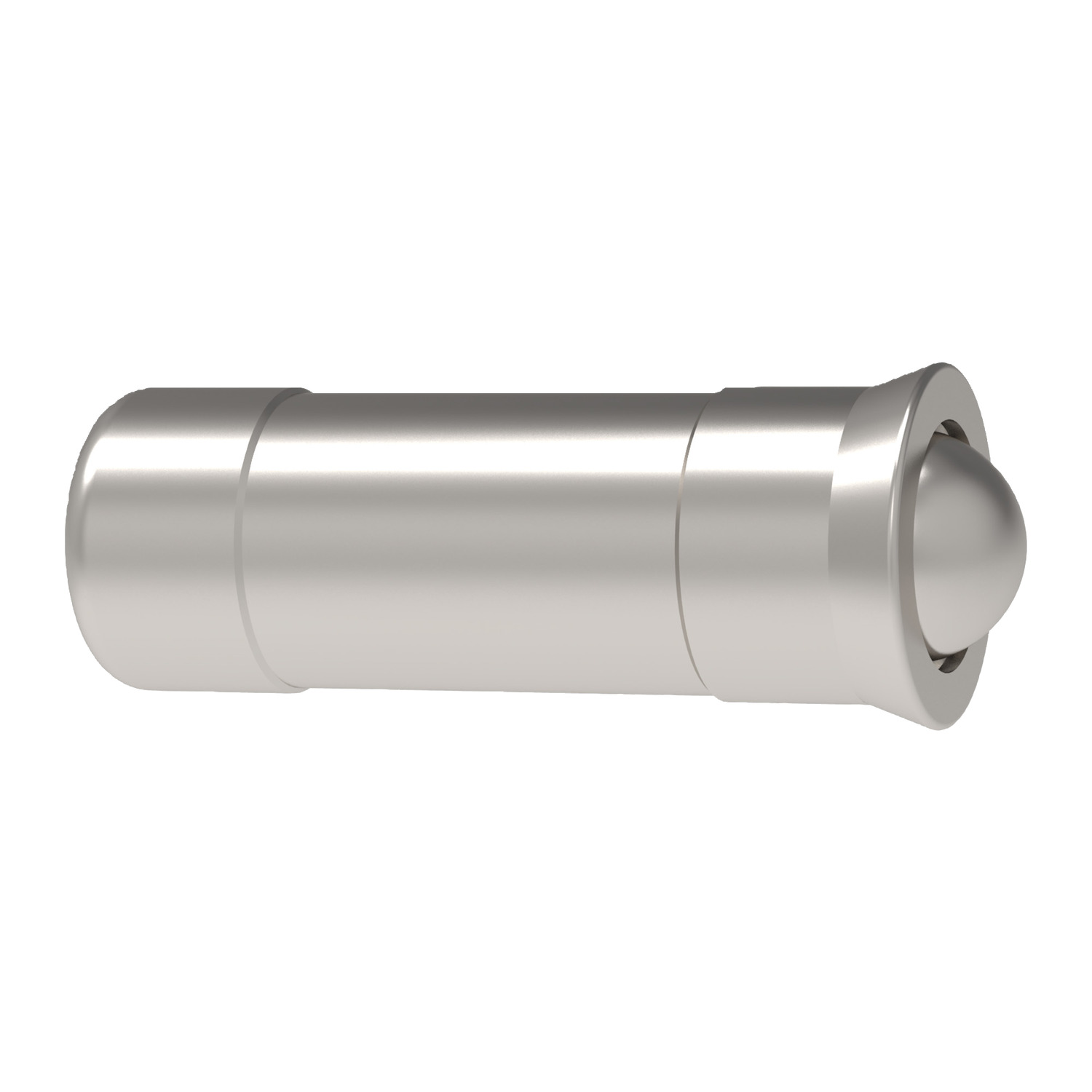

32284 Spring Plunger - Ball End - Smooth

Name: 32284.W1108
Brand: WC
SKU: 32284.W1108
Price: 2.67 EUR
Availability: OutOfStock

stainless steel - with collar, material: Stainless steel

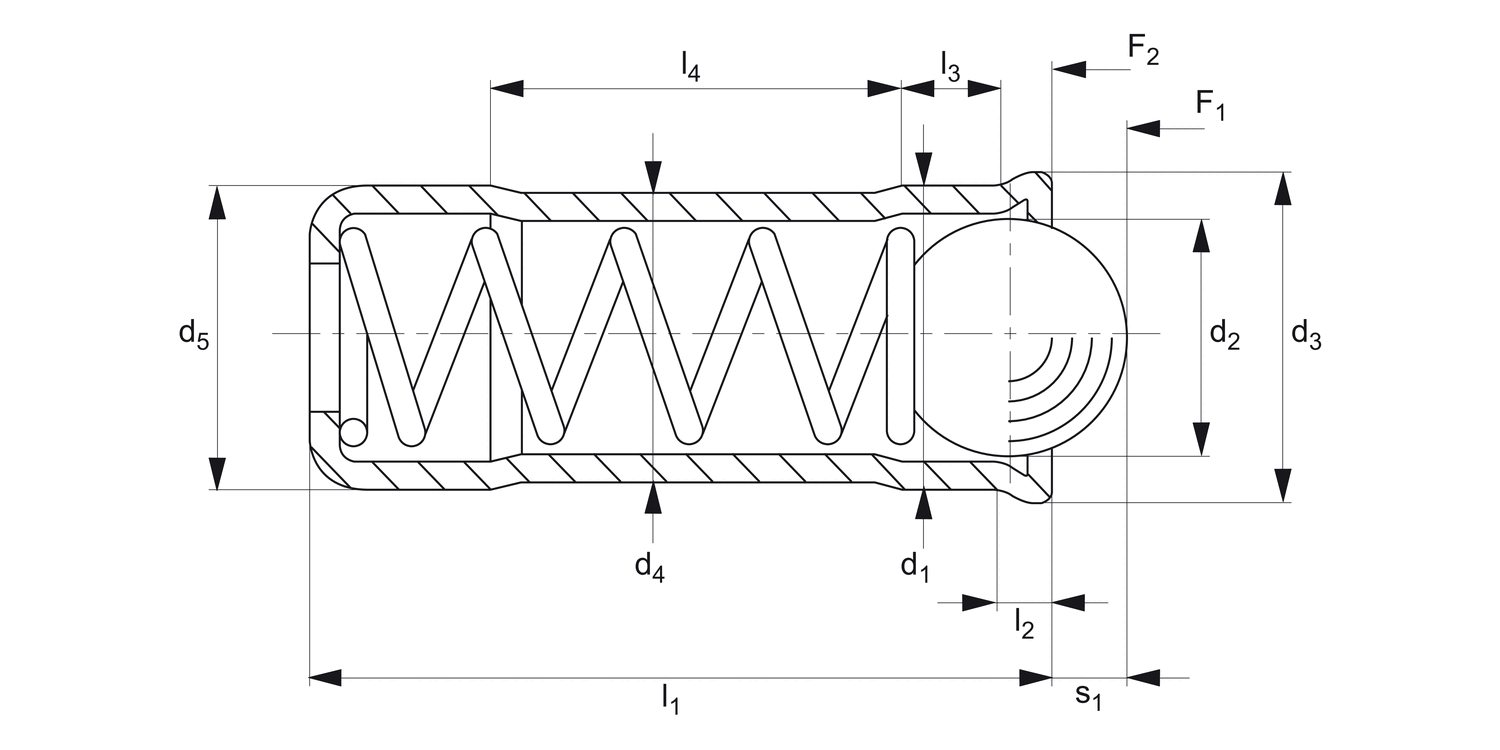

Article properties

Order No.

32284.W1108

d₁ +0.10|+0.04

d₂

6.5

d₃

8.5

d₄

7.55

d₅ ±0.04

l₁

18.0

l₂ ≈

1.1

l₃ ≈

2.9

l₄ ≈

9.5

Spring load F₁ ≈ N

40.0

Spring load F₂ ≈ N

67.3

Stroke s₁

2.3

Weight g

4.0

See full product selection

£ 2.67 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 2.67	0%
20-49	£ 2.40	10%
50-99	£ 2.27	15%
100-499	£ 2.00	25%
500+	£ 1.74	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: stainless steel 1.4303 (AISI 303).
Pin: stainless steel 1.4303 (AISI 303),
Spring: stainless steel.

Technical Notes

Used for locating, applying pressure or lifting off.
Temperature range max. 250°C.
Spring load * = statistical average value.

Tips

Special types available on request.
A tolerance of H7 is recommended for the locating hole of d1.
