32284 Spring Plunger - Ball End - Smooth

stainless steel - with collar, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Spring Plungers
smooth model, with collar

Spring Plungers
expander fit - smooth body

Spring Plungers - Inch
smooth model, with collar

Spring Plungers
smooth model, with collar

Spring Plungers
smooth model, with collar

Spring Plungers
smooth model, w/o collar

Spring Plungers
double ended

Spring Plungers
smooth model, long

Spring Plunger - ball smooth s/steel F

32284.W1104

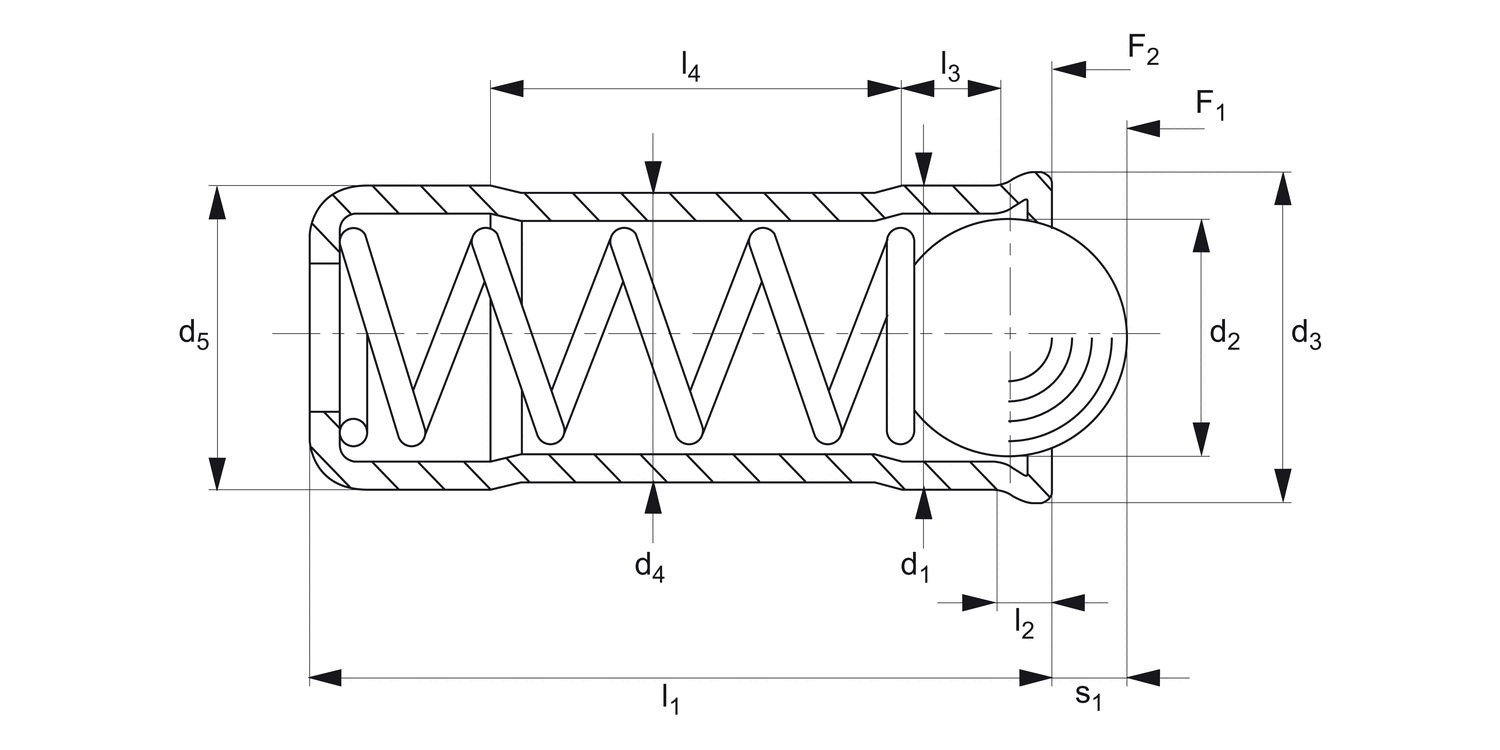

d₁ +0.10|+0.04

4

d₂

3.0

d₃

4.6

d₄

3.85

d₅ ±0.04

4

l₁

10.7

l₂ ≈

0.9

l₃ ≈

1.8

l₄ ≈

5.6

Spring load F₁ ≈ N

12.9

Spring load F₂ ≈ N

19.0

Stroke s₁

0.9

Weight g

0.6

£ 2.36 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1105

d₁ +0.10|+0.04

5

d₂

4.0

d₃

5.6

d₄

4.85

d₅ ±0.04

5

l₁

12.0

l₂ ≈

0.9

l₃ ≈

2.1

l₄ ≈

6.0

Spring load F₁ ≈ N

19.3

Spring load F₂ ≈ N

29.2

Stroke s₁

1.3

Weight g

1.0

£ 2.42 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1106

d₁ +0.10|+0.04

6

d₂

5.0

d₃

6.5

d₄

5.85

d₅ ±0.04

6

l₁

15.0

l₂ ≈

1.0

l₃ ≈

2.3

l₄ ≈

8.2

Spring load F₁ ≈ N

28.0

Spring load F₂ ≈ N

47.5

Stroke s₁

1.7

Weight g

2.0

£ 2.54 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1108

d₁ +0.10|+0.04

8

d₂

6.5

d₃

8.5

d₄

7.55

d₅ ±0.04

8

l₁

18.0

l₂ ≈

1.1

l₃ ≈

2.9

l₄ ≈

9.5

Spring load F₁ ≈ N

40.0

Spring load F₂ ≈ N

67.3

Stroke s₁

2.3

Weight g

4.0

£ 2.67 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1110

d₁ +0.10|+0.04

10

d₂

8.5

d₃

11.0

d₄

9.55

d₅ ±0.04

10

l₁

26.0

l₂ ≈

1.5

l₃ ≈

4.2

l₄ ≈

14.3

Spring load F₁ ≈ N

66.0

Spring load F₂ ≈ N

105.0

Stroke s₁

3.1

Weight g

8.0

£ 2.99 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1104

d₁ +0.10|+0.04

4

d₂

3.0

d₃

4.6

d₄

3.85

d₅ ±0.04

4

l₁

10.7

l₂ ≈

0.9

l₃ ≈

1.8

l₄ ≈

5.6

Spring load F₁ ≈ N

12.9

Spring load F₂ ≈ N

19.0

Stroke s₁

0.9

Weight g

0.6

£ 2.36 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1105

d₁ +0.10|+0.04

5

d₂

4.0

d₃

5.6

d₄

4.85

d₅ ±0.04

5

l₁

12.0

l₂ ≈

0.9

l₃ ≈

2.1

l₄ ≈

6.0

Spring load F₁ ≈ N

19.3

Spring load F₂ ≈ N

29.2

Stroke s₁

1.3

Weight g

1.0

£ 2.42 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1106

d₁ +0.10|+0.04

6

d₂

5.0

d₃

6.5

d₄

5.85

d₅ ±0.04

6

l₁

15.0

l₂ ≈

1.0

l₃ ≈

2.3

l₄ ≈

8.2

Spring load F₁ ≈ N

28.0

Spring load F₂ ≈ N

47.5

Stroke s₁

1.7

Weight g

2.0

£ 2.54 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1108

d₁ +0.10|+0.04

8

d₂

6.5

d₃

8.5

d₄

7.55

d₅ ±0.04

8

l₁

18.0

l₂ ≈

1.1

l₃ ≈

2.9

l₄ ≈

9.5

Spring load F₁ ≈ N

40.0

Spring load F₂ ≈ N

67.3

Stroke s₁

2.3

Weight g

4.0

£ 2.67 per unit (click for quantity discounts)

Spring Plunger - ball smooth s/steel F

32284.W1110

d₁ +0.10|+0.04

10

d₂

8.5

d₃

11.0

d₄

9.55

d₅ ±0.04

10

l₁

26.0

l₂ ≈

1.5

l₃ ≈

4.2

l₄ ≈

14.3

Spring load F₁ ≈ N

66.0

Spring load F₂ ≈ N

105.0

Stroke s₁

3.1

Weight g

8.0

£ 2.99 per unit (click for quantity discounts)



Select all

d₁ +0.10|+0.04

d₂

d₃

d₄

d₅ ±0.04

l₁

l₂ ≈

l₃ ≈

l₄ ≈

Spring load F₁ ≈ N

Spring load F₂ ≈ N

Stroke s₁

Weight g

Price & Availability	Article	d1 +0.10|+0.04	d2	d3	d4	d5 ±0.04	l1	l2 ≈	l3 ≈	l4 ≈	Spring load F1 ≈ N	Spring load F2 ≈ N	Stroke s1	Weight g
	32284.W1104	4	3.0	4.6	3.85	4	10.7	0.9	1.8	5.6	12.9	19.0	0.9	0.6
£ 2.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.36 0% 20-49 £ 2.12 10% 50-99 £ 2.01 15% 100-499 £ 1.77 25% 500+ £ 1.53 35% d1 +0.10|+0.04 4 d2 3.0 d3 4.6 d4 3.85 d5 ±0.04 4 l1 10.7 l2 ≈ 0.9 l3 ≈ 1.8 l4 ≈ 5.6 Spring load F1 ≈ N 12.9 Spring load F2 ≈ N 19.0 Stroke s1 0.9 Weight g 0.6 more info »
	32284.W1105	5	4.0	5.6	4.85	5	12.0	0.9	2.1	6.0	19.3	29.2	1.3	1.0
£ 2.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.42 0% 20-49 £ 2.18 10% 50-99 £ 2.06 15% 100-499 £ 1.82 25% 500+ £ 1.57 35% d1 +0.10|+0.04 5 d2 4.0 d3 5.6 d4 4.85 d5 ±0.04 5 l1 12.0 l2 ≈ 0.9 l3 ≈ 2.1 l4 ≈ 6.0 Spring load F1 ≈ N 19.3 Spring load F2 ≈ N 29.2 Stroke s1 1.3 Weight g 1.0 more info »
	32284.W1106	6	5.0	6.5	5.85	6	15.0	1.0	2.3	8.2	28.0	47.5	1.7	2.0
£ 2.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.54 0% 20-49 £ 2.29 10% 50-99 £ 2.16 15% 100-499 £ 1.91 25% 500+ £ 1.65 35% d1 +0.10|+0.04 6 d2 5.0 d3 6.5 d4 5.85 d5 ±0.04 6 l1 15.0 l2 ≈ 1.0 l3 ≈ 2.3 l4 ≈ 8.2 Spring load F1 ≈ N 28.0 Spring load F2 ≈ N 47.5 Stroke s1 1.7 Weight g 2.0 more info »
	32284.W1108	8	6.5	8.5	7.55	8	18.0	1.1	2.9	9.5	40.0	67.3	2.3	4.0
£ 2.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.67 0% 20-49 £ 2.40 10% 50-99 £ 2.27 15% 100-499 £ 2.00 25% 500+ £ 1.74 35% d1 +0.10|+0.04 8 d2 6.5 d3 8.5 d4 7.55 d5 ±0.04 8 l1 18.0 l2 ≈ 1.1 l3 ≈ 2.9 l4 ≈ 9.5 Spring load F1 ≈ N 40.0 Spring load F2 ≈ N 67.3 Stroke s1 2.3 Weight g 4.0 more info »
	32284.W1110	10	8.5	11.0	9.55	10	26.0	1.5	4.2	14.3	66.0	105.0	3.1	8.0
£ 2.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.99 0% 20-49 £ 2.69 10% 50-99 £ 2.54 15% 100-499 £ 2.24 25% 500+ £ 1.94 35% d1 +0.10|+0.04 10 d2 8.5 d3 11.0 d4 9.55 d5 ±0.04 10 l1 26.0 l2 ≈ 1.5 l3 ≈ 4.2 l4 ≈ 14.3 Spring load F1 ≈ N 66.0 Spring load F2 ≈ N 105.0 Stroke s1 3.1 Weight g 8.0 more info »
